| Ref no. |
|
Name |
Description |
Code |
|
1 |
|

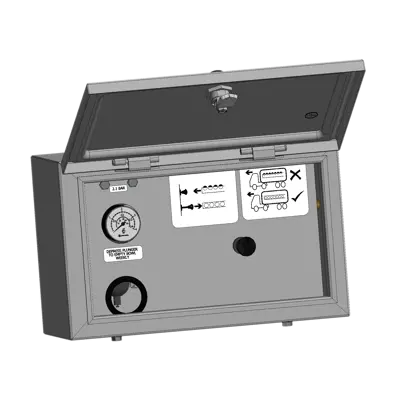

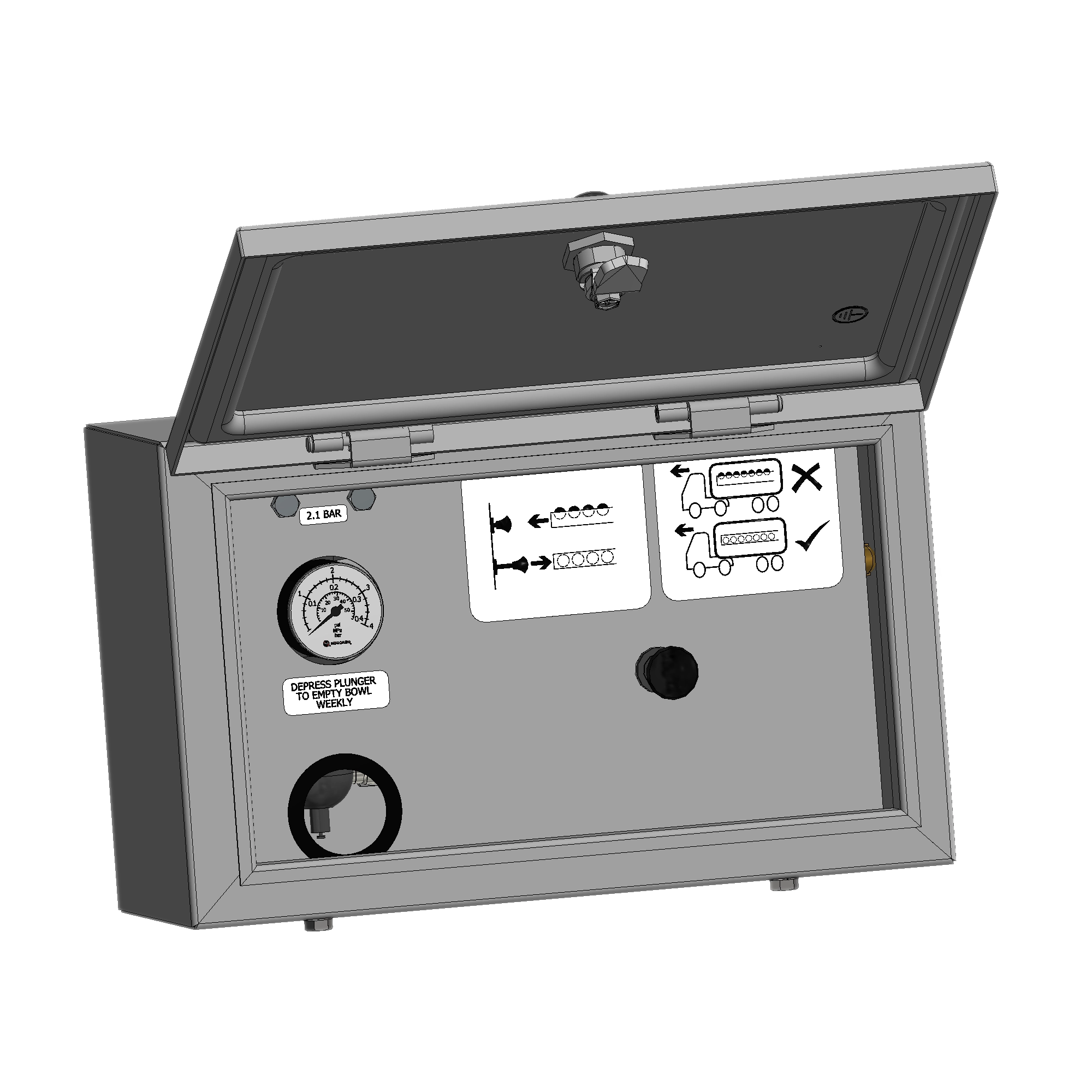

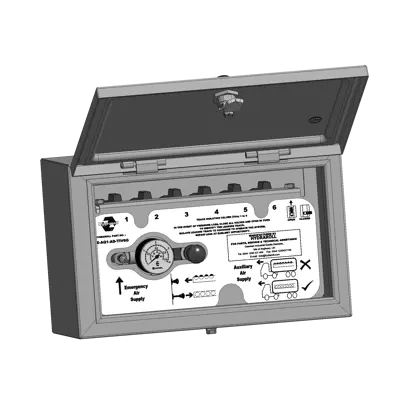

Control Box Complete
|
AQ1; Stainless Steel Control Box Complete; Autodown |
771050 |
|

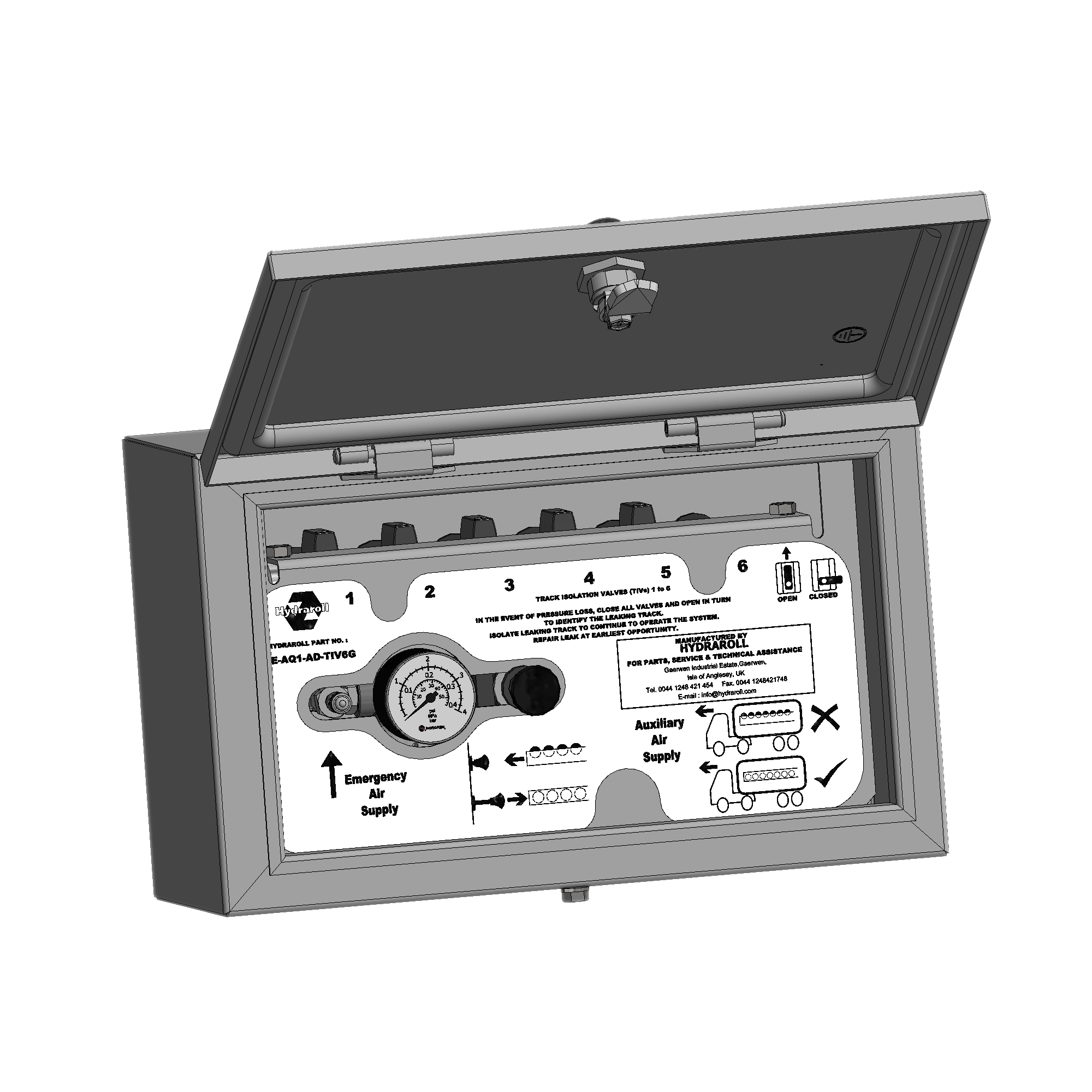

2 |
|

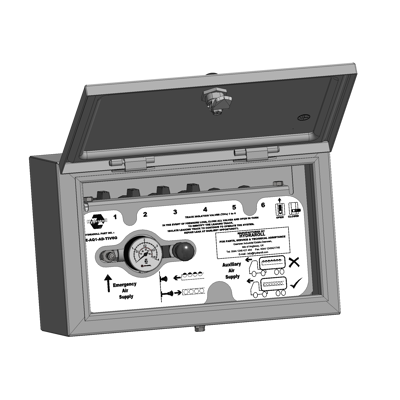

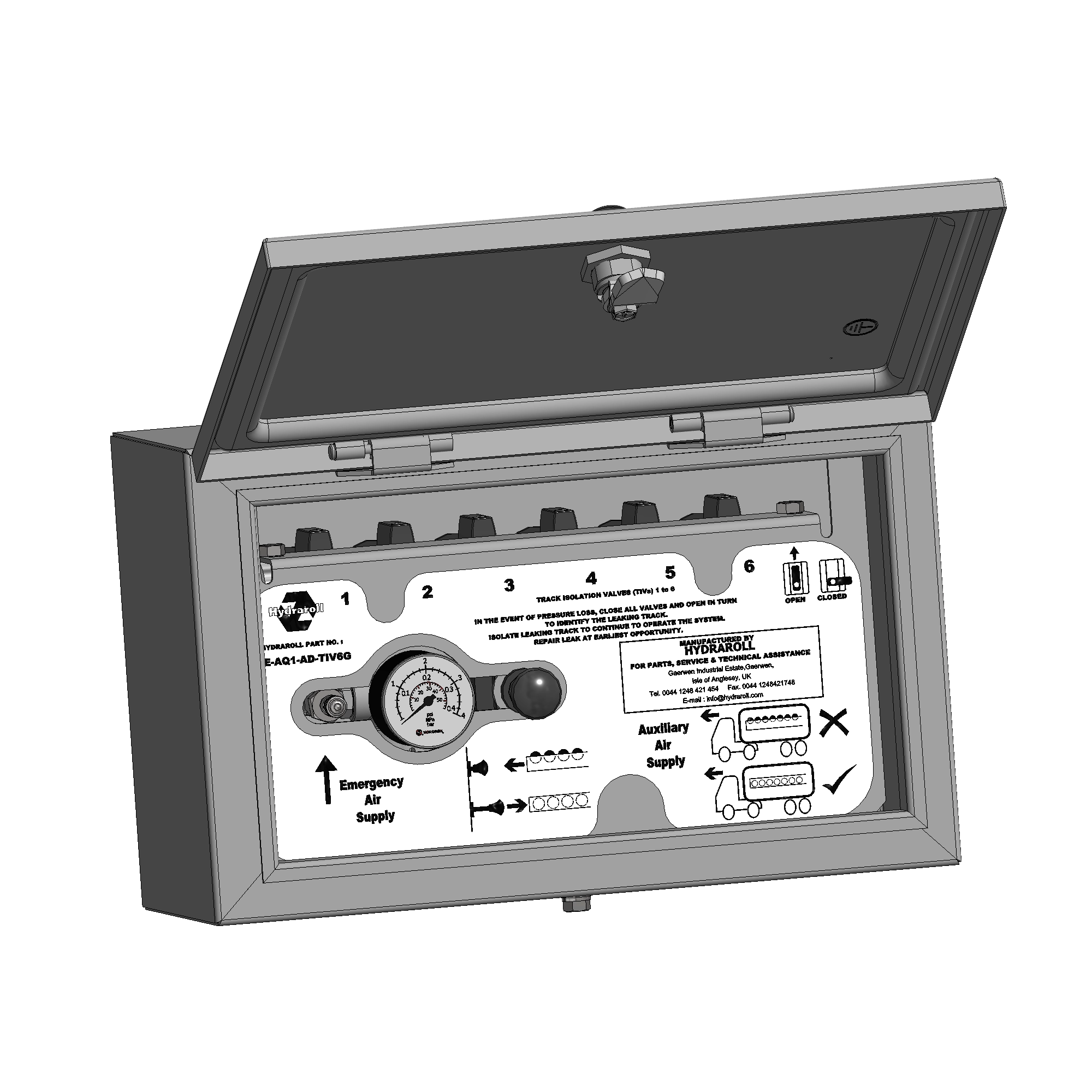

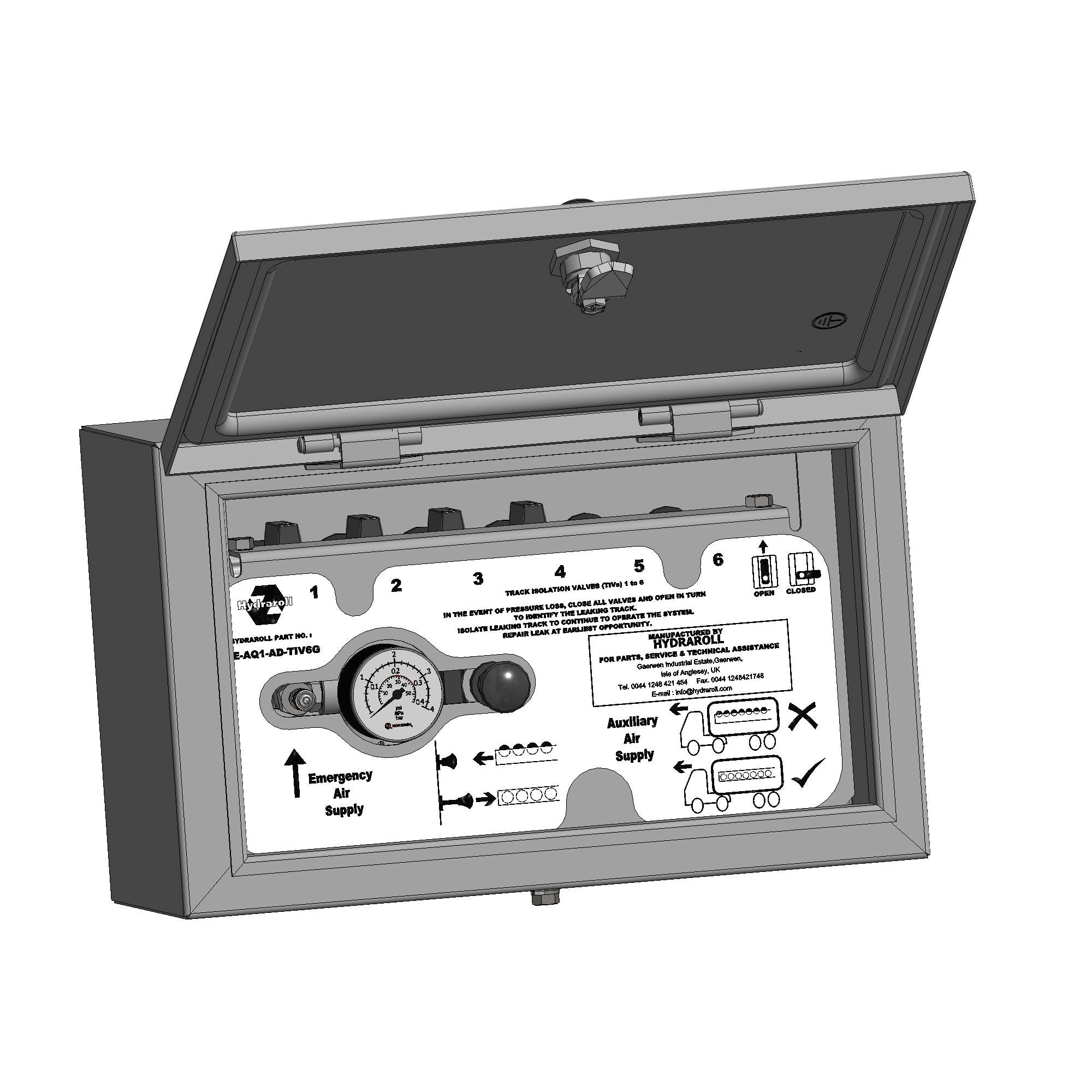

Control Box Complete (with TIV and AIV)
|
AQ1; Stainless Steel Control Box Complete;
Autodown; with TIV and AIV;
5 Ports |
771116 |
|
3 |
|

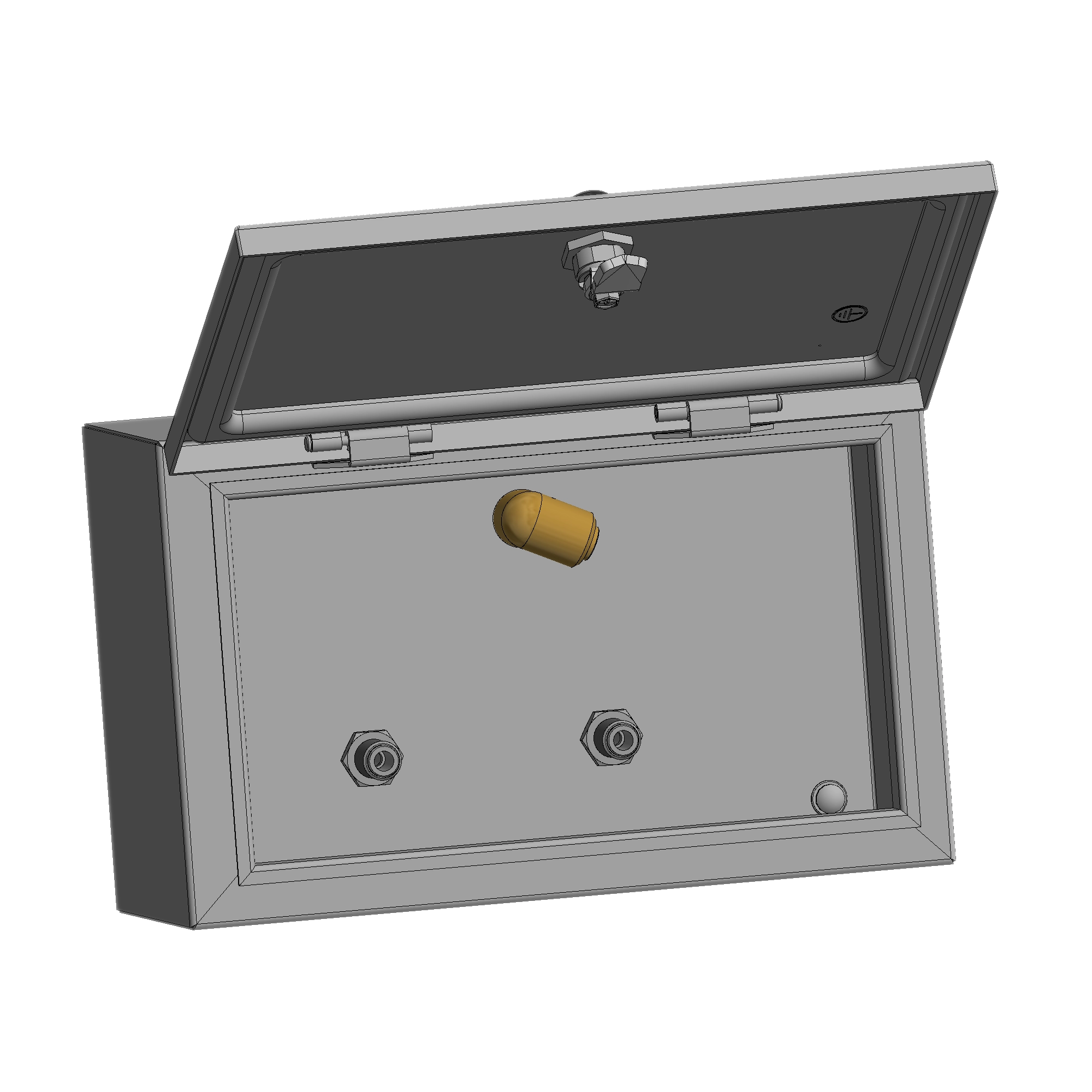

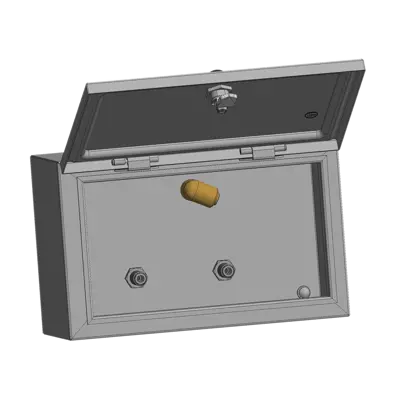

Control Box Enclosure (includes Bulkhead Fittings)
|
AQ1; Stainless Steel Control Box Enclosure;
(Includes Bulkhead Fittings) |
771049 |
|
4 |
|

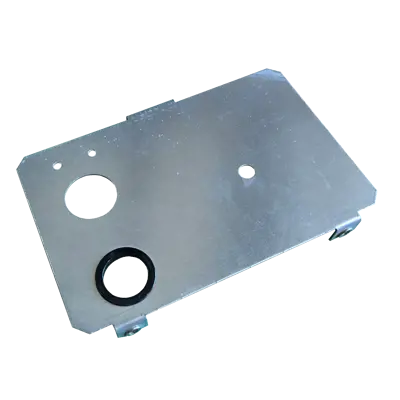

Face Plate
|

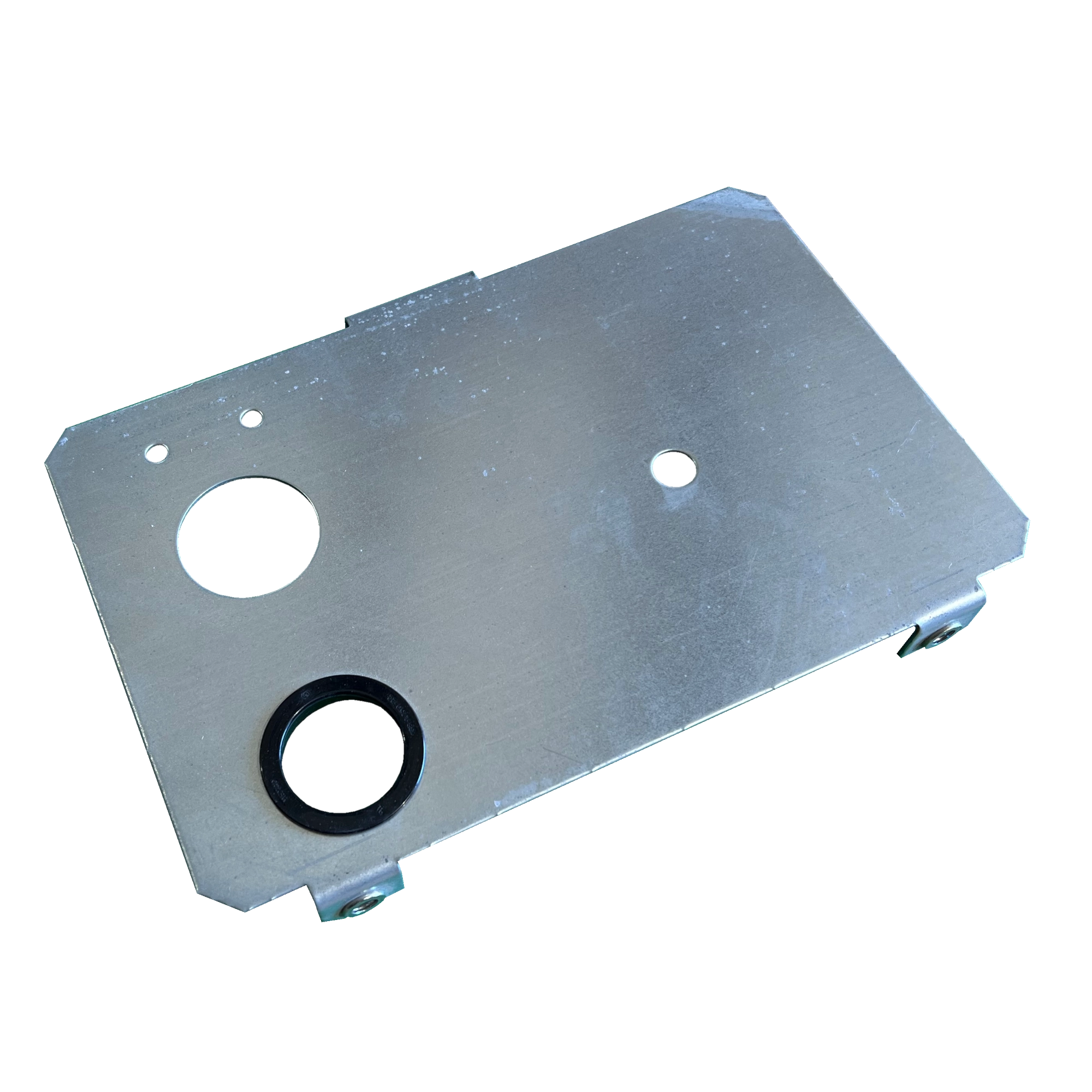

AQ1; Stainless Steel Face Plate |
771047 |
|
5 |
|

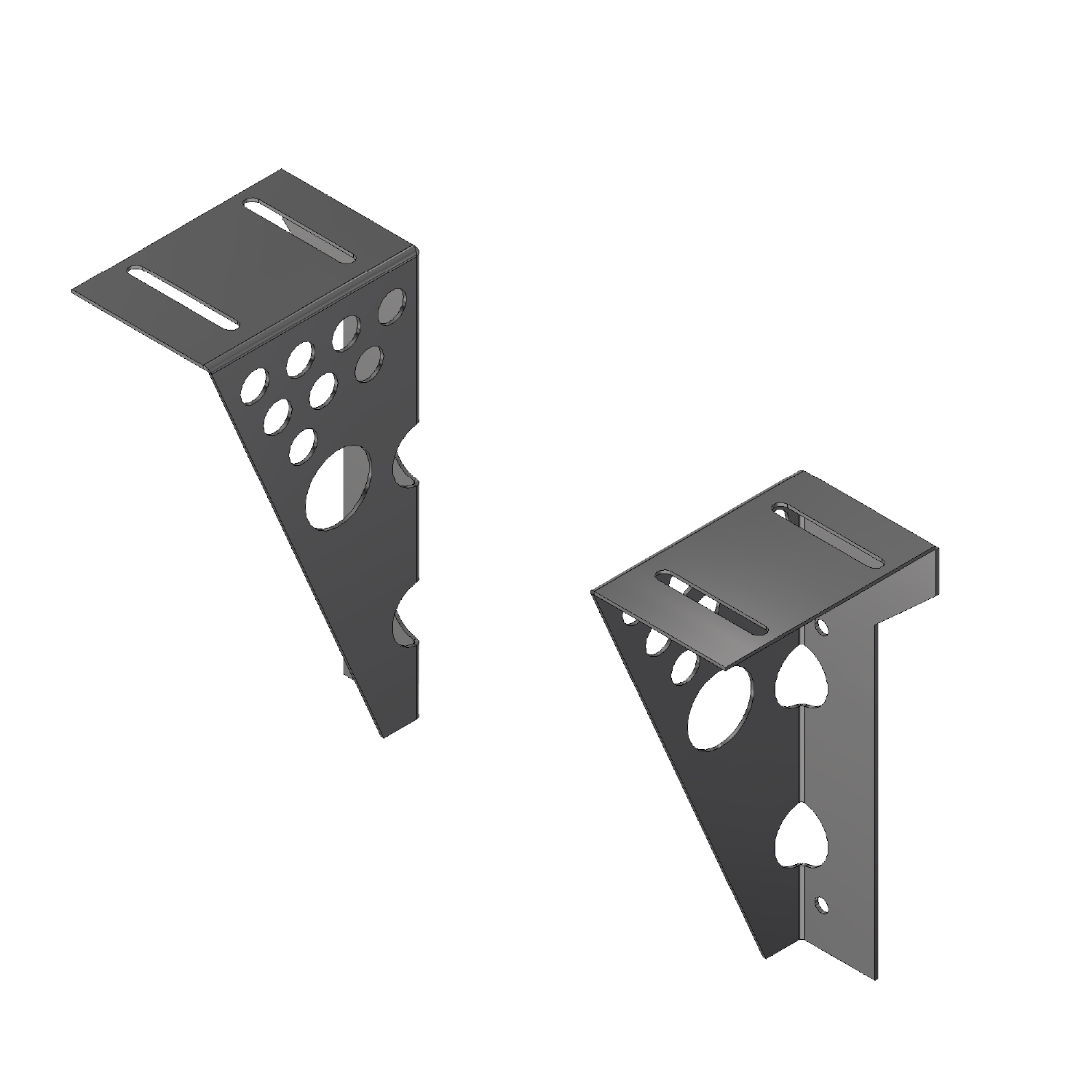

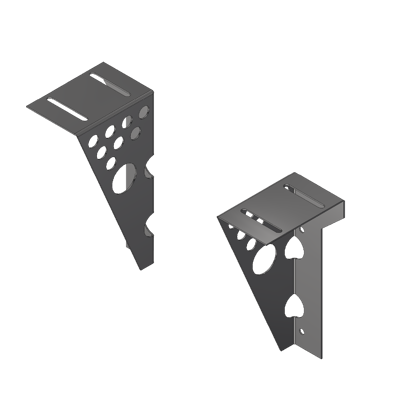

Mounting Brackets
|
Control Box Mounting Brackets;
(Stainless Steel 2 Piece);
For AQ1 / AQ2 Box with TIV / AIV |
711009 |
|

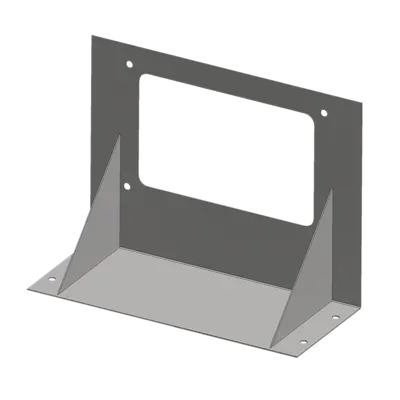

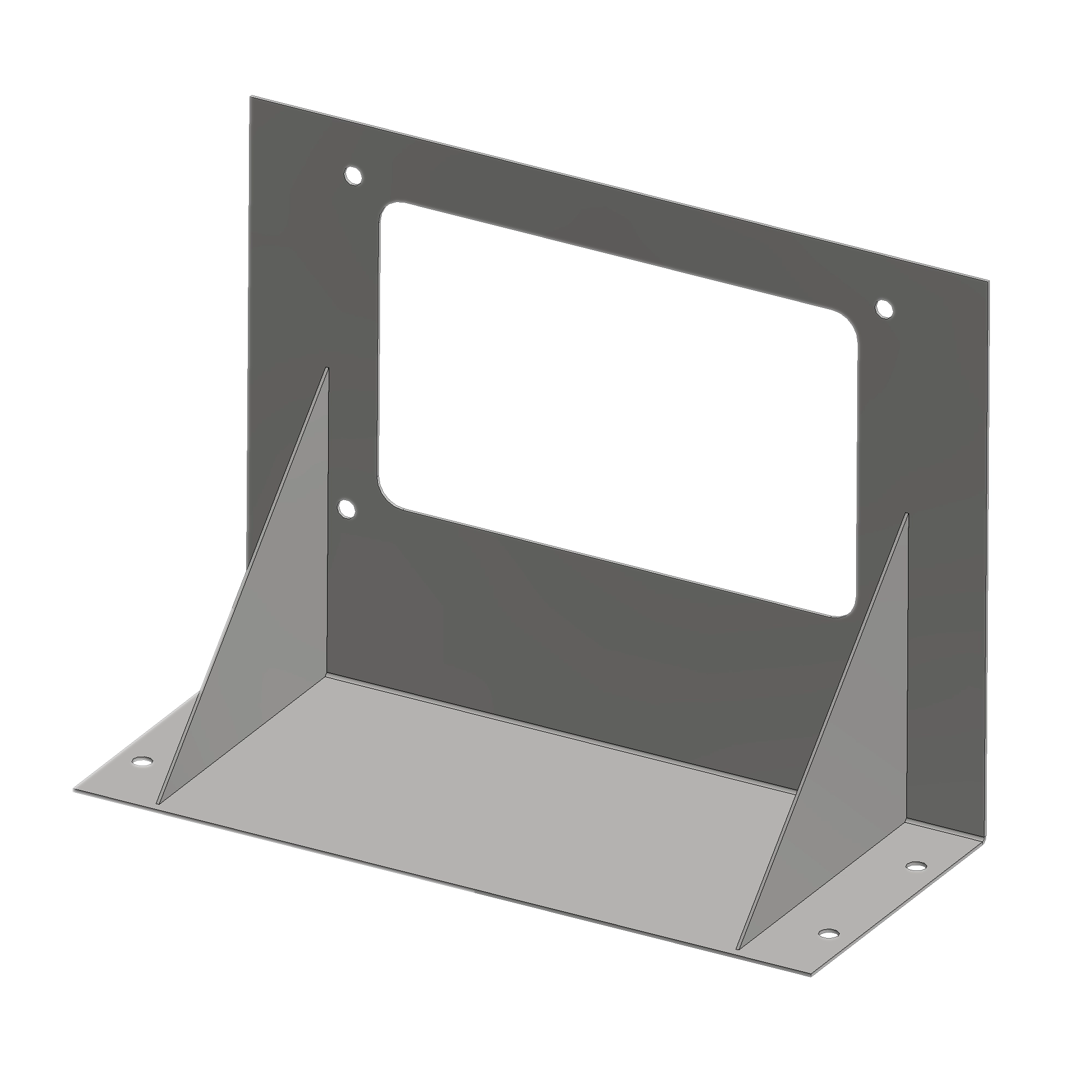

6 |
|
Control Box Mounting Bracket
|
Control Box Mounting Bracket (Stainless Steel);
For AQ1 / AQ2 Control Box without TIV / AIV |
711000 |
|
7 |
|

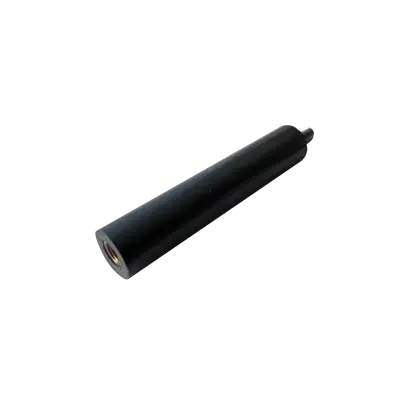

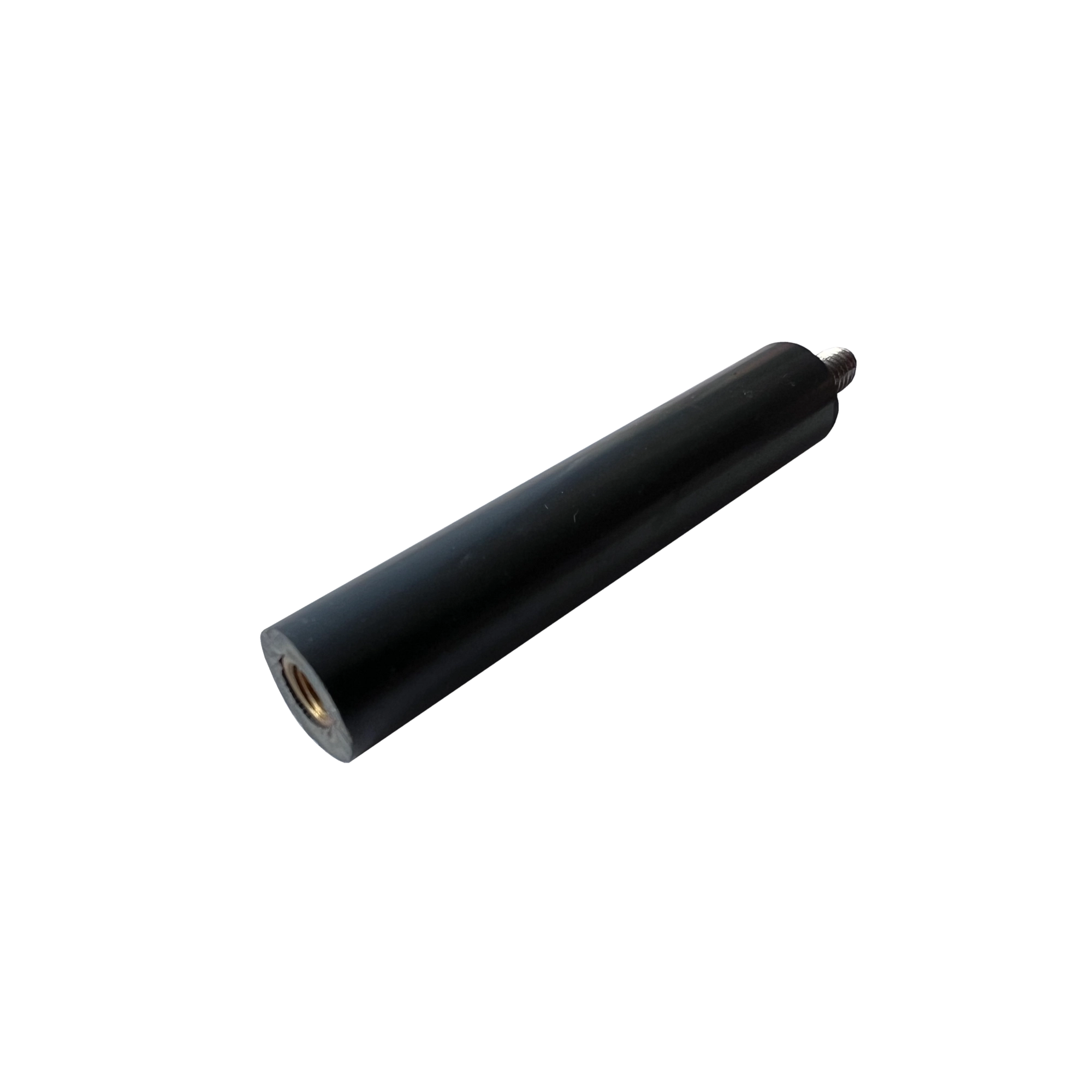

Pillar
|
Pillar; Face Plate Mounting |
771043 |
|
8 |
|

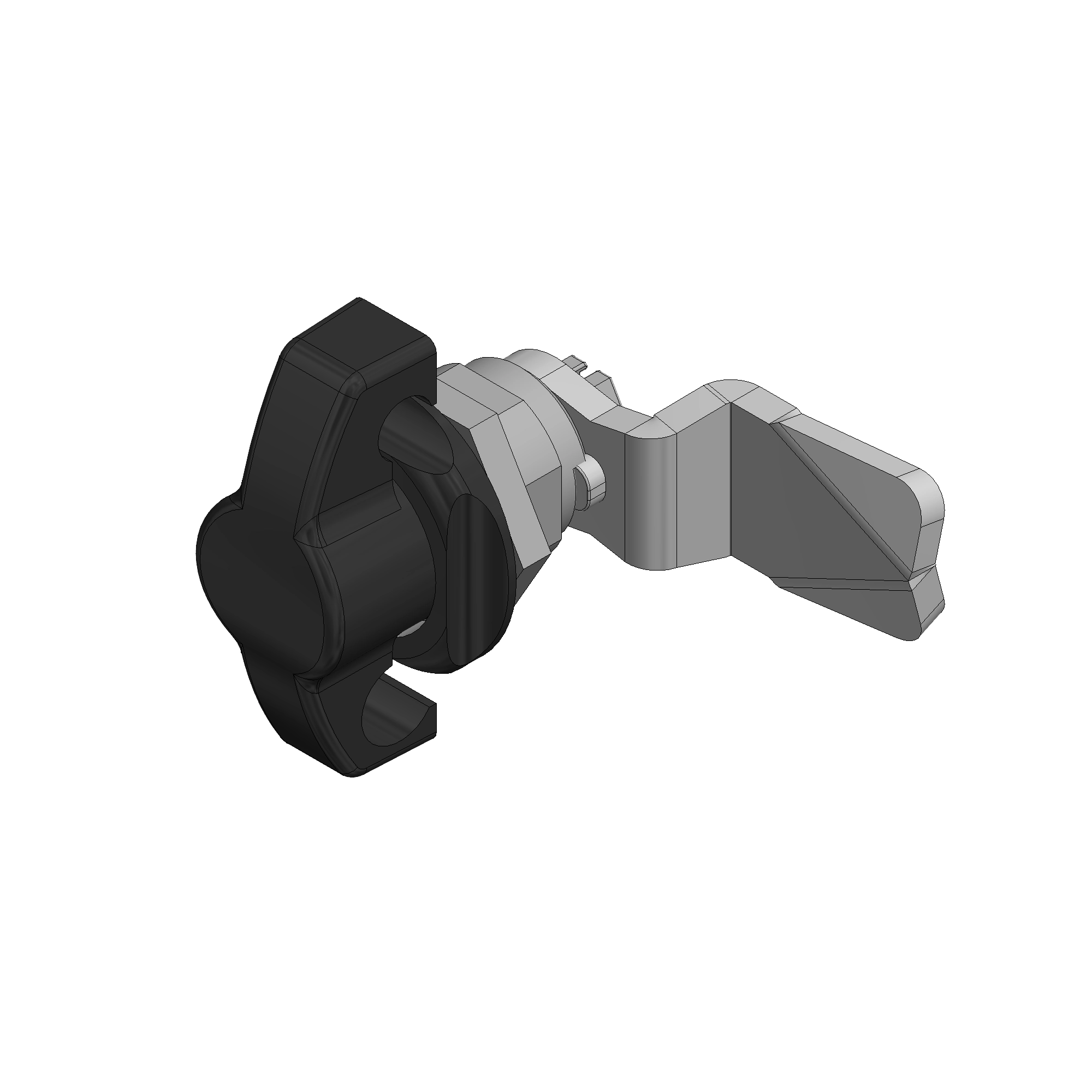

Tee Handle Assy - Plastic
|
Tee Handle Assy; Plastic / Stainless Steel;
For Control Box |
771045P |
|
9 |
|

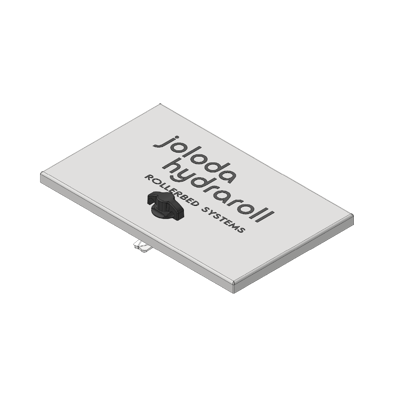

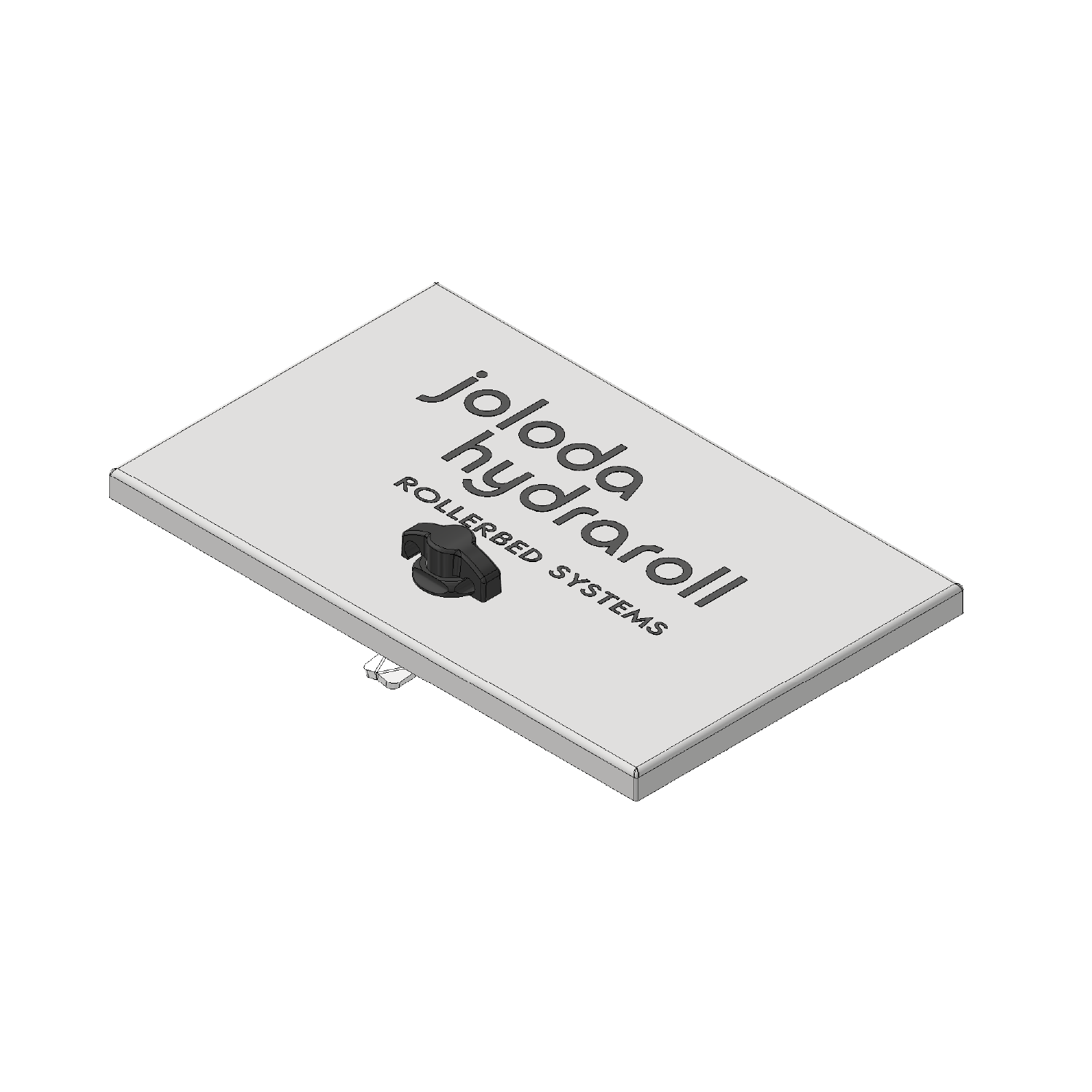

Lid for Control Box
|
Lid; Control Box; w/ Hinge w/ Latch; S/S |
771068 |
|
10 |
|

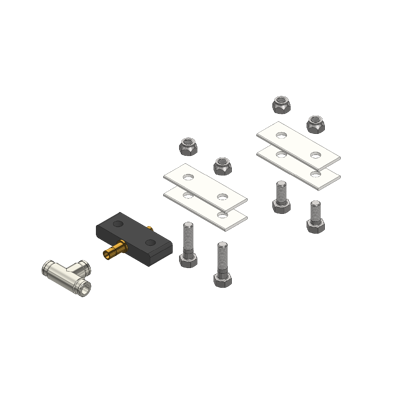

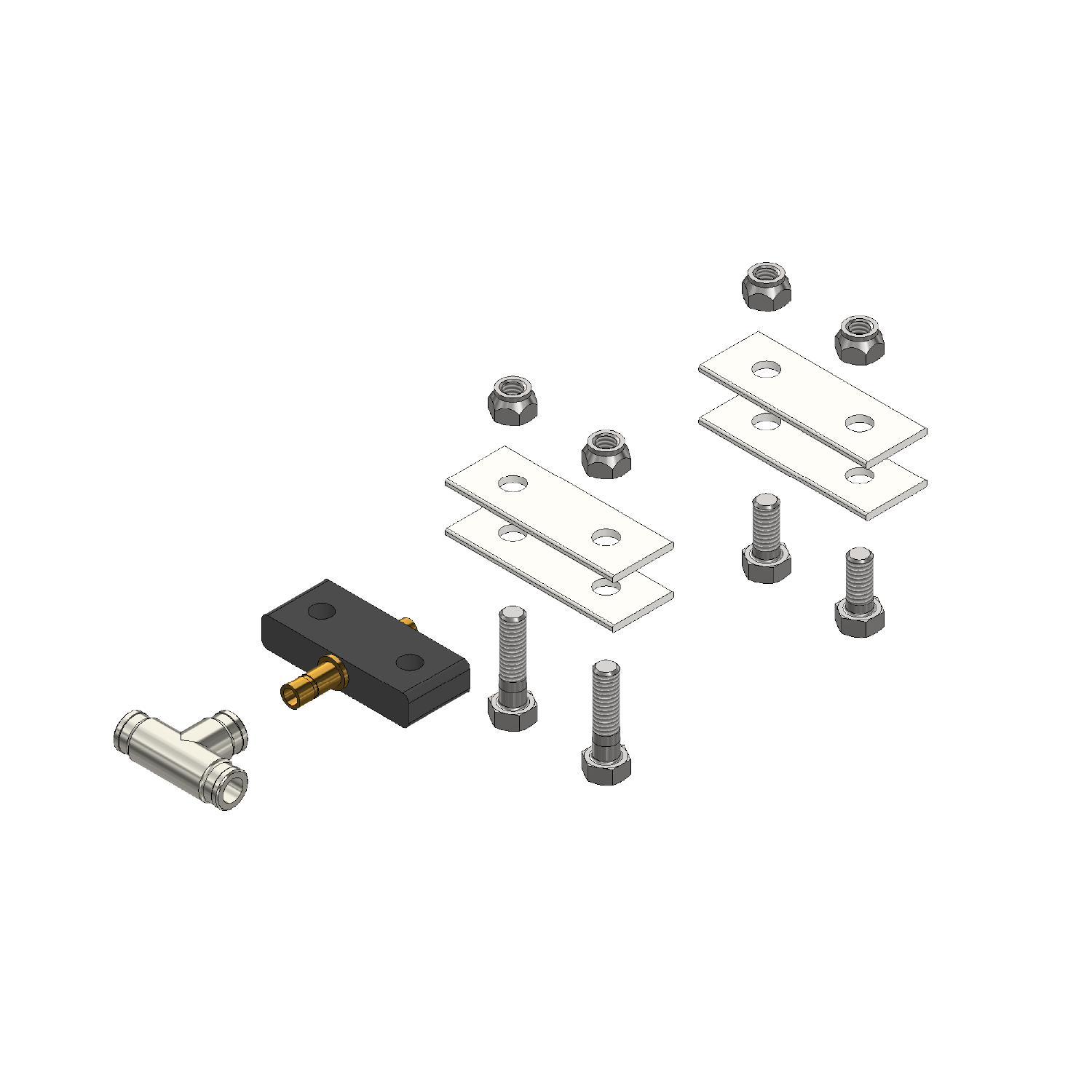

Air Bag Clamp Kit
|
2.5” Hydraroll Air Bag Clamp Kit with 5/16" Tee |
762001 |
|
11 |
|

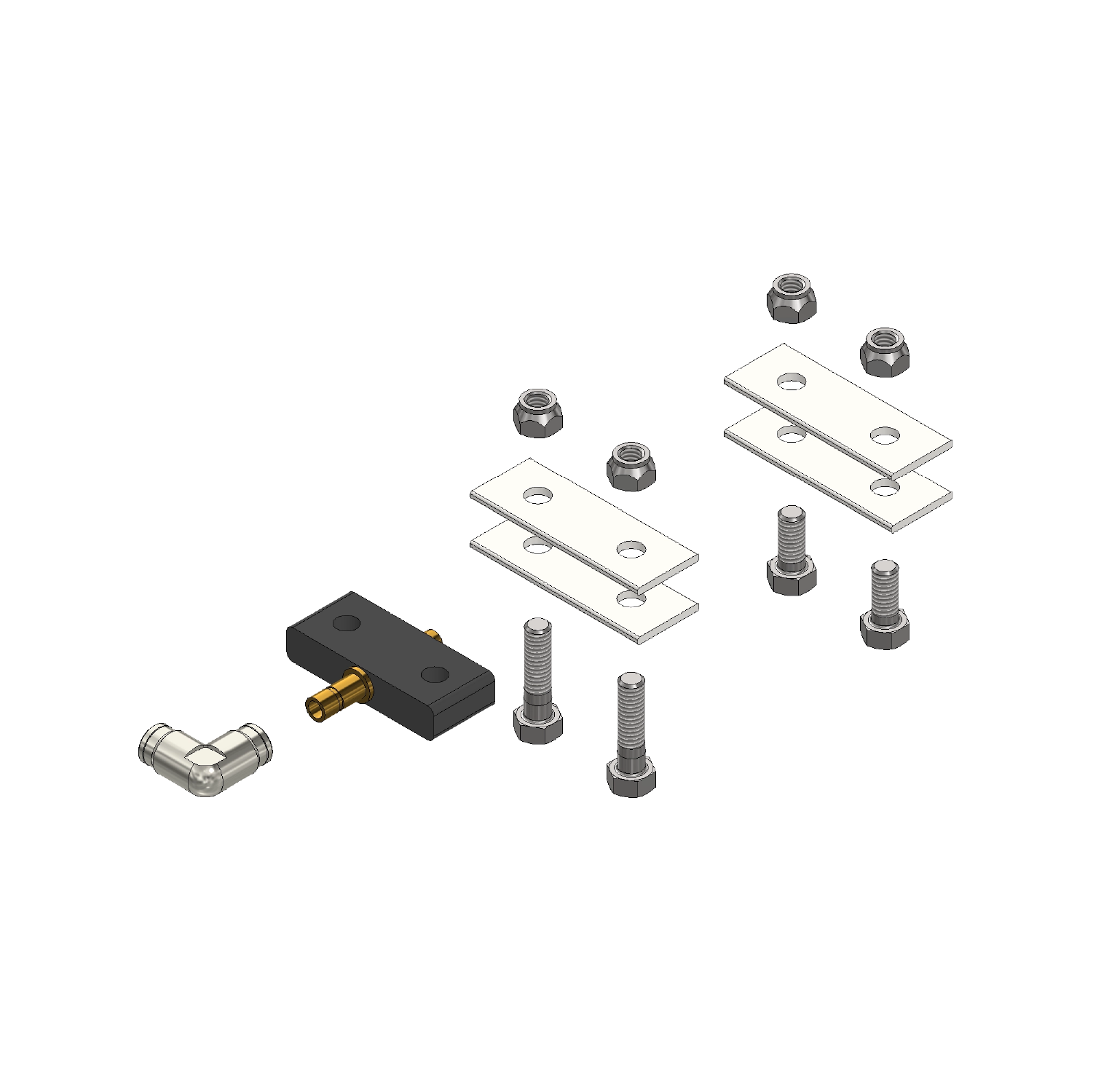

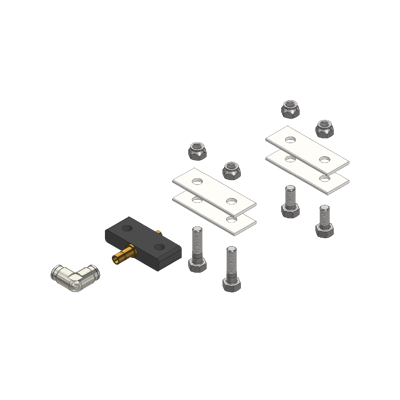

Air Bag Clamp Kit
|
2.5” Hydraroll Air Bag Clamp Kit with 5/16" Elbow |
762004 |
|
12 |
|

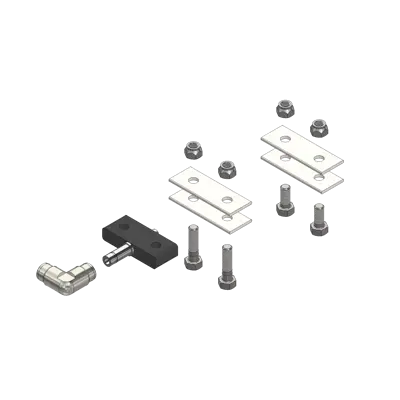

Air Bag Clamp Kit
|

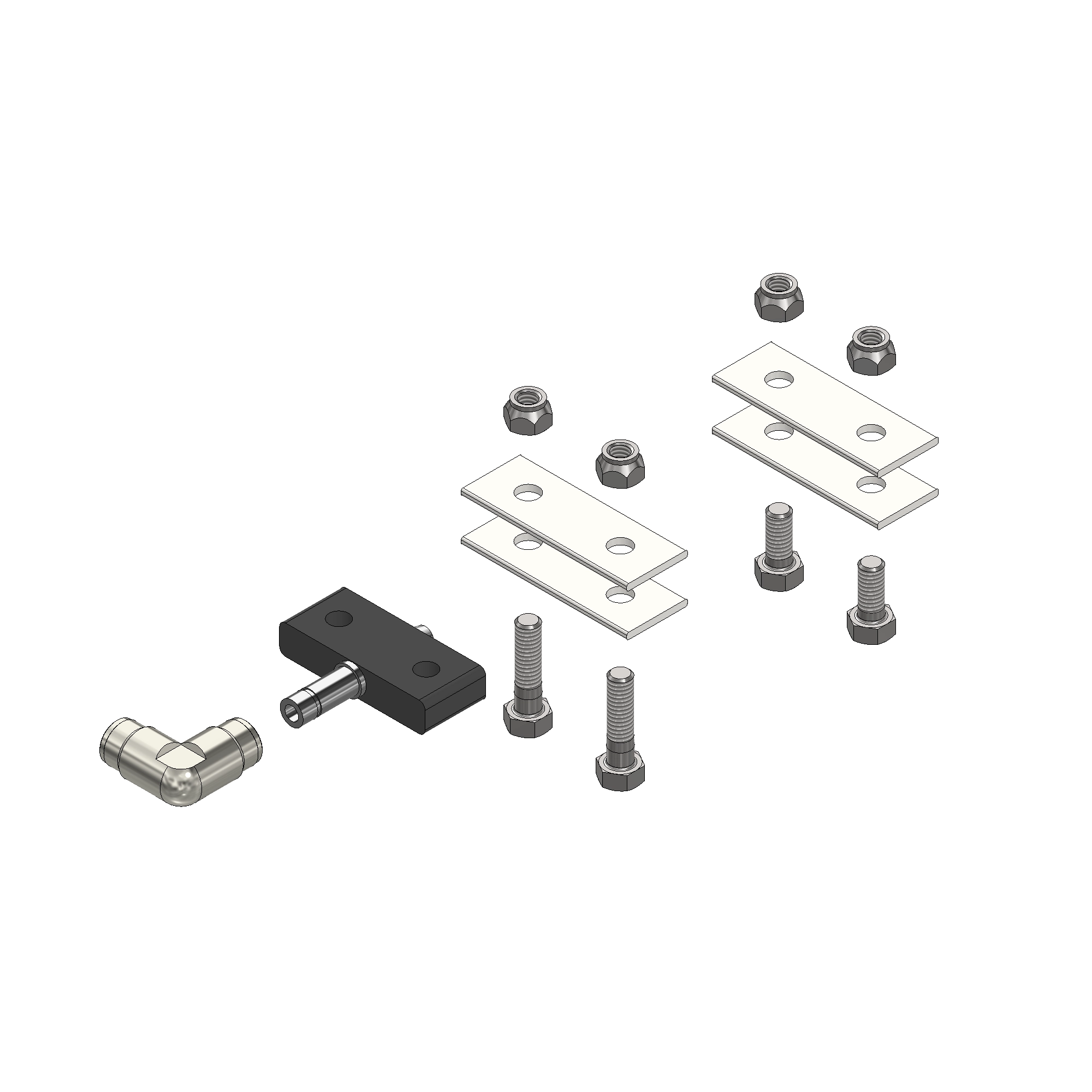

2.5” Hydraroll Air Bag Clamp Kit with 3/8" Elbow |
762005 |
|
13 |
|

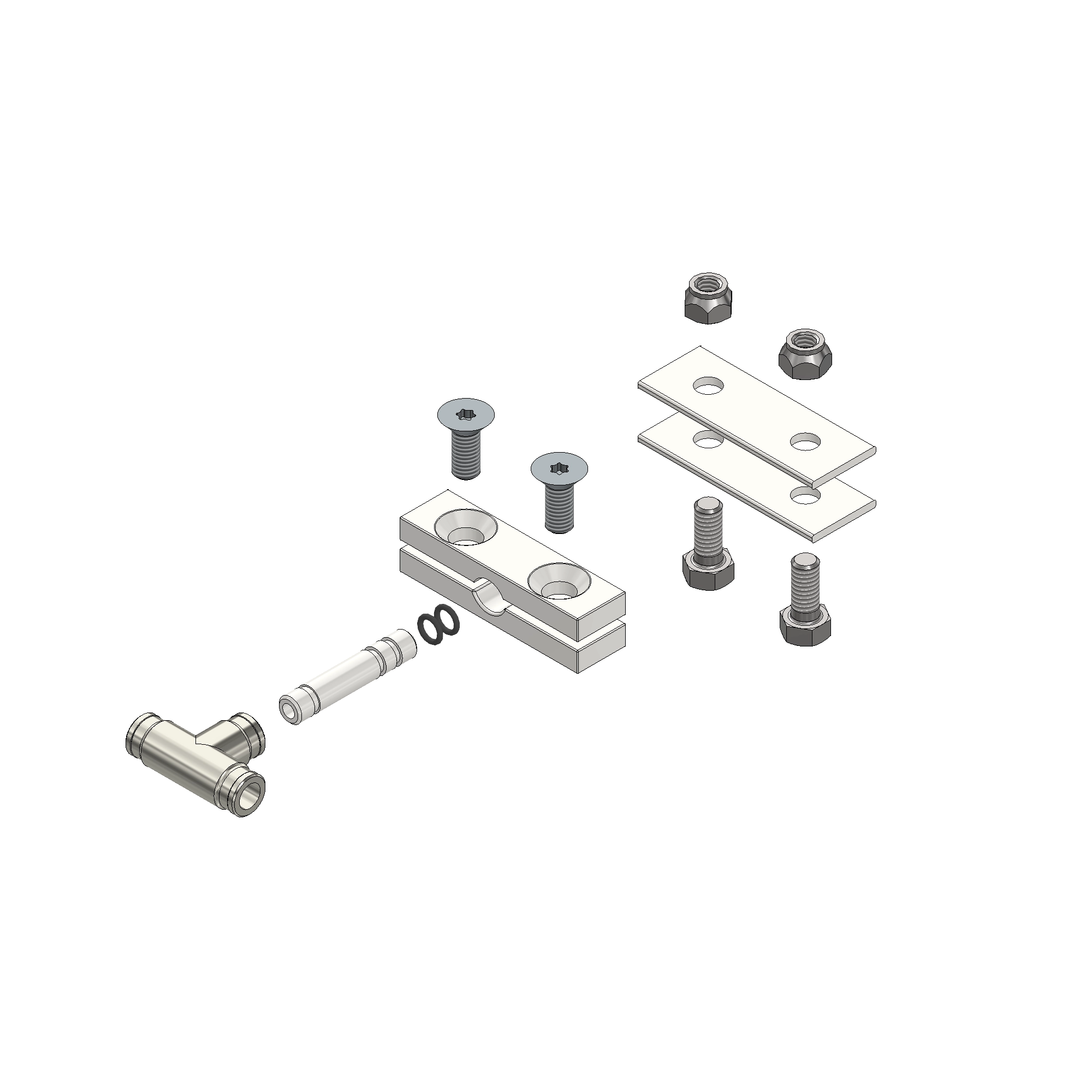

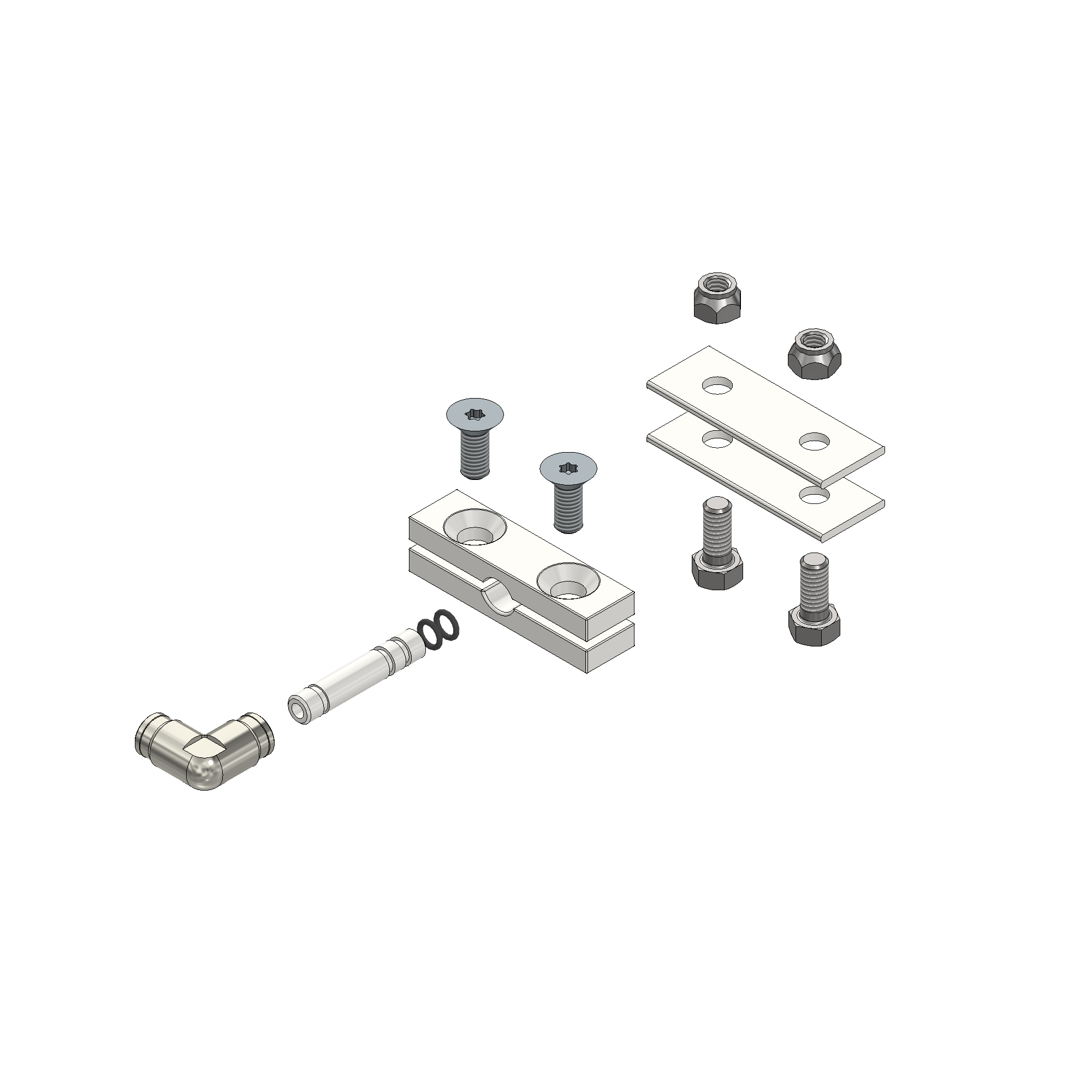

Air Bag Clamp Kit
|
2.5” AHS Air Bag Clamp Kit with 5/16” Tee |
762013 |
|
14 |
|

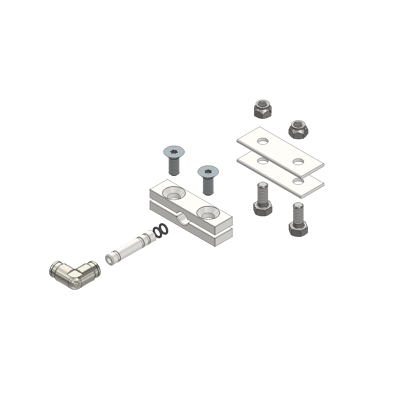

Air Bag Clamp Kit
|
2.5” AHS Air Bag Clamp Kit with 5/16” Elbow |
762014 |
|
15 |
|

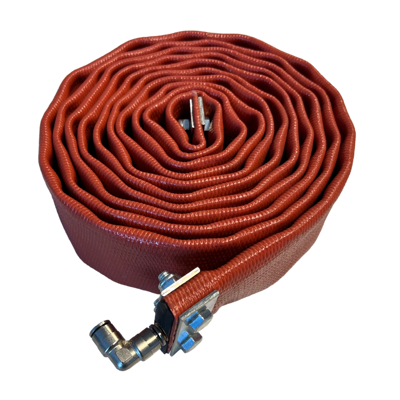

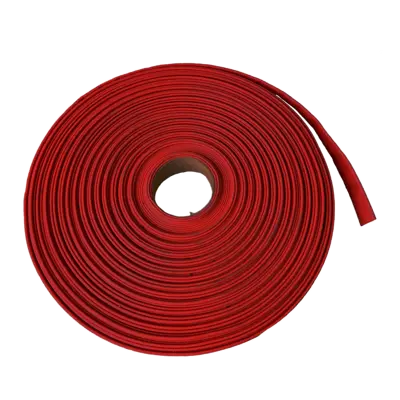

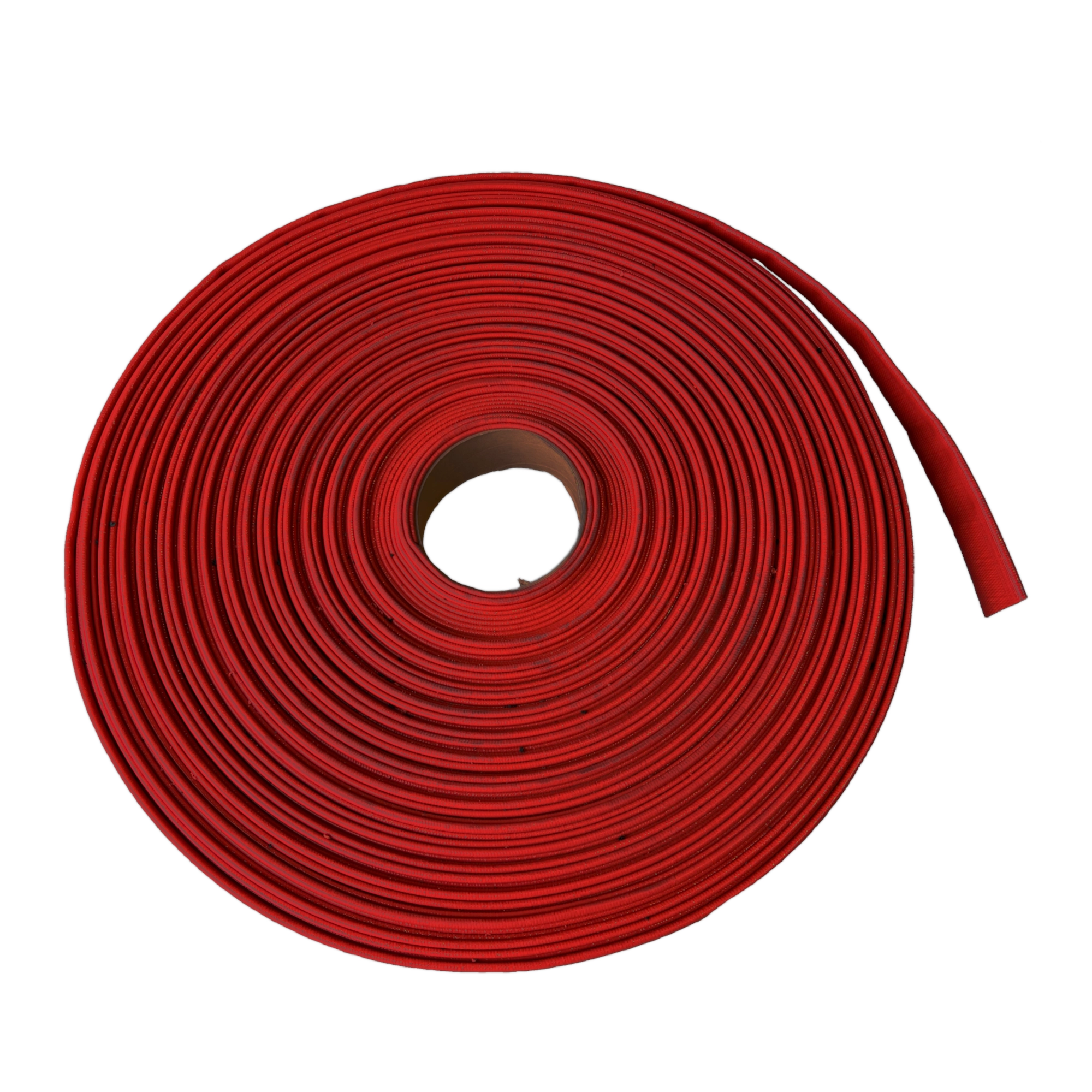

Air Bag
|
Air Bag; 2.5" Flat; Red;
Roll Form; (300 Ft Roll);
For In-house Air Bag Assembly |
760006 |
|

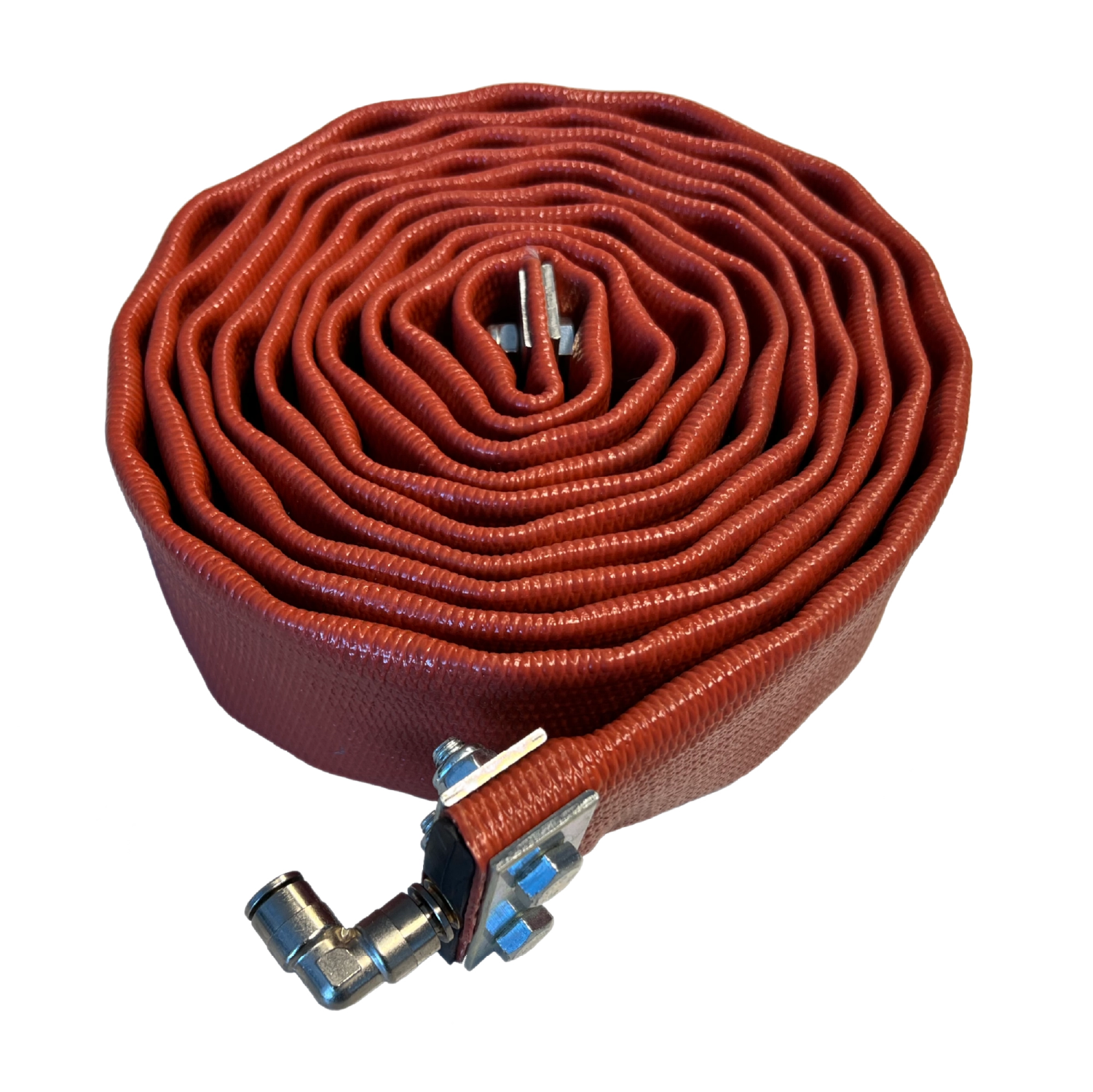

16 |
|
Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 13’ 2” Module with 5/16” Push-In Elbow;
Red |
760018 |
|
17 |
|

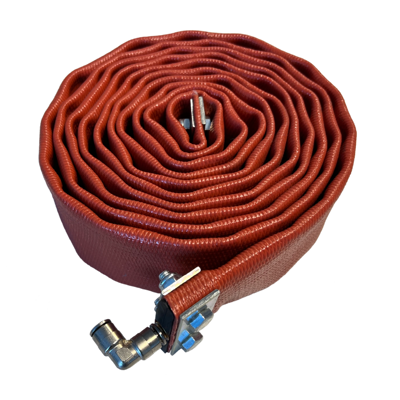

Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 13’ 0" Module with 5/16” Push-In Elbow;
Red |
760057 |
|
18 |
|
Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 11’ 6" Module with 5/16” Push-In Elbow;
Red |
760025 |
|
19 |
|

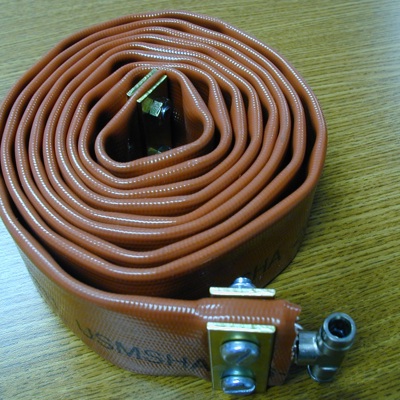

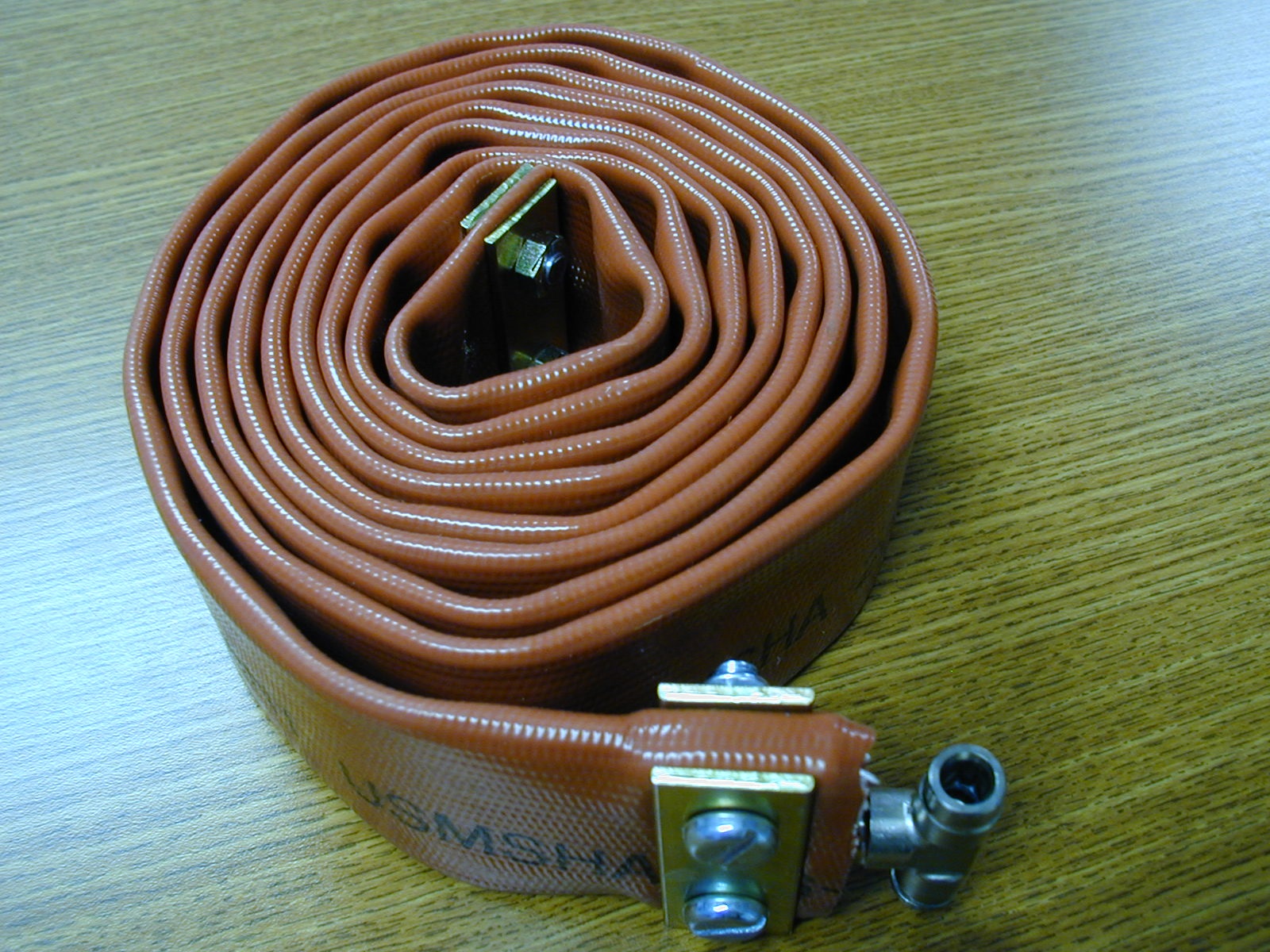

Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 11’ 6" Module with 5/16” Push-In Tee;
Red |
760009 |
|
20 |
|

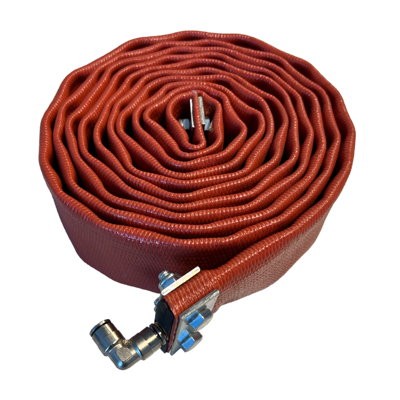

Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 10’ 6" Module with 5/16” Push-In Elbow;
Red |
760060 |
|
21 |
|
Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 10’ 6” Module with 5/16” Push-In Tee;
Red |
760008 |
|
22 |
|

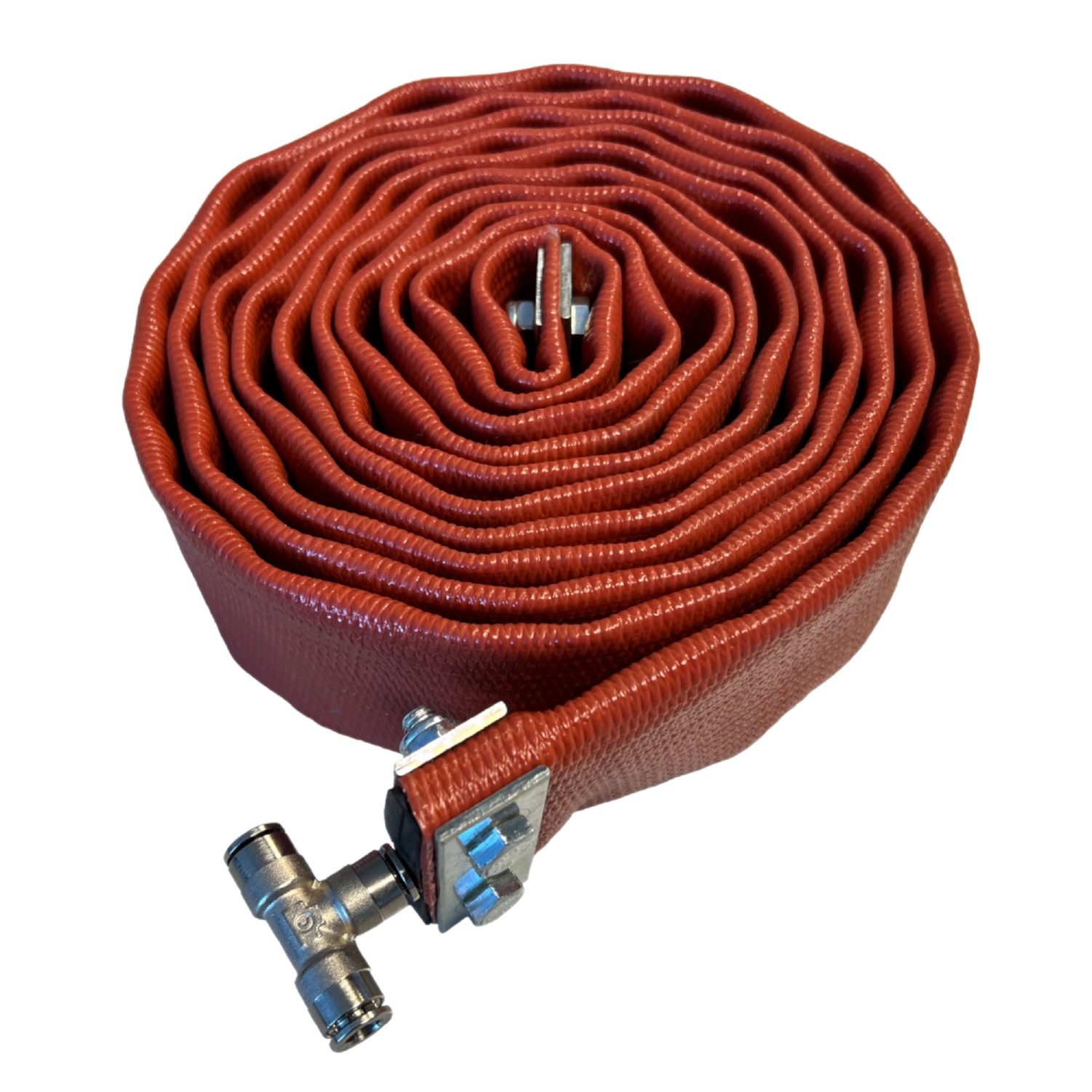

Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 9’ 0" Module with 5/16” Push-In Tee;
Red |
760004 |
|
23 |
|

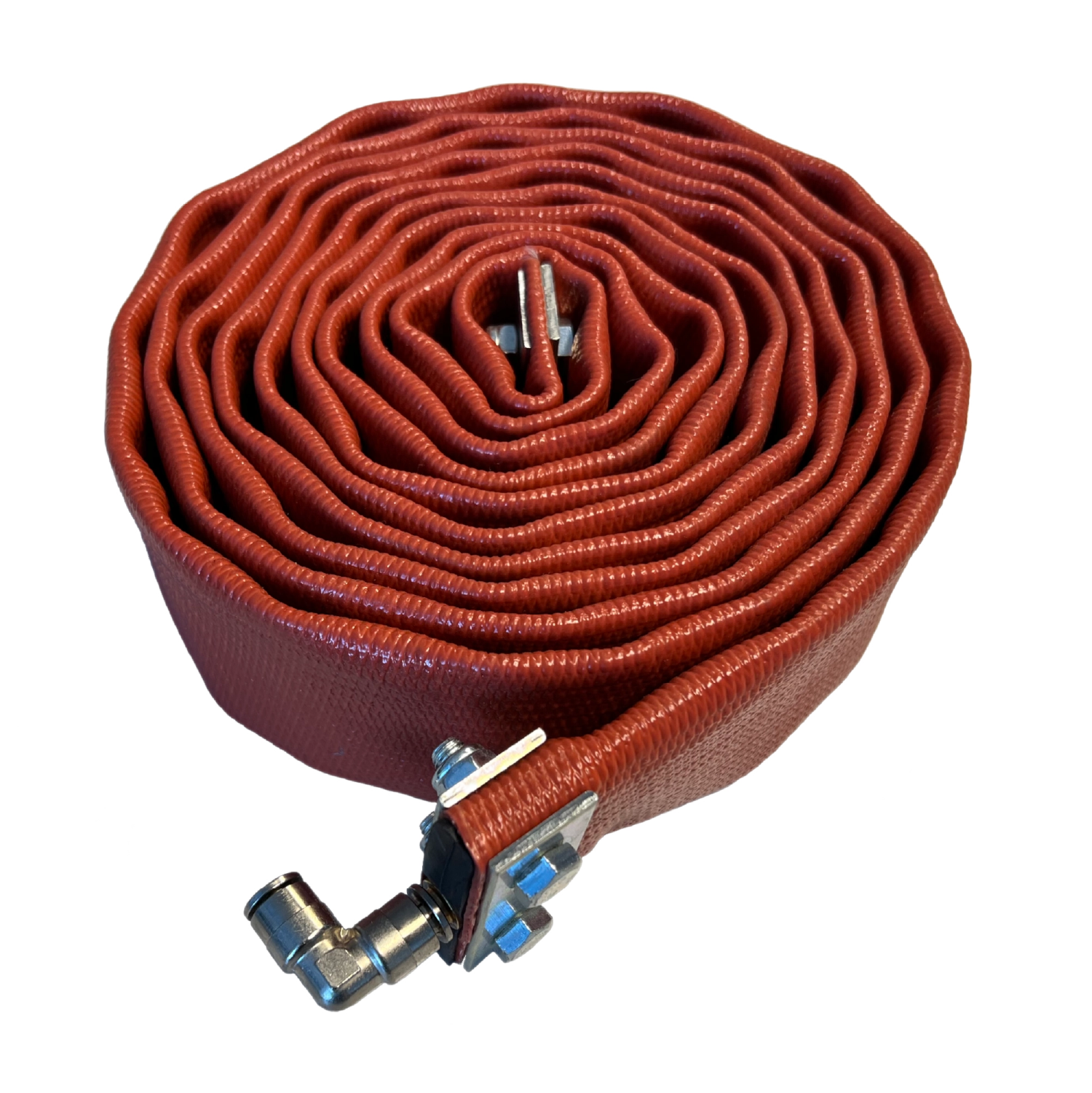

Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 9’ 0" Module with 5/16” Push-In Elbow;
Red |
760055 |
|
24 |
|

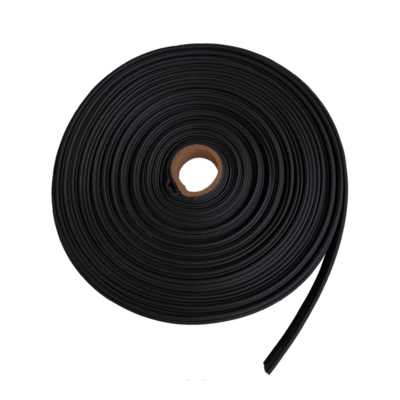

Air Bag Heavy Duty
|

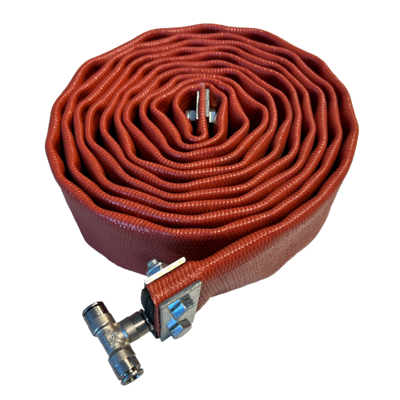

Air Bag; 2.5" Flat; Black, Heavy Duty;
Roll Form; (200 Ft Roll);
For In-house Air Bag Assembly |
760030 |
|
25 |
|

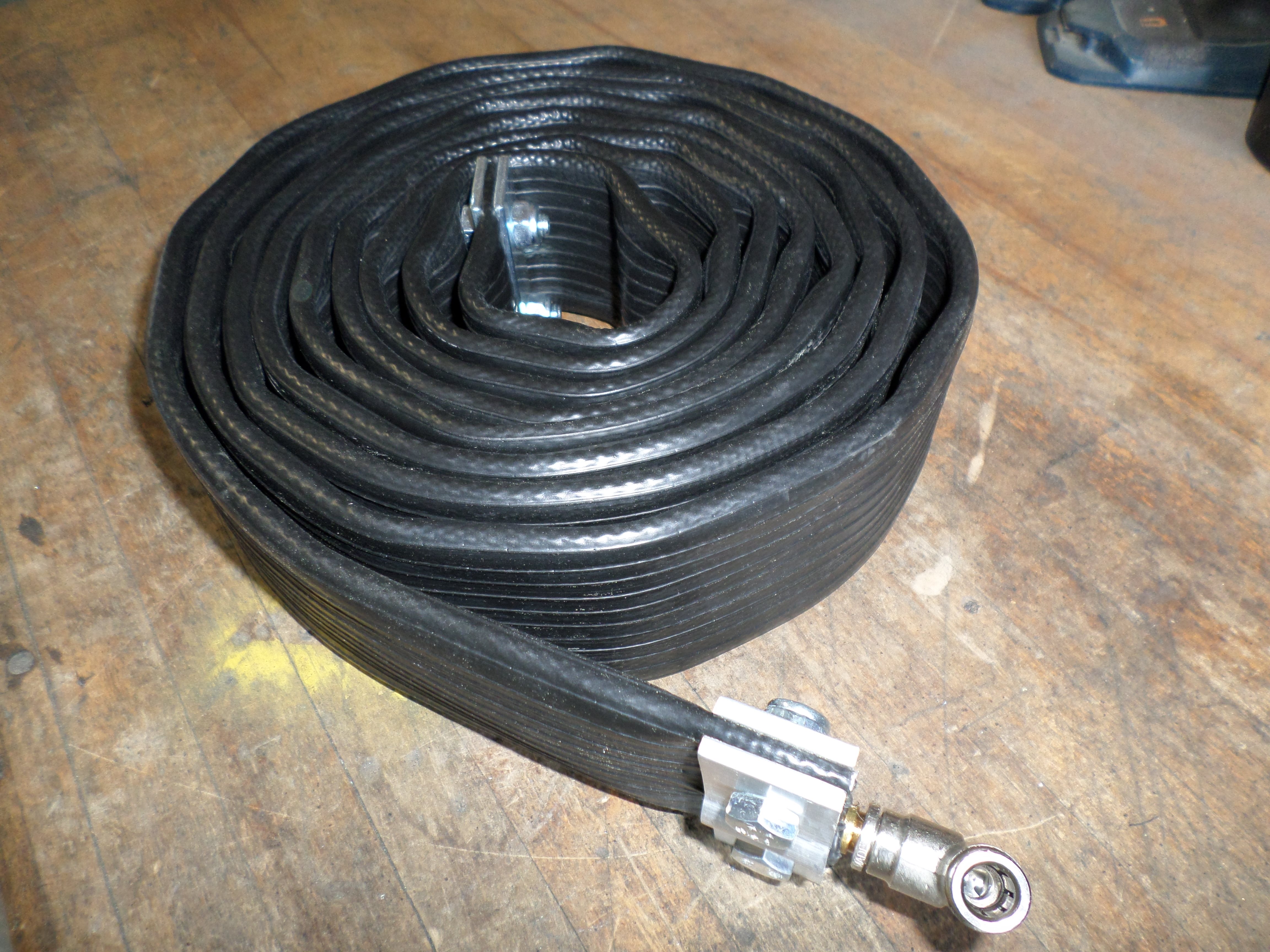

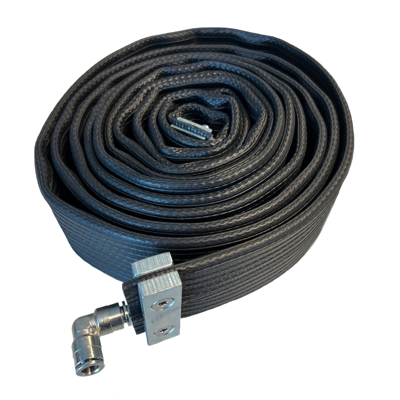

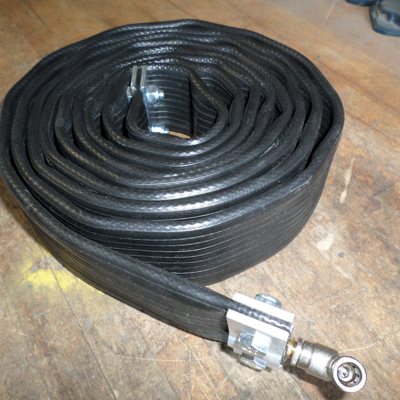

Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 13’ 0" Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760033 |
|
26 |
|
Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 11' 6' Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760036 |
|
27 |
|

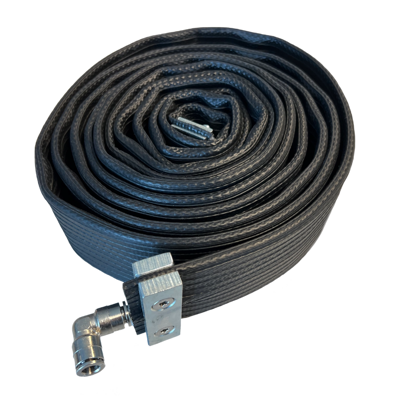

Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 10' 6' Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760035 |
|
28 |
|

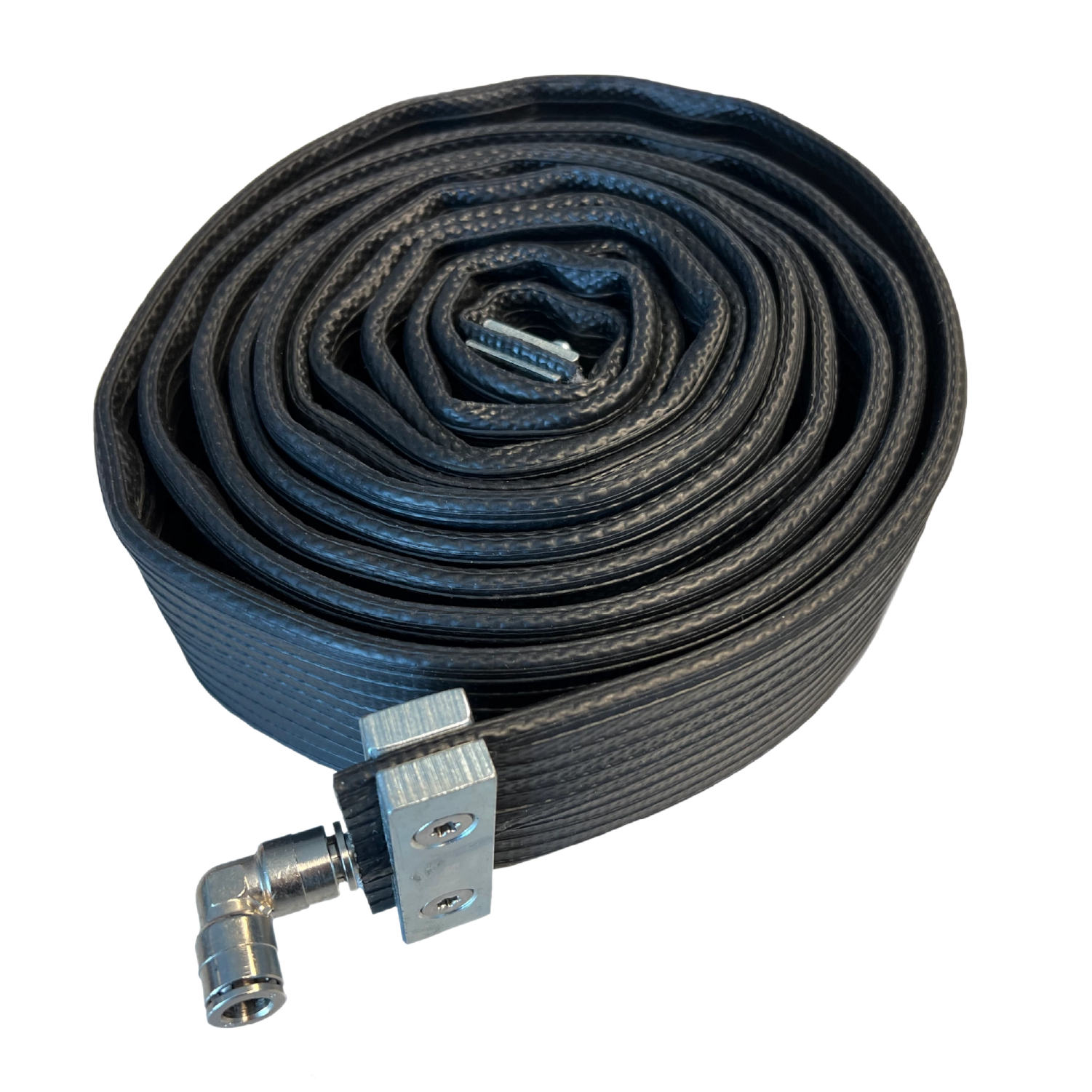

Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 9' 0" Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760056 |
|
29 |
|

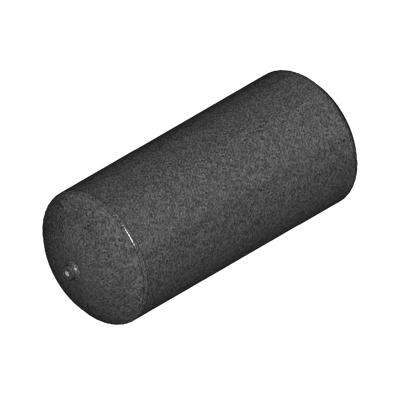

Air Tank
|
Air Tank;
With 3/8” NPT End Ports and 1/4” NPT Drain Port |
770002 |
|
30 |
|

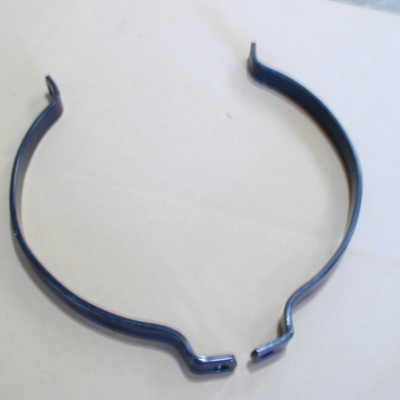

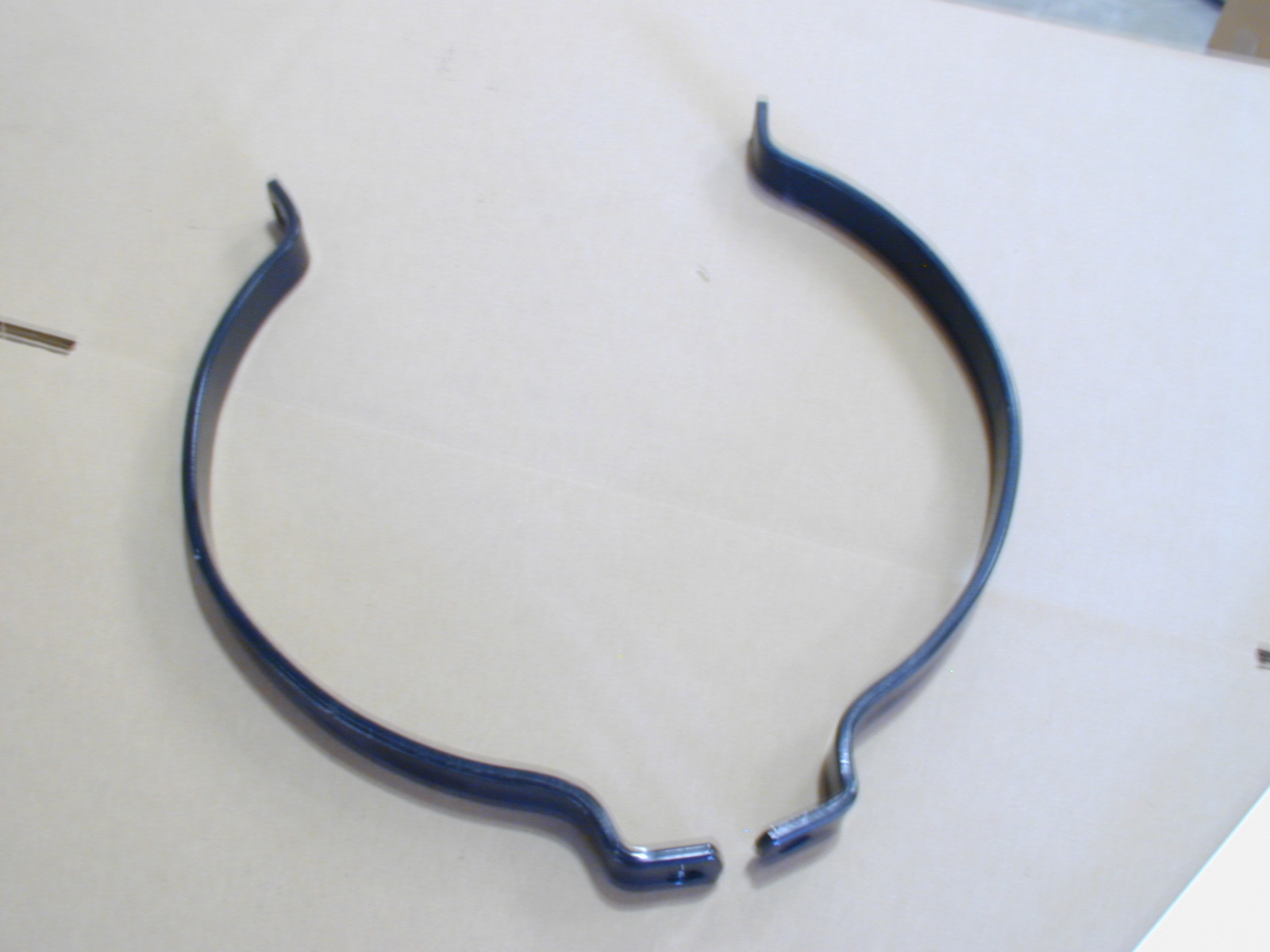

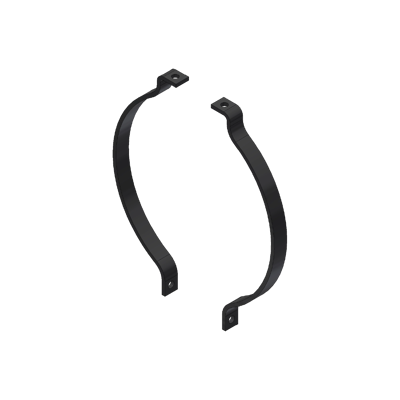

Air Tank Bracket
|
Bracket; Air Tank; Steel (1 Pc Only); 12";
(Shown 2 Pcs) |
770003 |
|
31 |
|

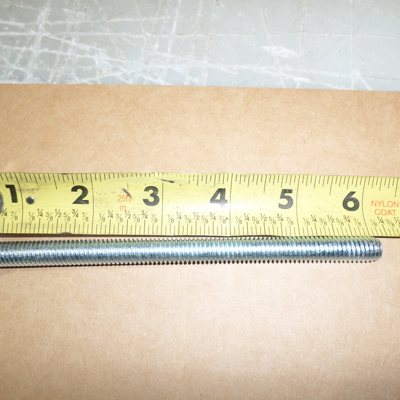

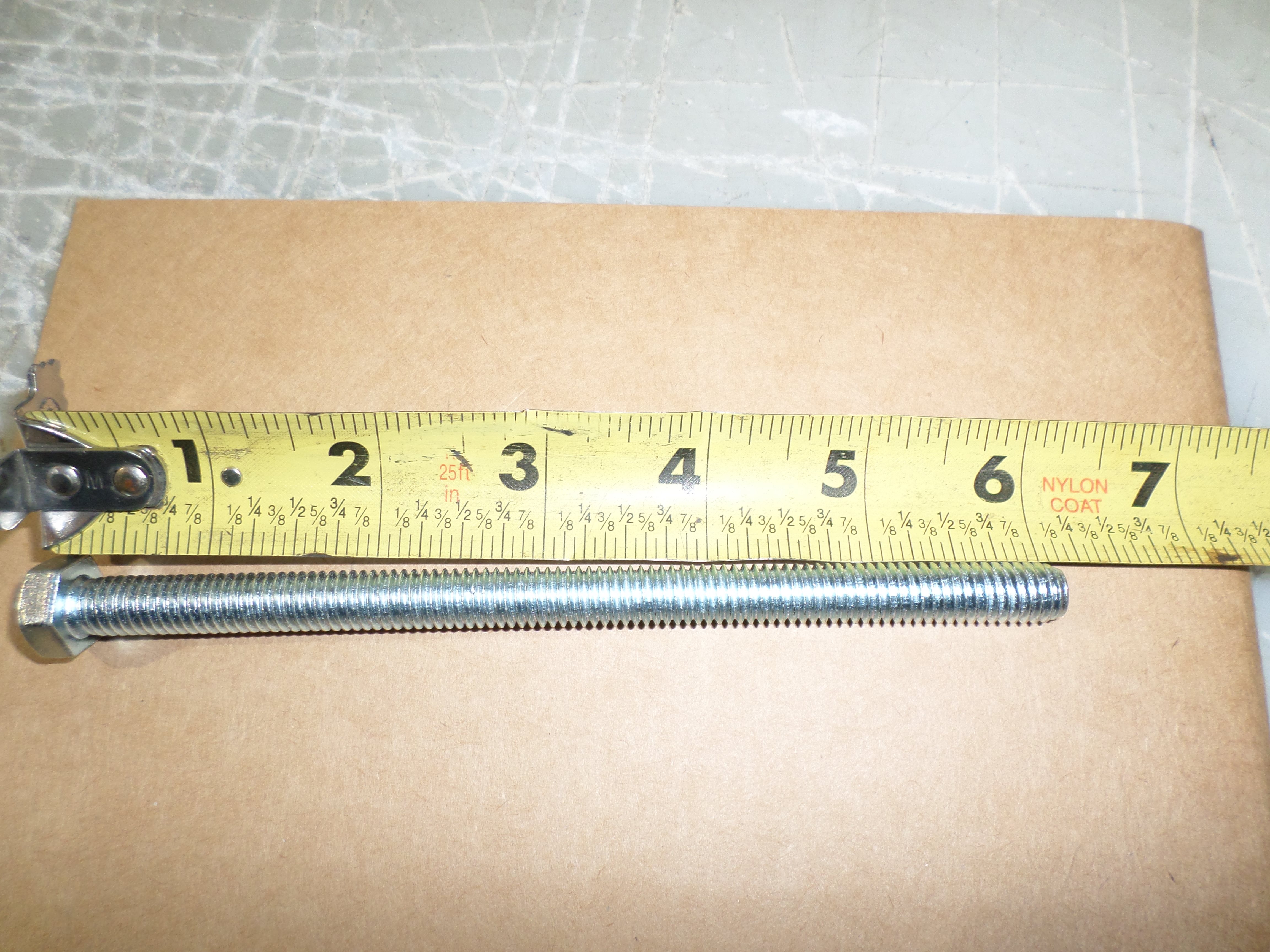

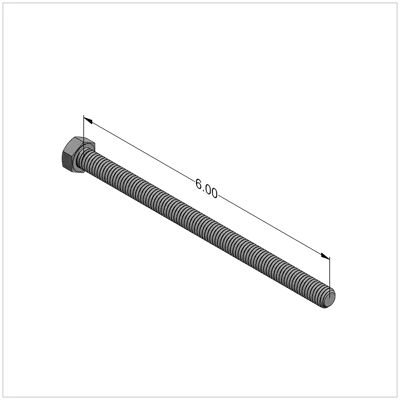

Hex Bolt
|
Bolt; Hex Hd; 3/8-16 x 6" Full Thread;
For Air Tank Brackets;
(941009 - Nut) |
770004 |
|
32 |
|

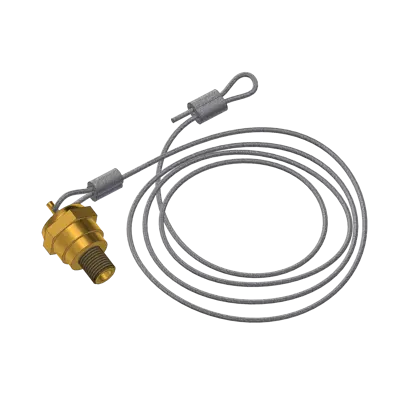

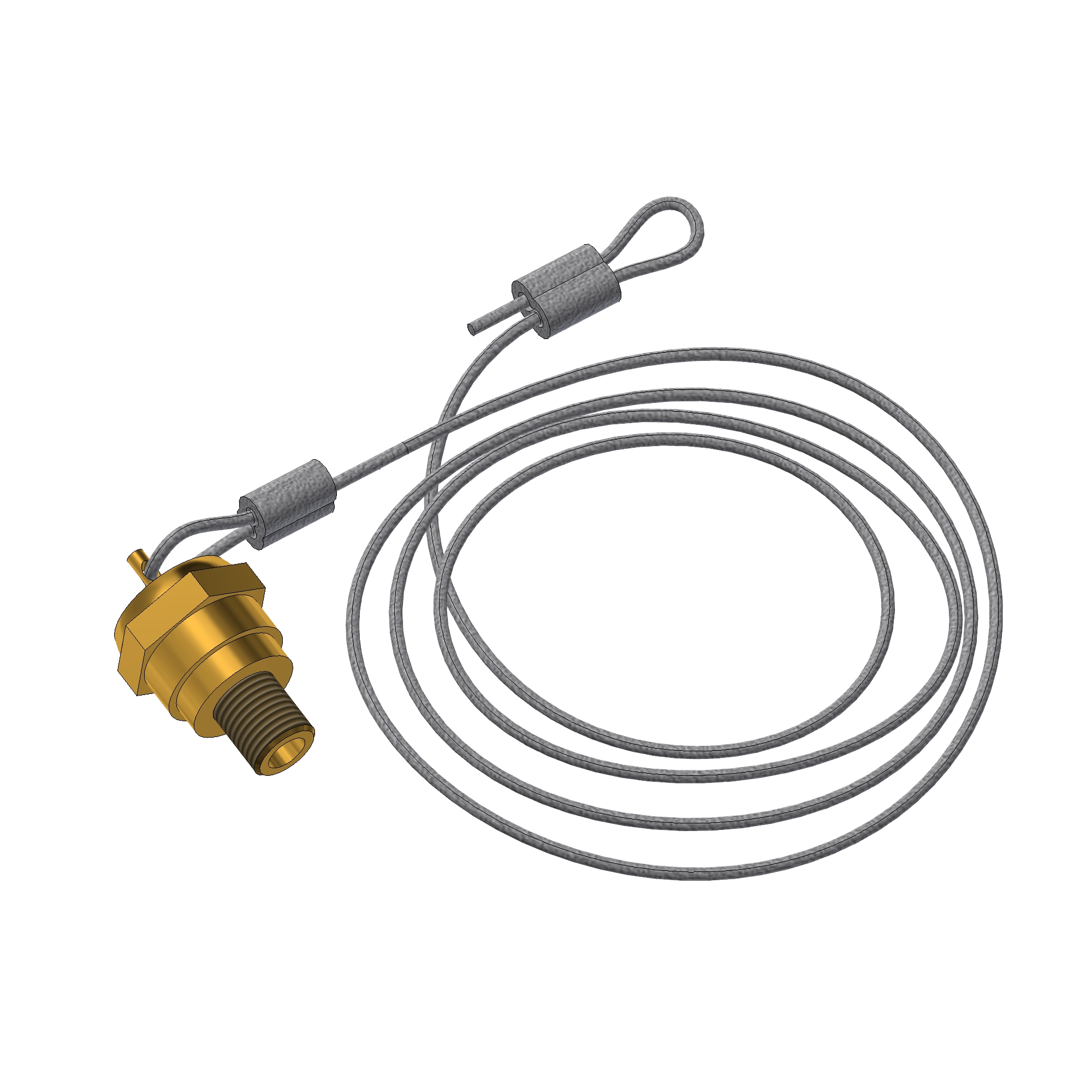

Pull Drain Valve
|
Pull Drain Valve; 1/4" NPT; 60" Long Cable |
770008 |
|
33 |
|

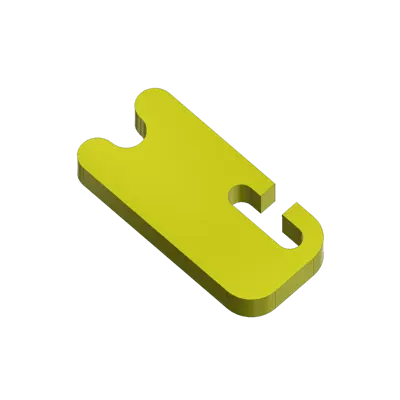

Winged Pallet Stop Replacement Blade
|
5/8” Thick “Winged” Pallet Stop Replacement Blade |
710015 |
|
34 |
|

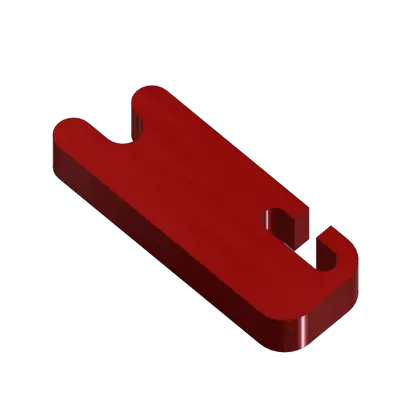

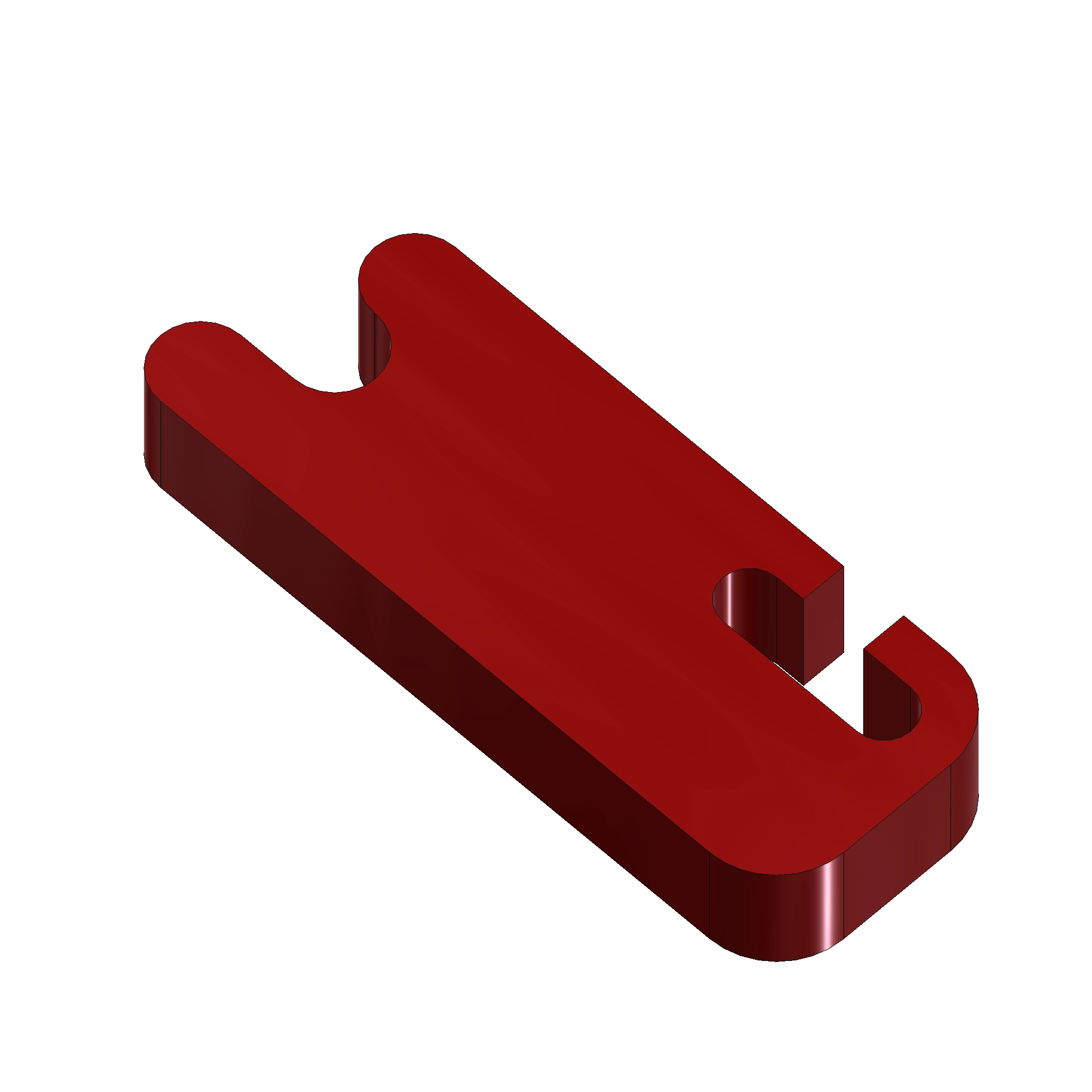

Winged Pallet Stop Replacement Blade
|
1” Thick “Winged” Pallet Stop Replacement Blade |
710011 |
|
35 |
|

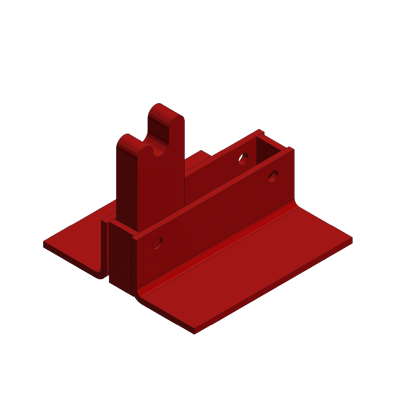

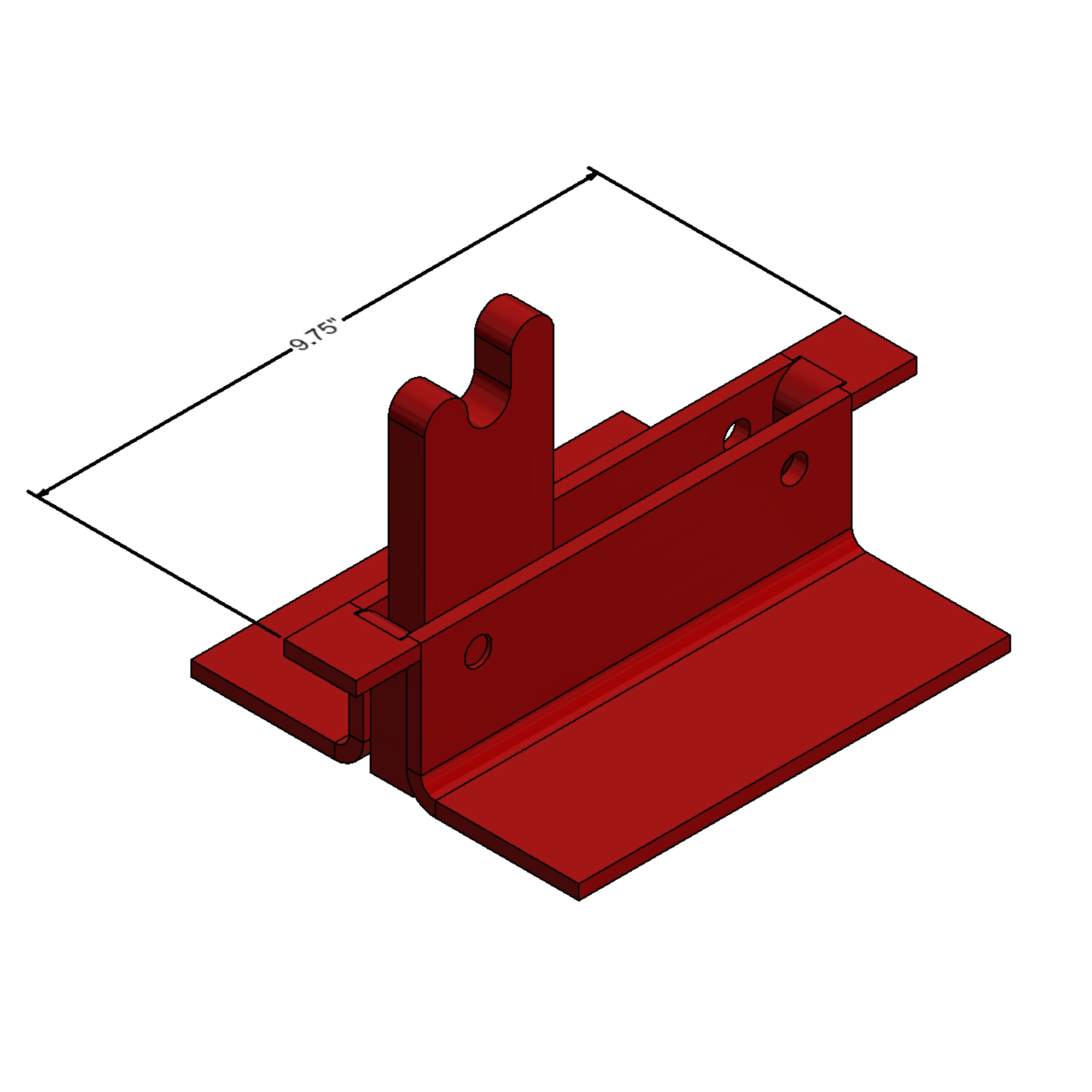

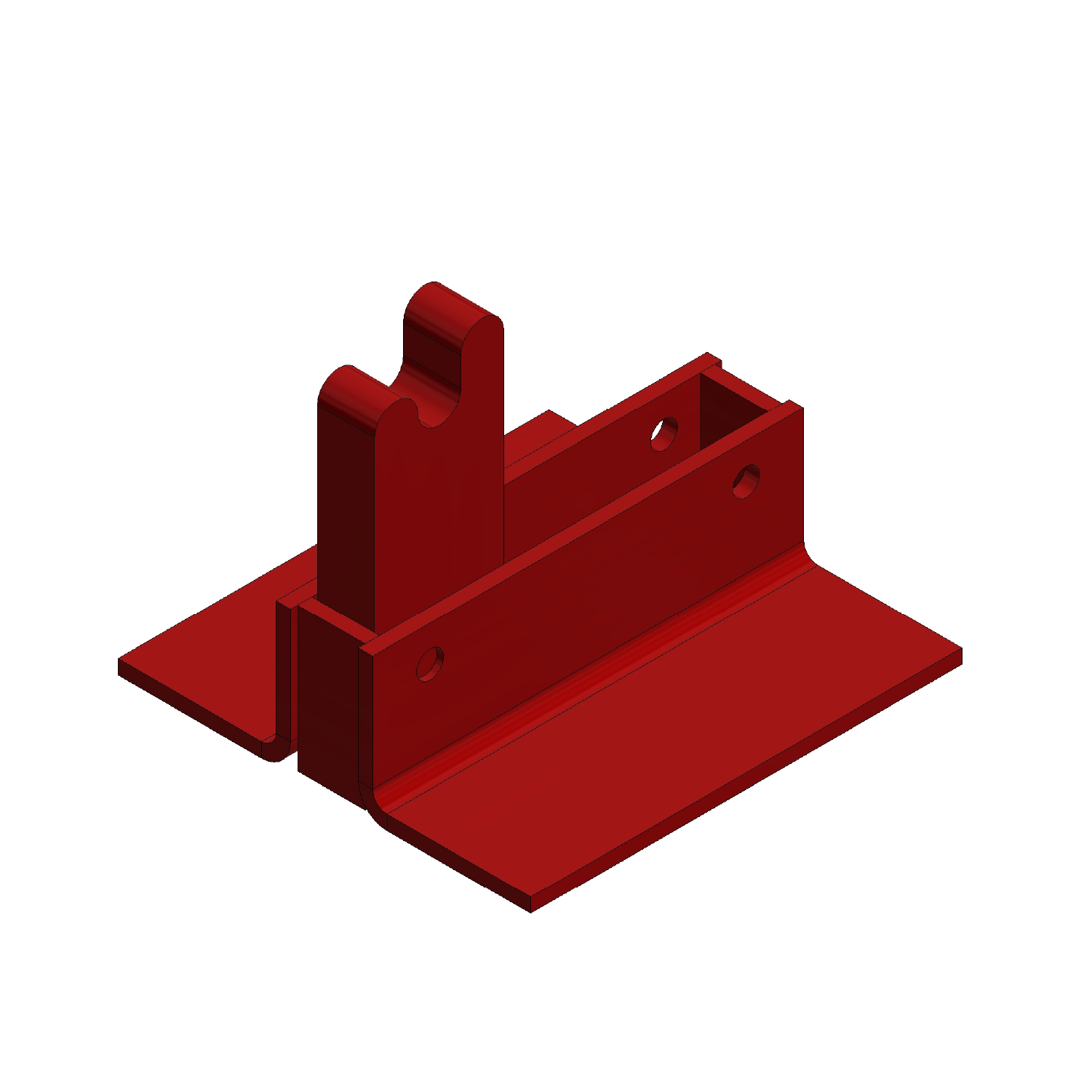

Cargo Stop Assembly with Winged Blade
|
Cargo Stop Assembly;
with 1” Thick “Winged” Blade |
710010 |
|
36 |
|

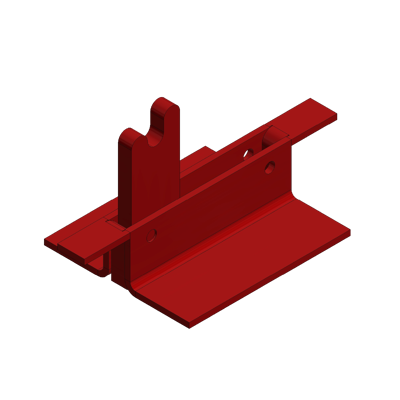

Cargo Stop Assembly with Winged Blade
|
Cargo Stop Assembly;
with 5/8" Thick "Winged" Blade |
710014 |
|
37 |
|
Roller Cradle Assembly MK4; Series 4
|
MK4; Series 4; Roller Cradle Assembly;
4” Pitch; 15 Rollers;
Inlet End is a mate to Top Plate Part# 741005 |
742005 |
|
38 |
|

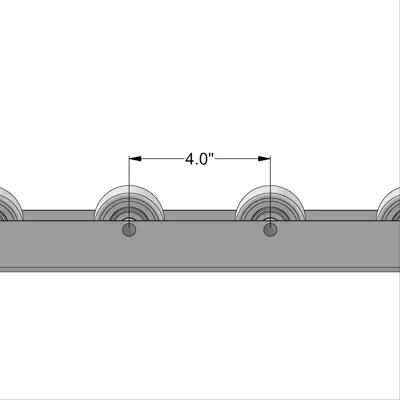

Roller Cradle Assembly MK4; Series 4
|
MK4; Series 4; Roller Cradle Assembly;
4” Pitch; 16 Rollers;
Clamp End is a mate to Top Plate Part# 741015 |
742003 |
|
39 |
|
Roller Cradle Assembly MK4; Series 4
|
MK4; Series 4; Roller Cradle Assembly;
6” Pitch; 10 Rollers;
Inlet End is a mate to Top Plate Part# 741006 |
742006 |
|
40 |
|

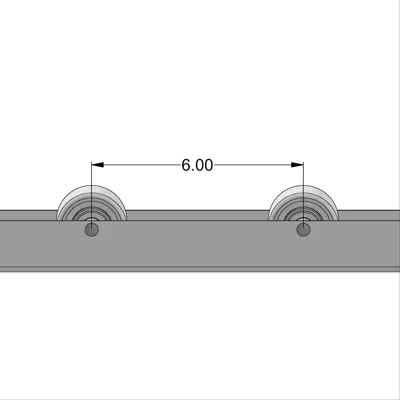

Roller Cradle Assembly MK4; Series 4
|
MK4; Series 4; Roller Cradle Assembly;
6” Pitch; 11 Rollers;
Clamp End is a mate to Top Plate Part# 741007 |
742007 |
|
41 |
|

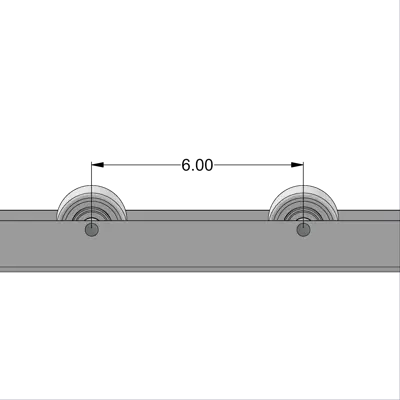

Roller Cradle Assembly MK4; Series 4
|
MK4; Series 4; Roller Cradle Assembly;
6” Pitch; 8 Rollers;
Inlet End is a mate to Top Plate Part# 741018;
(For 9' 0" Module) |
742011 |
|
42 |
|
Roller Cradle Assembly MK4; Series 4
|
MK4; Series 4; Roller Cradle Assembly;
6” Pitch; 5 Rollers;
Clamp End is a mate to Top Plate Part# 741037;
(For 13' 2" Module) |
742017 |
|
43 |
|

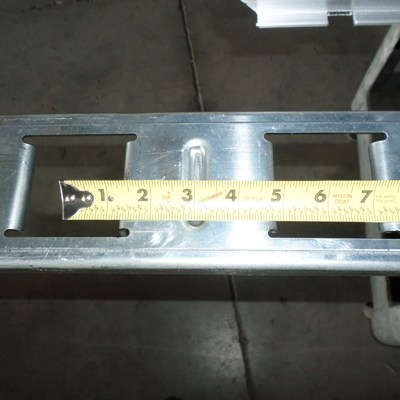

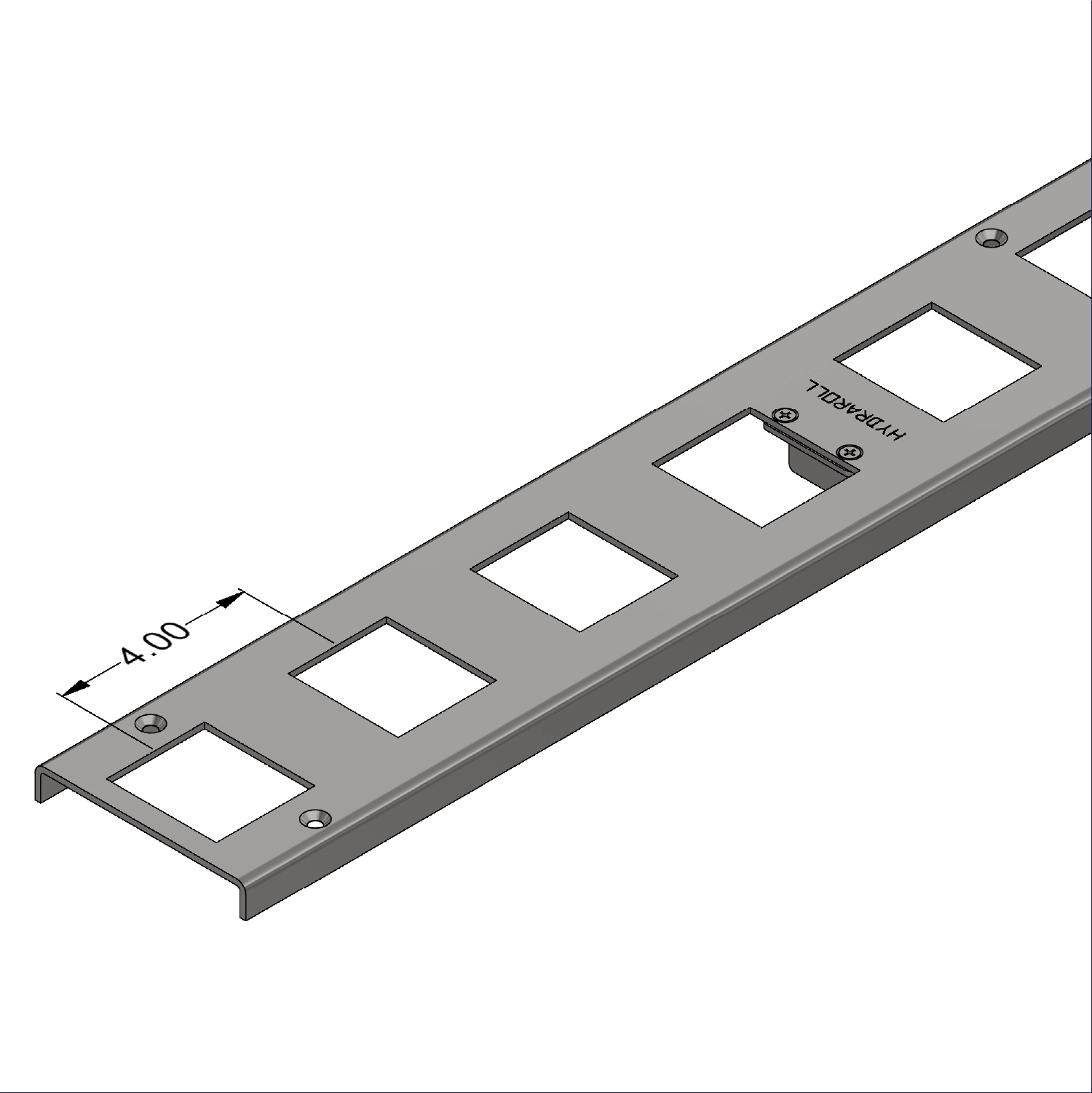

Top Plate (Folded) MK4; Series 4
|
MK4; Series 4; Top Plate (Folded);
4” Pitch; 15 Roller Openings;
Inlet End; 59.5” Long;
Is a mate to Roller Cradle Part# 742005 |
741005 |
|
44 |
|

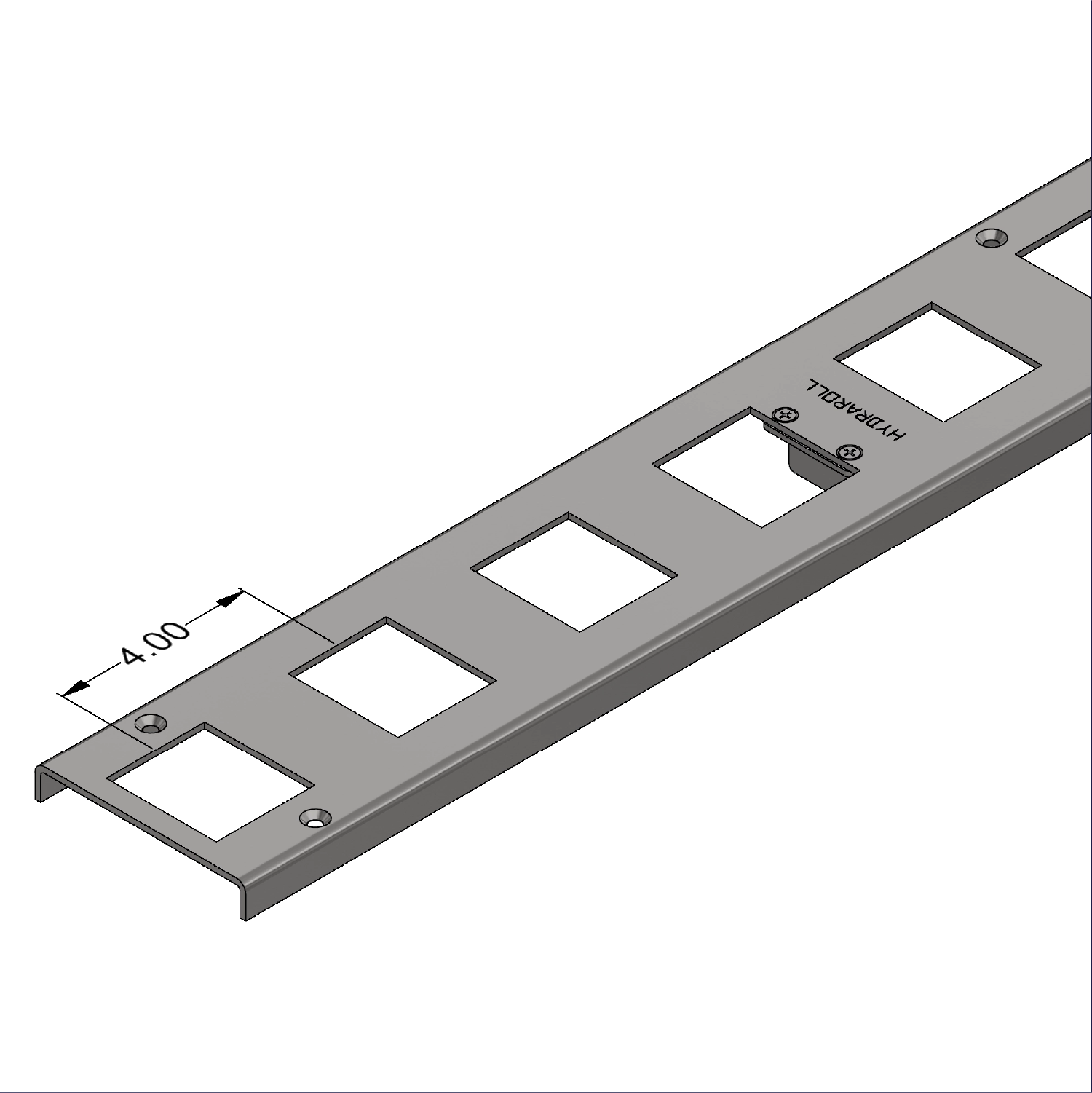

Top Plate (Folded) MK4; Series 4
|
MK4; Series 4; Top Plate (Folded);
4” Pitch; 16 Roller Openings;
Inlet End; 64” Long;
Is a mate to Roller Cradle Part# 742003 |
741015 |
|
45 |
|
Top Plate (Folded) MK4; Series 4
|
MK4; Series 4; Top Plate (Folded);
6” Pitch; 10 Roller Openings;
Clamp End; 59.5” Long;
Is a mate to Roller Cradle Part# 742006 |
741006 |
|
46 |
|
Top Plate (Folded) MK4; Series 4
|
MK4; Series 4; Top Plate (Folded);
6” Pitch; 11 Roller Openings;
Clamp End; 64” Long;
Is a mate to Roller Cradle Part# 742007 |
741007 |
|

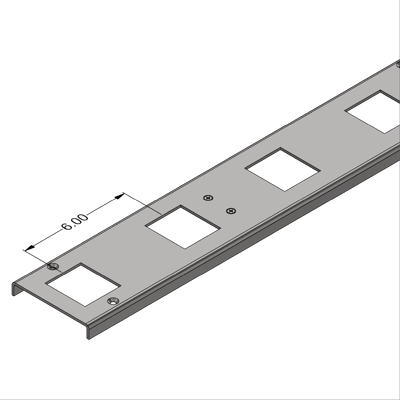

47 |
|

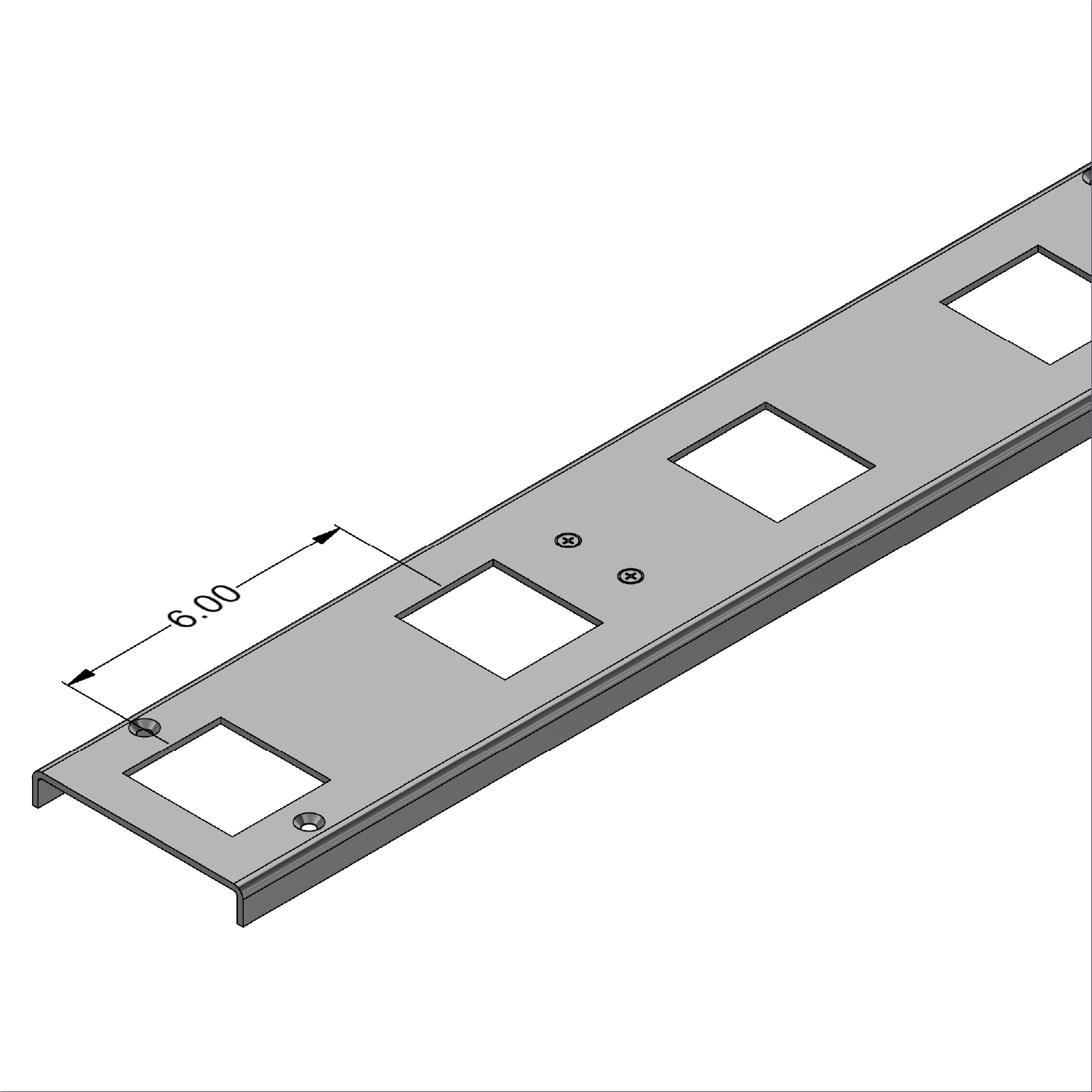

Top Plate (Folded) MK4; Series 4
|
MK4; Series 4; Top Plate (Folded);
6” Pitch; 8 Roller Openings;
Clamp End; 46” Long;
Is a mate to Roller Cradle Part# 742011;
(For 9' 0" Module) |
741018 |
|

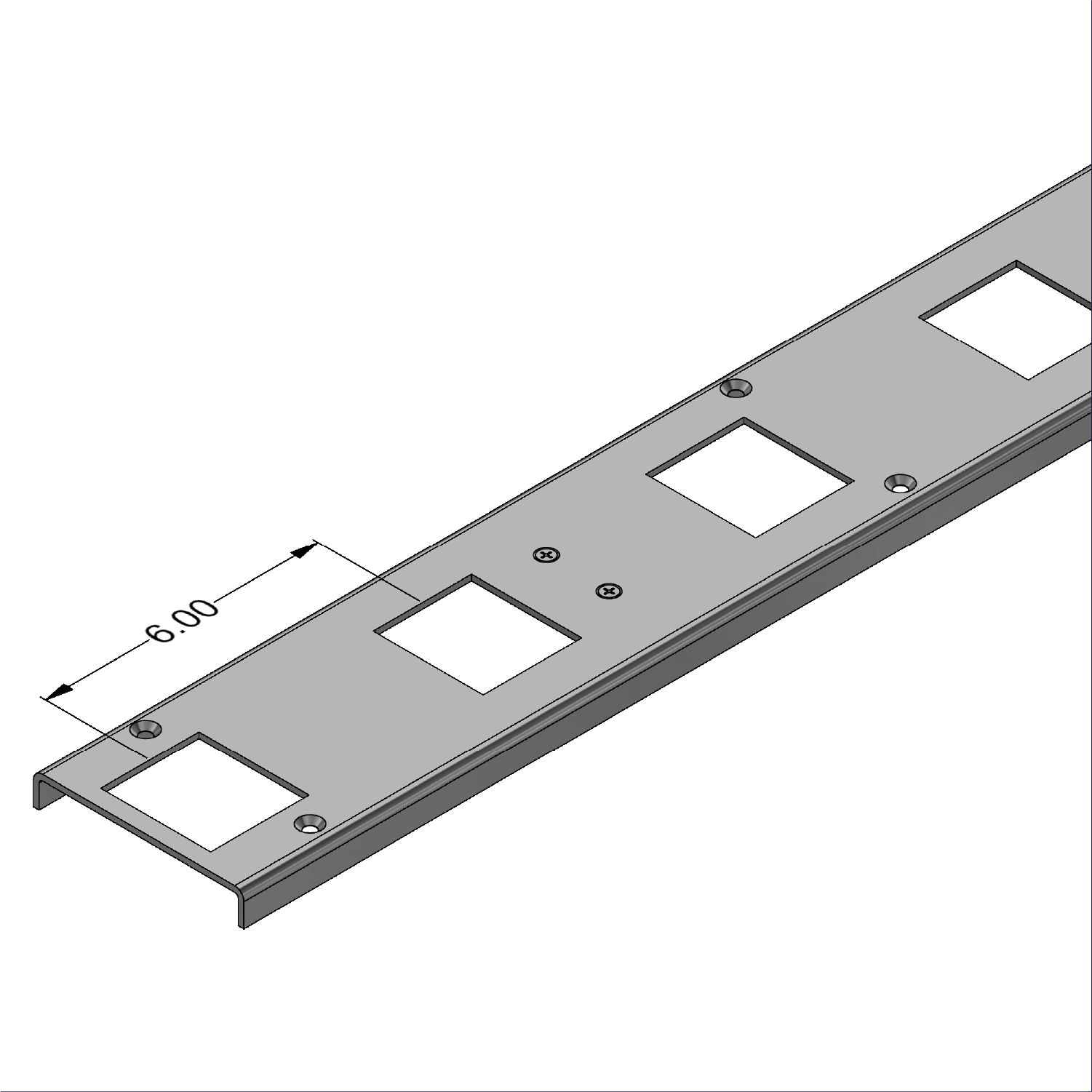

48 |
|

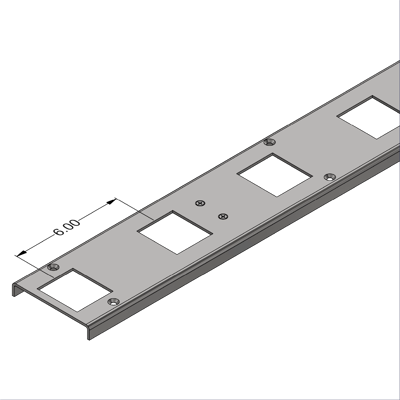

Top Plate (Folded) MK4; Series 4
|
MK4; Series 4; Top Plate (Folded);
6” Pitch; 5 Roller Openings;
Clamp End; 29.5” Long;
Is a mate to Roller Cradle Part# 742017;
(For 13' 2" Module) |
741037 |
|
49 |
|

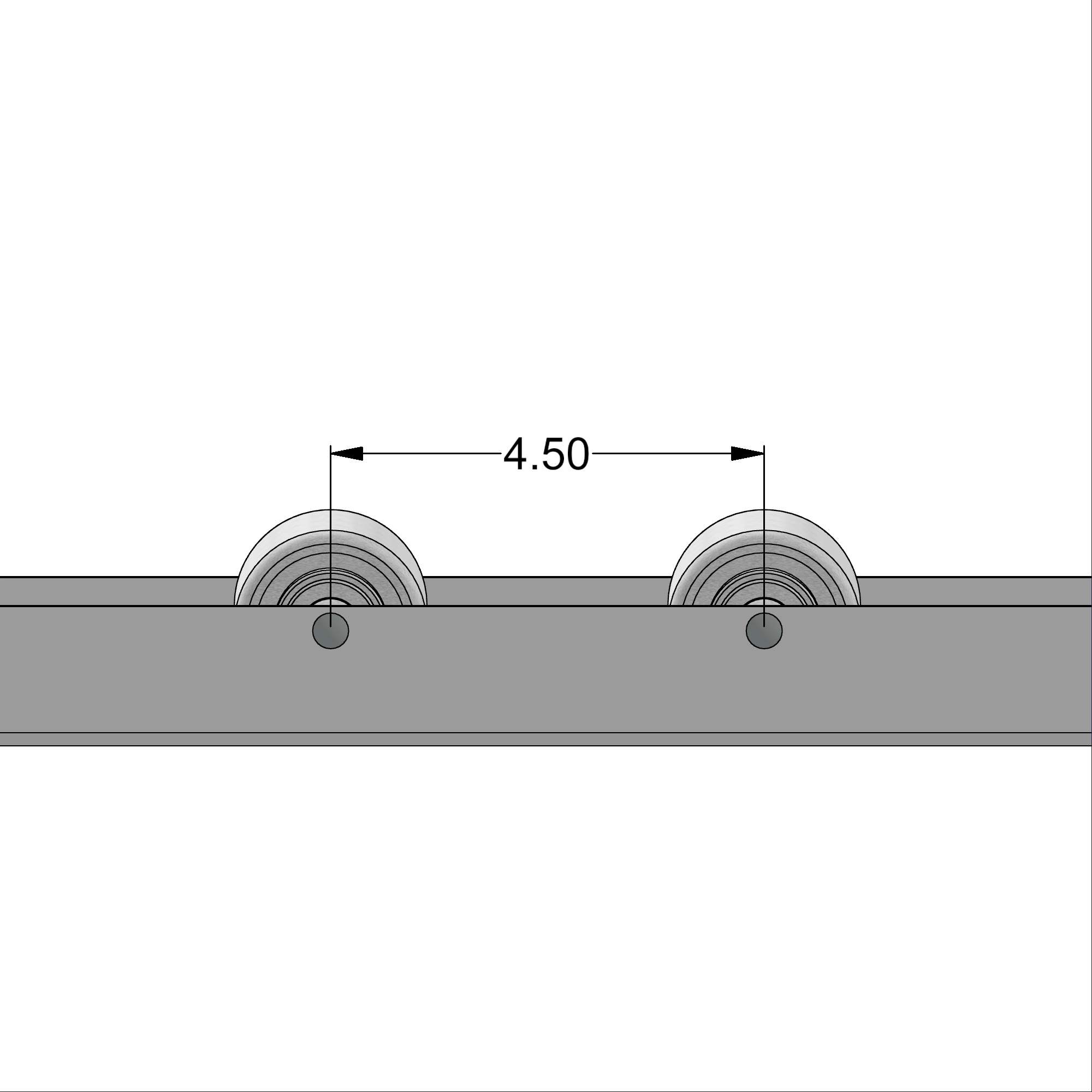

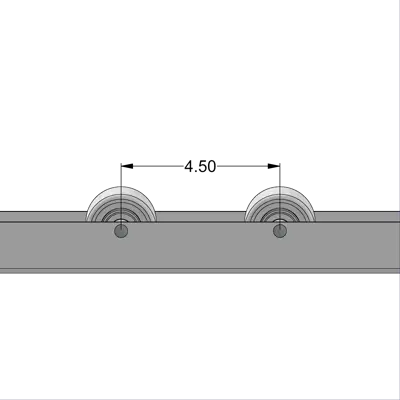

Roller Cradle Assembly MK4; Series 5
|
MK4; Series 5; Roller Cradle Assembly;
4.5” Pitch; 14 Rollers;
Is a mate to Top Plate Part# 741044 |
742020 |
|
50 |
|

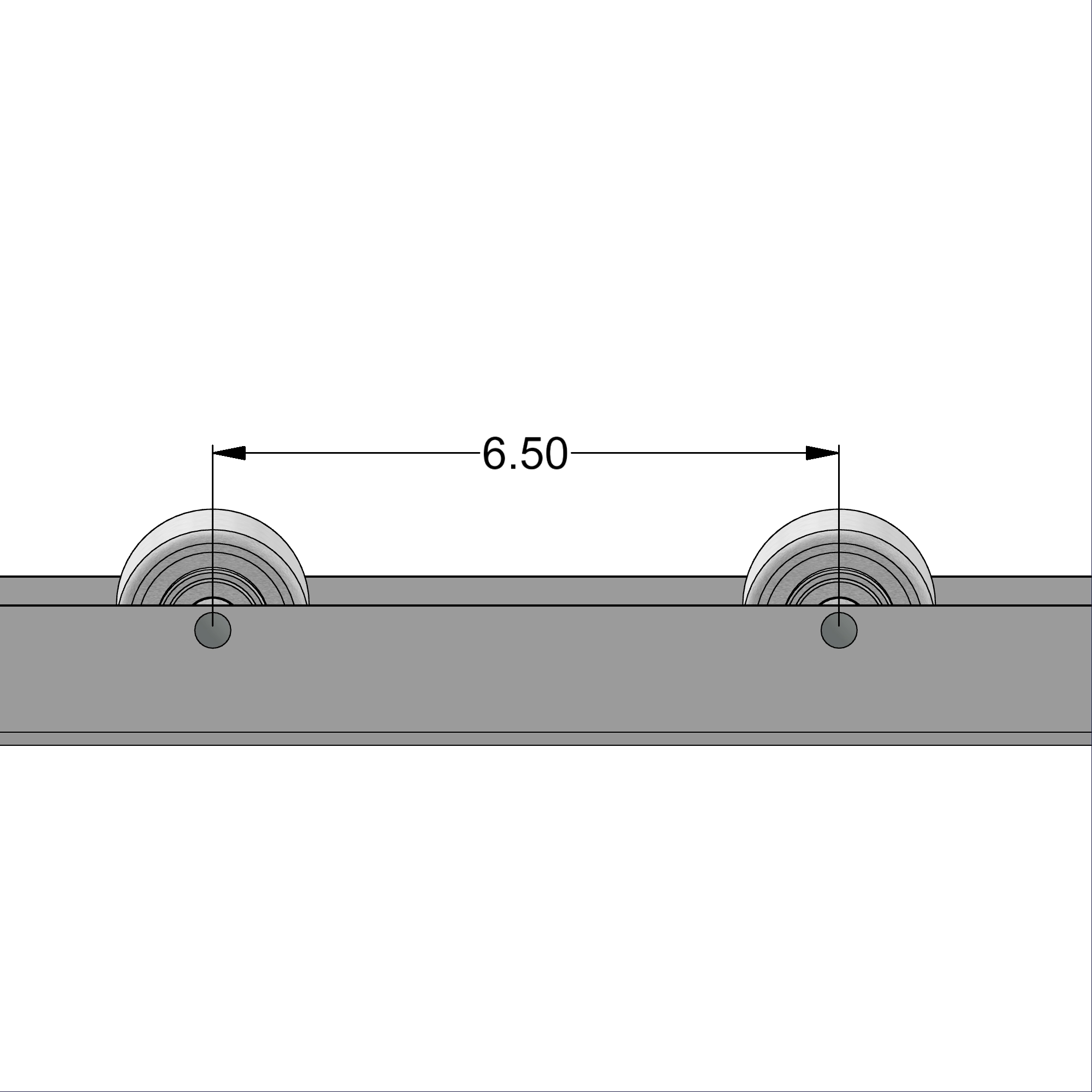

Roller Cradle Assembly MK4; Series 5
|
MK4; Series 5; Roller Cradle Assembly;
6.5” Pitch; 10 Rollers;
Is a mate to Top Plate Part# 741045 |
742021 |
|
51 |
|
Roller Cradle Assembly MK4; Series 5
|
MK4; Series 5; Roller Cradle Assembly;
6.5” Pitch; 5 Rollers;
Is a mate to Top Plate Part# 741047;
(For 13' 2" Module) |
742023 |
|
52 |
|

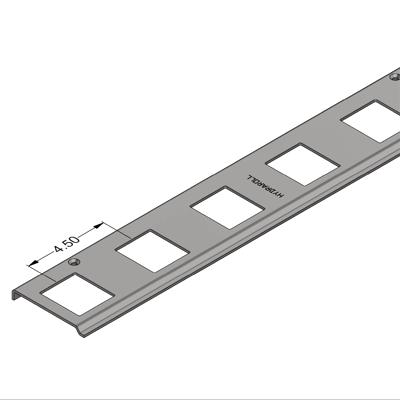

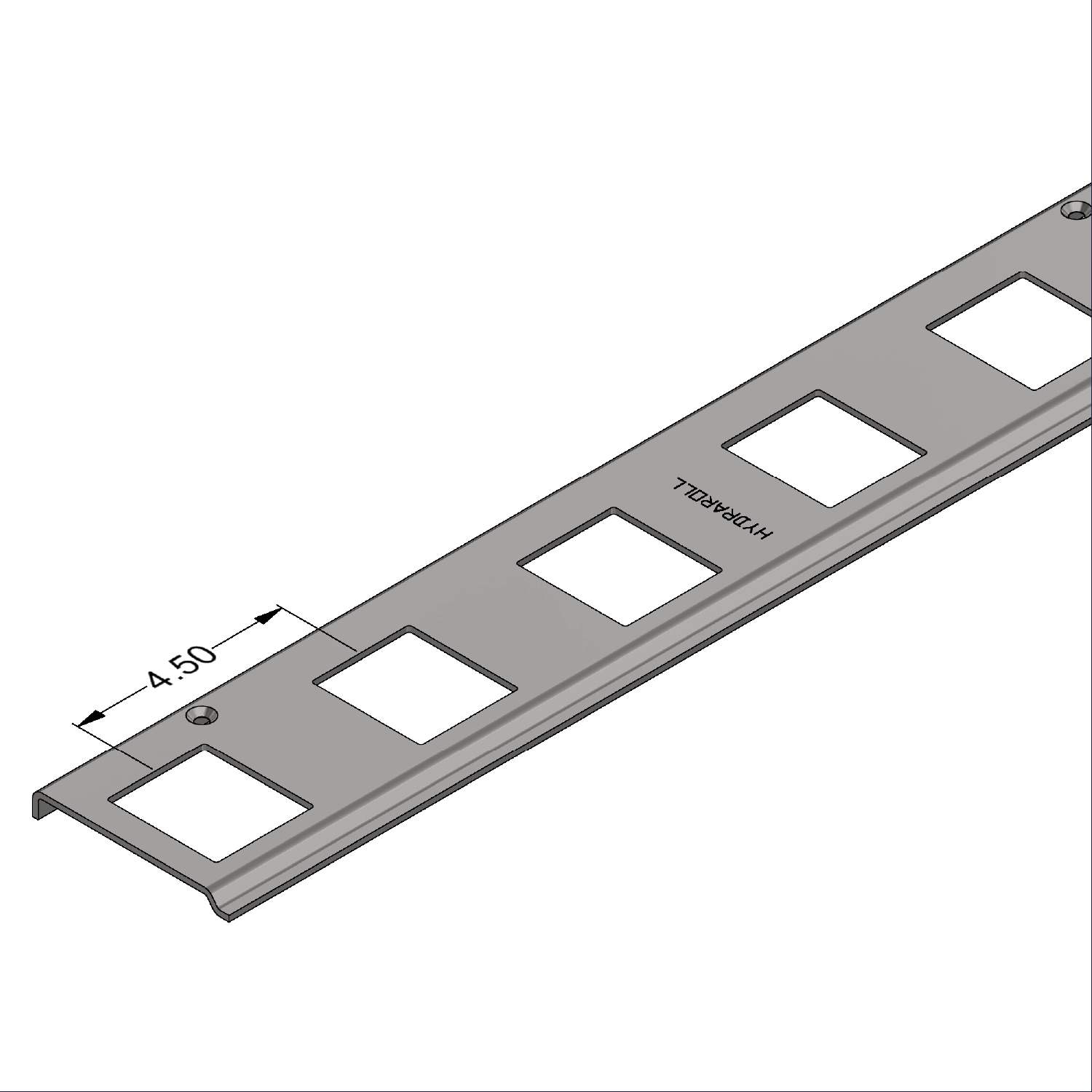

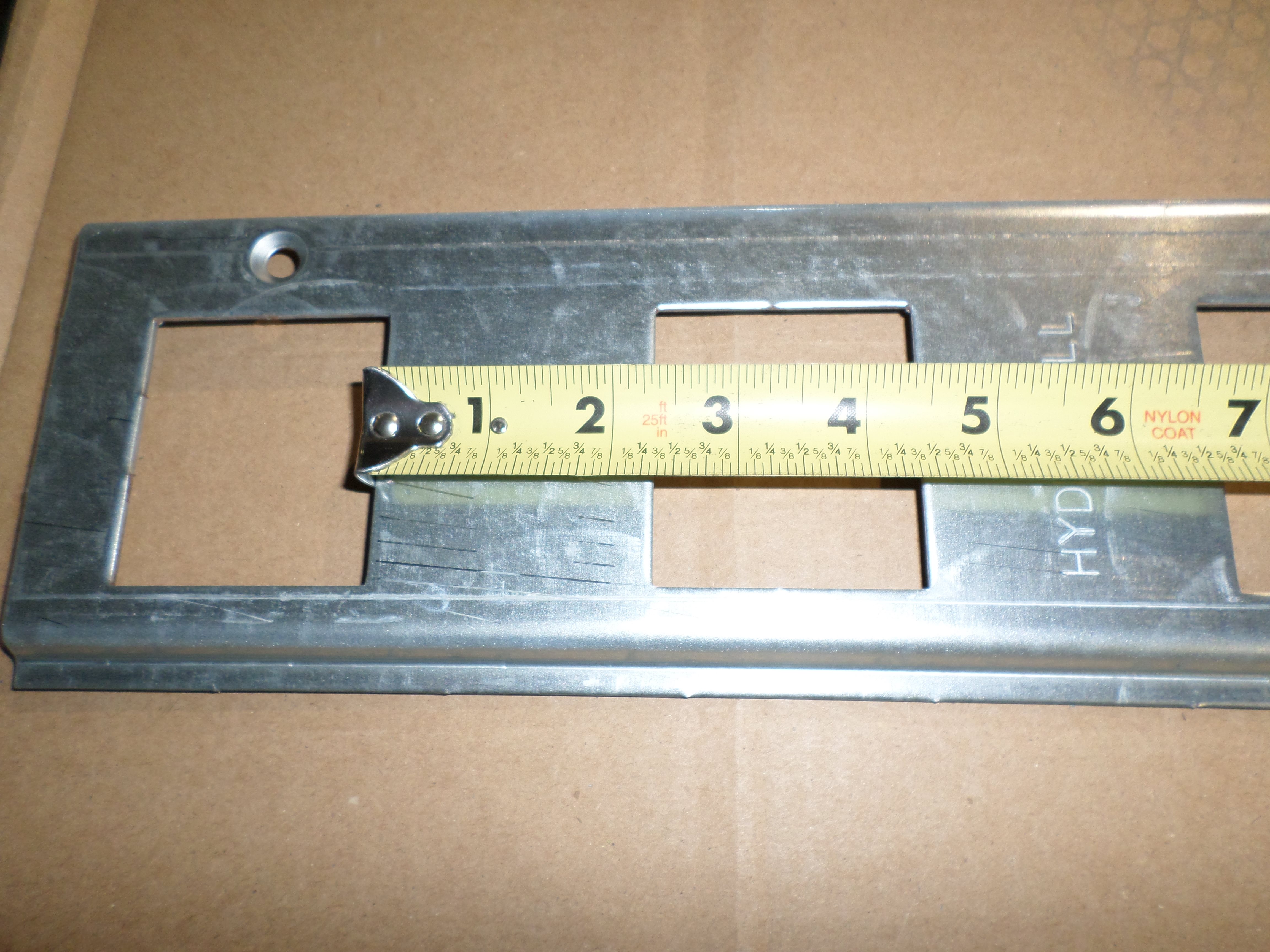

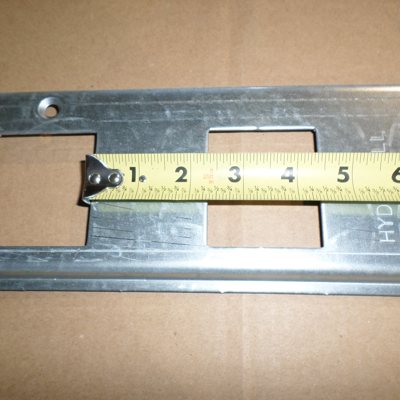

Top Plate (Quick Release) MK4; Series 5
|
MK4; Series 5; Top Plate (Quick Release);
4.5” Pitch; 14 Roller Openings;
61.75” Long;
Is a mate to Roller Cradle Part# 742020 |
741044 |
|

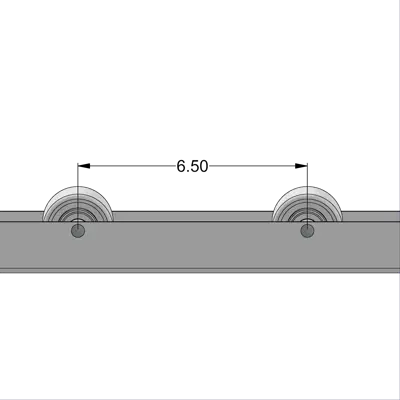

53 |
|

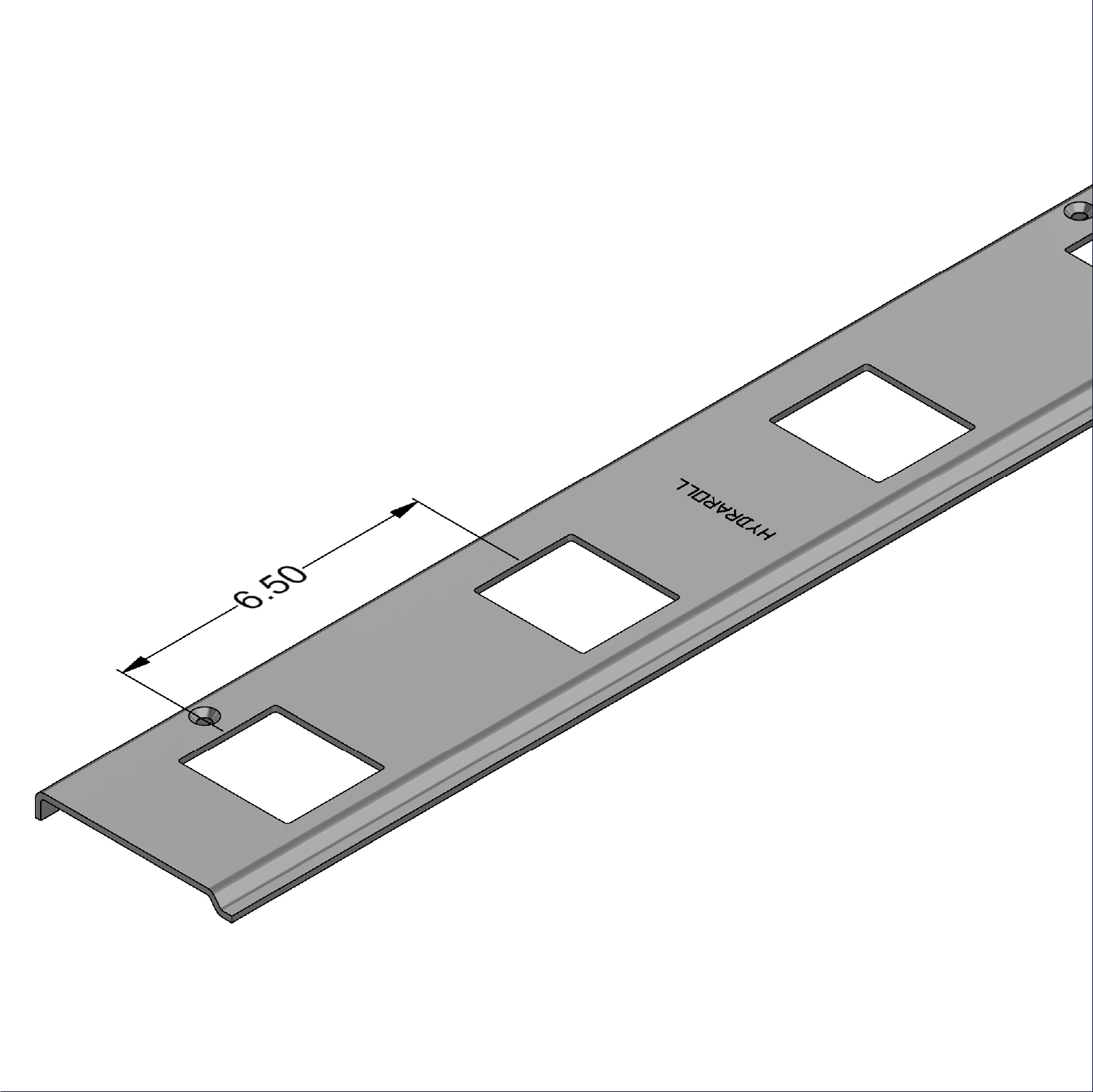

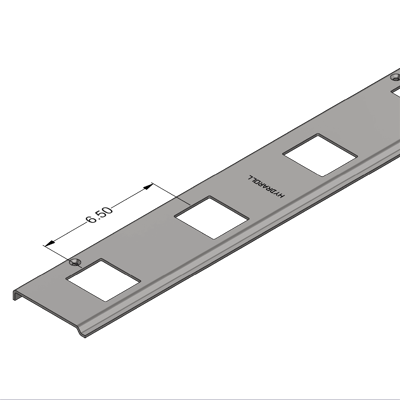

Top Plate (Quick Release) MK4; Series 5
|
MK4; Series 5; Top Plate (Quick Release);
6.5” Pitch; 10 Roller Openings;
61.75” Long;
Is a mate to Roller Cradle Part# 742021 |
741045 |
|
54 |
|

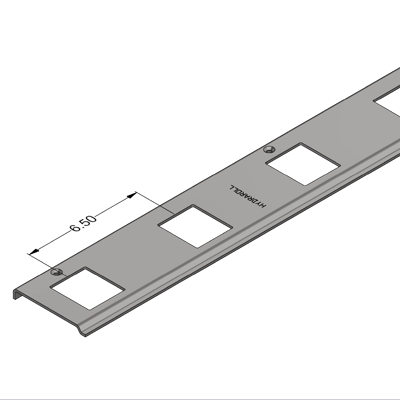

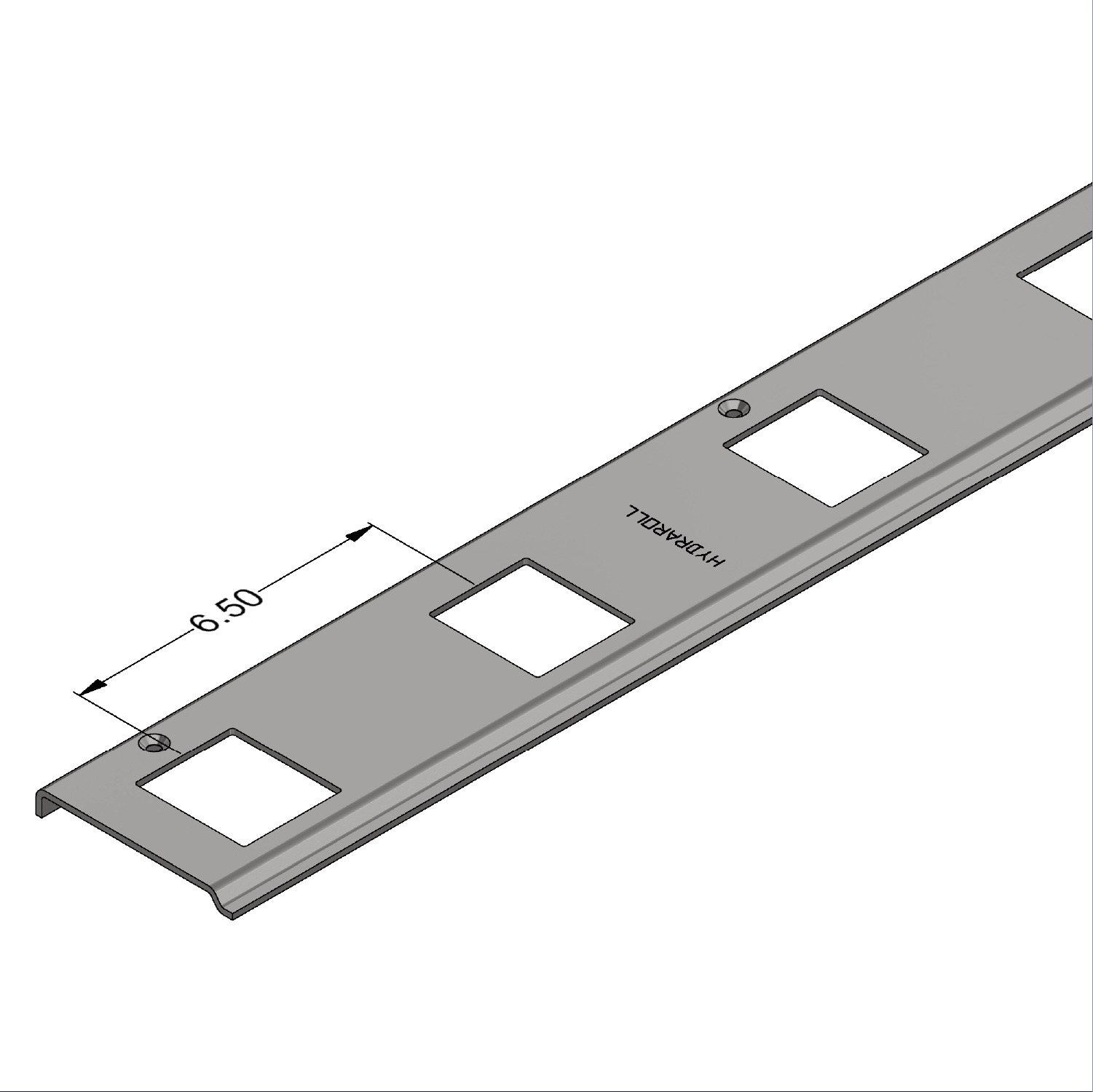

Top Plate (Quick Release) MK4; Series 5
|
MK4; Series 5; Top Plate (Quick Release);
6.5” Pitch; 5 Roller Openings;
29.625” Long;
Is a mate to Roller Cradle Part# 742023 |
741047 |
|
55 |
|

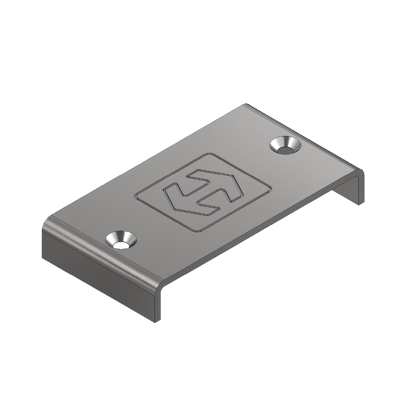

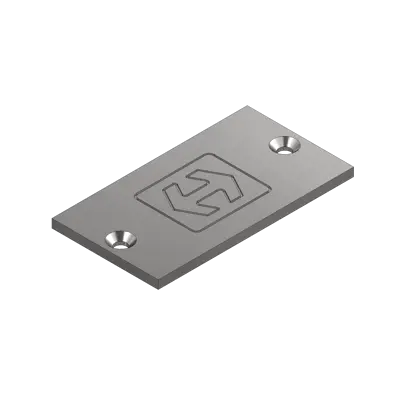

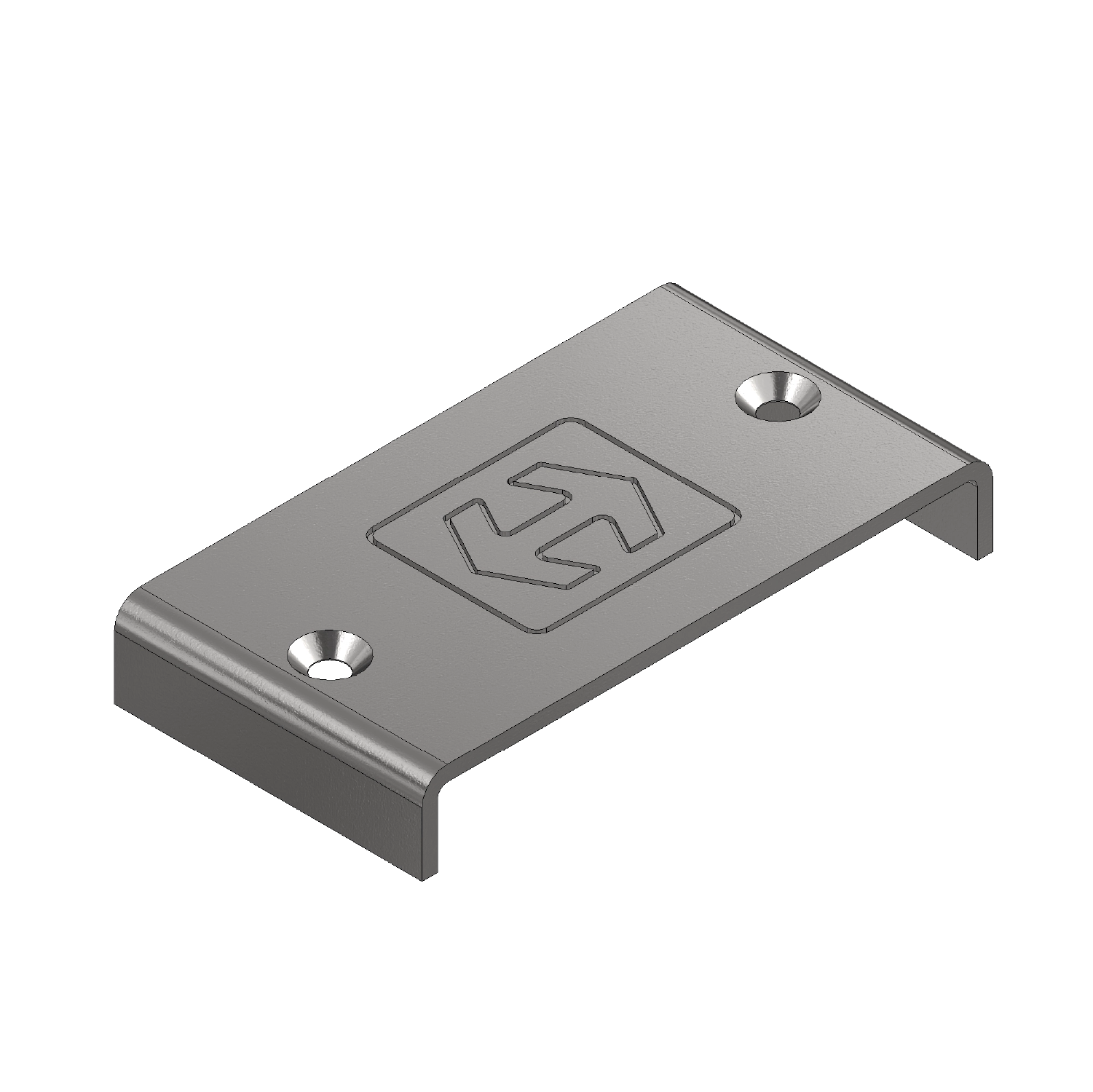

Logo Plate MK4; Series 4
|
MK4; Series 4; Top Plate (Folded);
Logo Plate;
Normally Covers the Inlet End of the Module |
741012 |
|
56 |
|

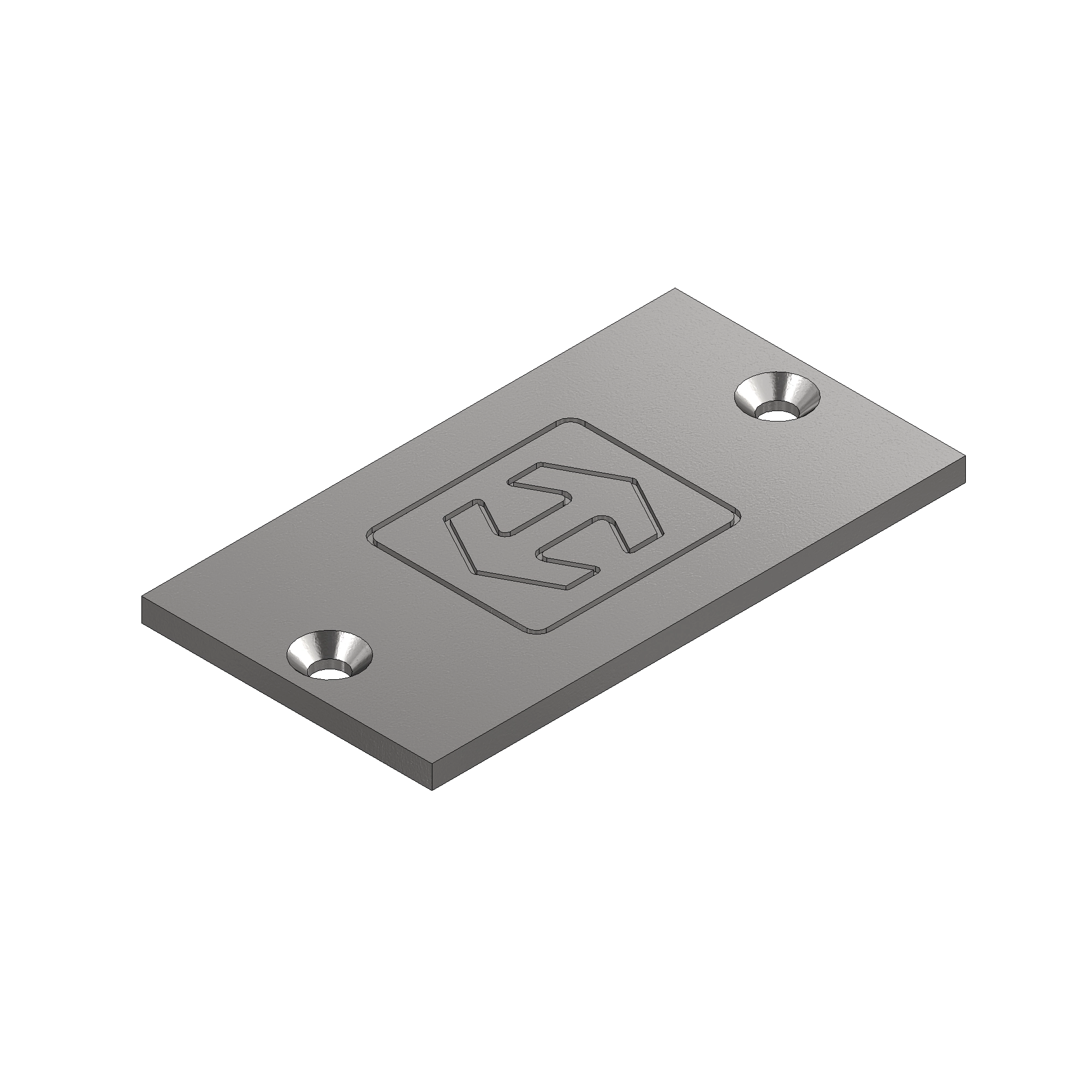

Logo Plate (Heavy Duty) MK4; Series 4
|
MK4; Series 4; Top Plate (Heavy Duty);
Logo Plate;
Normally Covers the Inlet End of the Module |
741028 |
|
57 |
|

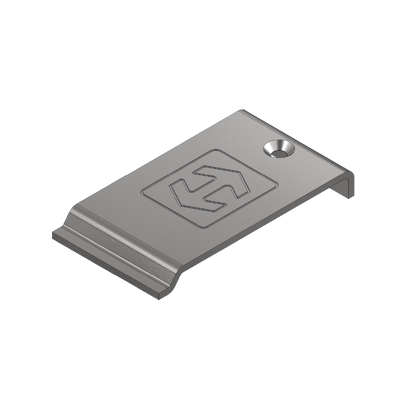

Logo Plate (Quick Release) MK4 / MK21
|
MK4 / MK21; Top Plate (Quick Release);
Logo Plate;
Normally Covers the Inlet End of the Module |
741043 |
|
58 |
|

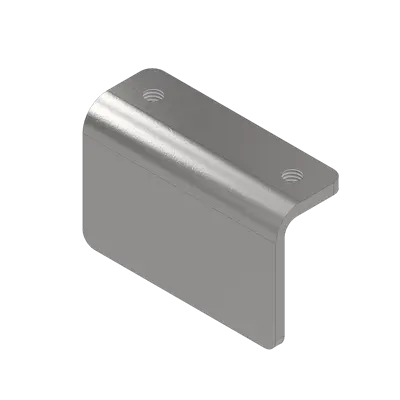

Guide Angle
|
Guide Angle; Top Plate;

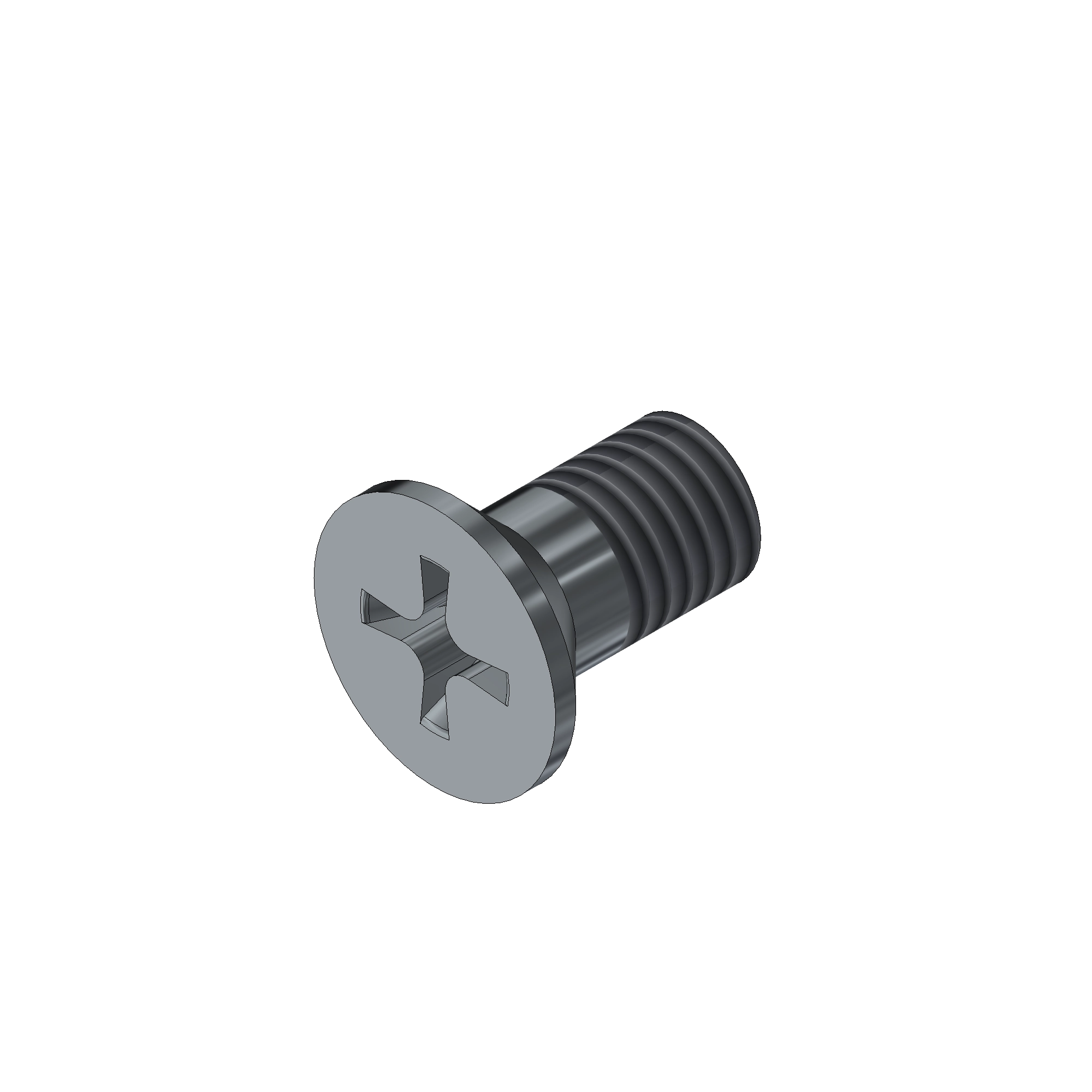

(940027 - M5 Screws for Mounting) |
741038 |
|
59 |
|

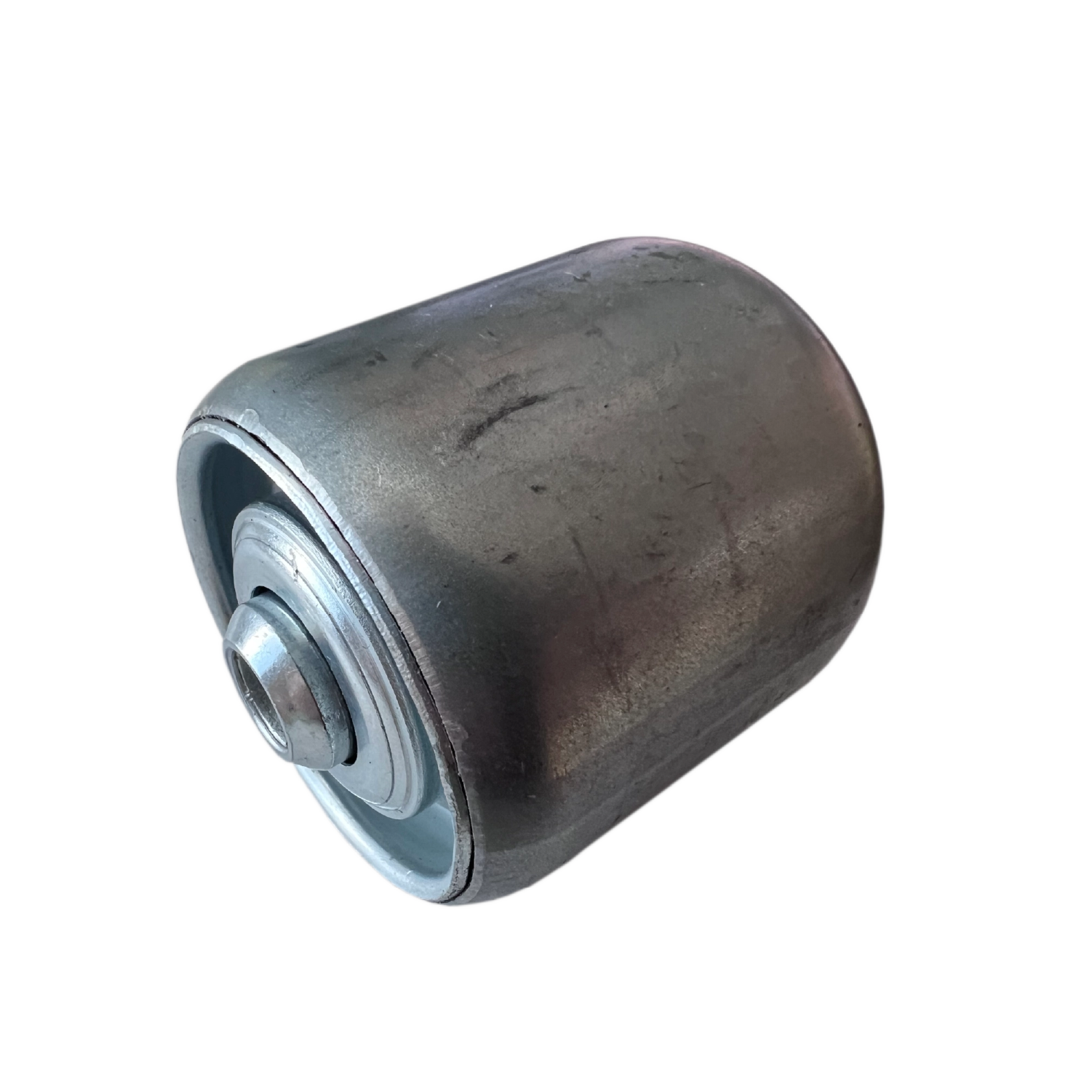

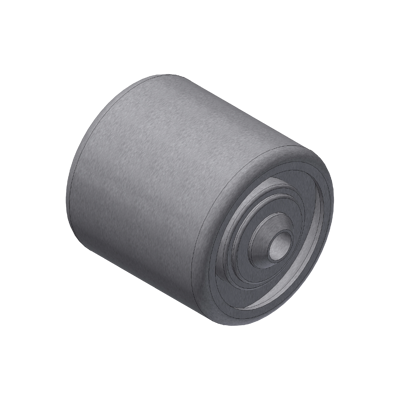

MK4 Roller
|
MK4 Roller, 2” Wide;
Needs Roller Pin (Axle) Pt# 743001 |
743002 |
|

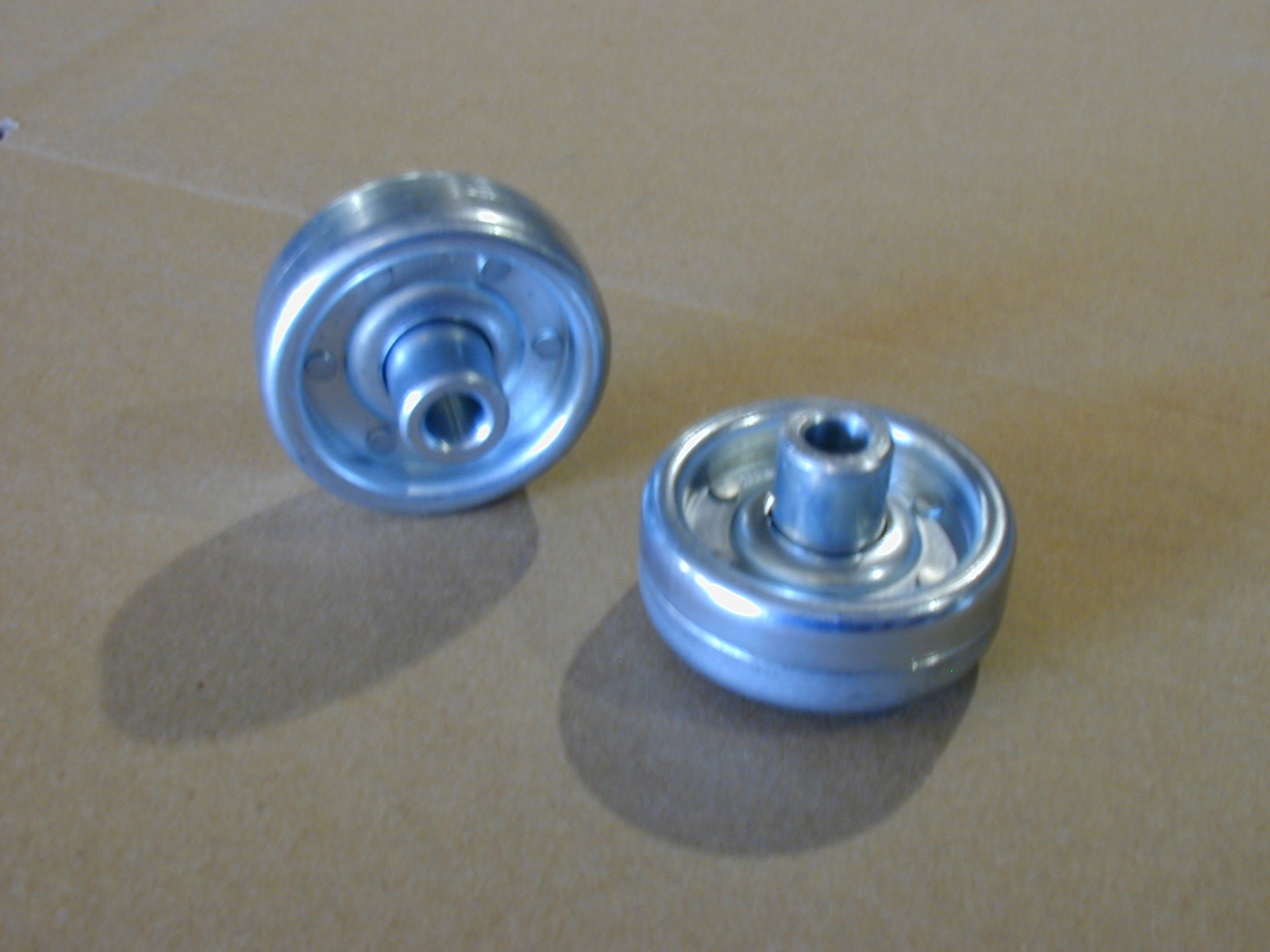

60 |
|

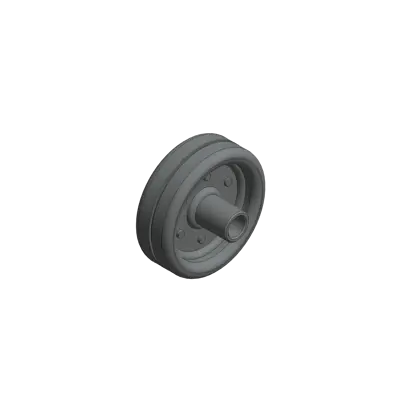

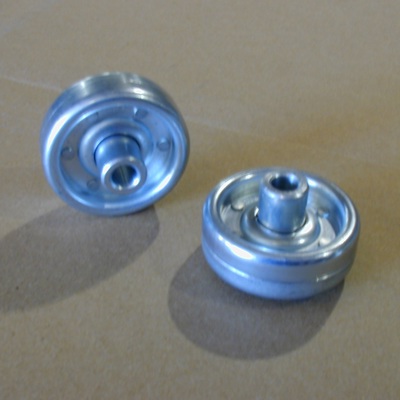

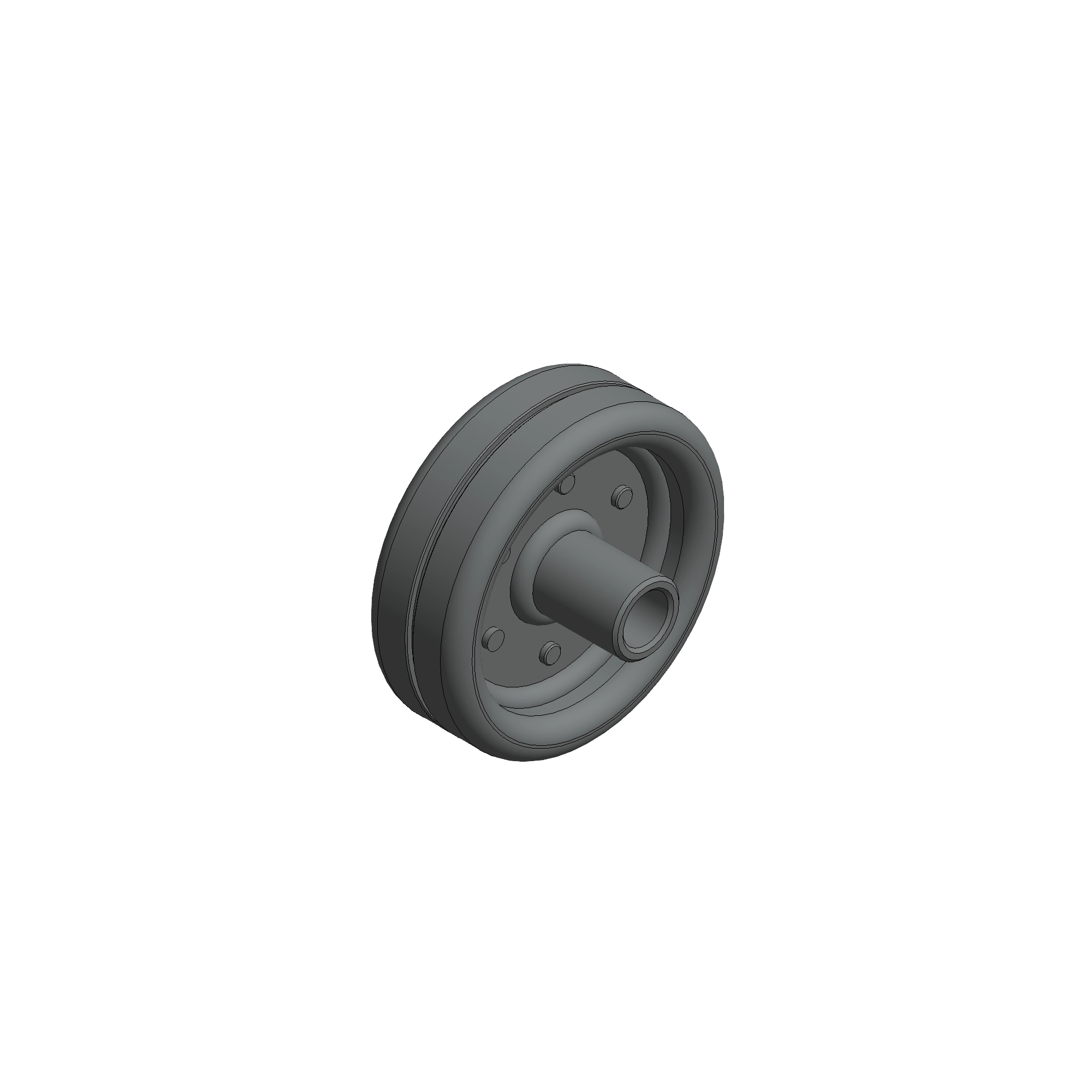

Roller; Heavy Duty MK20 / MK21
|
Roller; Heavy Duty;
MK20 / MK21; 2" Dia X 5/8" Wide;
(Twin Roller) |
803003 |
|
61 |
|

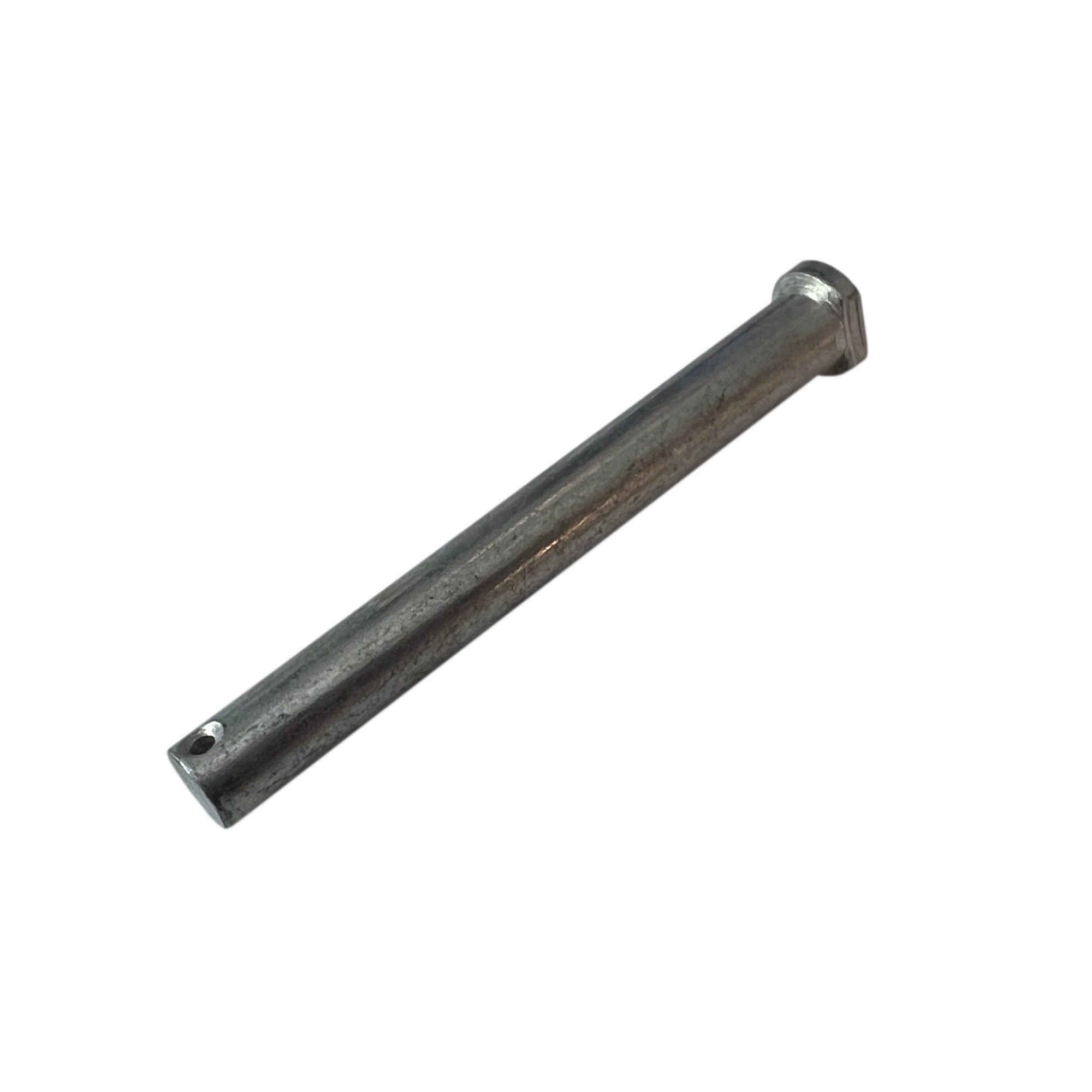

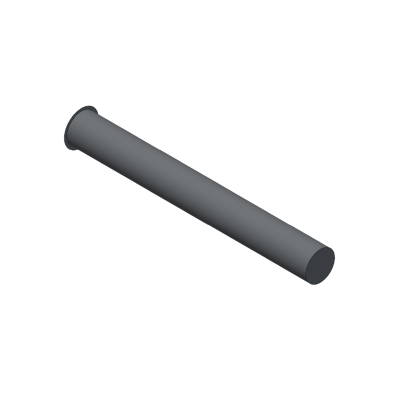

MK4 / MK21 Roller Pin (Axle)
|
MK4 / MK21 Roller Pin (Axle);
Used For Roller Part# 743002 and Roller Part# 803003 |
743001 |
|
62 |
|

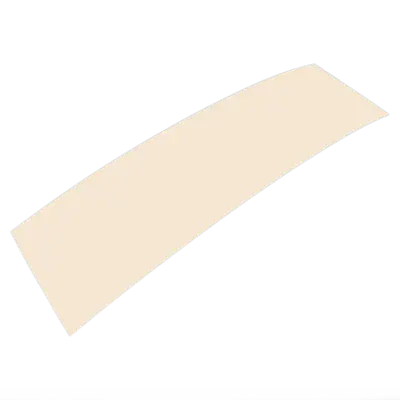

Acetal Strip
|
Acetal Strip, MK4 / MK21;
0.02” X 2.8125” Wide |
714007 |
|
63 |
|
Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
3.16" Pitch; 19 Roller;
60.375" Long;
Is a mate to Top Plate Part# 801016 |
802016 |
|
64 |
|

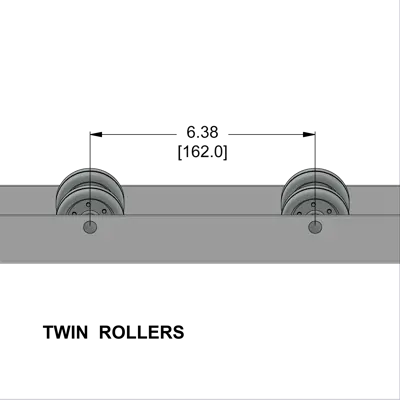

Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
6.375" Pitch; 10 Roller;
60.625" Long;
Is a mate to Top Plate Part# 801020 |
802020 |
|
65 |
|

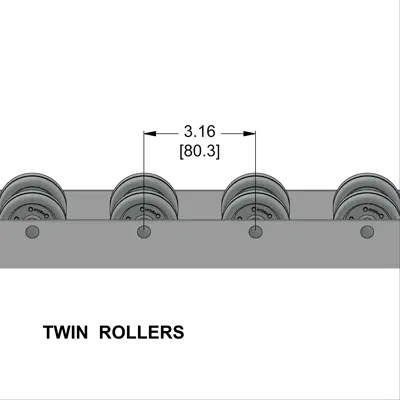

Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21 S6;
3.16" Pitch; 9 Roller;
29.75" Long;
Is a mate to Top Plate Part# 801021 |
802021 |
|
66 |
|
Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21 S6;
6.375" Pitch; 5 Roller;
29.75" Long;
Is a mate to Top Plate Part# 801022 |
802022 |
|
67 |
|

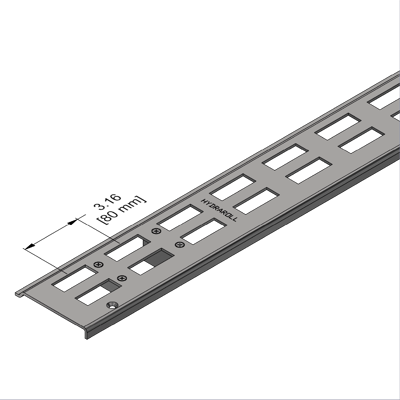

Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
3.16” Pitch; 19 Twin Roller Openings;
61.81” Long;
Is a mate to Roller Cradle Part# 802016 |
801016 |
|
68 |
|
Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
6.375” Pitch; 10 Twin Roller Openings;
61.81” Long;

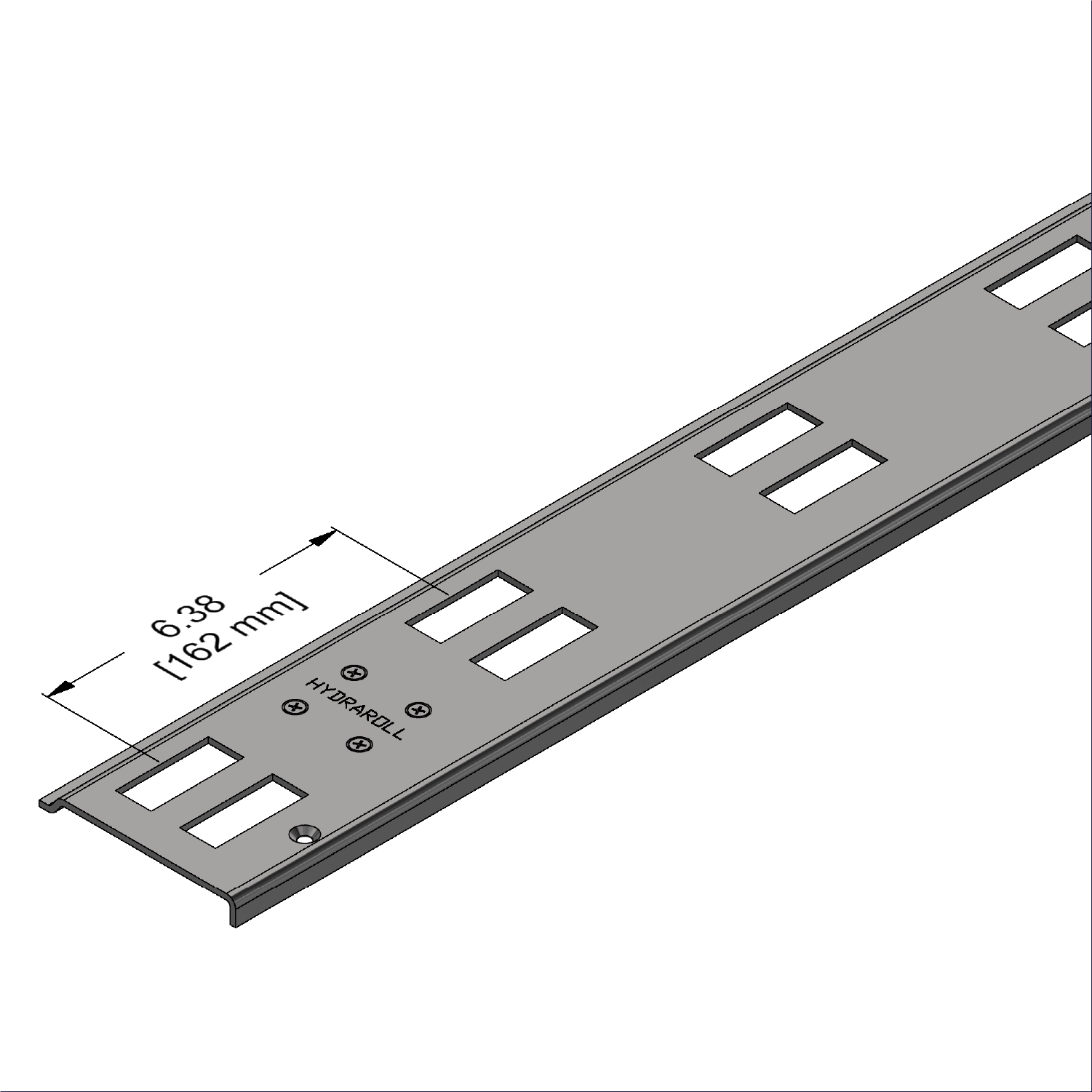

Is a mate to Roller Cradle Part# 802020 |
801020 |
|
69 |
|

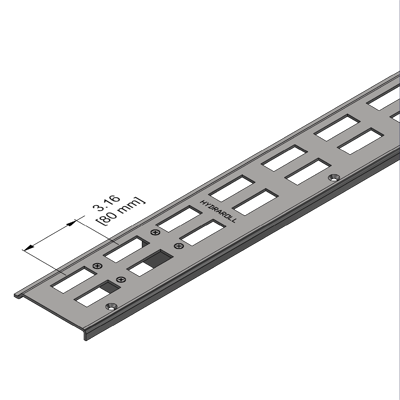

Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
3.16” Pitch; 9 Twin Roller Openings;
30.00” Long;
Is a mate to Roller Cradle Part# 802021 |
801021 |
|
70 |
|
Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
6.375” Pitch; 5 Twin Roller Openings;
30.00” Long;
Is a mate to Roller Cradle Part# 802022 |
801022 |
|
71 |
|

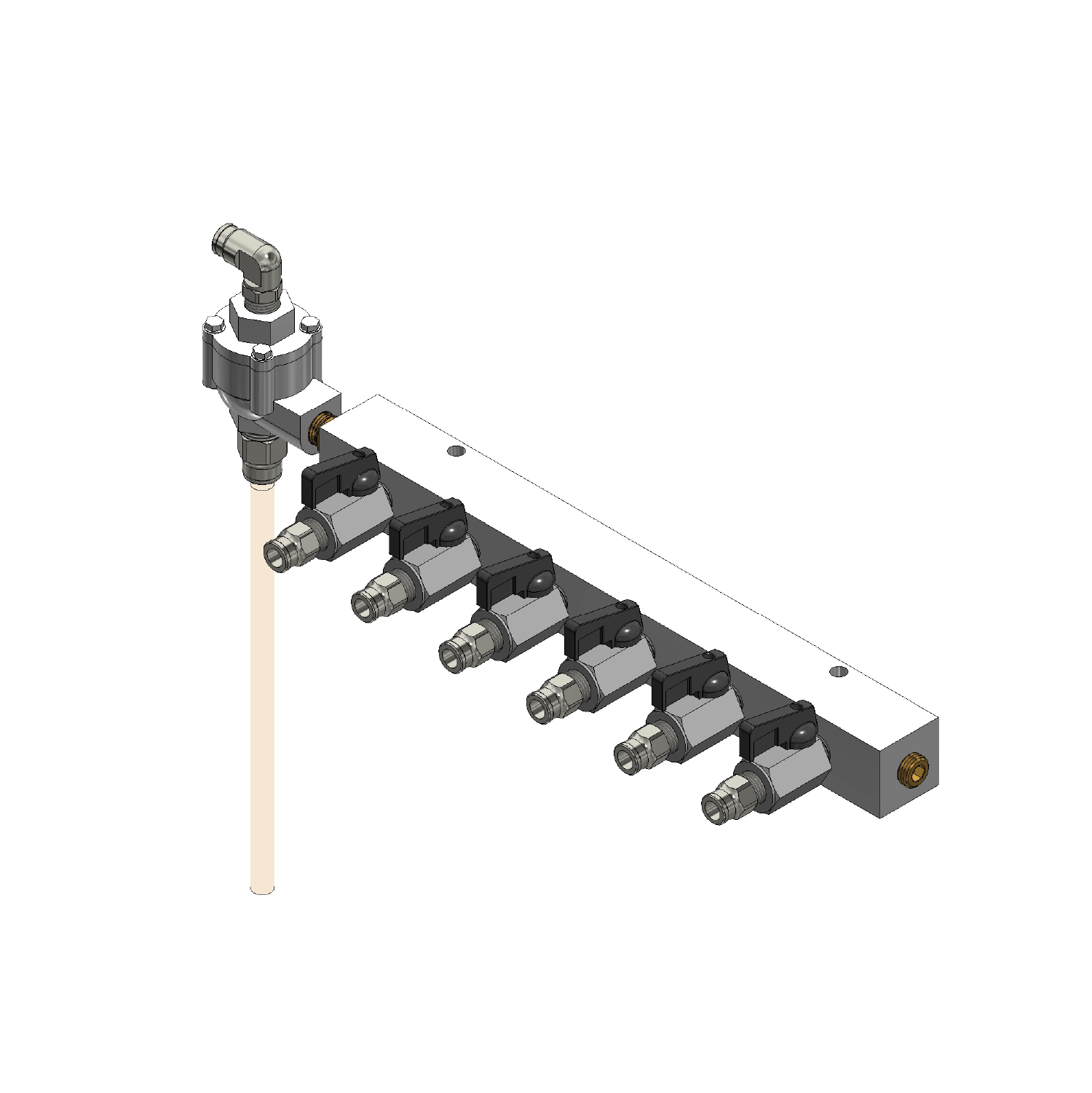

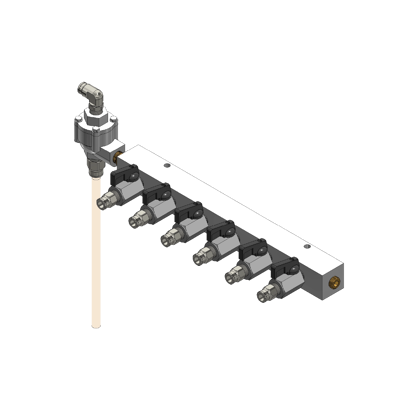

TIV Manifold Assembly
|
TIV Manifold Assembly;
Comes with Quick Exhaust Valve (QEV);
Ball Valves and Fittings as shown;
6-Port |
772018 |
|
72 |
|

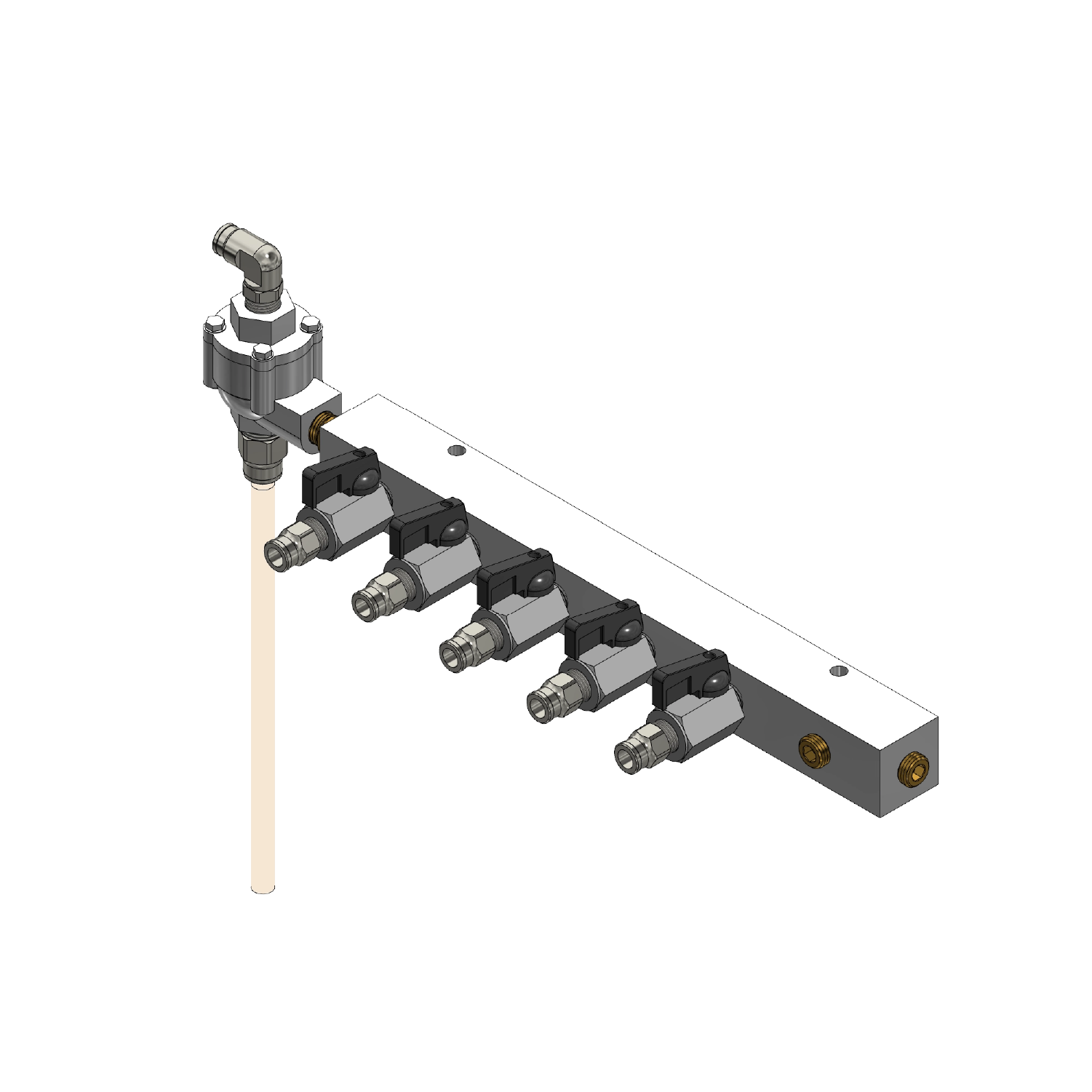

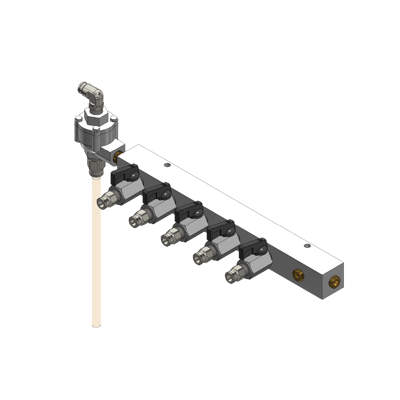

TIV Manifold Assembly
|
TIV Manifold Assembly;
Comes with Quick Exhaust Valve (QEV);
Ball Valves and Fittings as shown;
5-Port |
772049 |
|
73 |
|

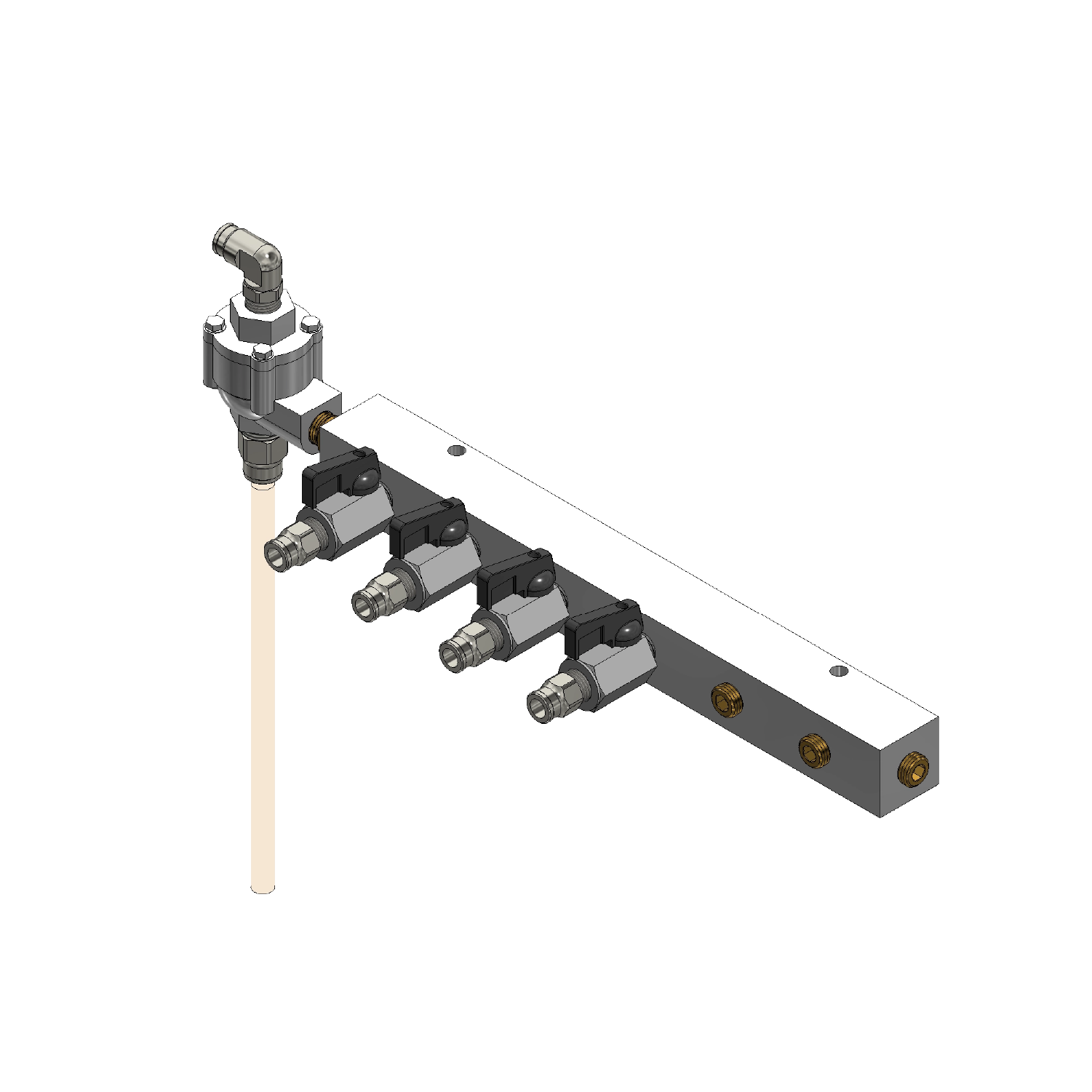

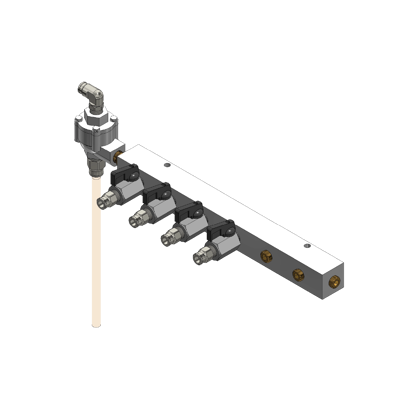

TIV Manifold Assembly
|
TIV Manifold Assembly;
Comes with Quick Exhaust Valve (QEV);
Ball Valves and Fittings as shown;
4-Port |
772050 |
|
74 |
|

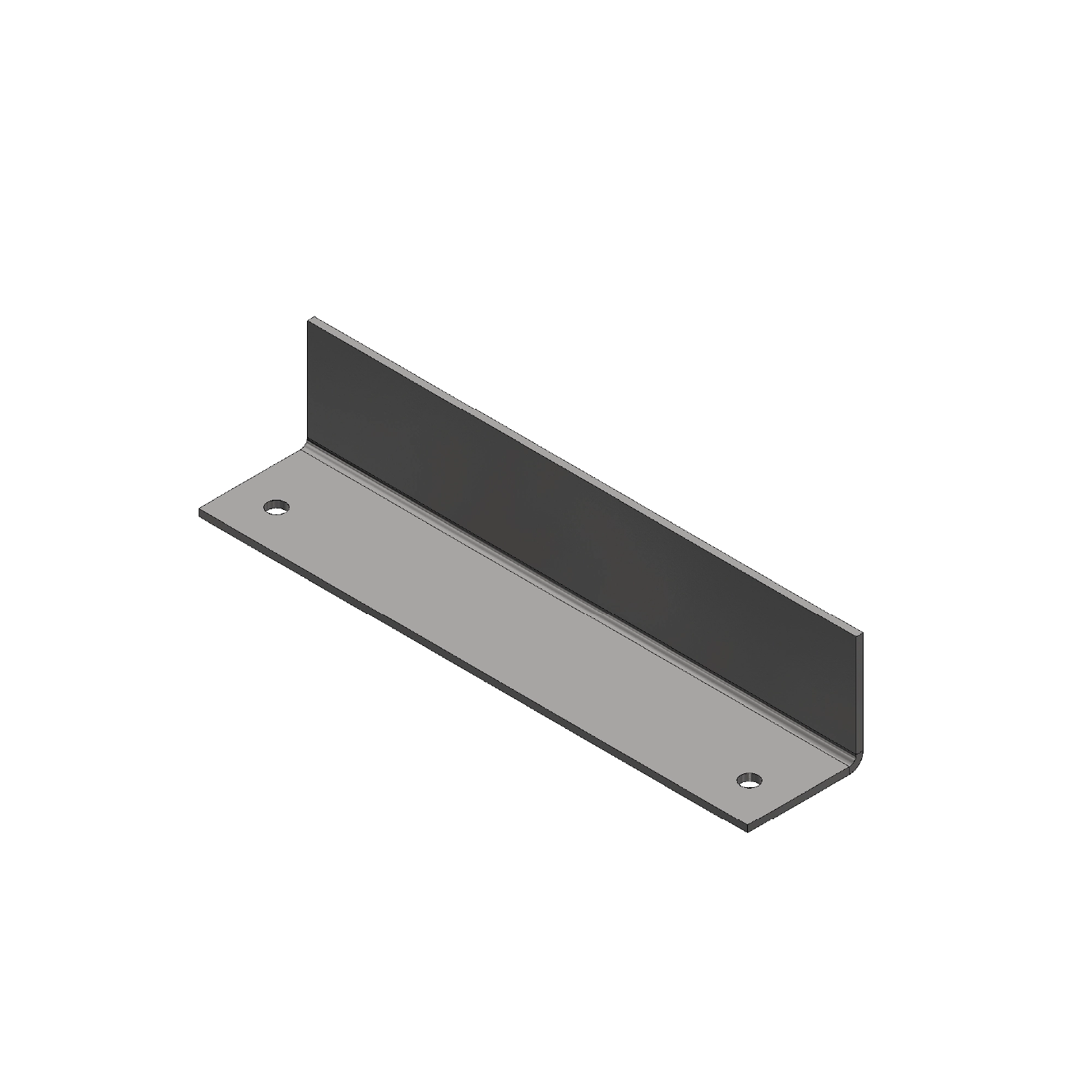

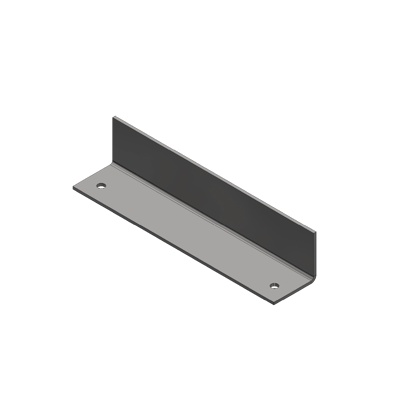

TIV Manifold Bracket
|
TIV Mounting Bracket;
Angel Steel 1/8"x 9-1/2" |
713002 |
|
75 |
|

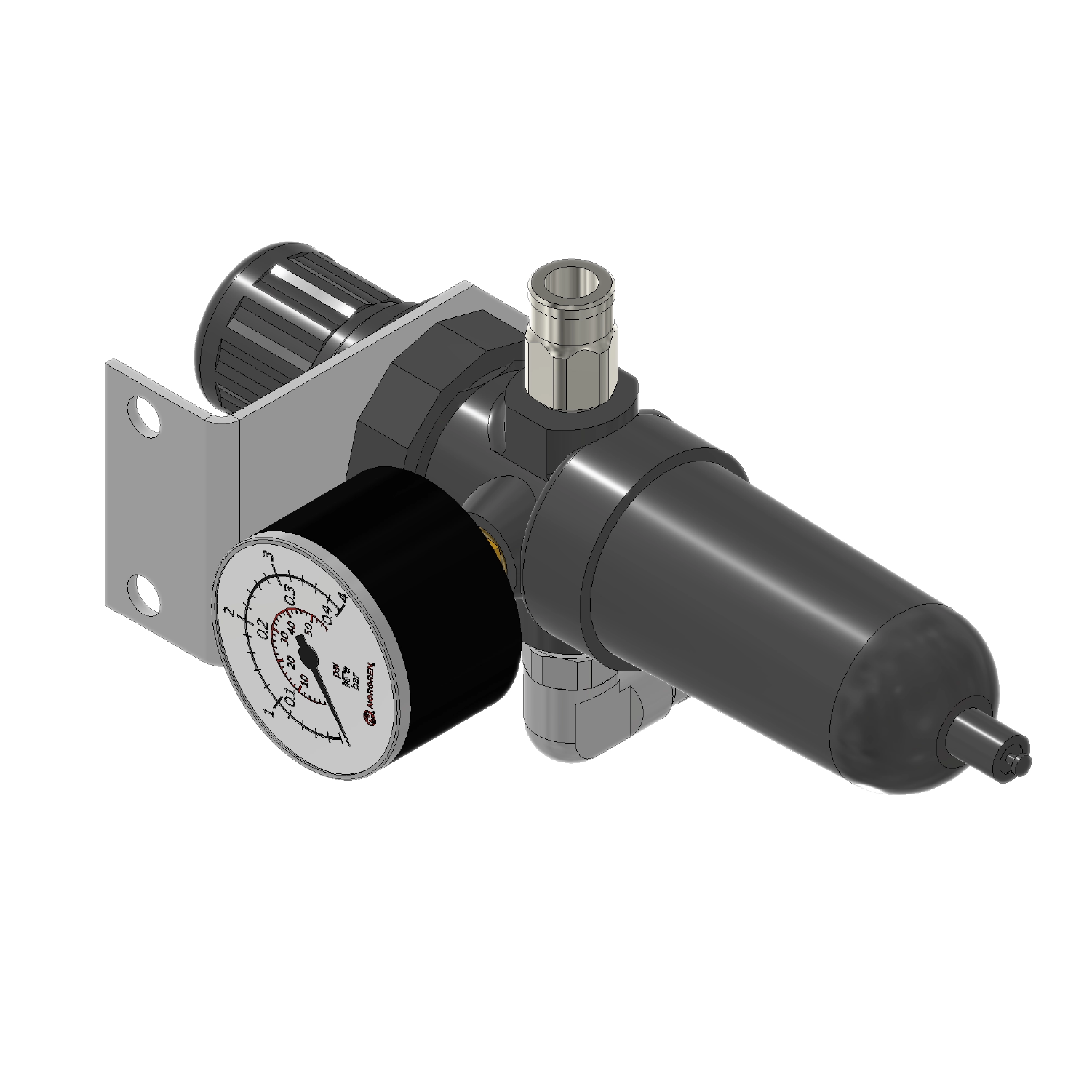

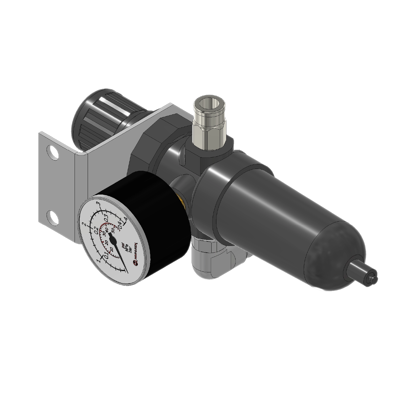

Pneumatic Filter / Regulator Replacement
|
Pneumatic Filter / Regulator Replacement;
For Control Box;
Comes with Fittings and Mounting Bracket |
772017 |
|
76 |
|

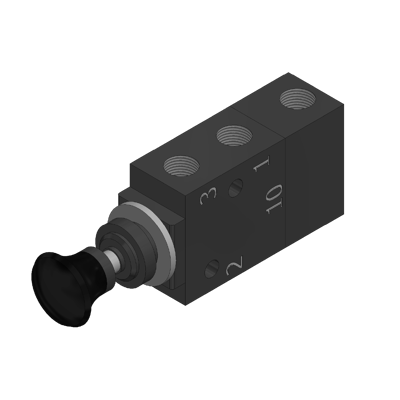

Autodown Control Valve
|
Autodown Control Valve Replacement For Control Box Knob is Included;
G 1/8" |
772024 |
|
77 |
|

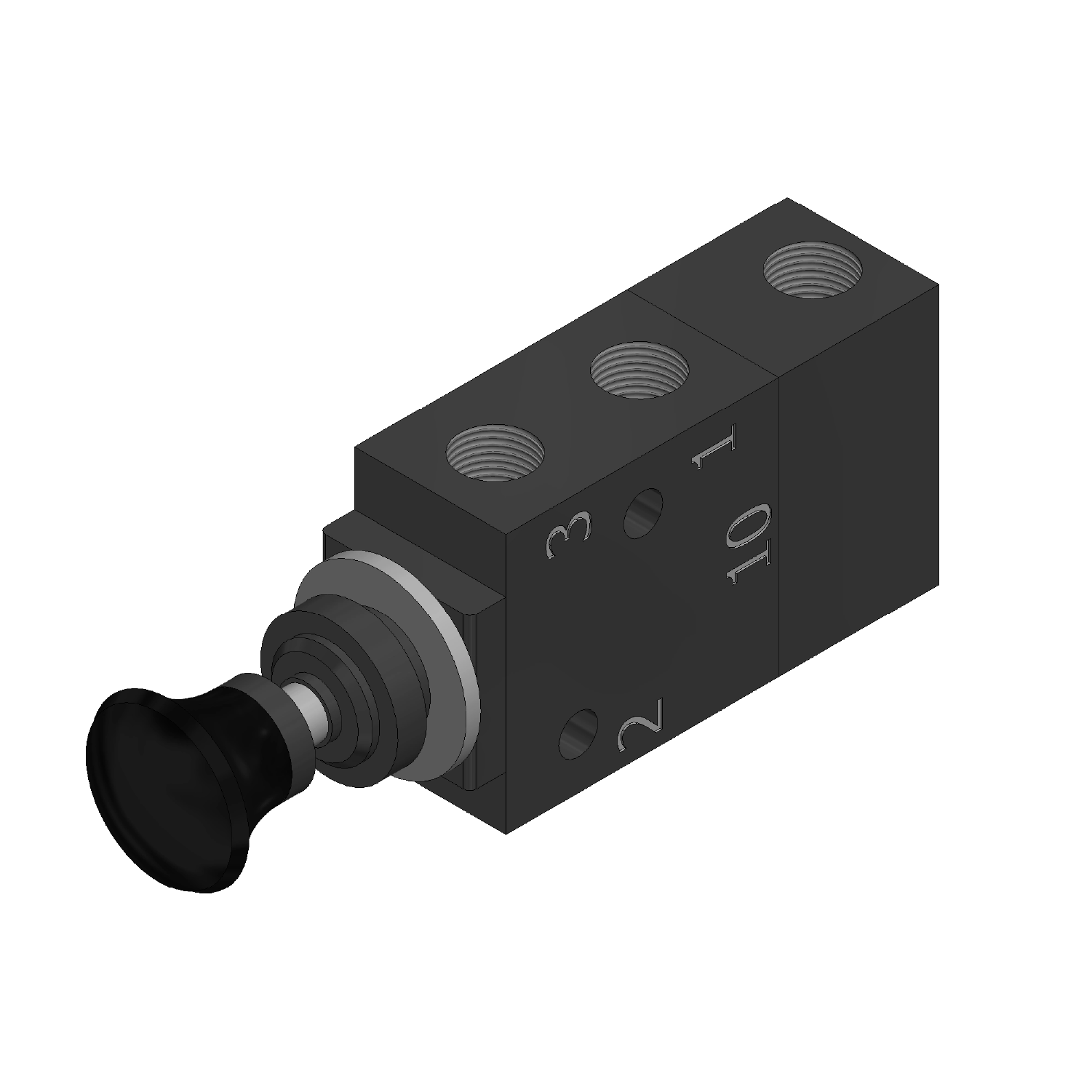

Knob
|
Knob; Auto-Down Valve |
772023 |
|
78 |
|

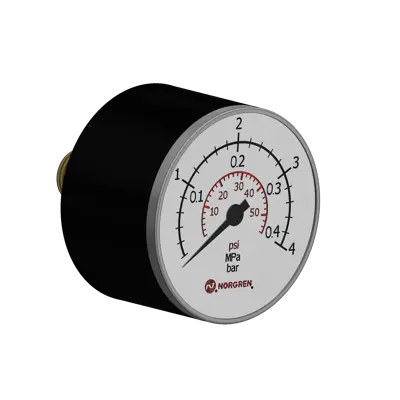

Filter Regulator Gauge
|
Filter Regulator Gauge Replacement;
(0-60 Psi, 0-4 Bar);
For Standard Control Box;
1/8" R |
772044 |
|
79 |
|

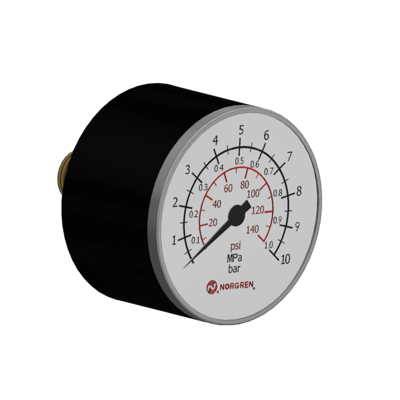

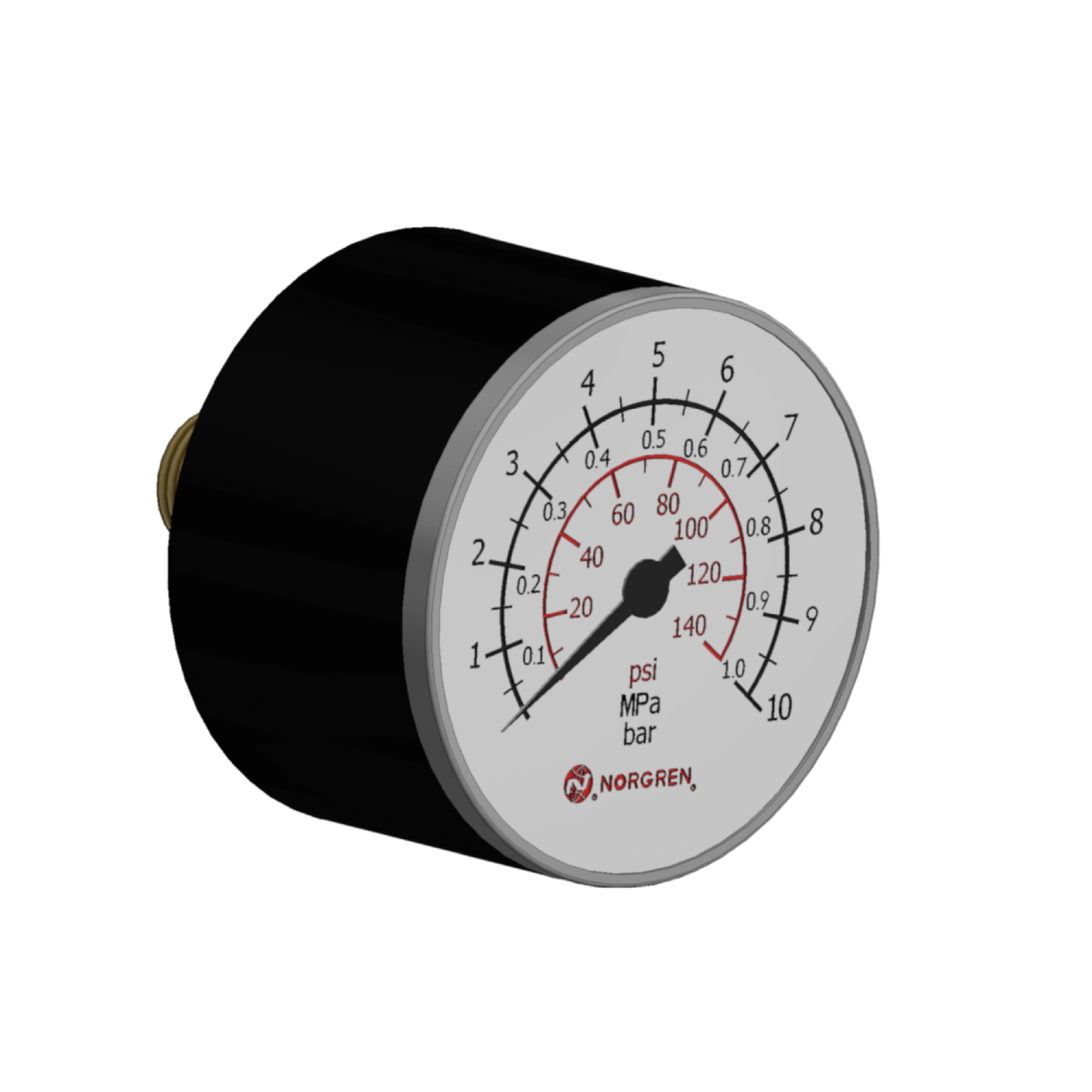

Filter Regulator Gauge
|
Filter Regulator Gauge Replacement;
(0-140 Psi, 0-10 Bar);
For Filter Regulator Control Box (Slipchain);
1/8" R |
772008 |
|
80 |
|

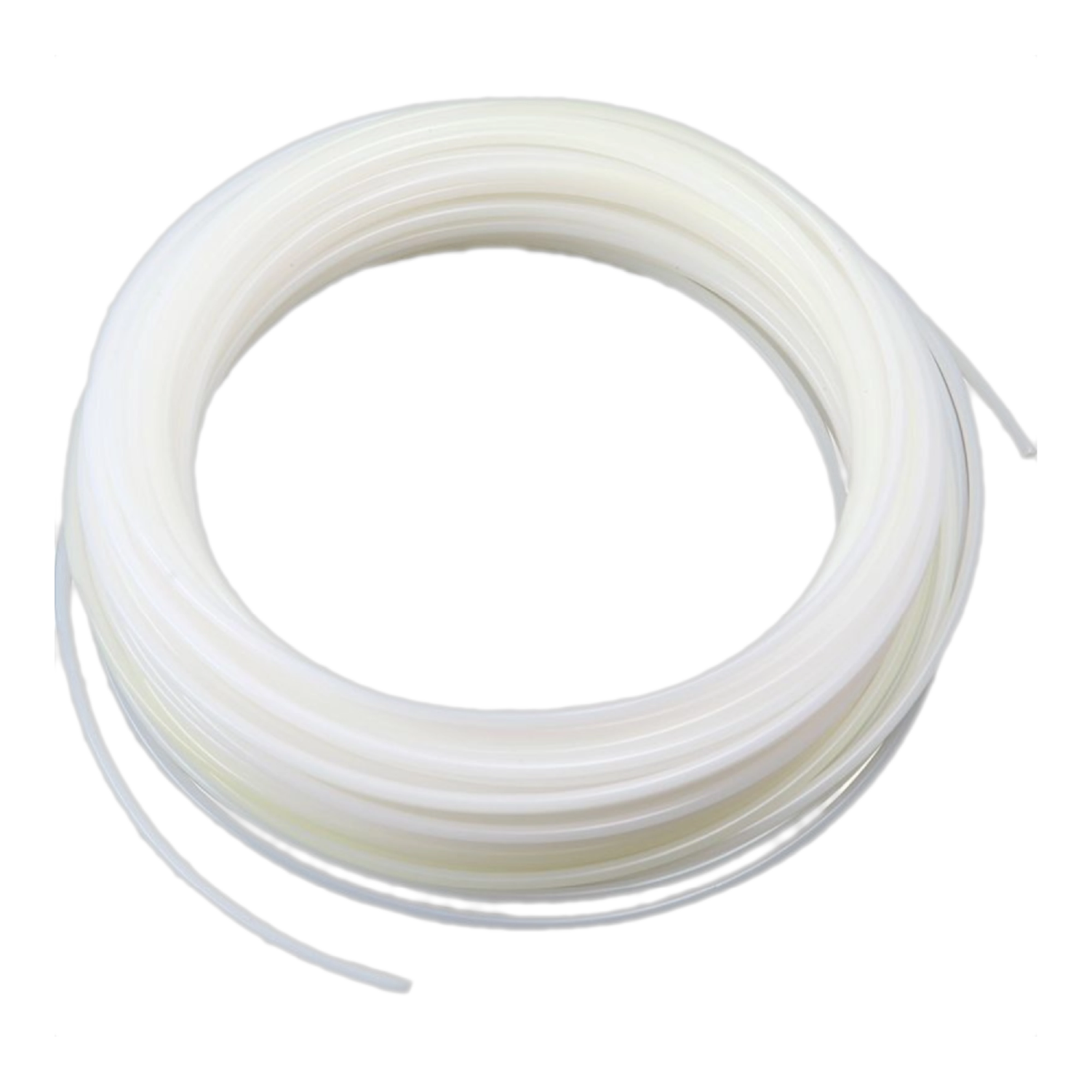

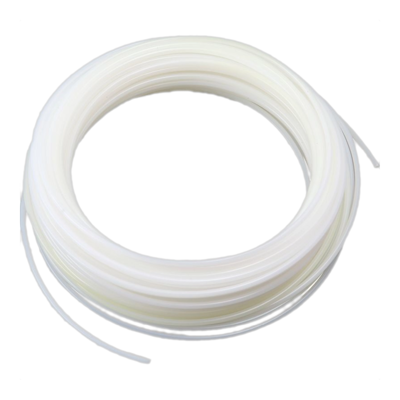

Nylon Tubing White
|
Nylon Tubing; 5/16" OD; White;
(Roll of 100m / 328ft) |
773005 |
|
81 |
|

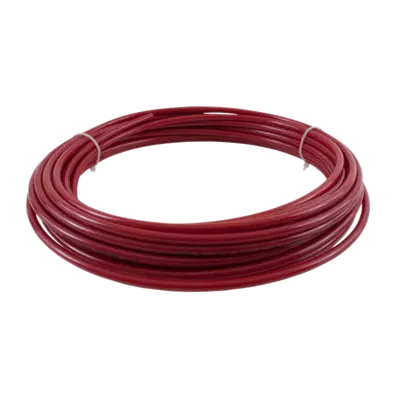

Nylon Tubing Red
|
Nylon Tubing; DOT; 3/8" OD; Red
(Roll of 500ft) |
775001 |
|
82 |
|

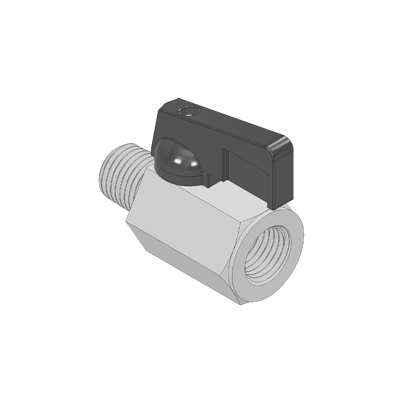

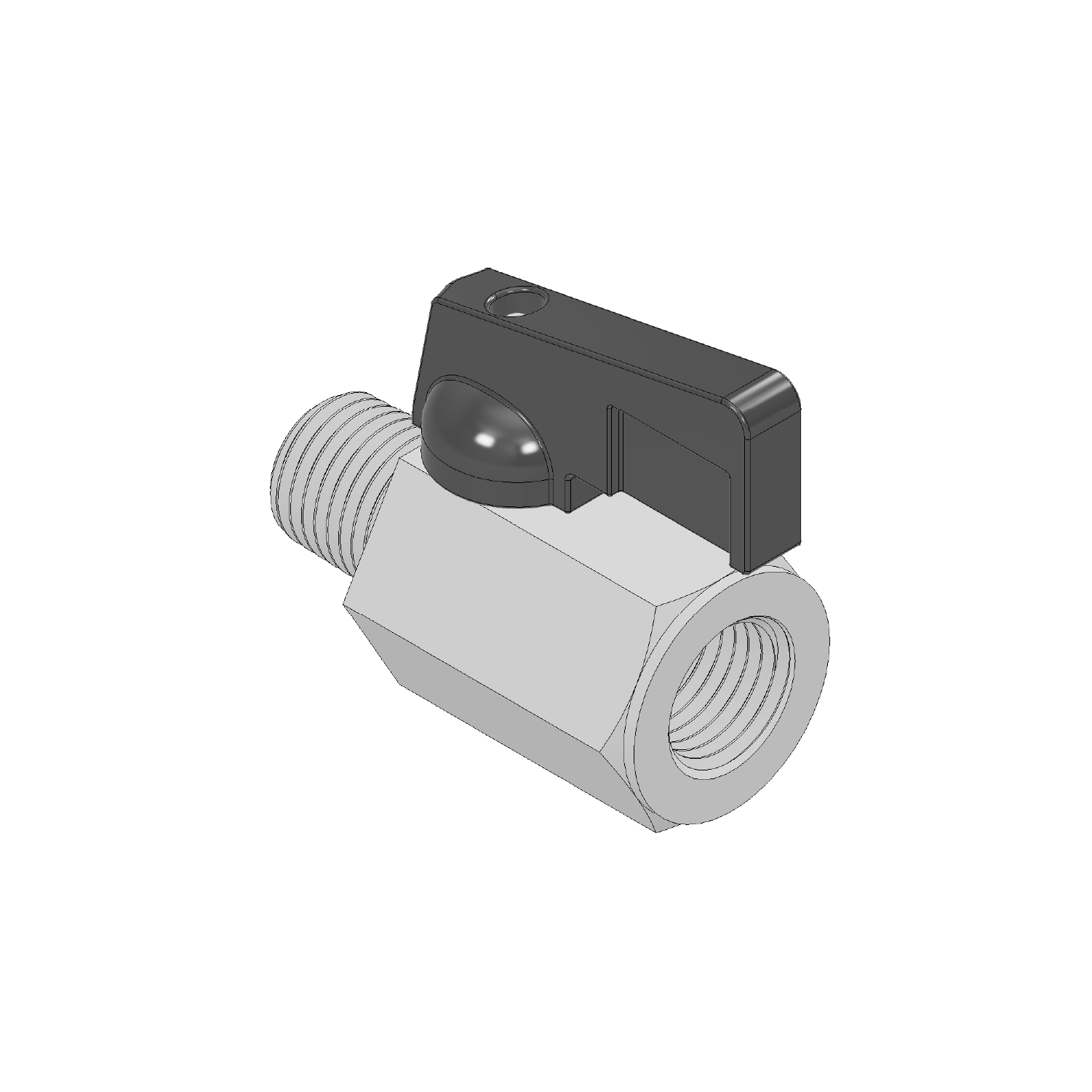

Shut-off Valve for external TIV
|
Shut-off Valve for external TIV (NPT);
(Uses 773008 Stud Coupling);
(Imperial) |
772005 |
|
83 |
|

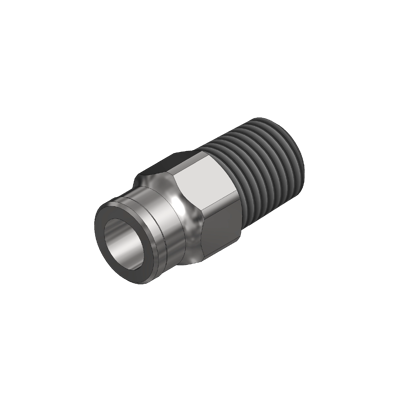

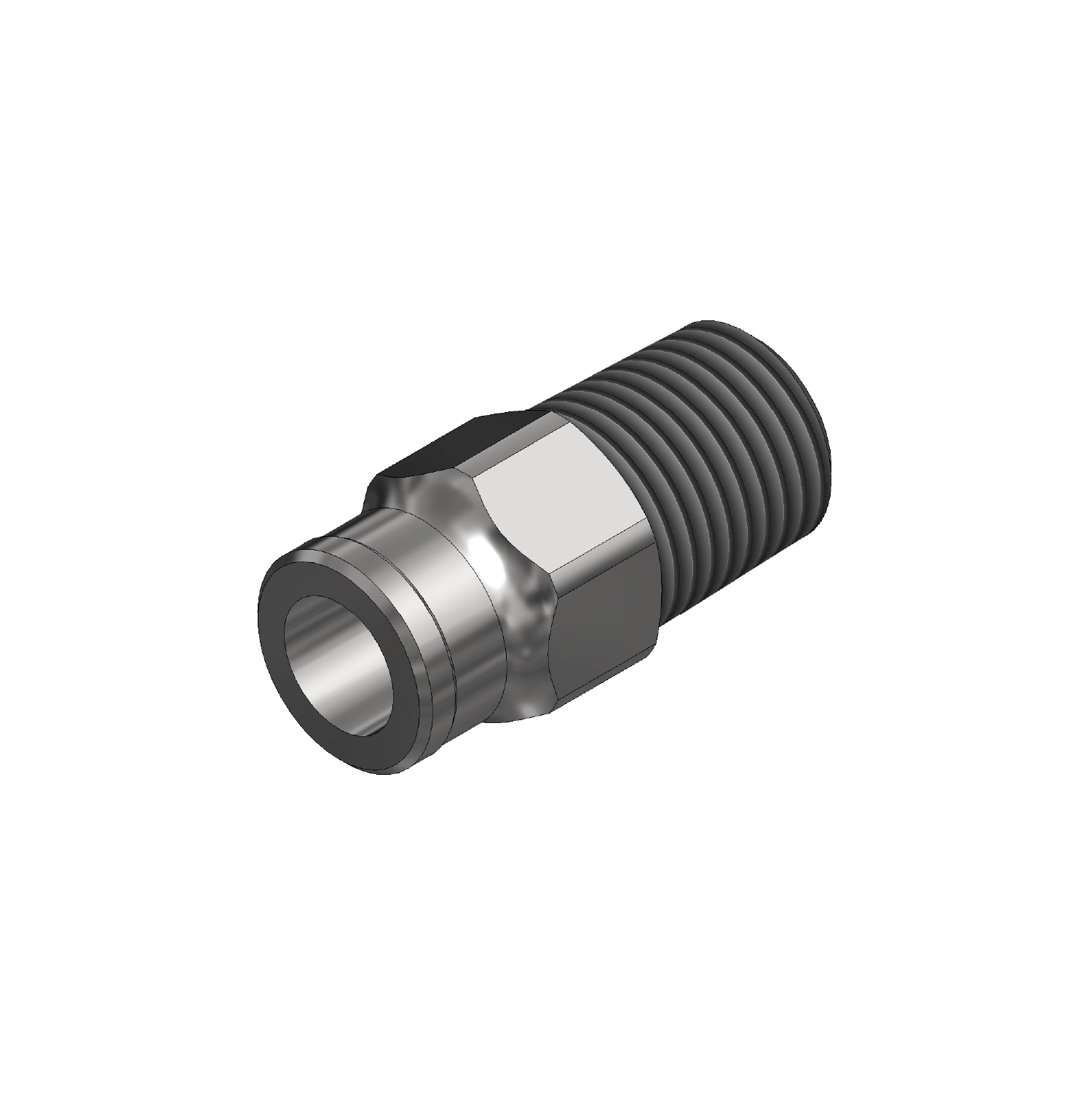

Stud Coupling Fitting
|
Stud Coupling; 5/16"T x 1/4 NPT
(For Shut-off Valve 772005);
(Imperial) |
773008 |
|
84 |
|

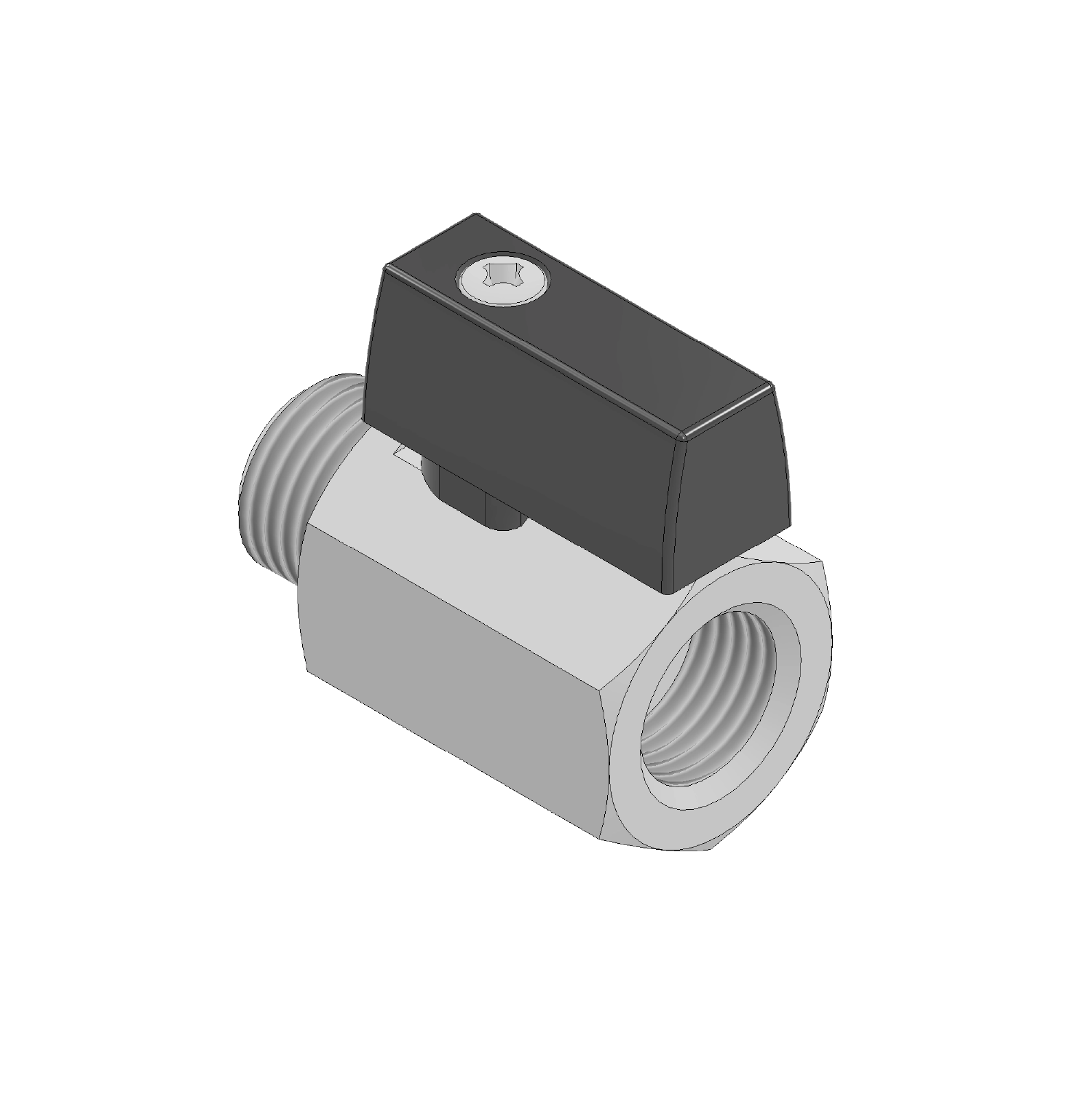

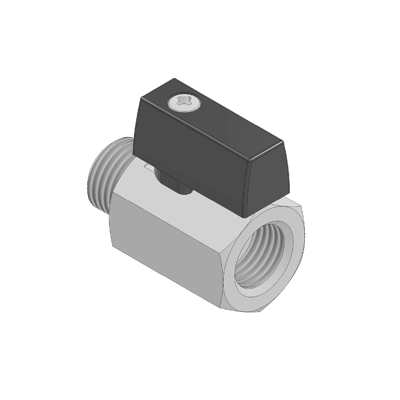

Control Box Shut-off Valve for internal TIV (BSPT)
|
Control Box Shut-off Valve for internal TIV (BSPT);
1/4" BSPT;
(Uses 773030 Stud Coupling);
(Metric) |
772058 |
|
85 |
|

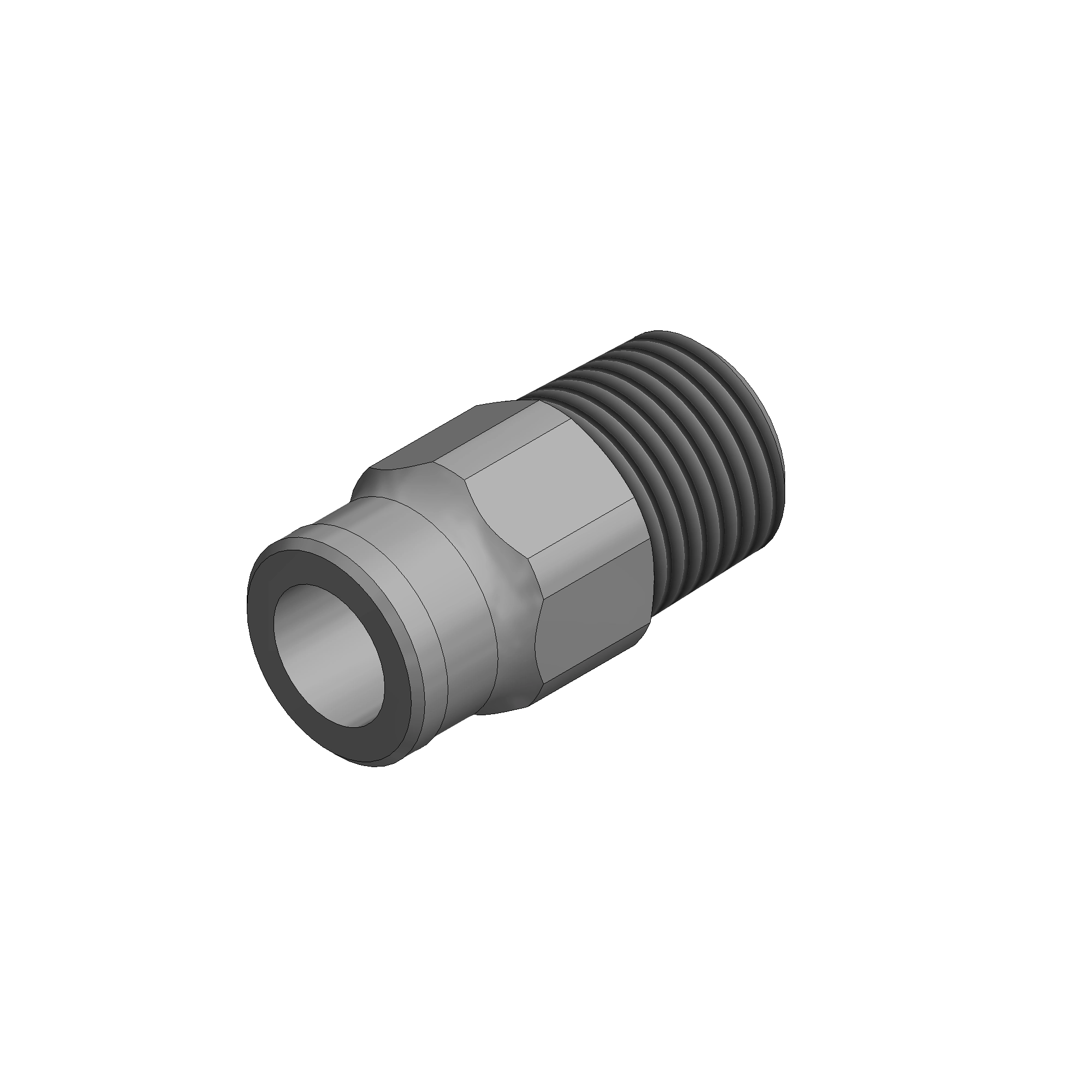

Stud Coupling
|
Stud Coupling; 5/16"T x 1/4" BSPT;
(For Shut-off Valve 772058);
(Metric) |
773030 |
|
86 |
|

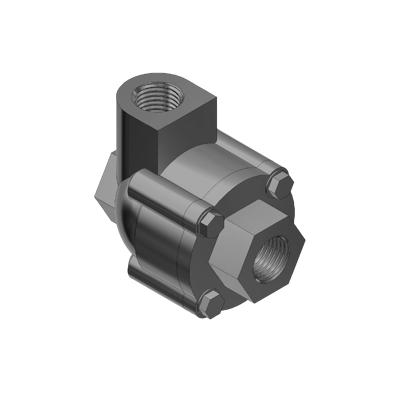

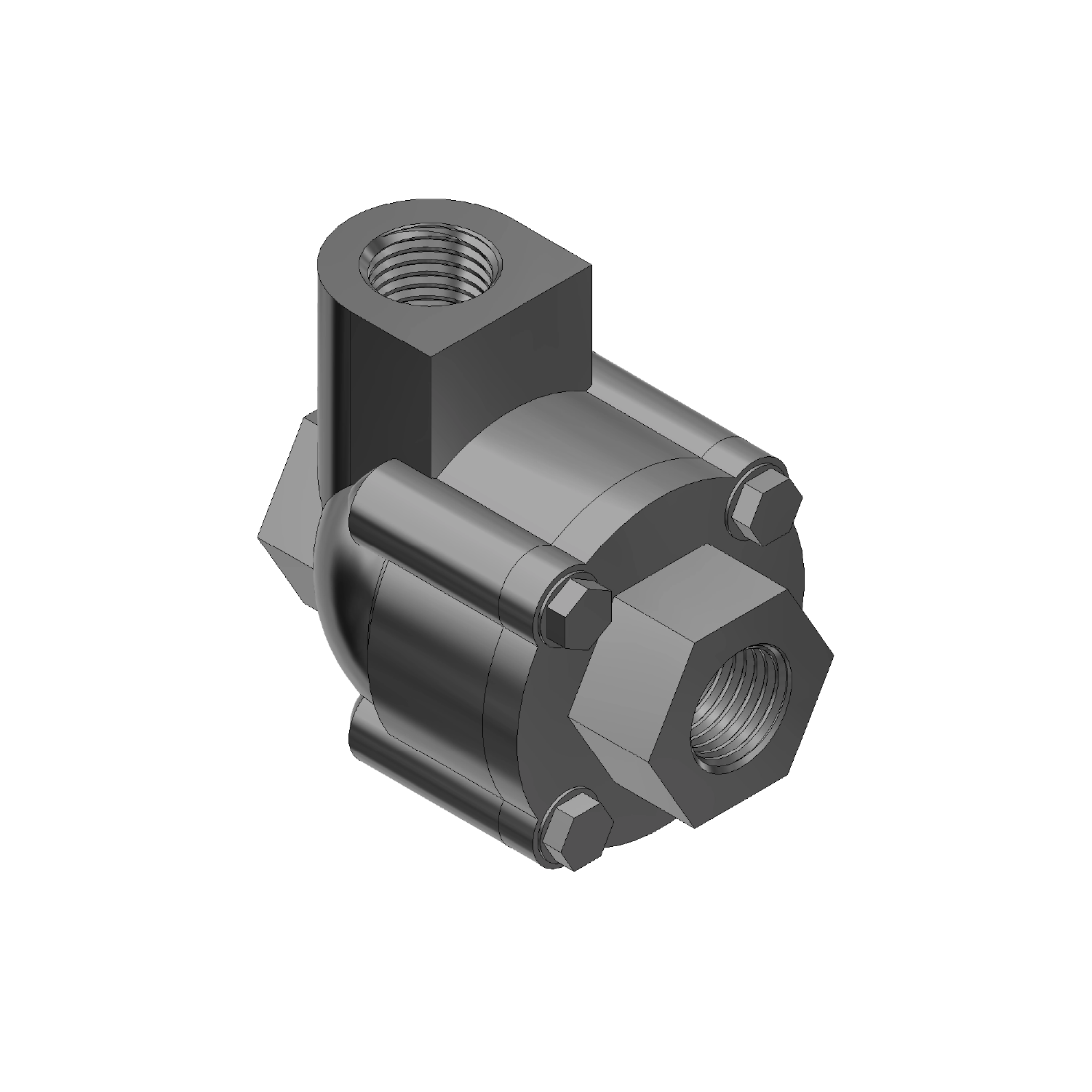

QEV - Body Only
|
QEV - Body Only |
772006 |
|
87 |
|

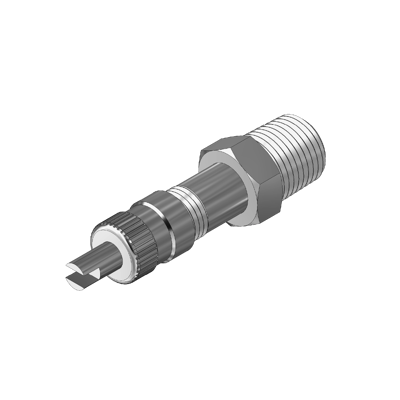

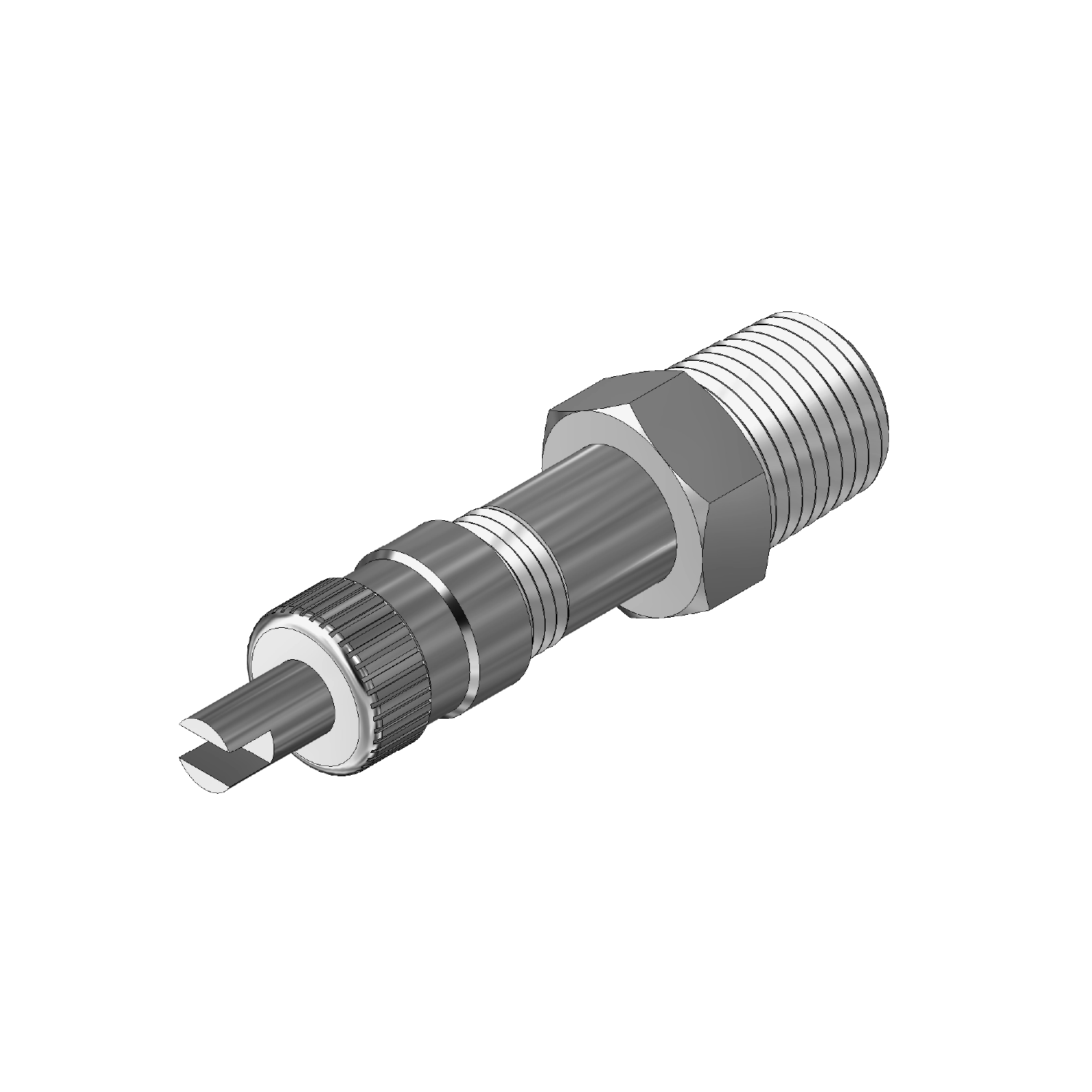

Aux. Inflation Valve
|
Aux. Inflation Valve (AIV); Schrader Type; 1/8" NPT;
(Imperial) |
772028 |
|
88 |
|

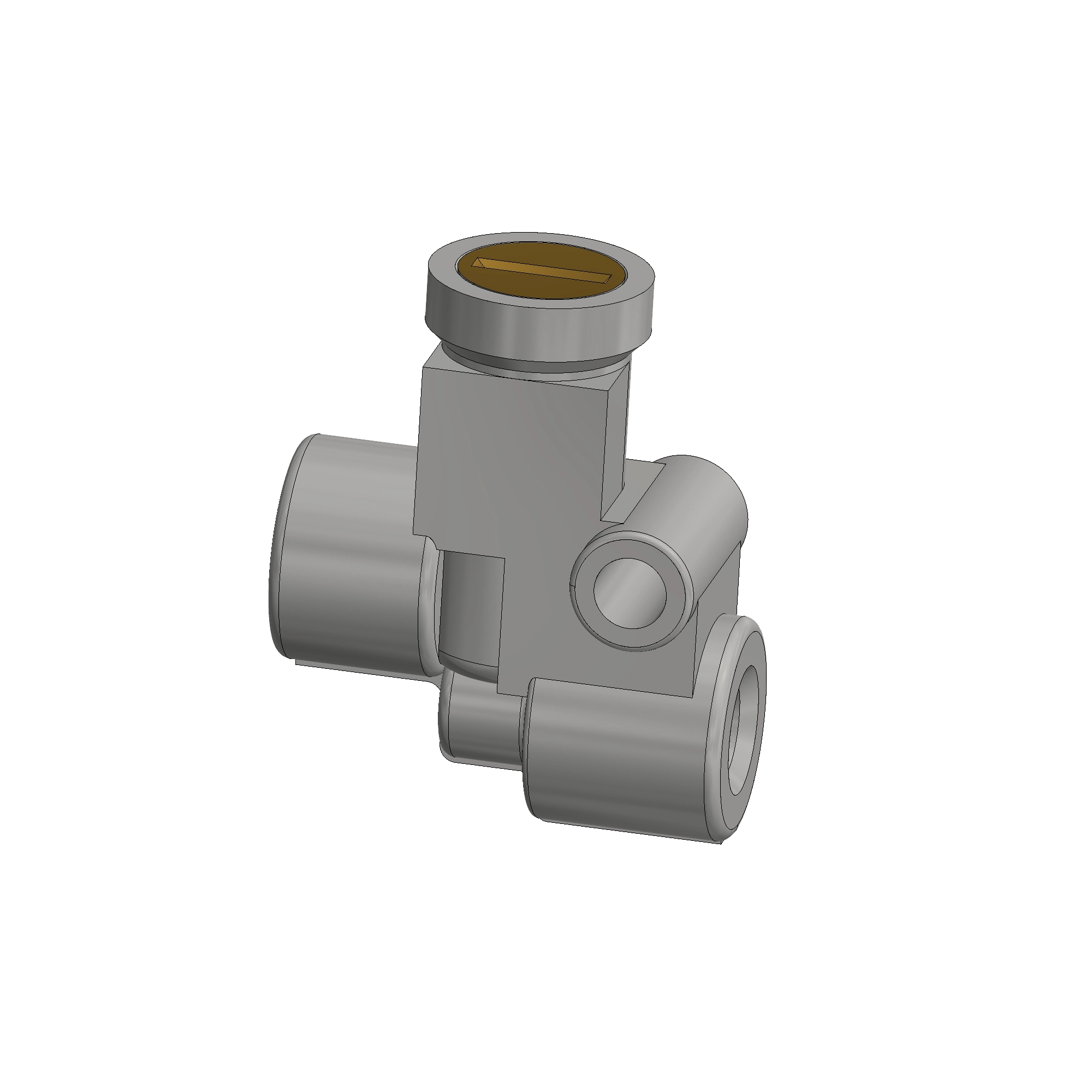

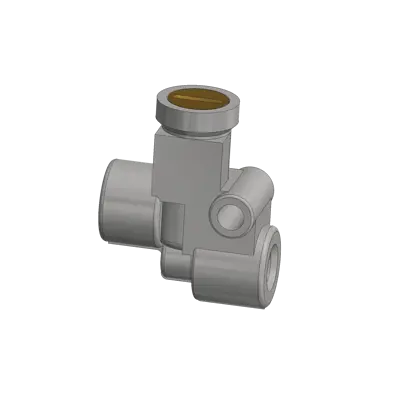

Pressure Protection Valve (PPV)
|
Pressure Protection Valve;
Body only; 80psi;
Inlet; Outlet 3/8" NPT |
772004 |
|
89 |
|

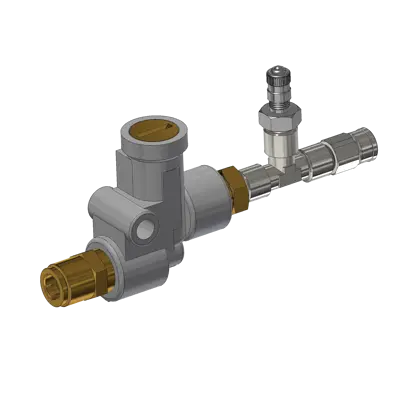

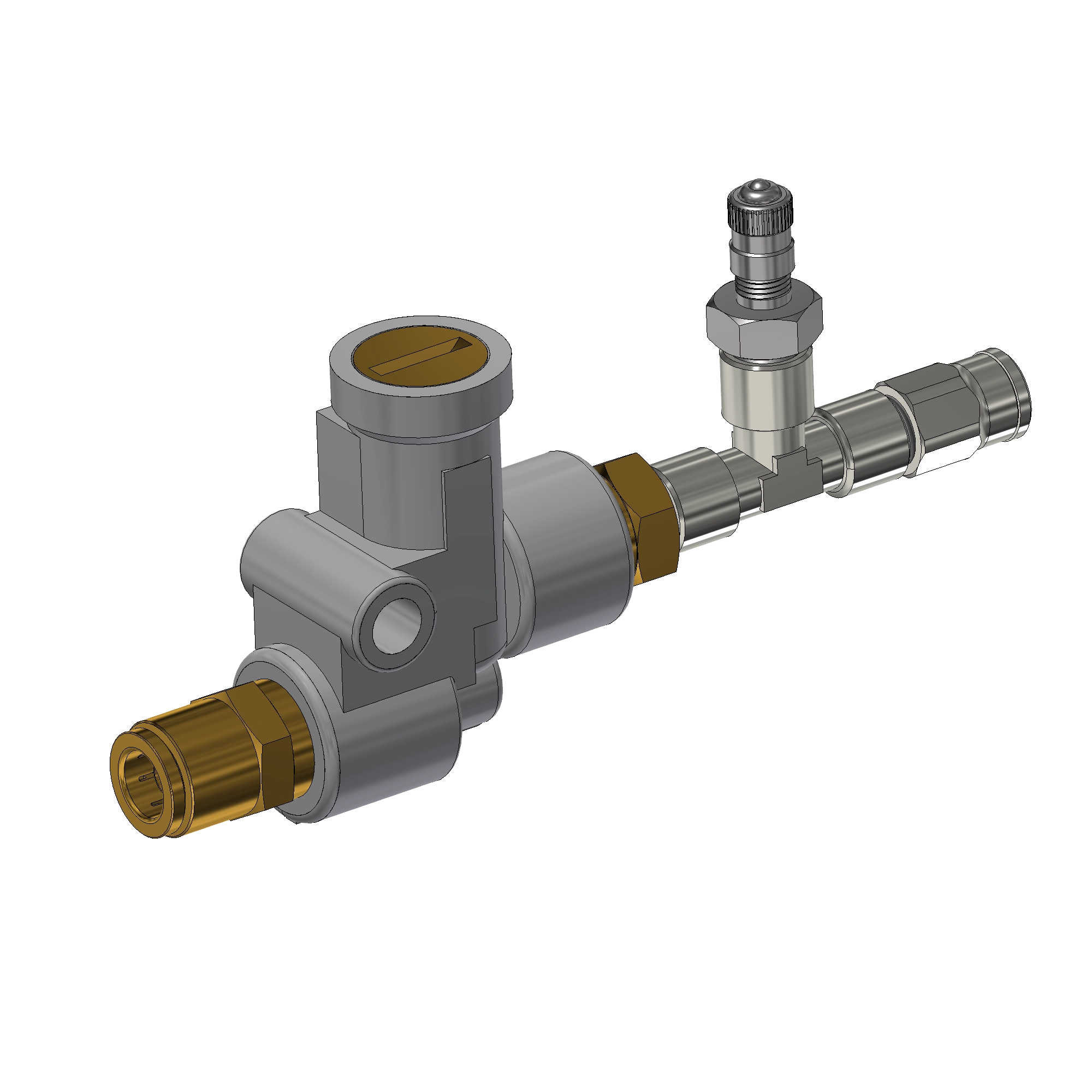

Pressure Protection Valve (PPV) With AIV
|
Pressure Protection Valve;
w/ AIV;
Tank; 80PSI; 3/8"NPT;
(Preceding version 772016) |
772053 |
|
90 |
|

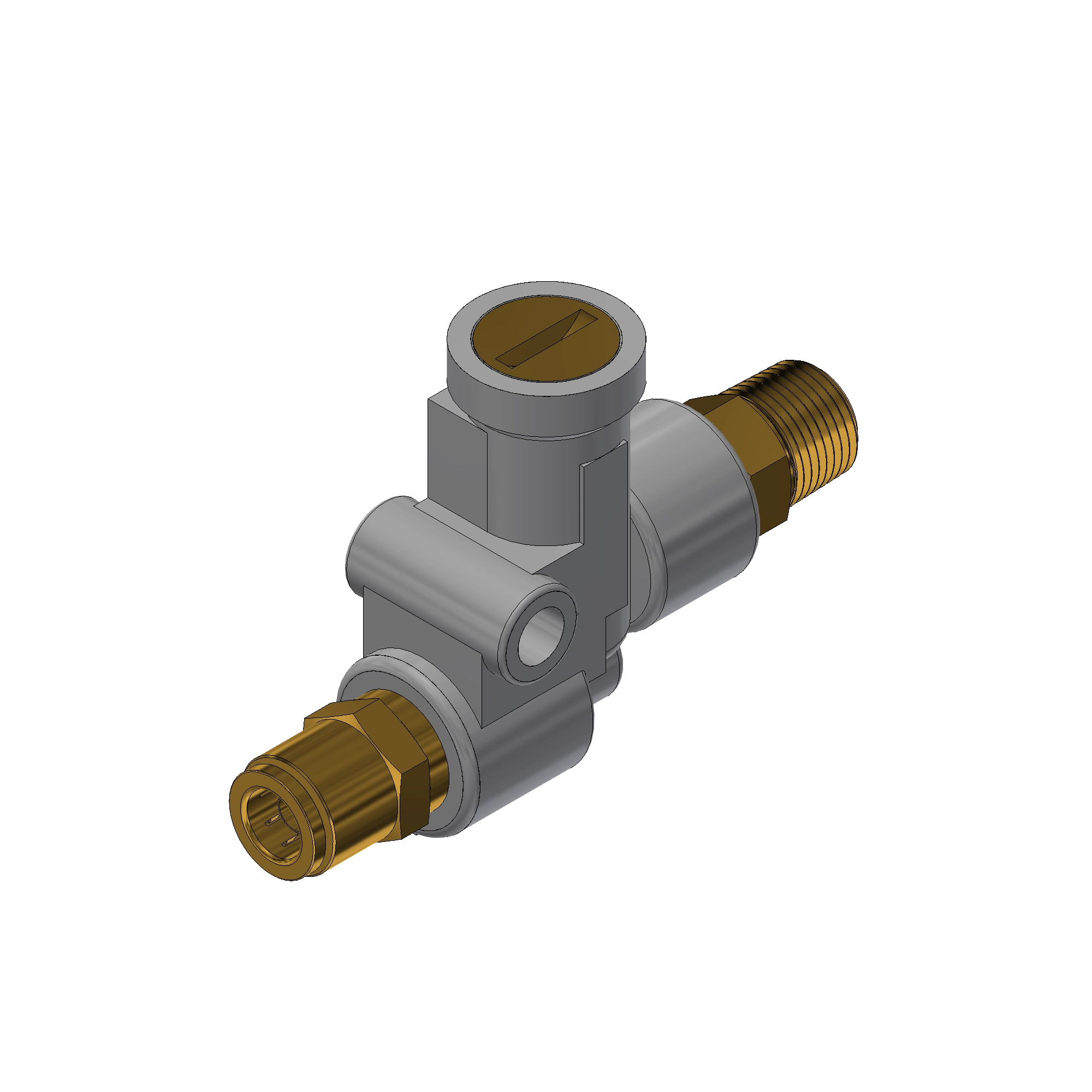

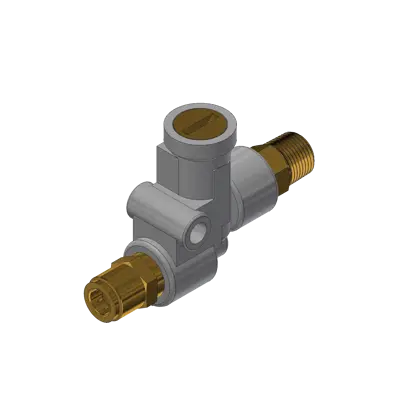

Pressure Protection Valve (PPV) Without AIV
|
Pressure Protection Valve;
w/o AIV;
Tank; 80PSI; 3/8"NPT |
772054 |
|
91 |
|

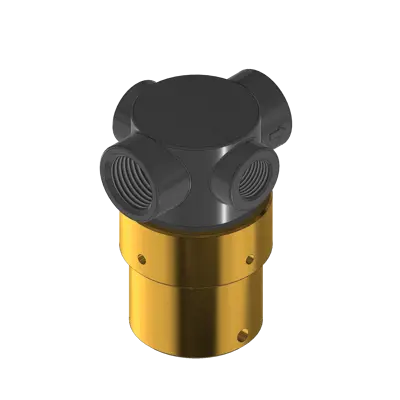

Regulator Assembly For AQ1
|
Regulator Assembly For AQ1; S/S w/ AIV;
Port 1/4" G;
Gauge Port 1/8" BSP |
772055 |
|
92 |
|

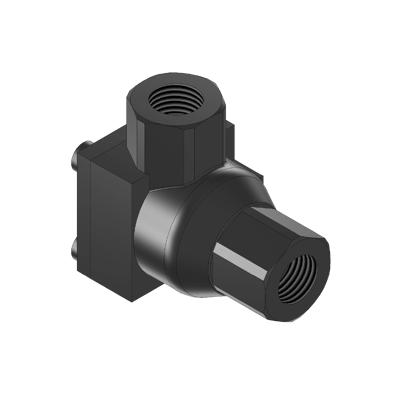

Quick Exhaust Valve For AQ1
|
Quick Exhaust Valve For AQ1 Box TIV;
1/4" G |
772056 |
|
93 |
|

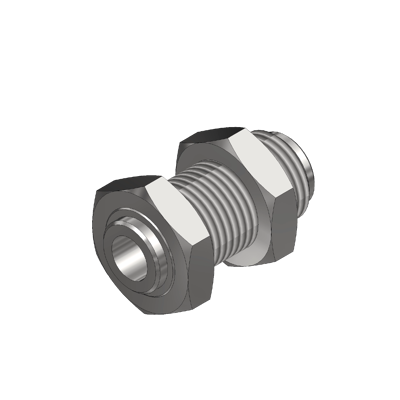

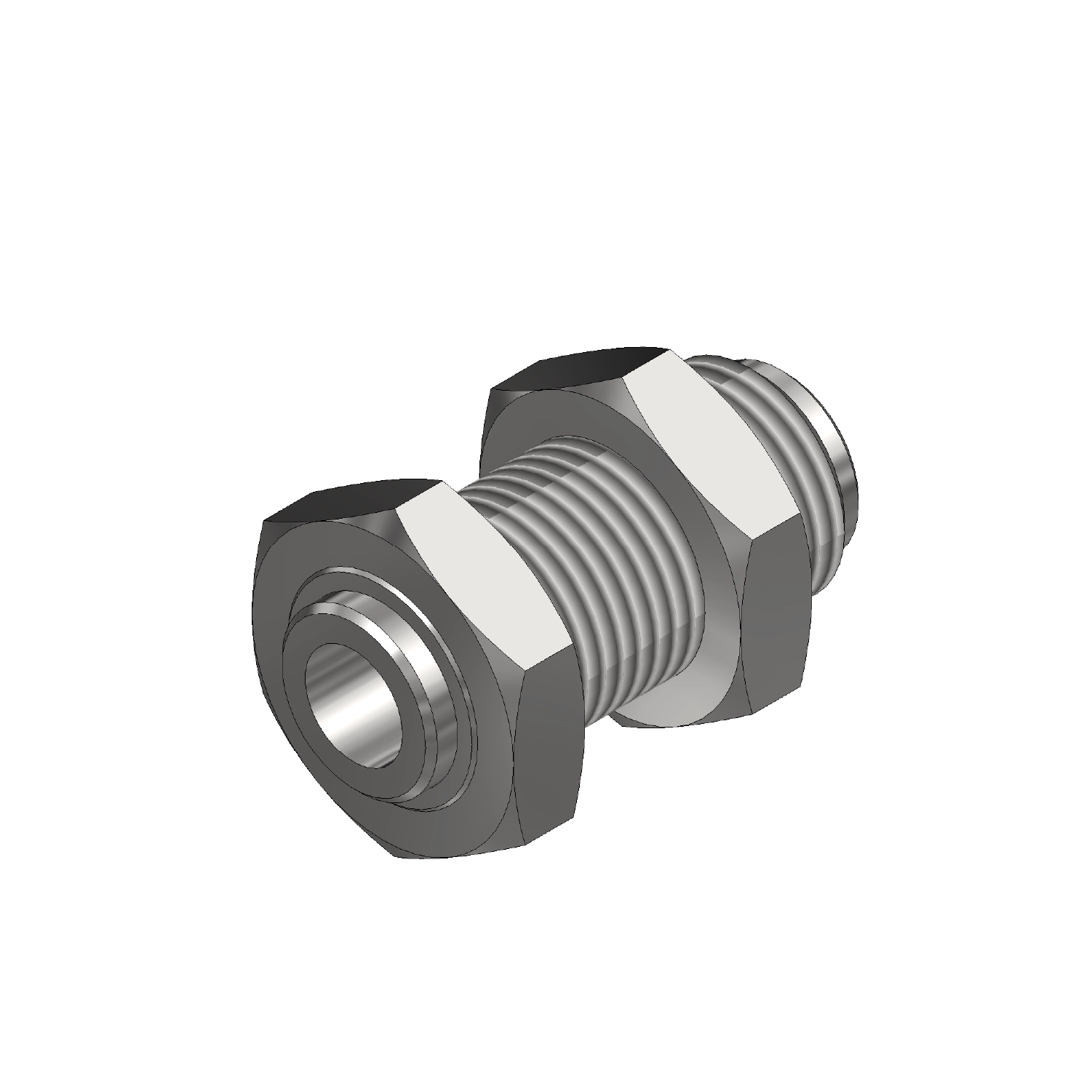

Bulk Head Coupling Fitting
|
Bulk Head Coupling; 5/16" T; Push-In;
Thread M16x1.5 |
771010 |
|
94 |
|

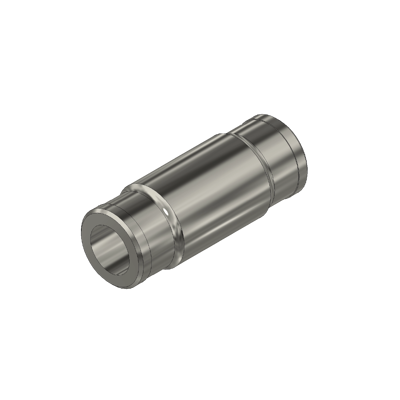

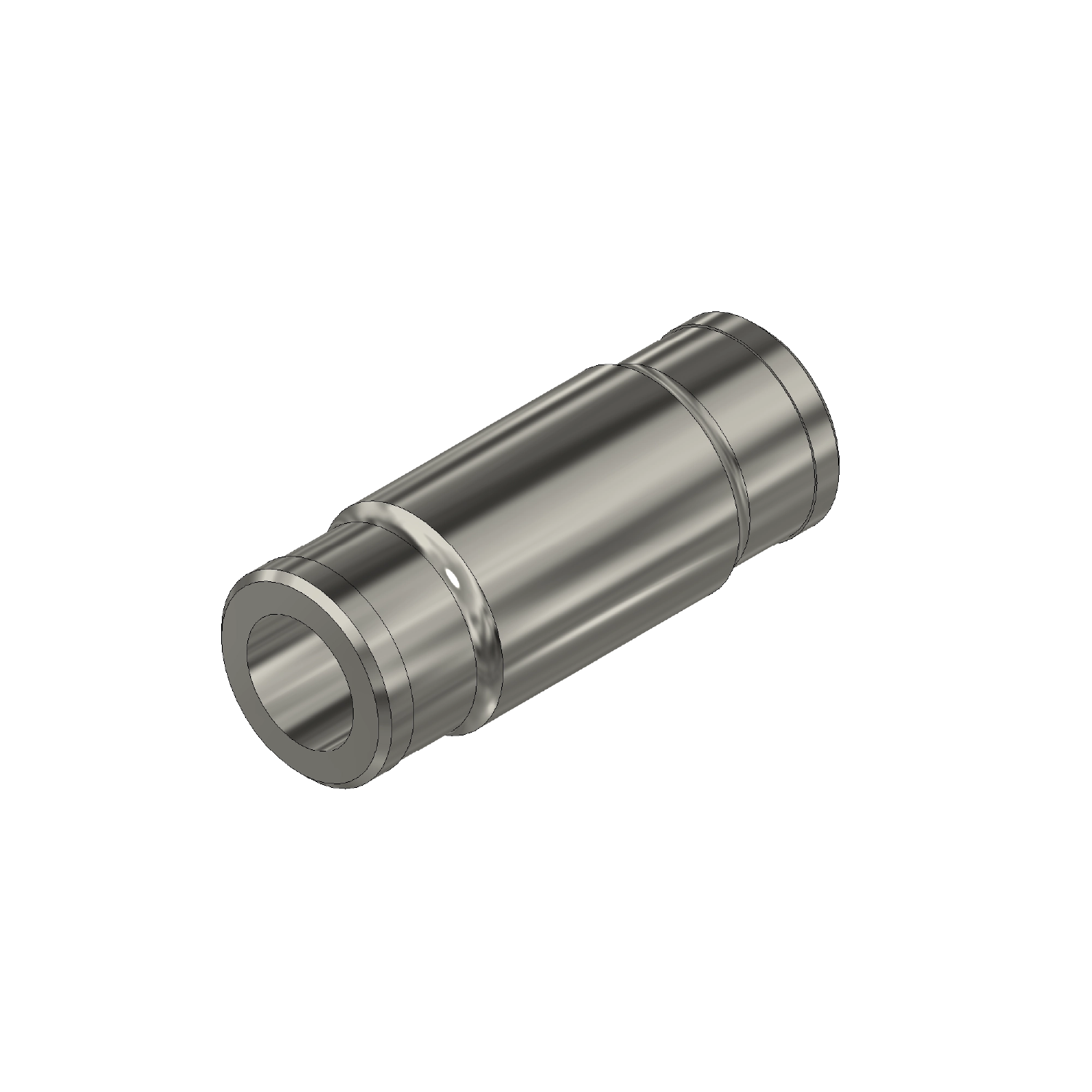

Straight Fitting
|
Straight Fitting; 5/16" T; Push-In |
773007 |
|
95 |
|

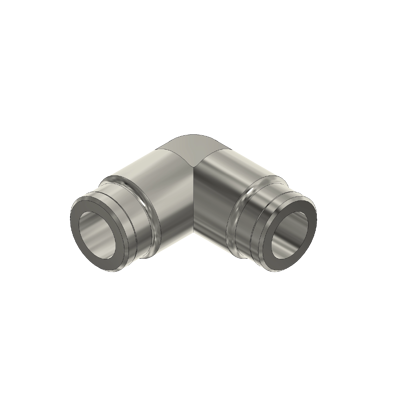

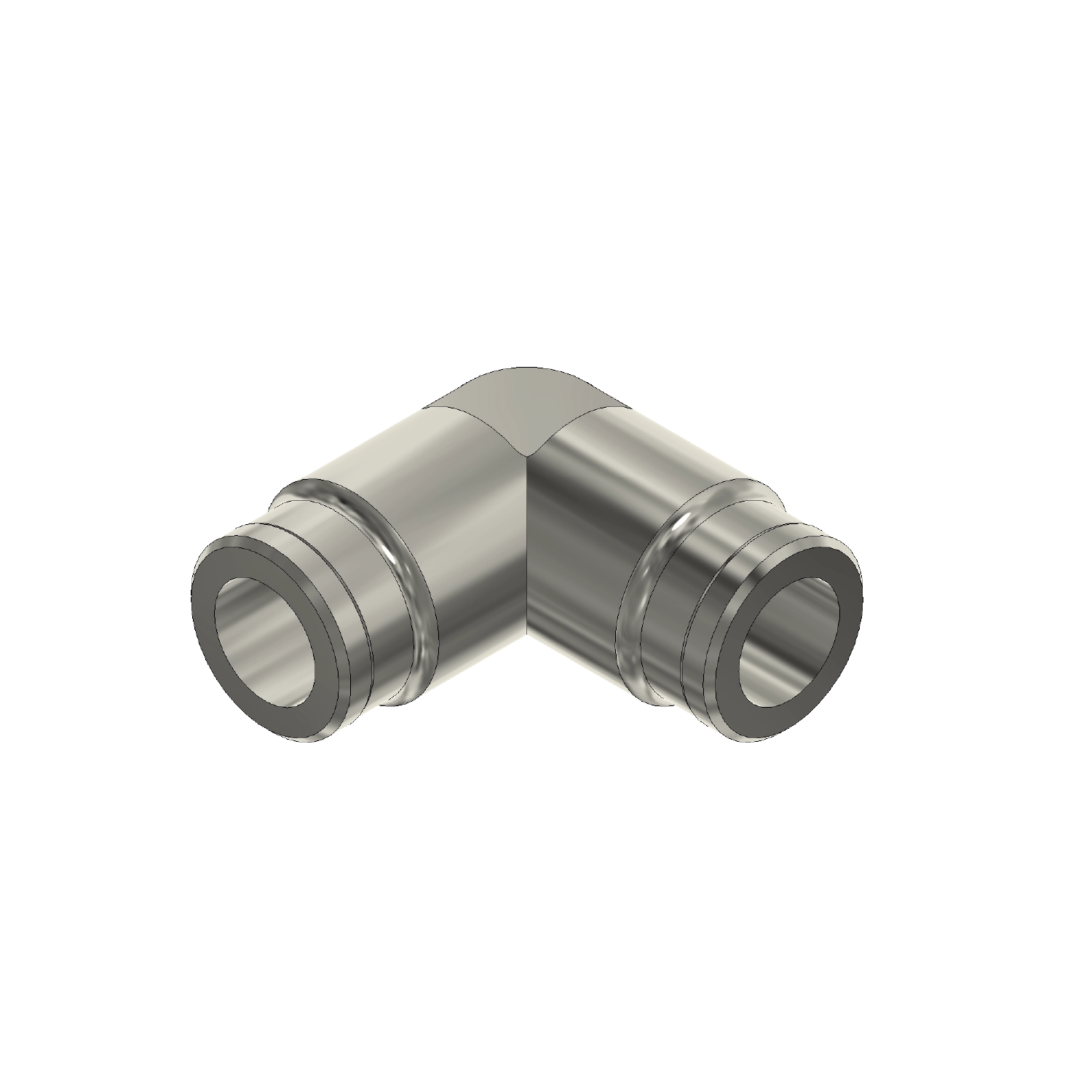

Elbow Fitting
|
Elbow Fitting; 8mm (5/16") T; Push-In |
773010 |
|
96 |
|

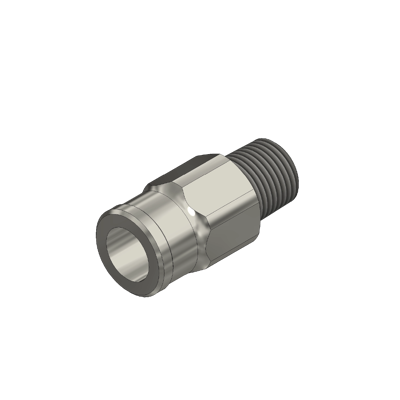

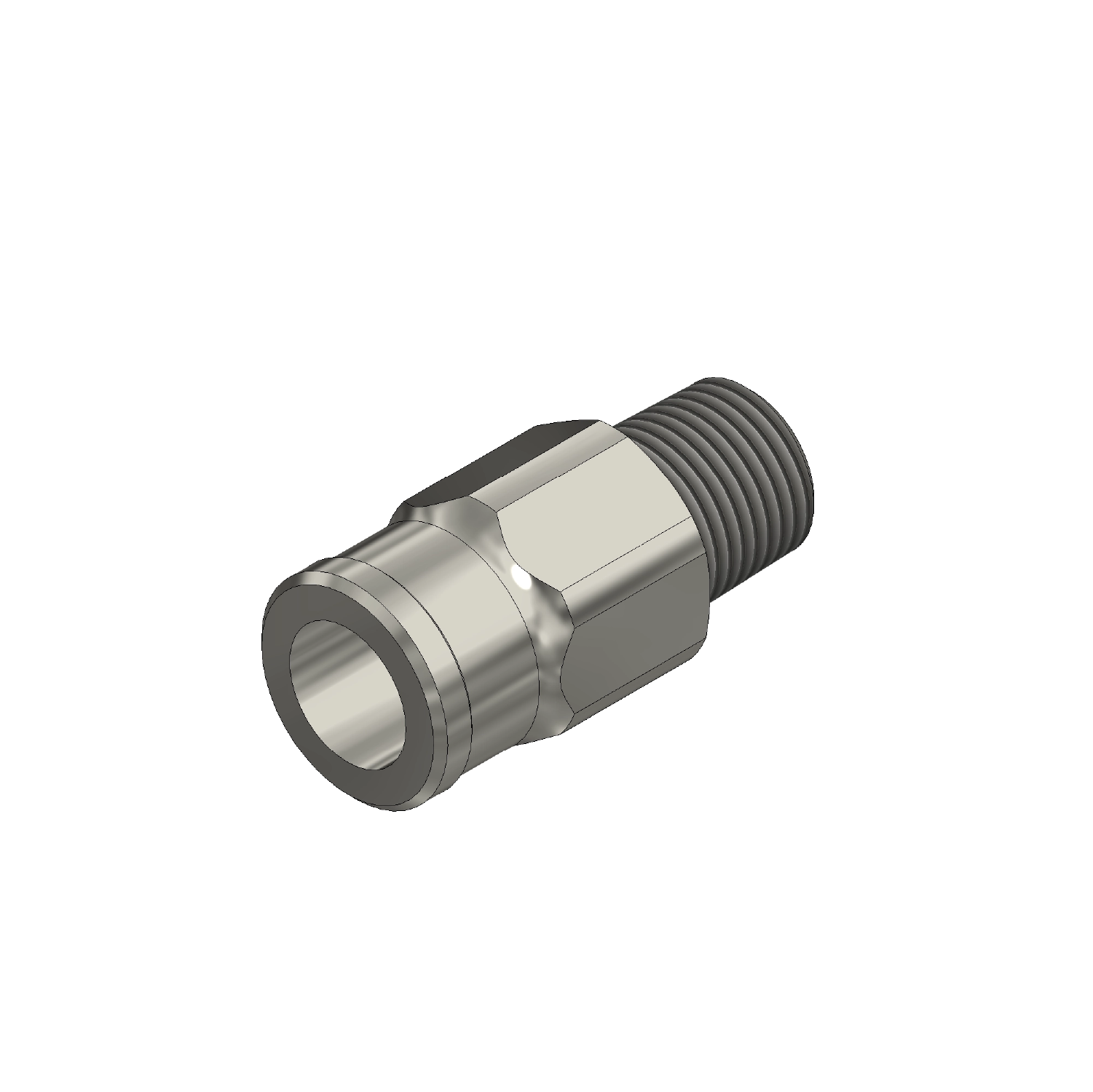

Stud Coupling Fitting
|
Stud Coupling; 8mm (5/16") T x 1/8" R |
773001 |
|
97 |
|

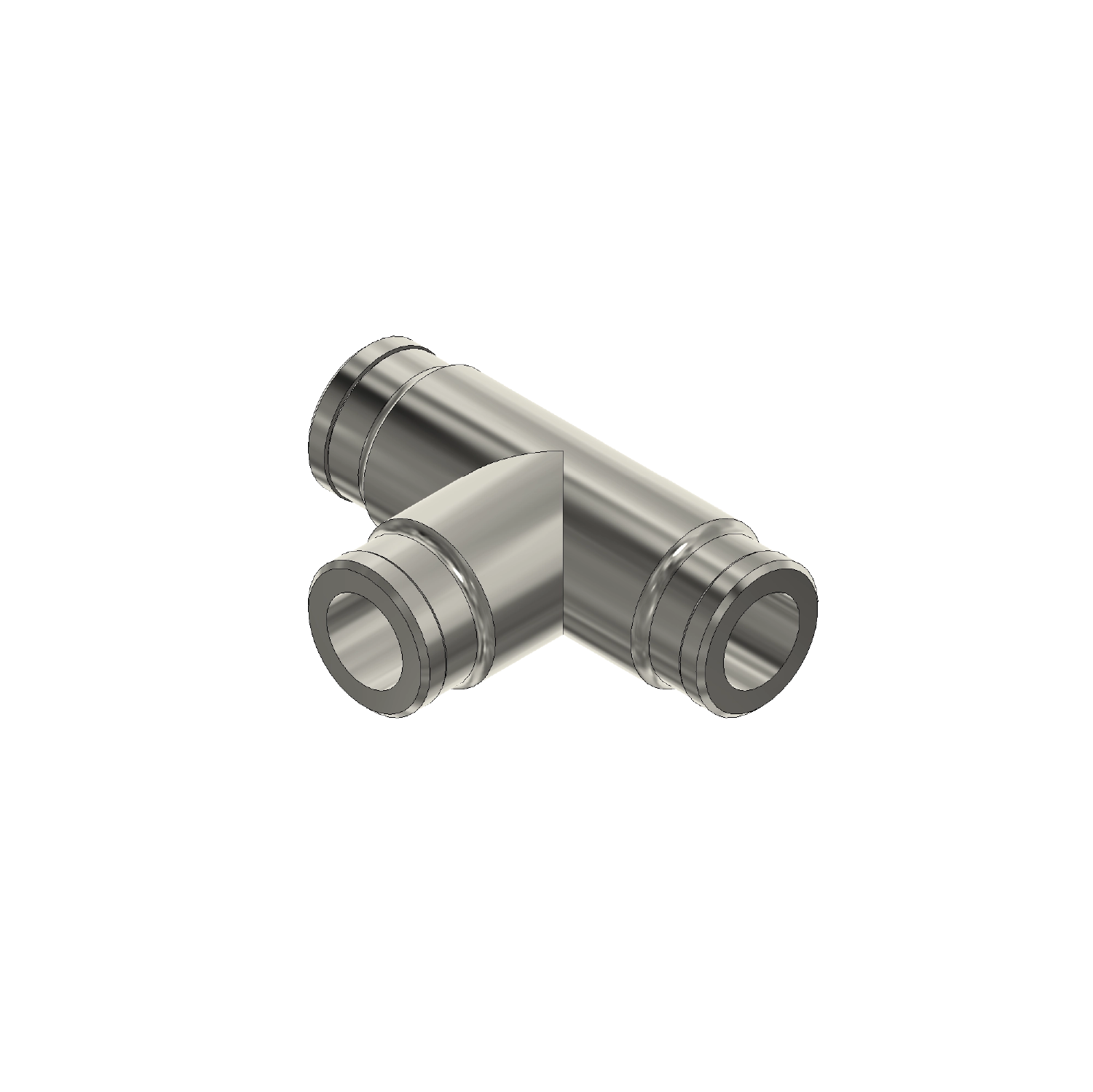

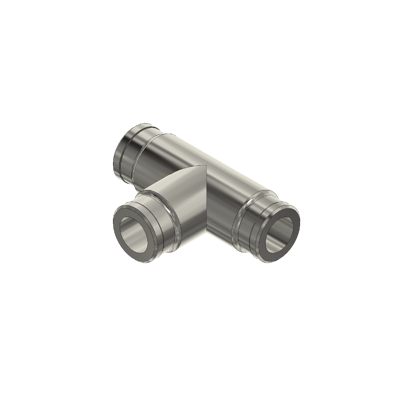

Tee Fitting
|
Tee; 8mm (5/16") T; Press Lock |
773004 |
|
98 |
|

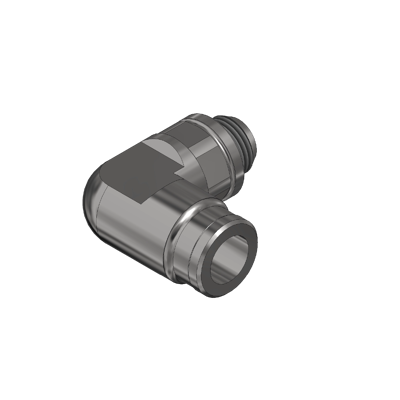

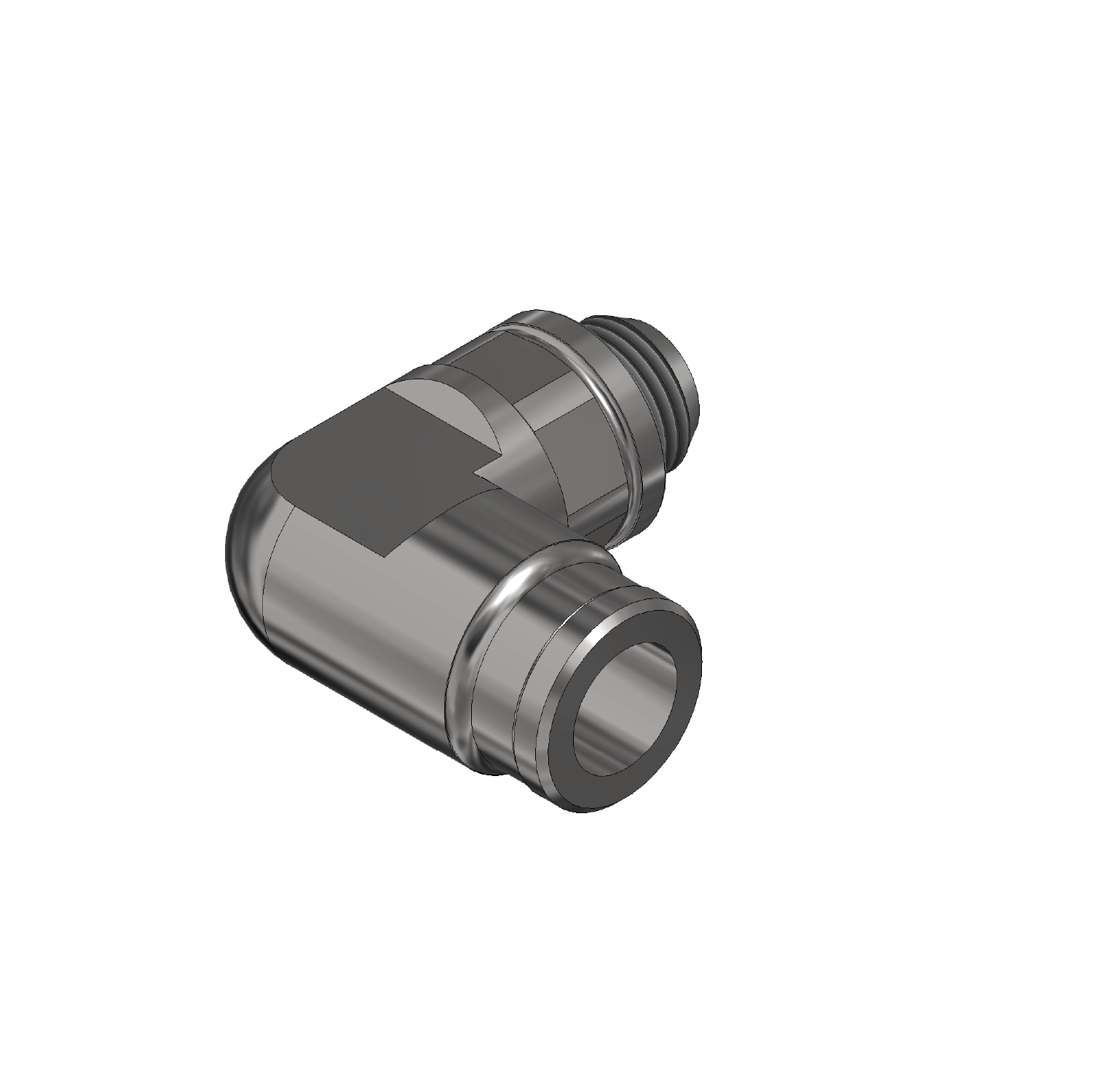

Swivel Elbow Fitting
|
Swivel Elbow Adaptor; 8mm (5/16") T x 1/8" G |
773011 |
|
99 |
|

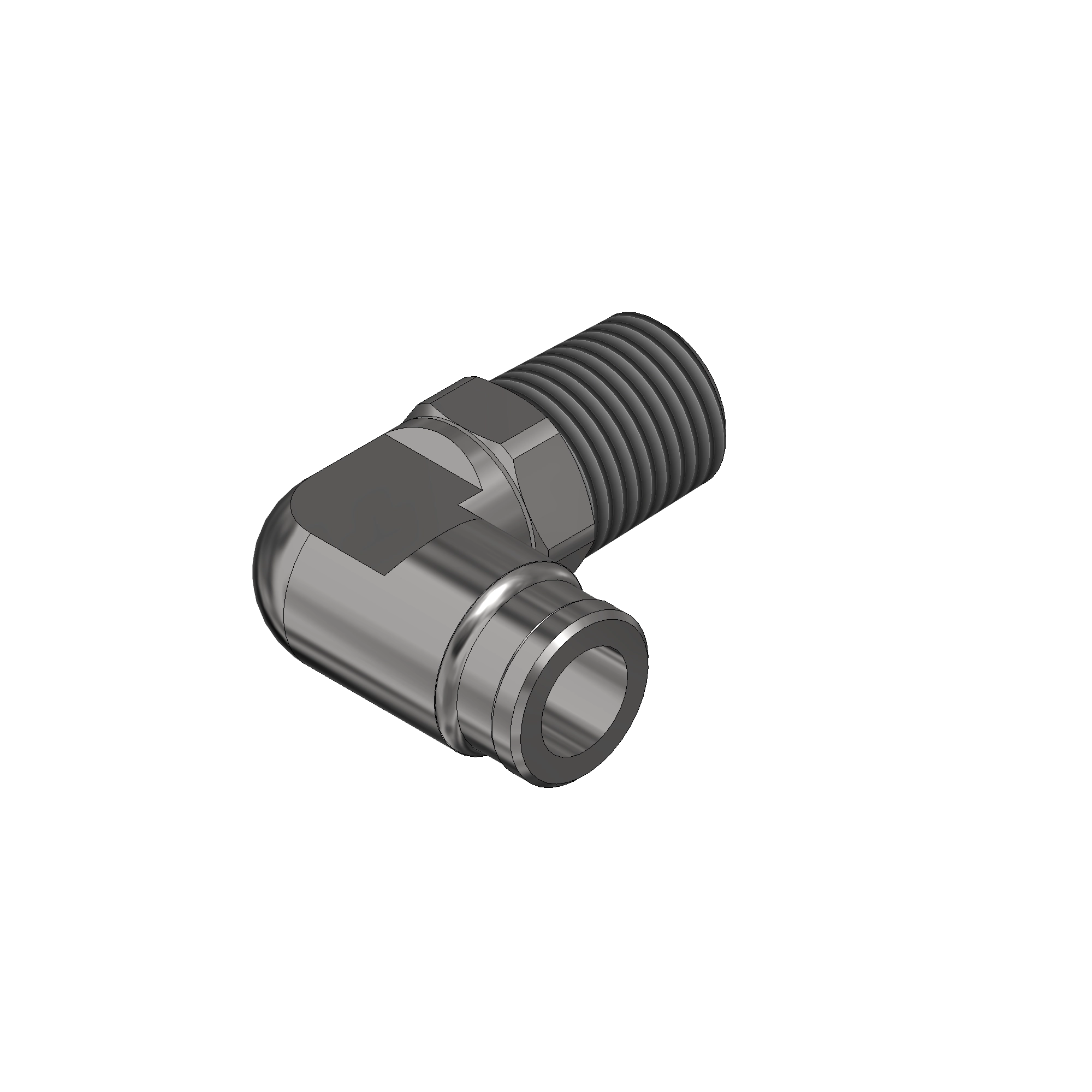

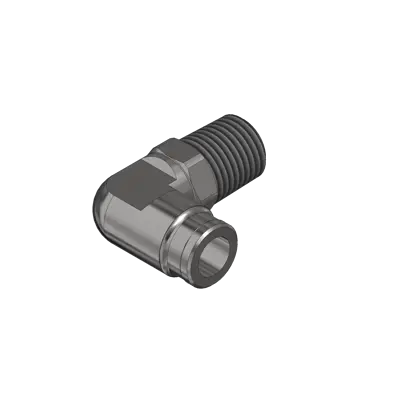

Swivel Elbow Fitting
|
Swivel Elbow; 5/16" T x 1/4" NPT |
773012 |
|
100 |
|

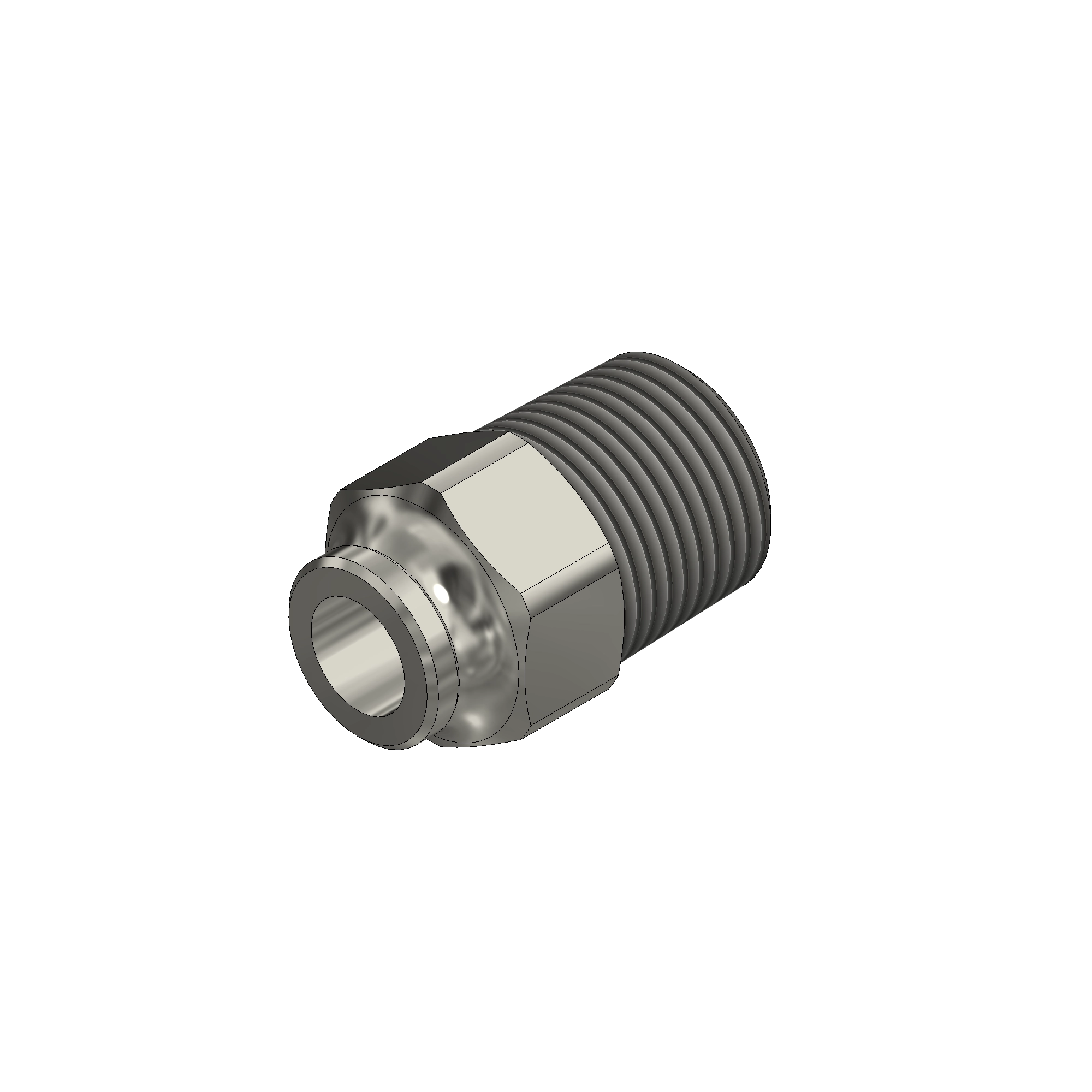

Stud Coupling
|
Stud Coupling; 5/16" T x 3/8" NPT |
773017 |
|
101 |
|

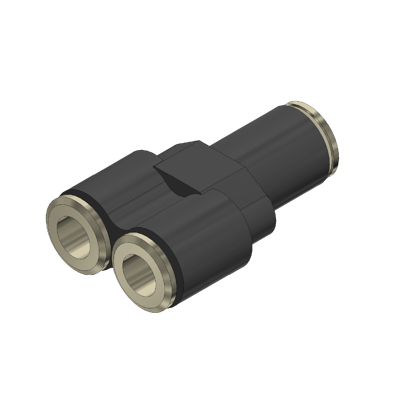

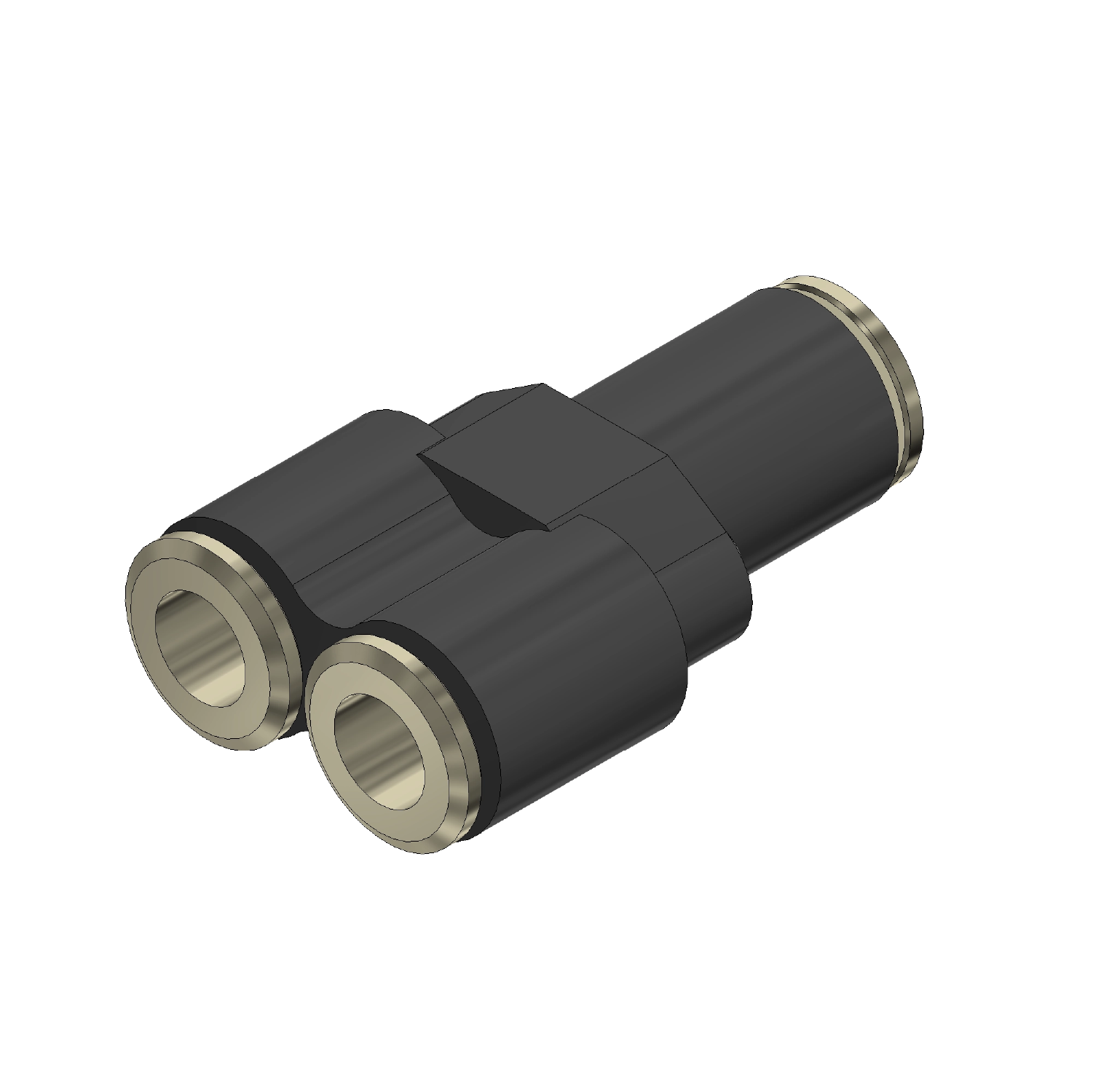

Parallel Union
|
Parallel Union (Y); 5/16" T; Push-In |
773050 |
|
102 |
|

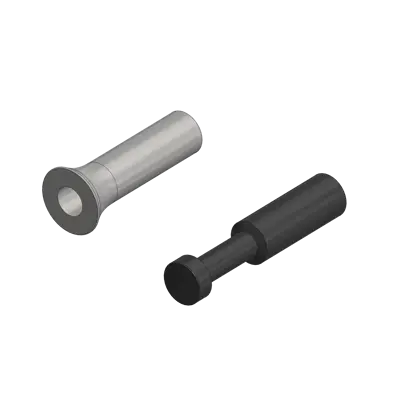

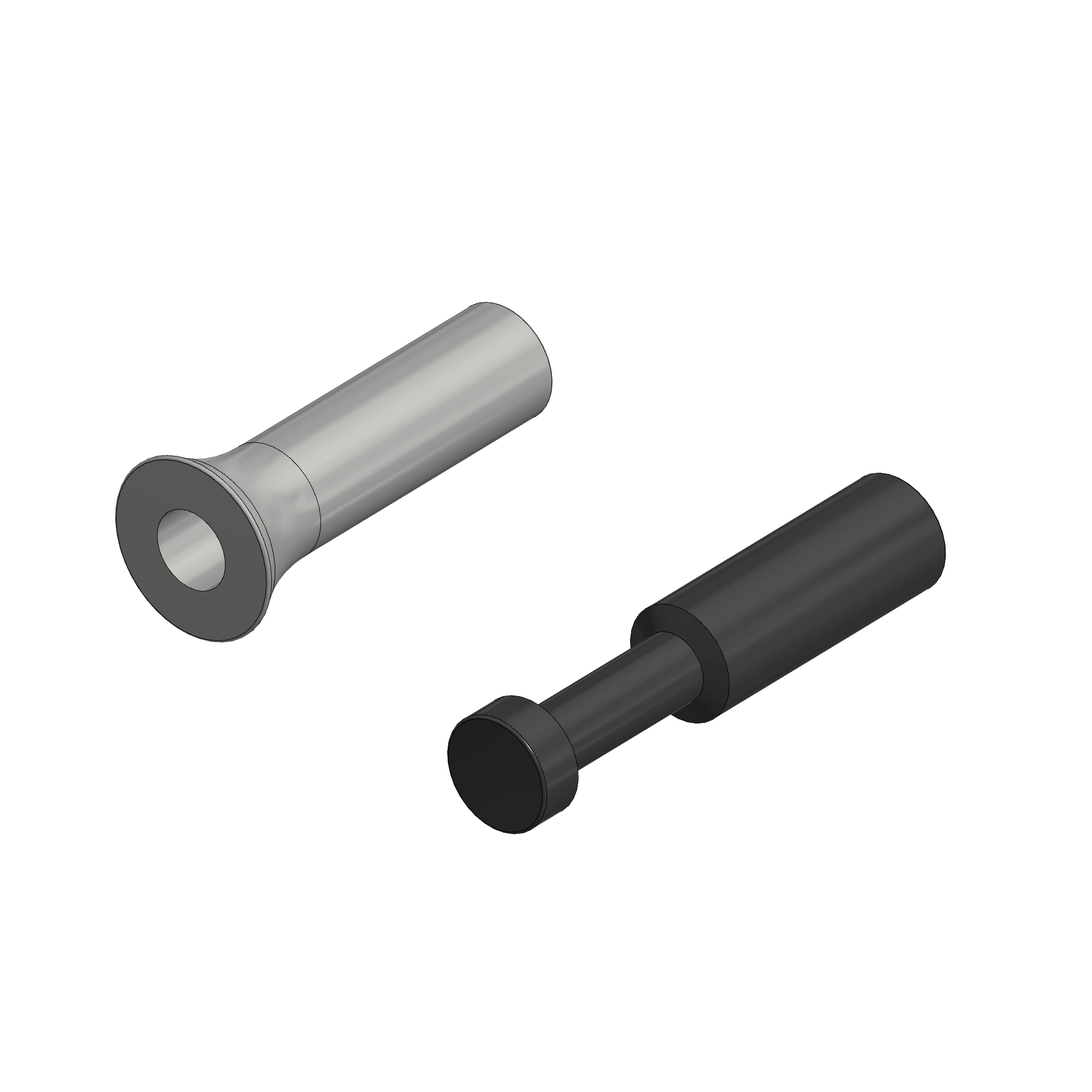

Plug for Fittings
|
Plug; 5/16" T; Push-In (Two Styles Shown) |
773009 |
|
103 |
|

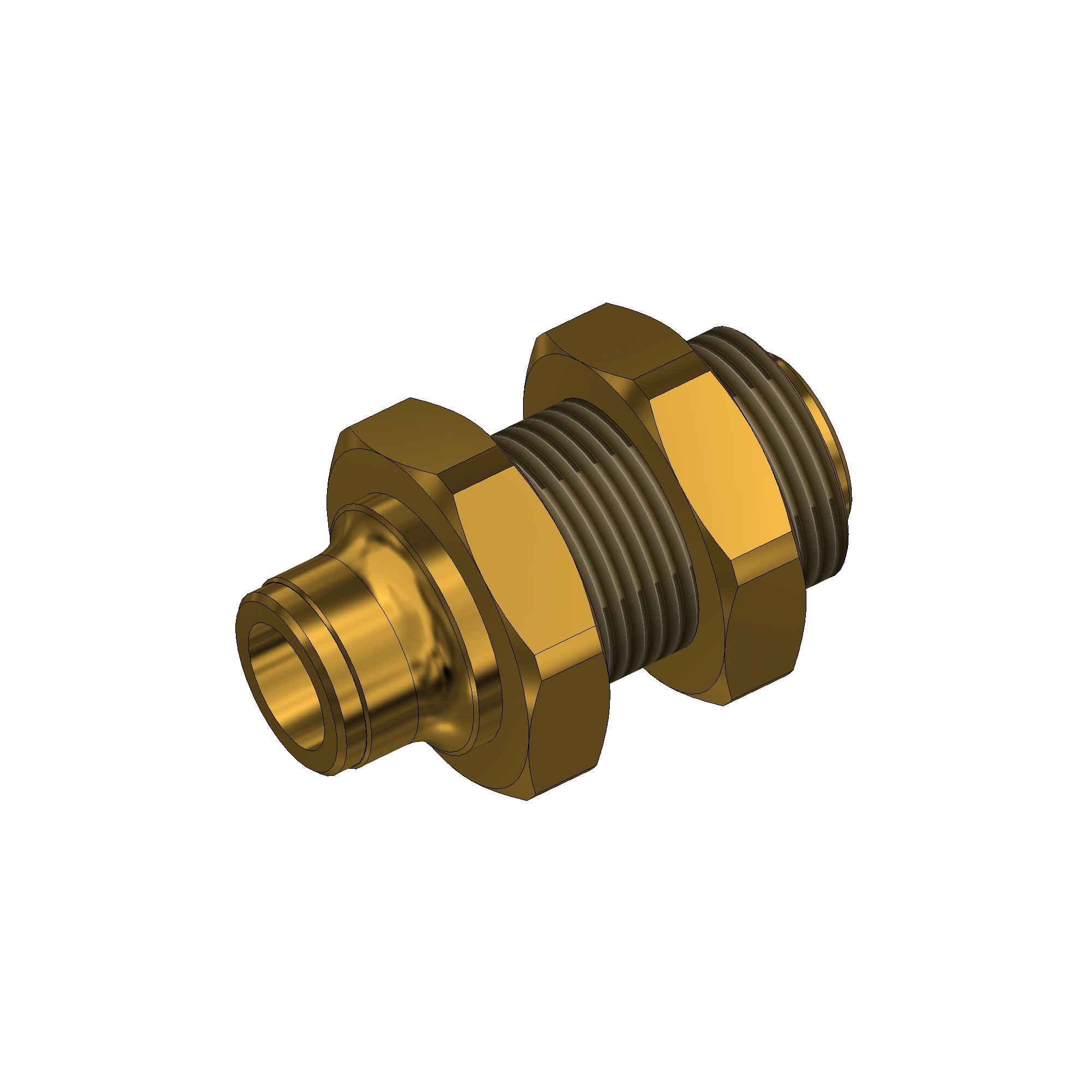

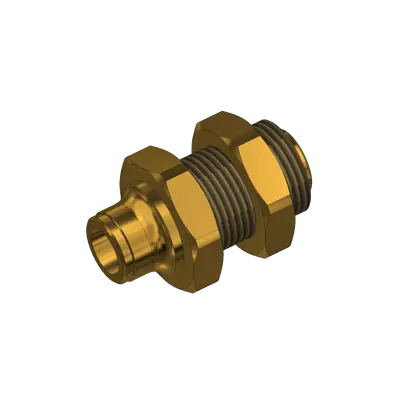

Bulk Head Coupling; DOT
|
Bulk Head Coupling; 3/8" Tube DOT |
775002 |
|
104 |
|

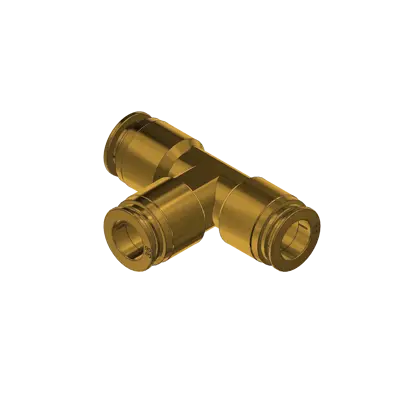

Tee Fitting; DOT
|
Tee Fitting; 3/8" Tube DOT; Push-In |
775003 |
|
105 |
|

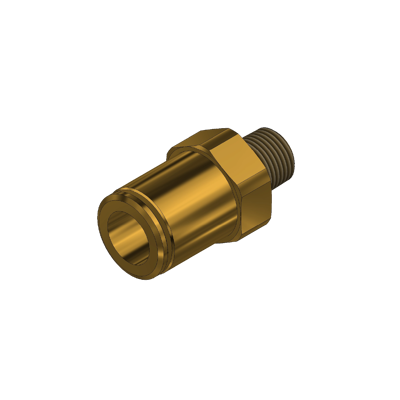

Stud Coupling; DOT
|
Stud Coupling; 3/8" Tube DOT x 1/8" BSP |
775004 |
|
106 |
|

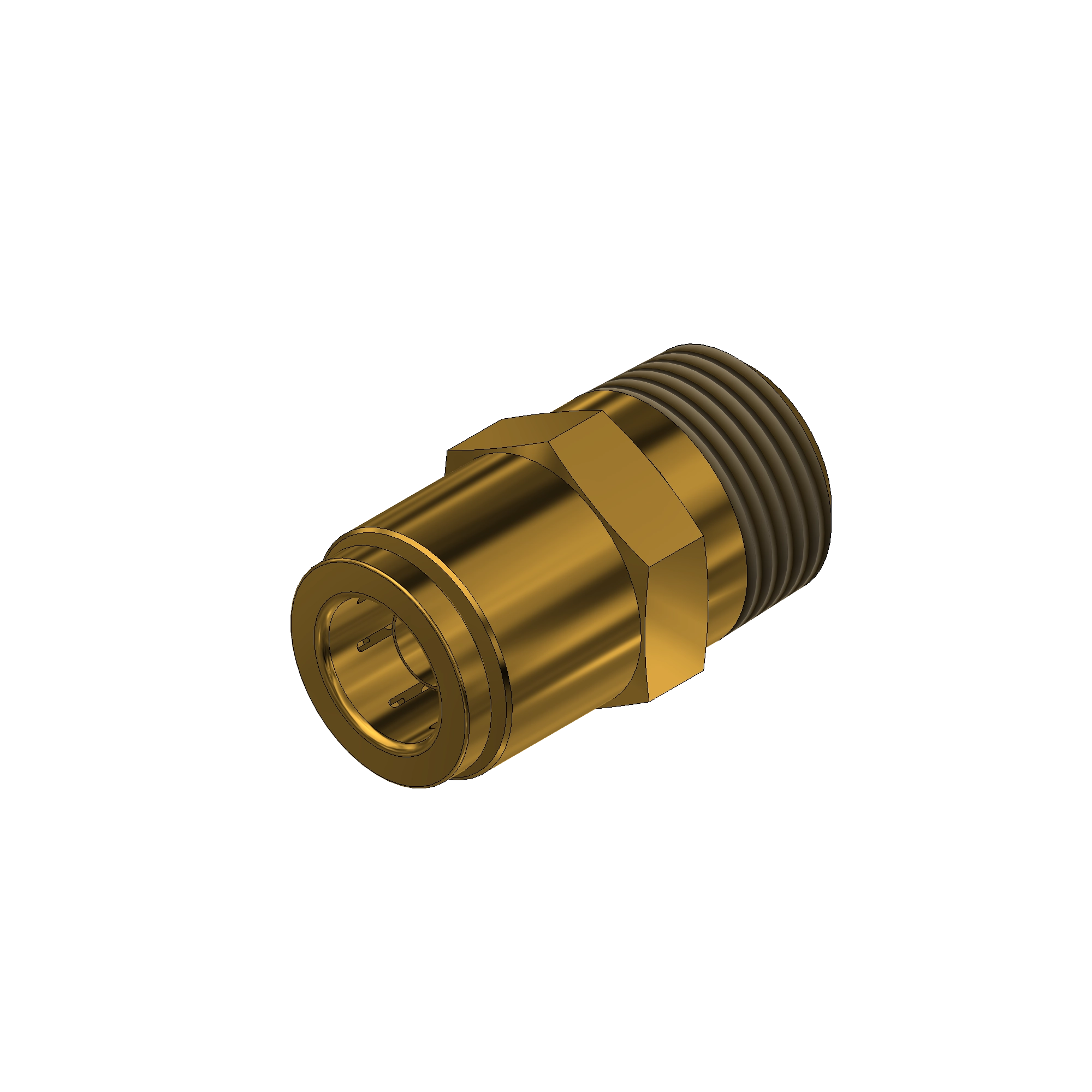

Male Pipe Connector
|
Male Pipe Connector; 3/8" T x 3/8" Pipe |
775010 |
|
107 |
|

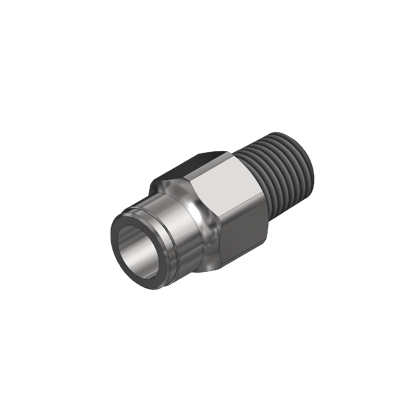

Stud Coupling
|
Stud Coupling; 3/8" T x 1/4" NPT |
774009 |
|
108 |
|

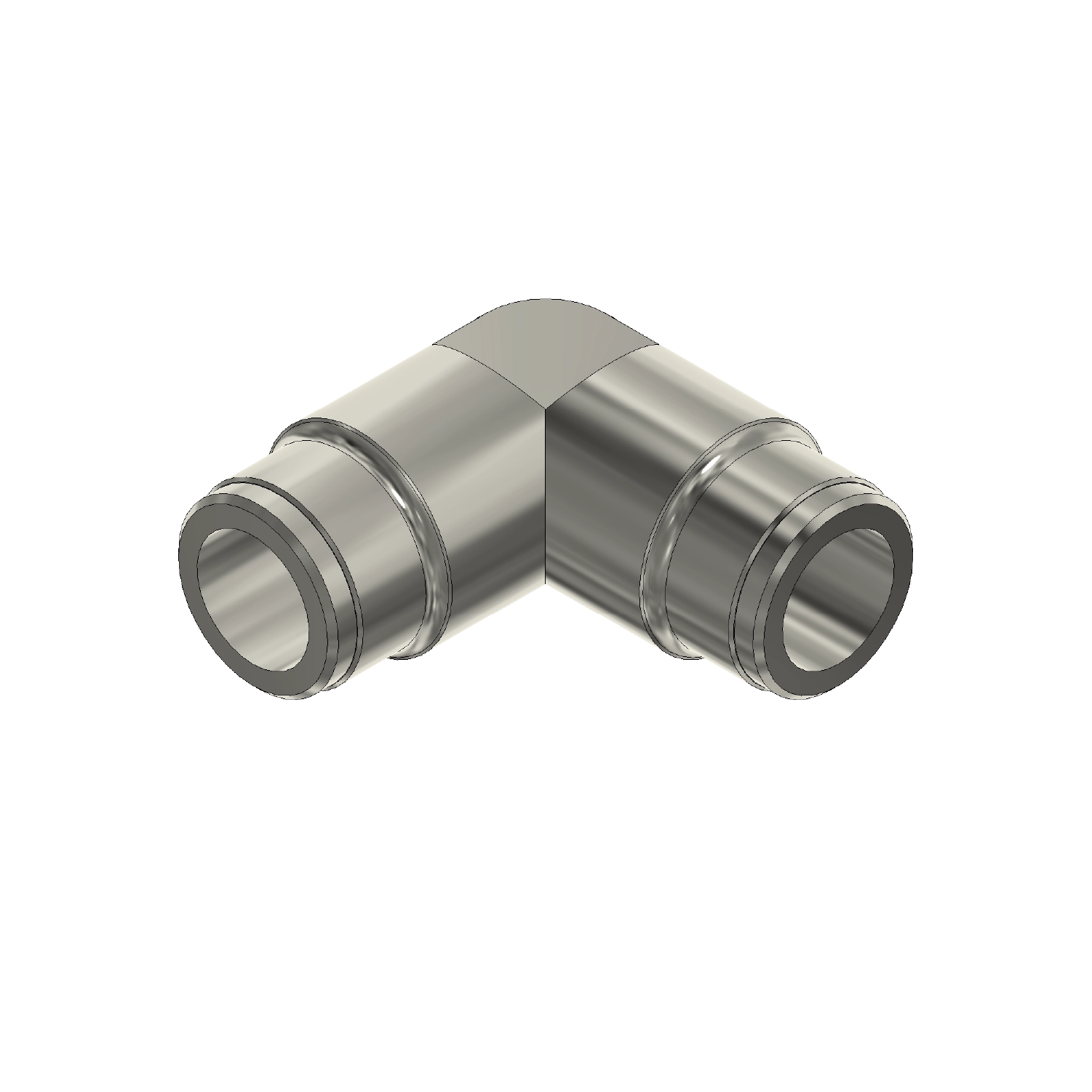

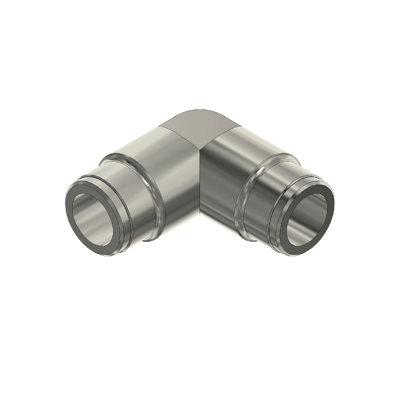

Elbow Fitting
|
Elbow; 3/8" T x 3/8" T |
774011 |
|
109 |
|

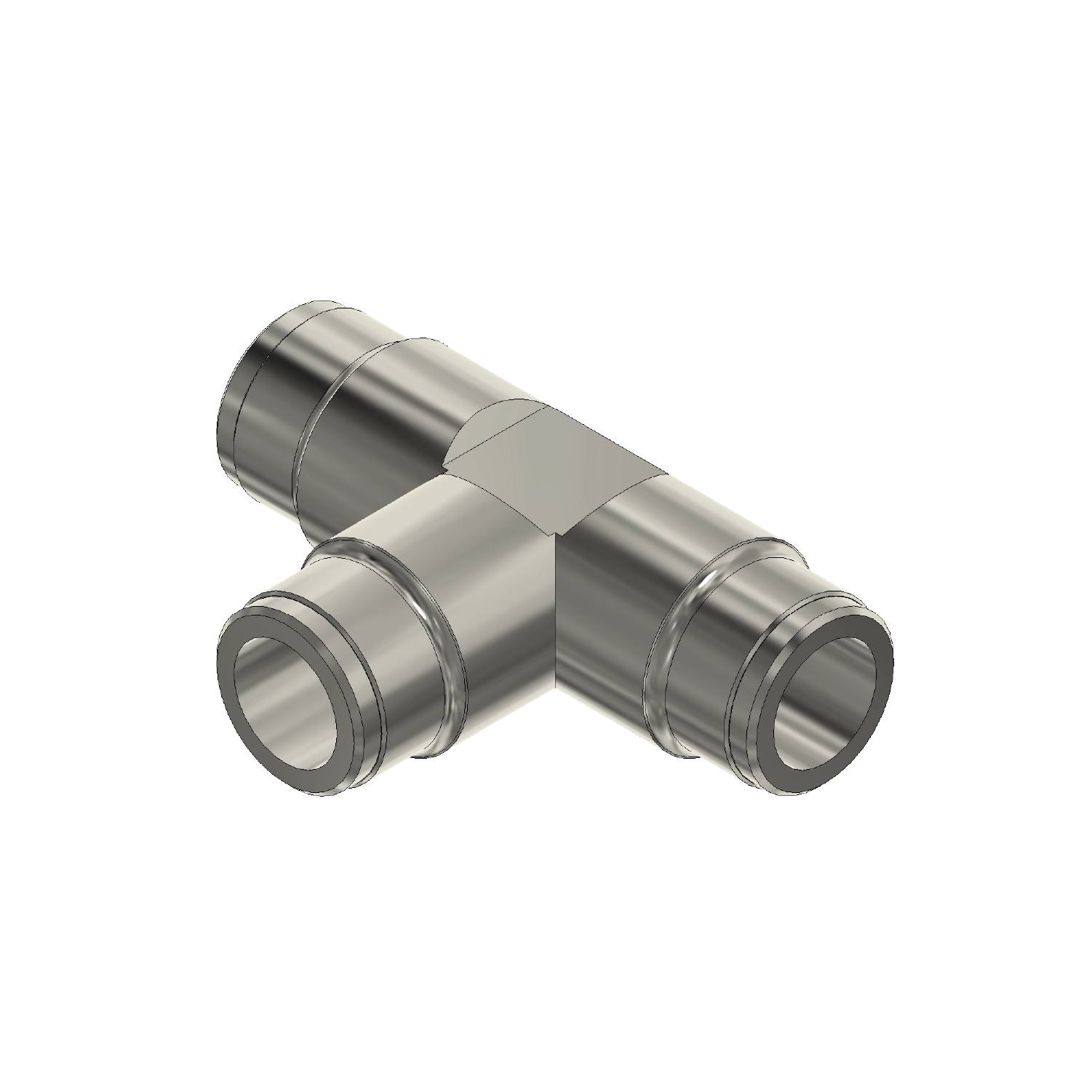

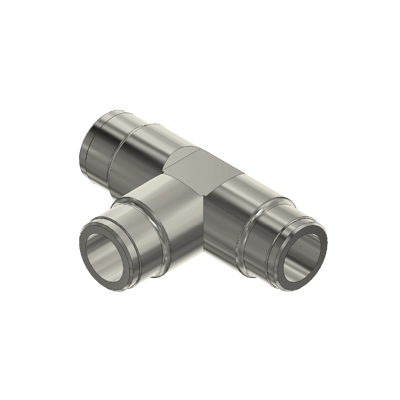

Tee Fitting
|
Tee; Brass; 3/8" T |
774006 |
|
110 |
|

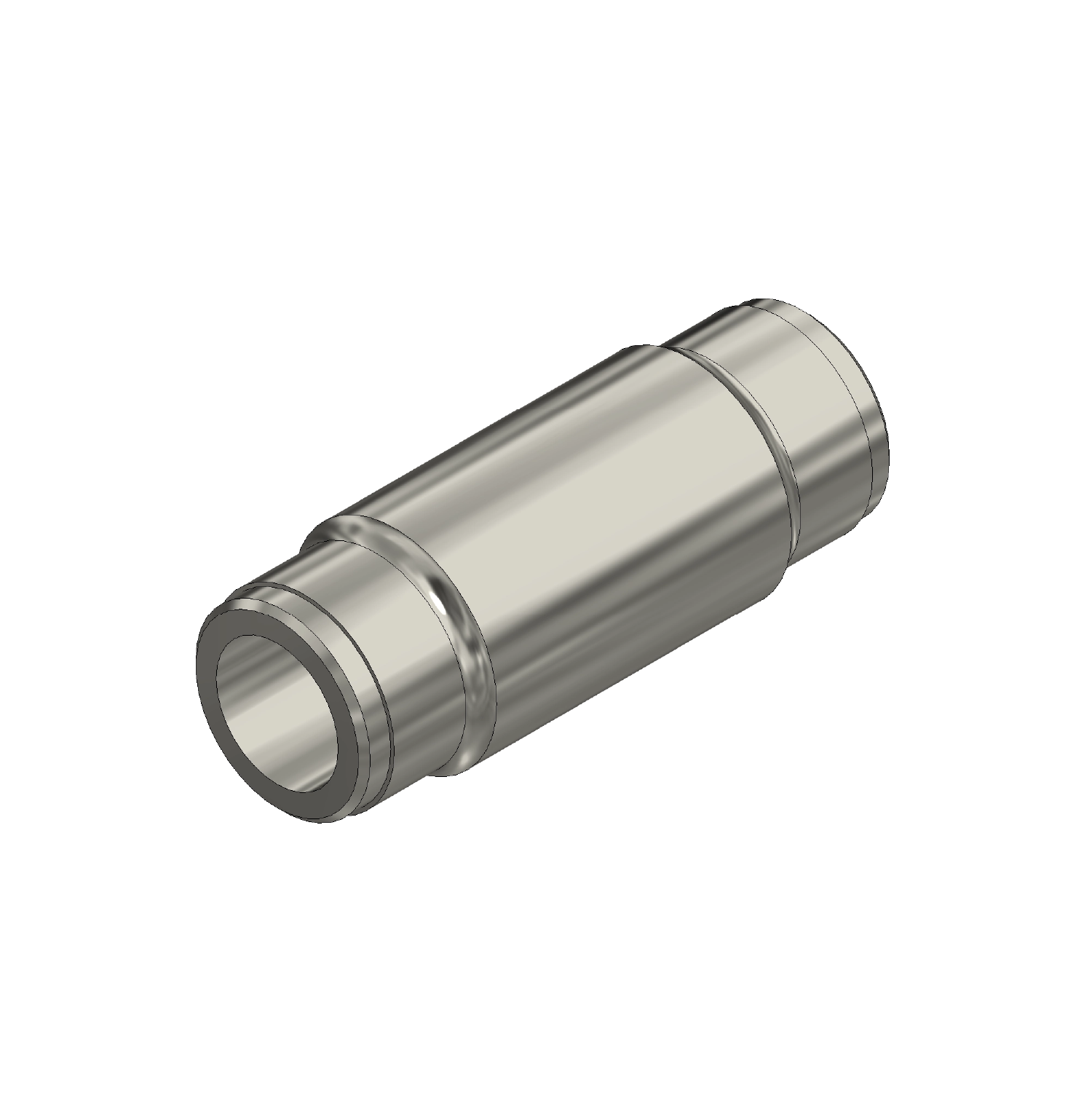

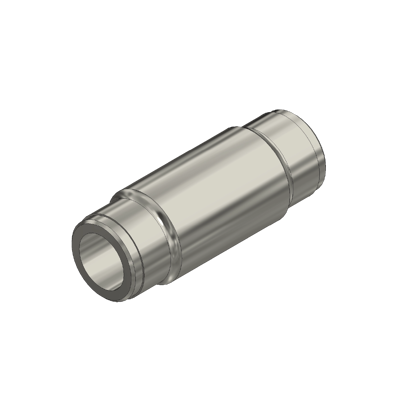

Straight Connector Fitting
|
Straight Connector; 3/8" T x 3/8" T |
774005 |
|
111 |
|
Plug for Fittings
|
Plastic Plug, 3/8" T; Push-In;
(Two styles shown) |
774013 |
|
112 |
|

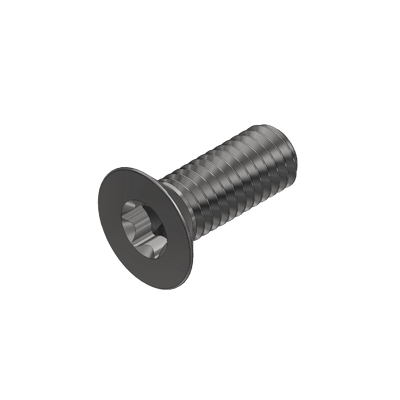

Top Plate Screw
|
Top Plate Screw; SS; M6 x 15; Torx; w/ Loctite |
943003 |
|
113 |
|

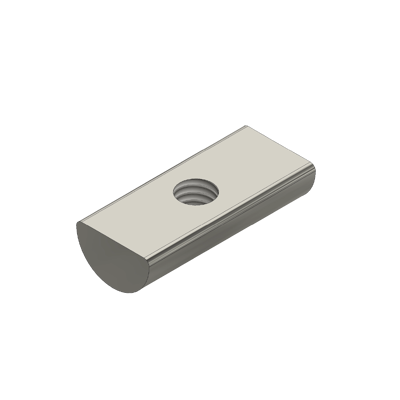

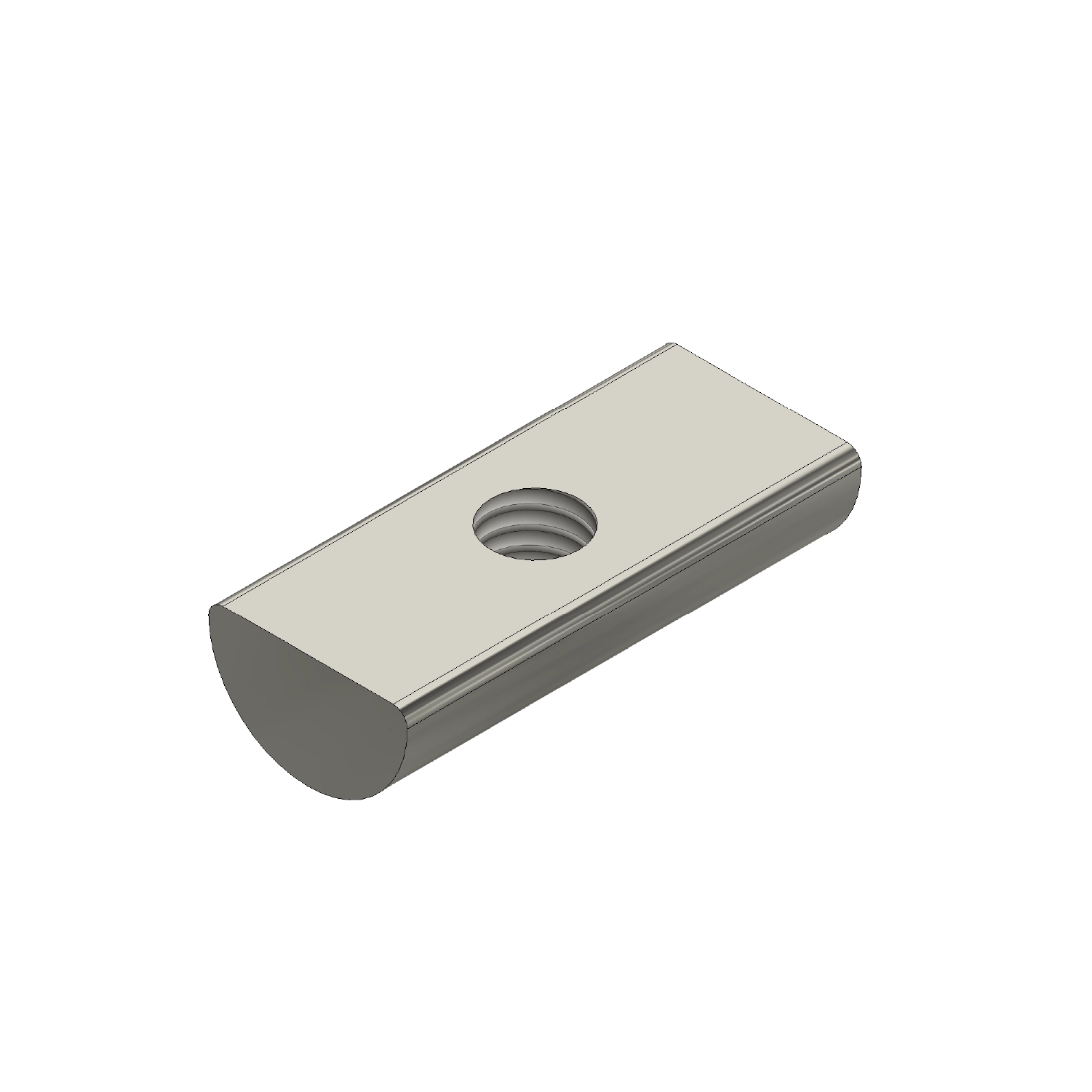

Drop-In Nut Bar
|
Drop-In Nut Bar; M6 |
944004 |
|
114 |
|

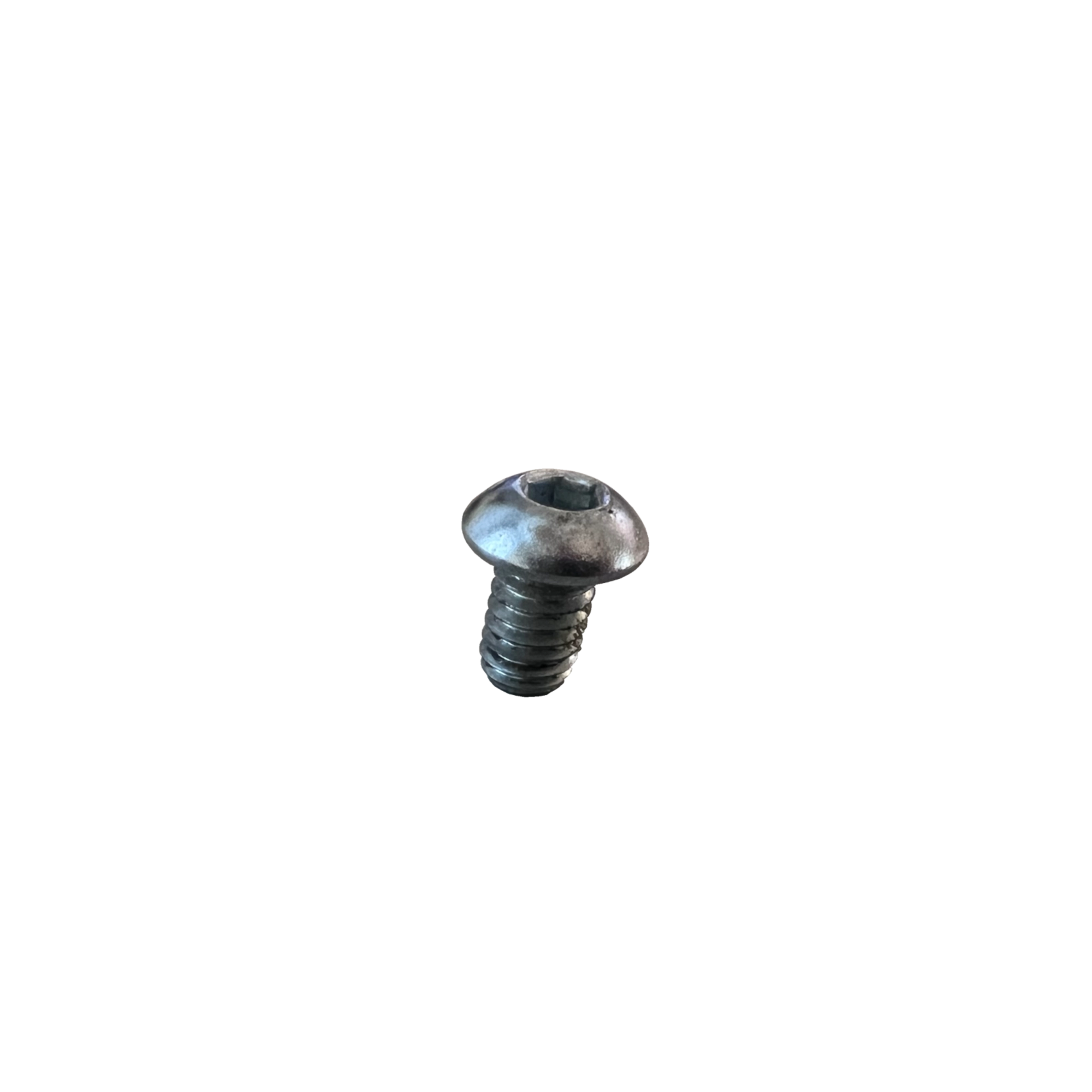

Guide Angle Screw
|
Guide Angle Screw; M5 X 16mm; Stainless Steel |
940027 |
|
115 |
|

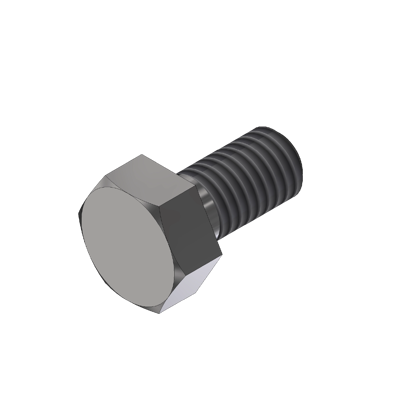

Face Plate Mounting Bolt
|
Face Plate Mounting Bolt; Stainless Steel;
Hex Head 6mm x 12mm;
(For all Face Plates) |
940031 |
|
116 |
|

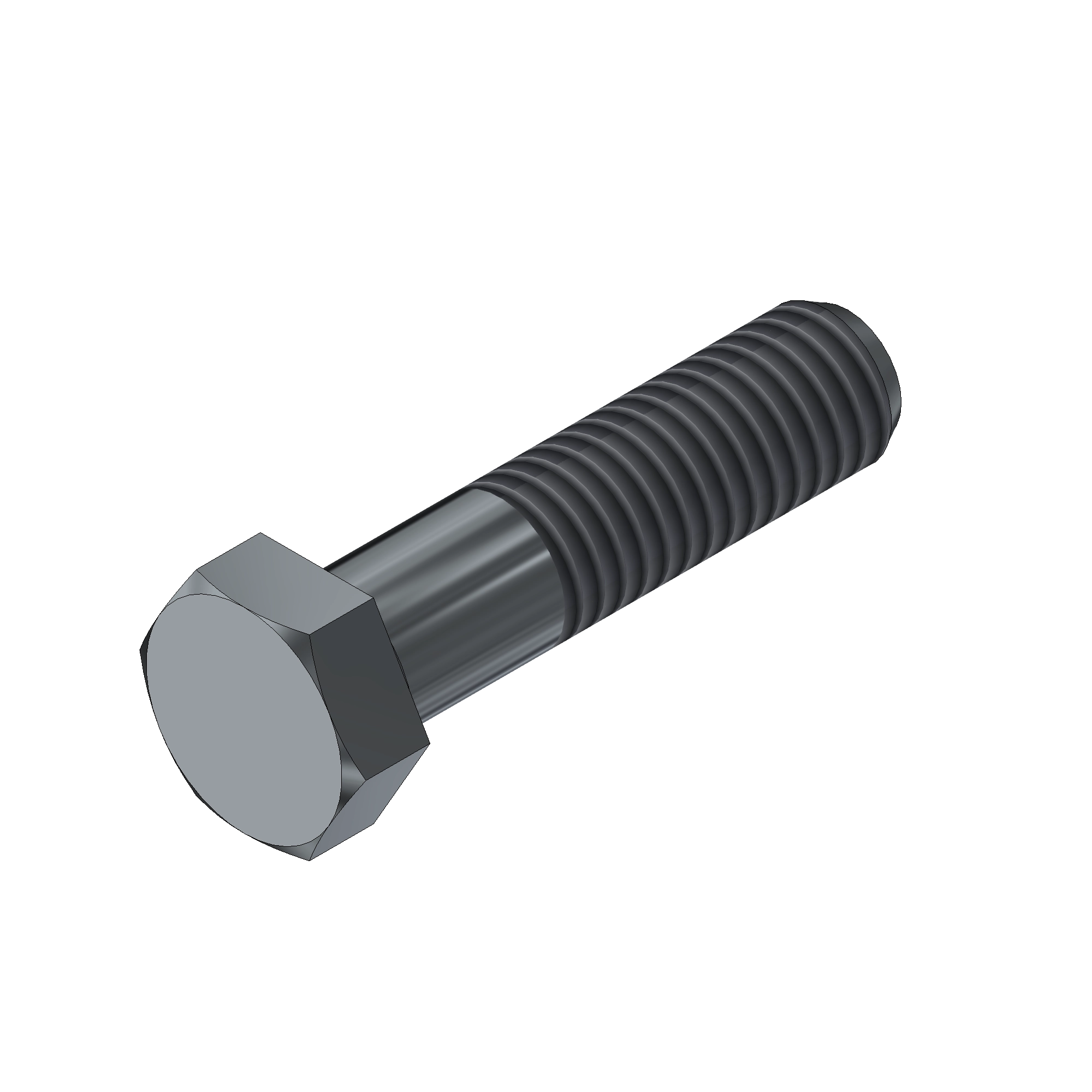

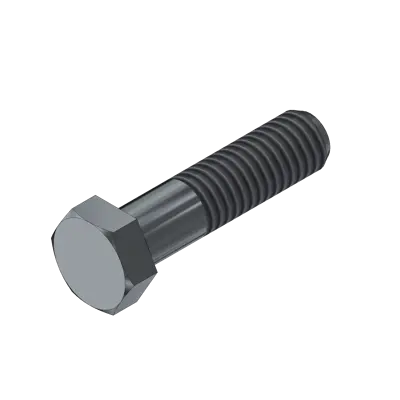

Air Tank Mounting Bolt
|
Bolt; Hex Head; Gd5; 3/8-16 x 1-1/2" |
940016 |
|
117 |
|

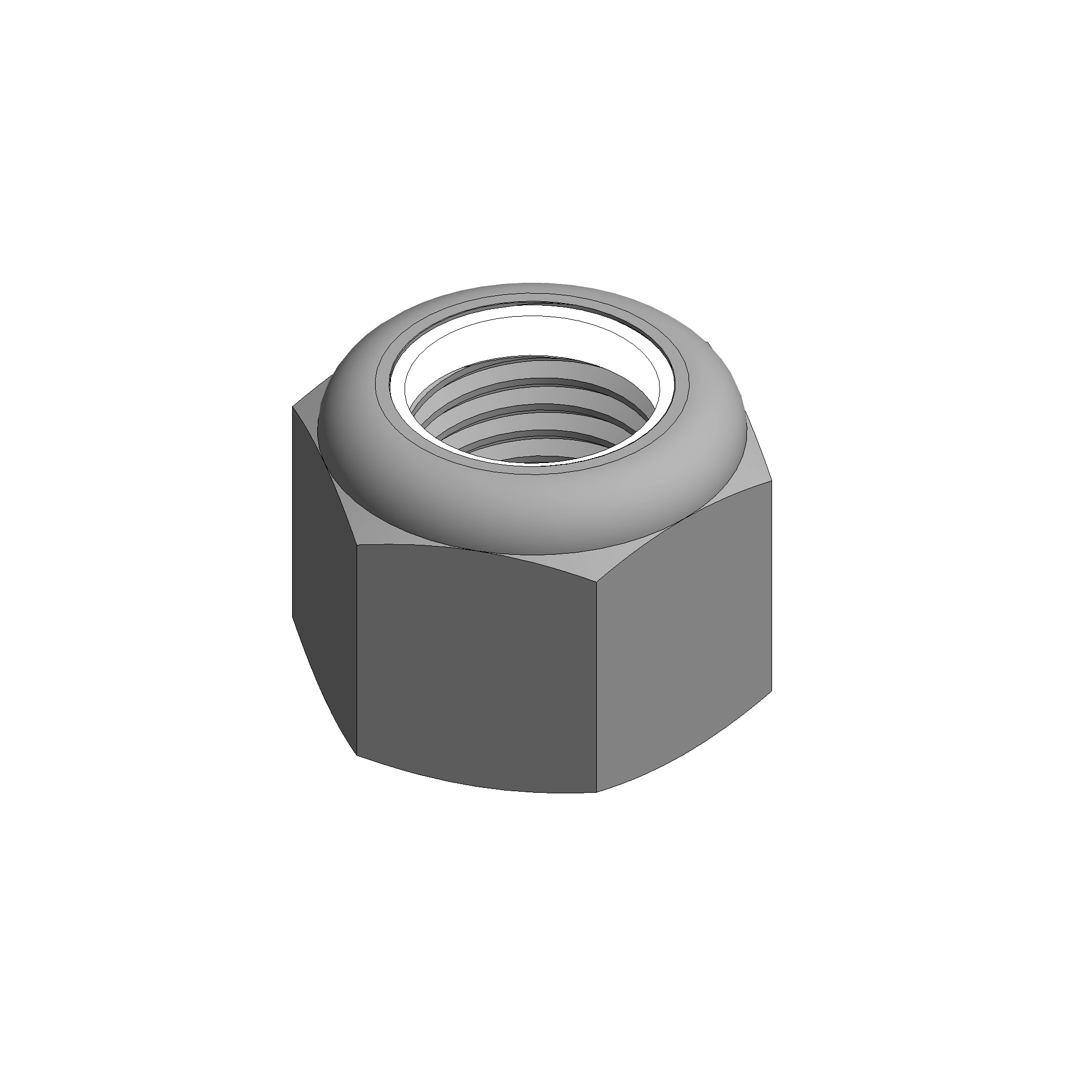

Nut Nylon Lock
|
Nut Nylon Lock; 3/8" UNC;
(For 940031, 940016, 770004 Bolts) |
941009 |
|
118 |
|

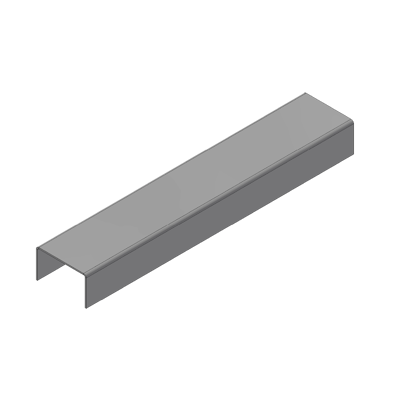

Runout Channel
|
Runout Channel; Galv; MK4 / M21; 24" Long |
713000 |
|
119 |
|

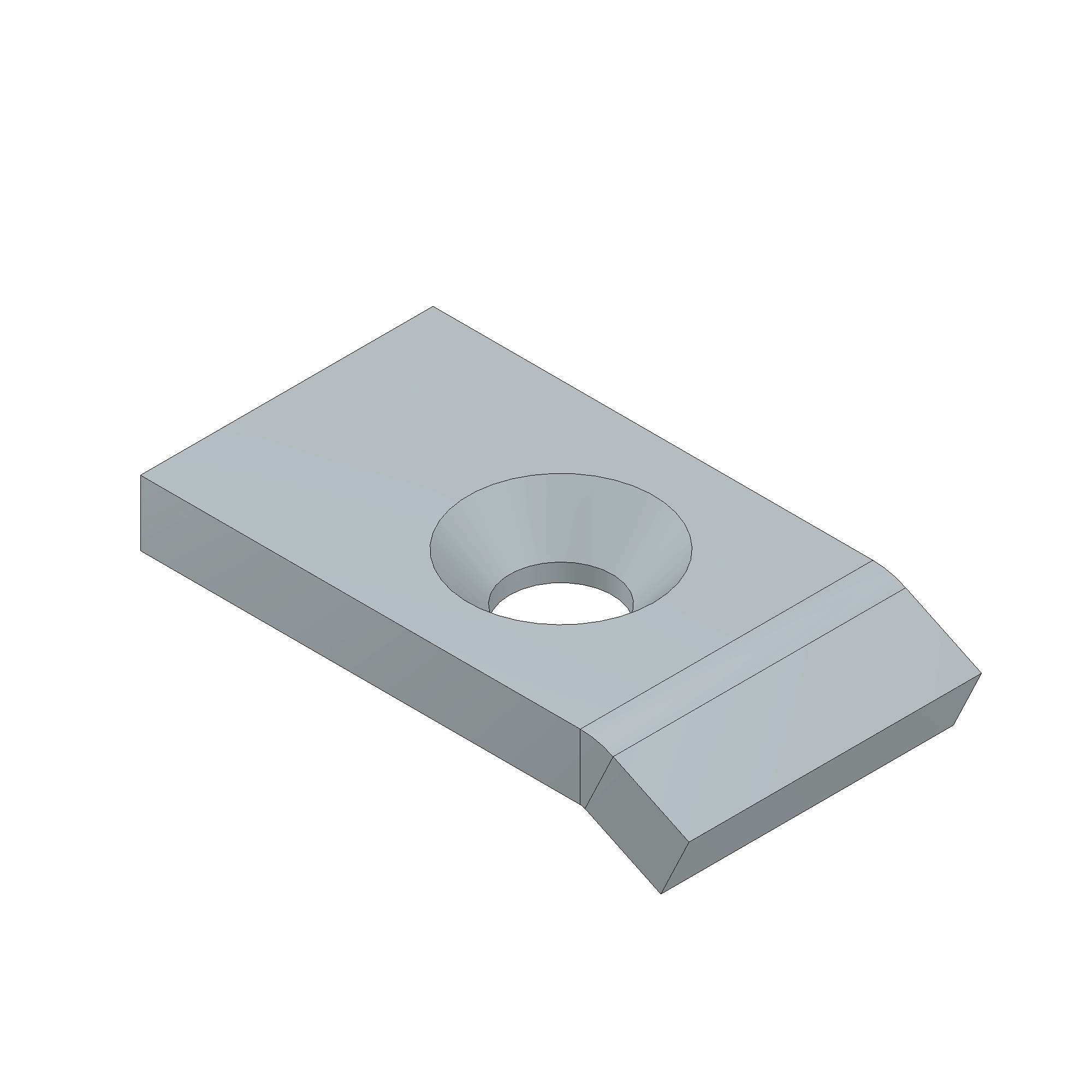

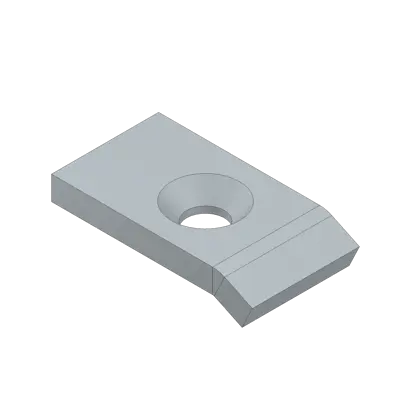

Track Mounting Flange Clip
|
Flange Clip; Track Mounting;
For 1/4-20 Wood Floor Screw |
714011 |
|
120 |
|

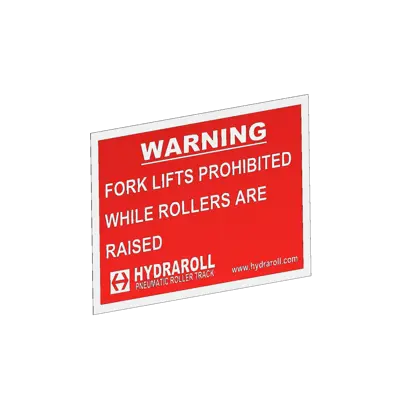

Decal
|
Decal; Warning Fork Lift Prohibited |
715005 |
|
121 |
|

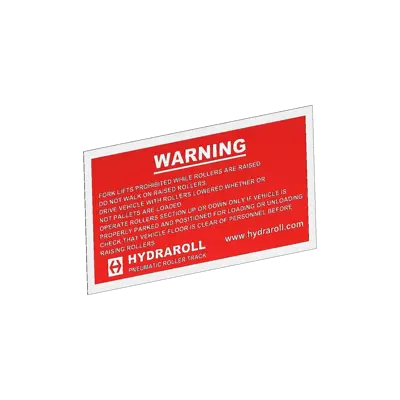

Decal
|
Decal; Warning Safety Operation |
715007 |
|
122 |
|
Decal
|
Decal; Air Tank Drain Valve |
715008 |
|
123 |
|

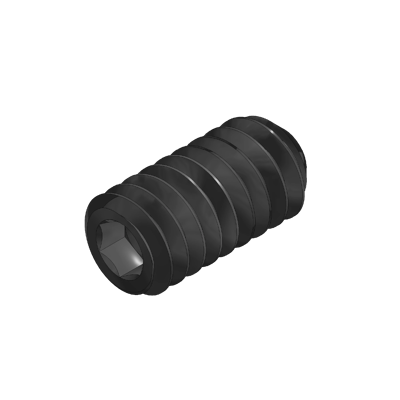

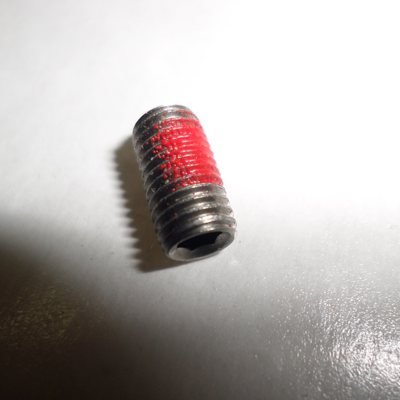

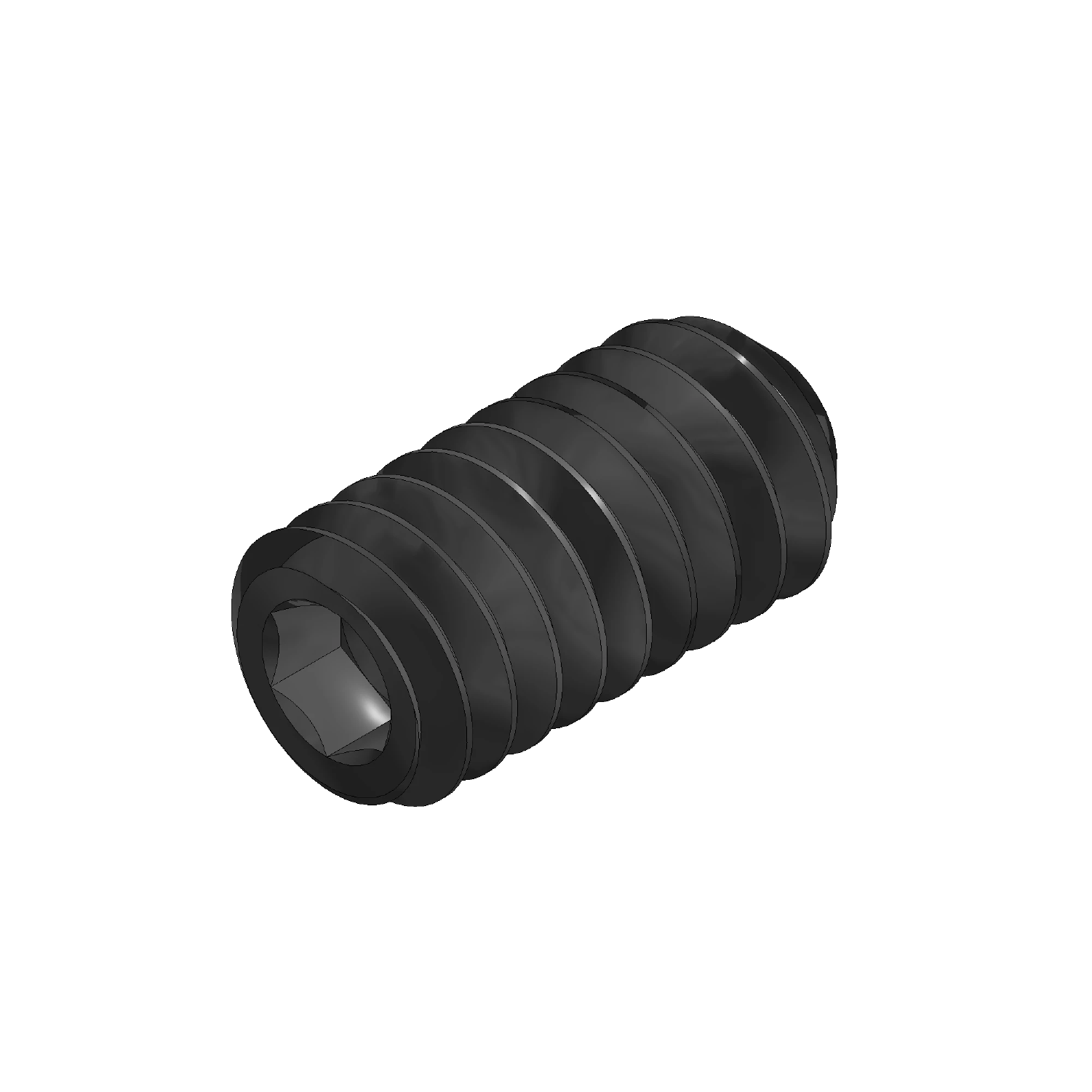

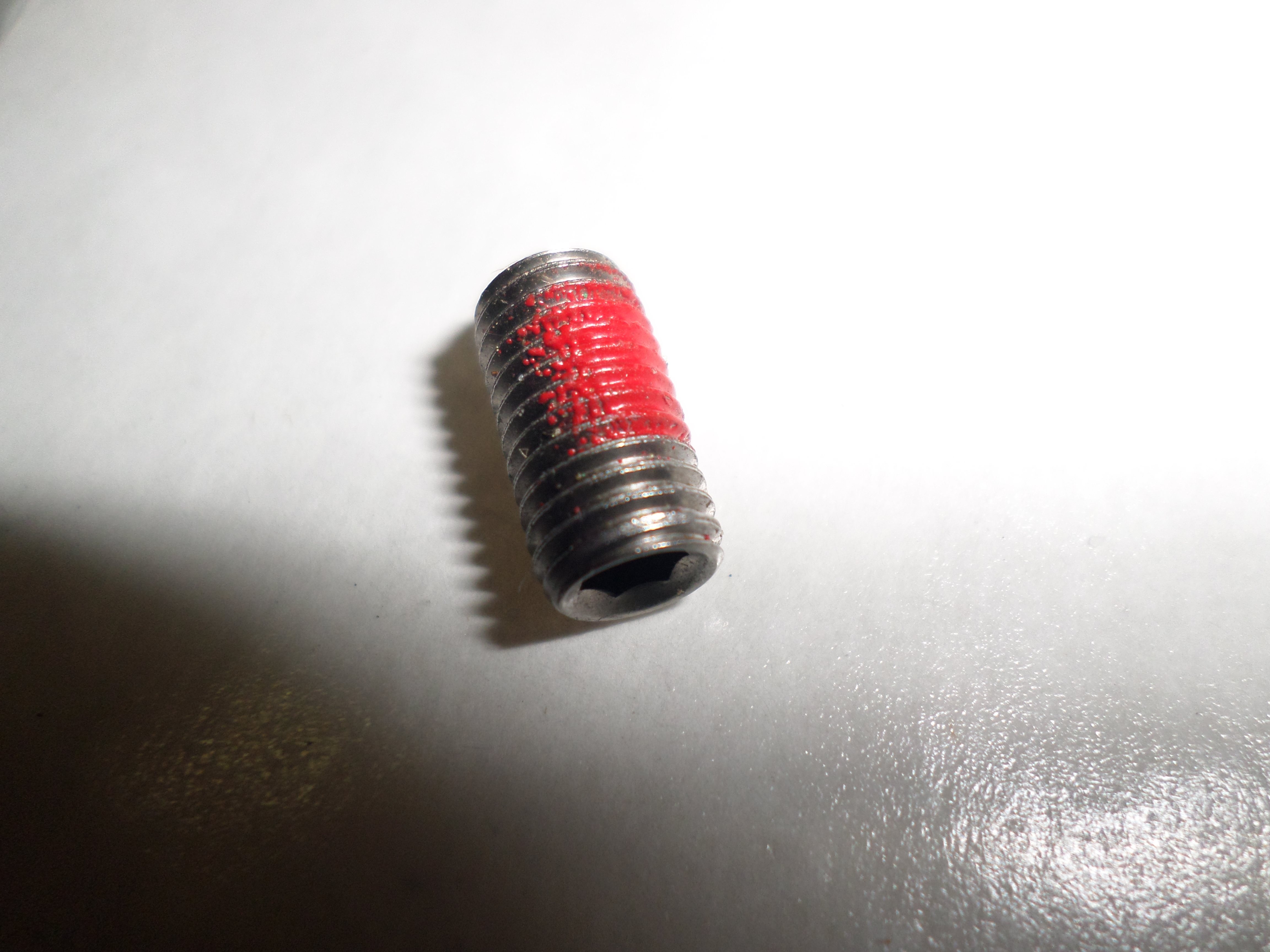

Ancra Set Screw
|
Ancra Self-locking Set Screw |
ANC-91385A537 |
|
124 |
|

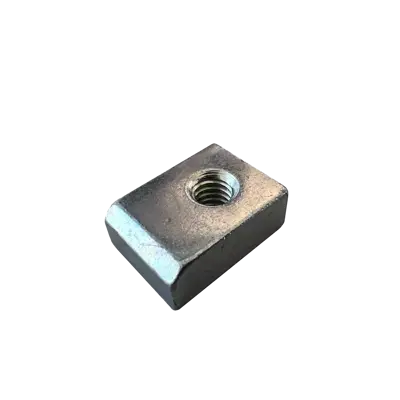

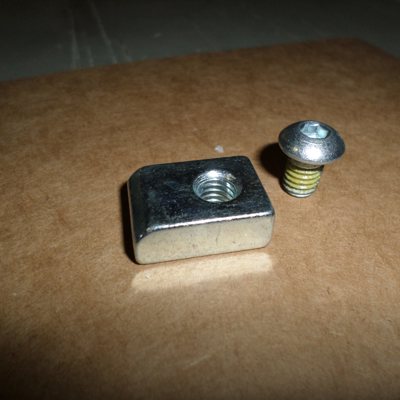

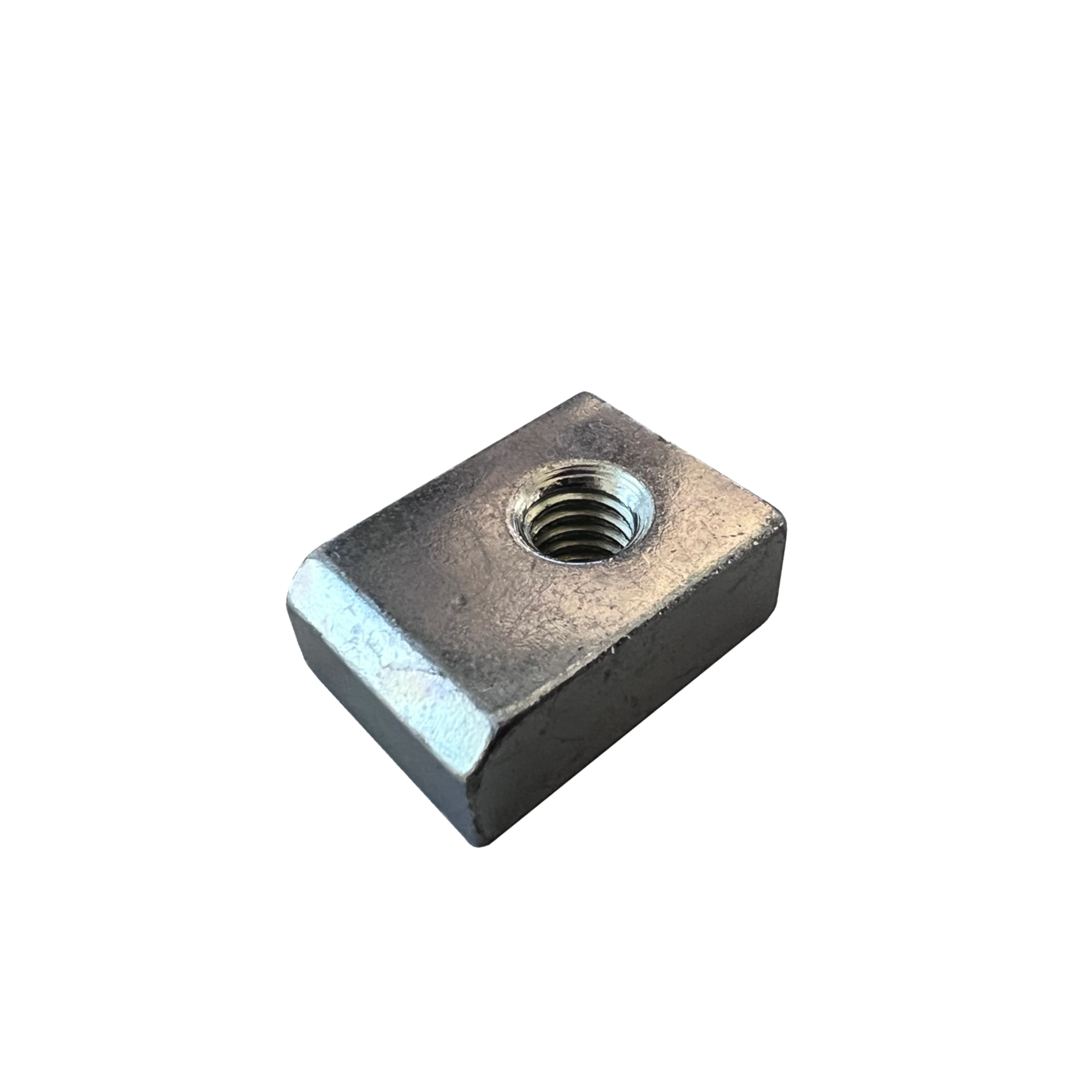

Ancra Stop
|
Ancra Stop Roller Tray;
(Holds RCA stop) |
ANC-4741011 |
|
125 |
|
Ancra Screw
|

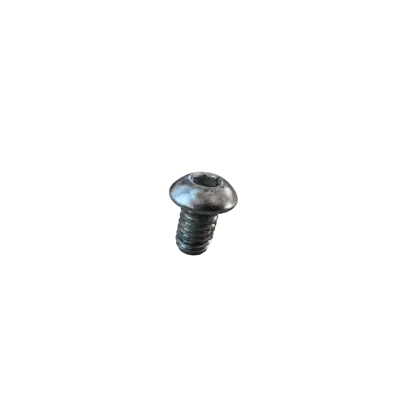

Ancra Screw; Truss Head;
(For Stop Roller Tray) |
ANC-6046610 |
|
126 |
|

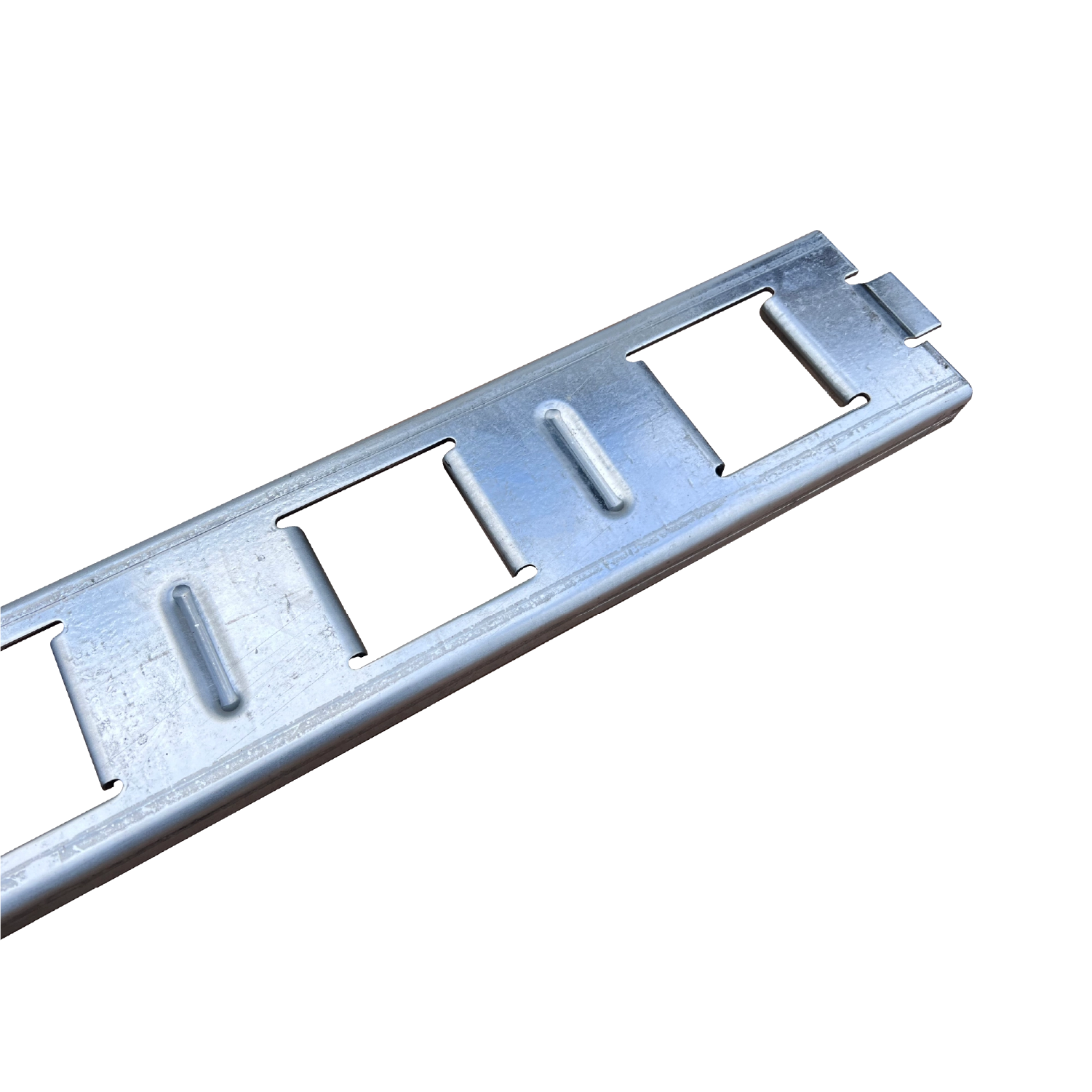

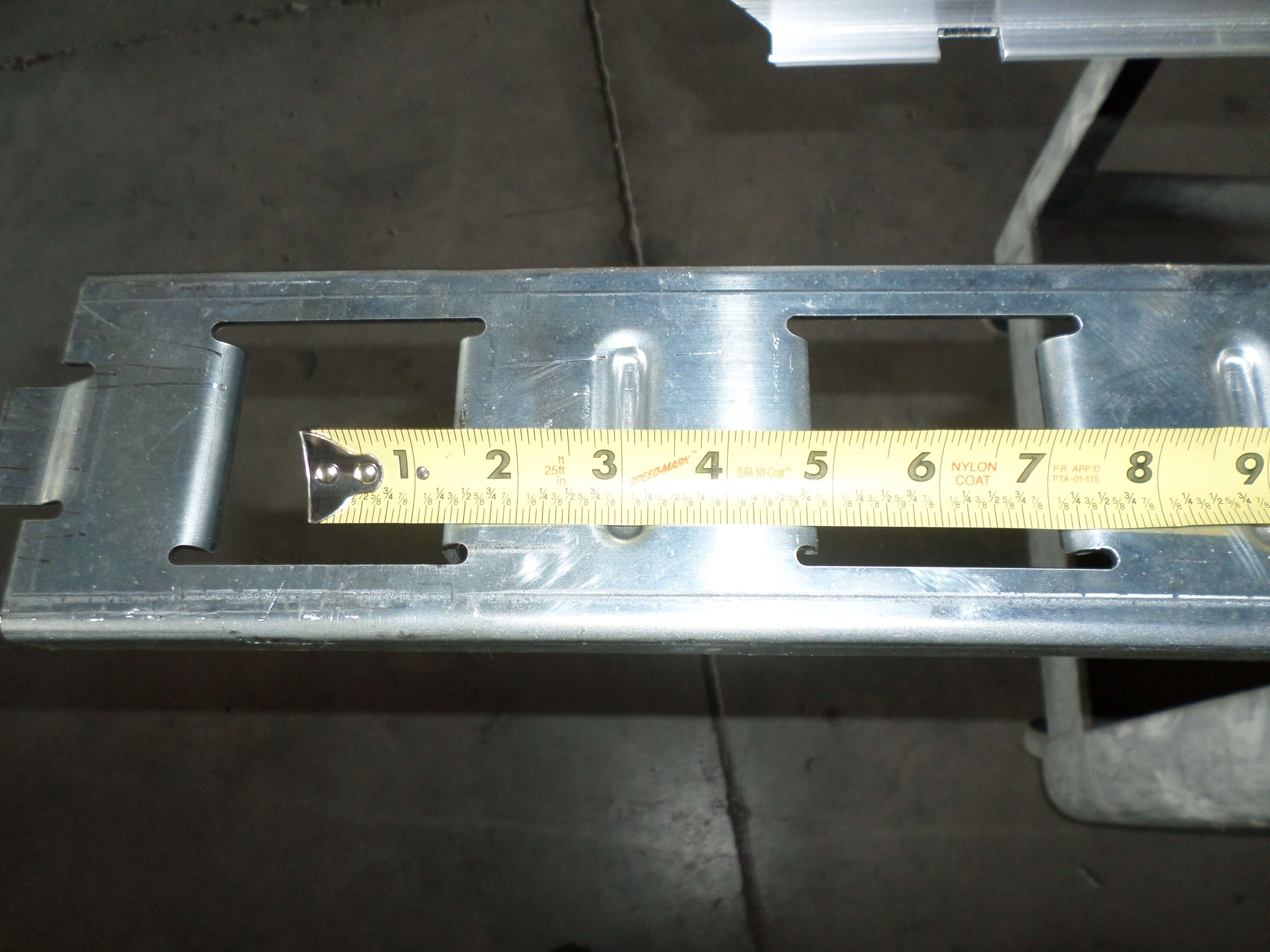

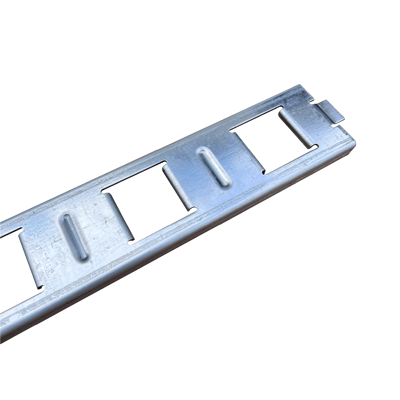

Ancra Cover Plate
|
Ancra Cover Plate;
6" P-13 Rlr; Tab End - (Clamp) 78" Long |
ANC-6201710 |
|
127 |
|

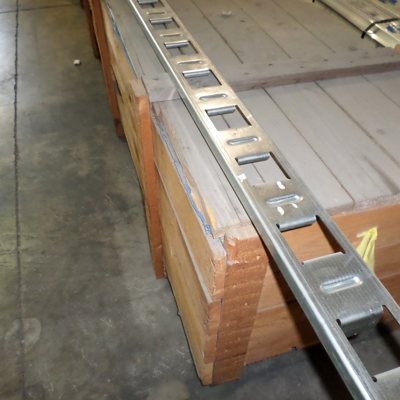

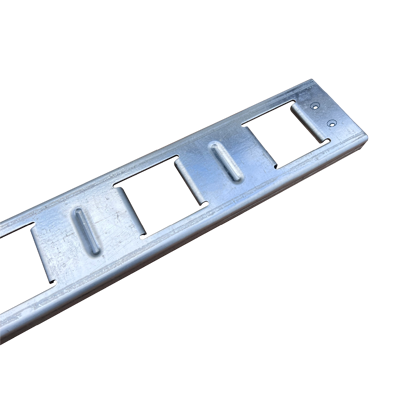

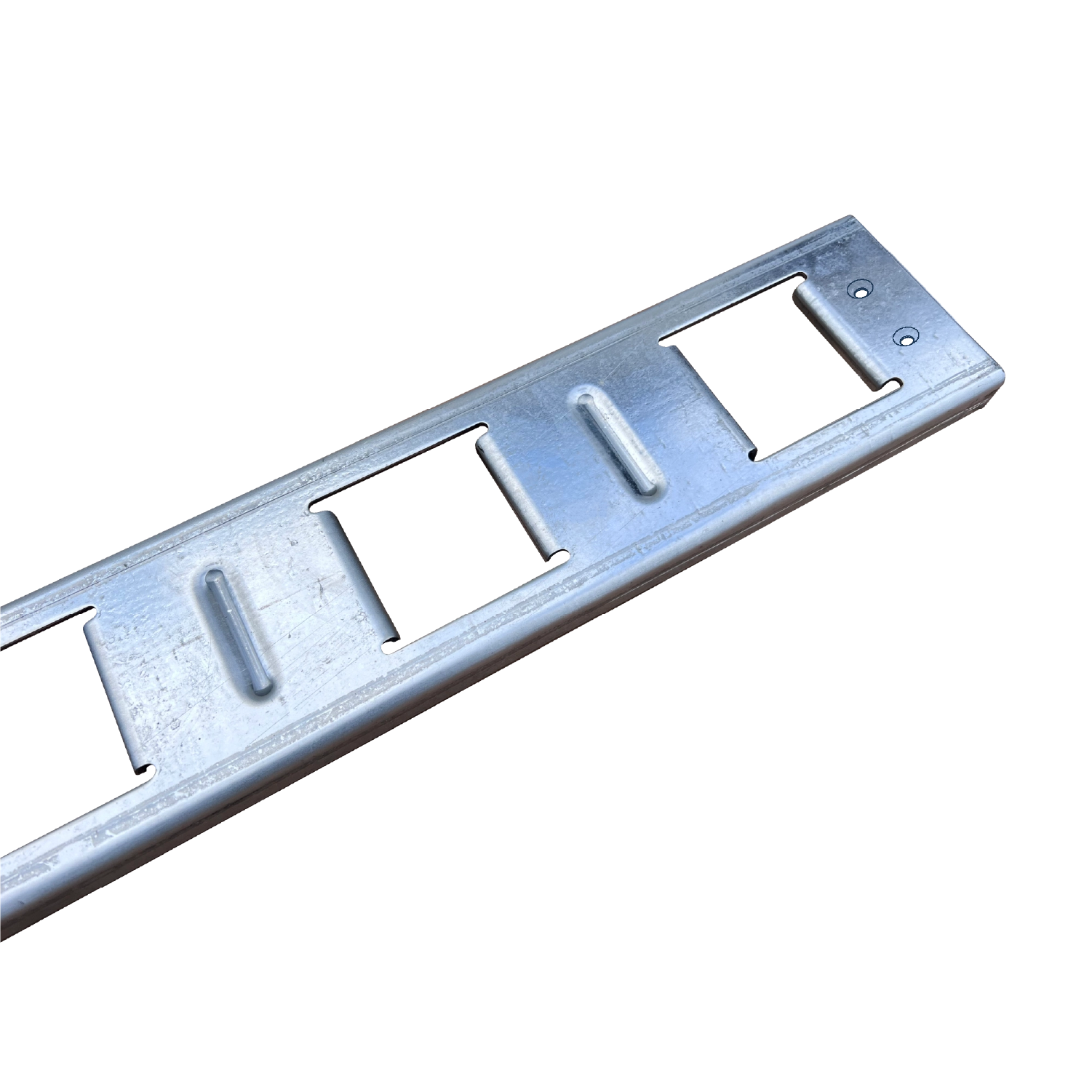

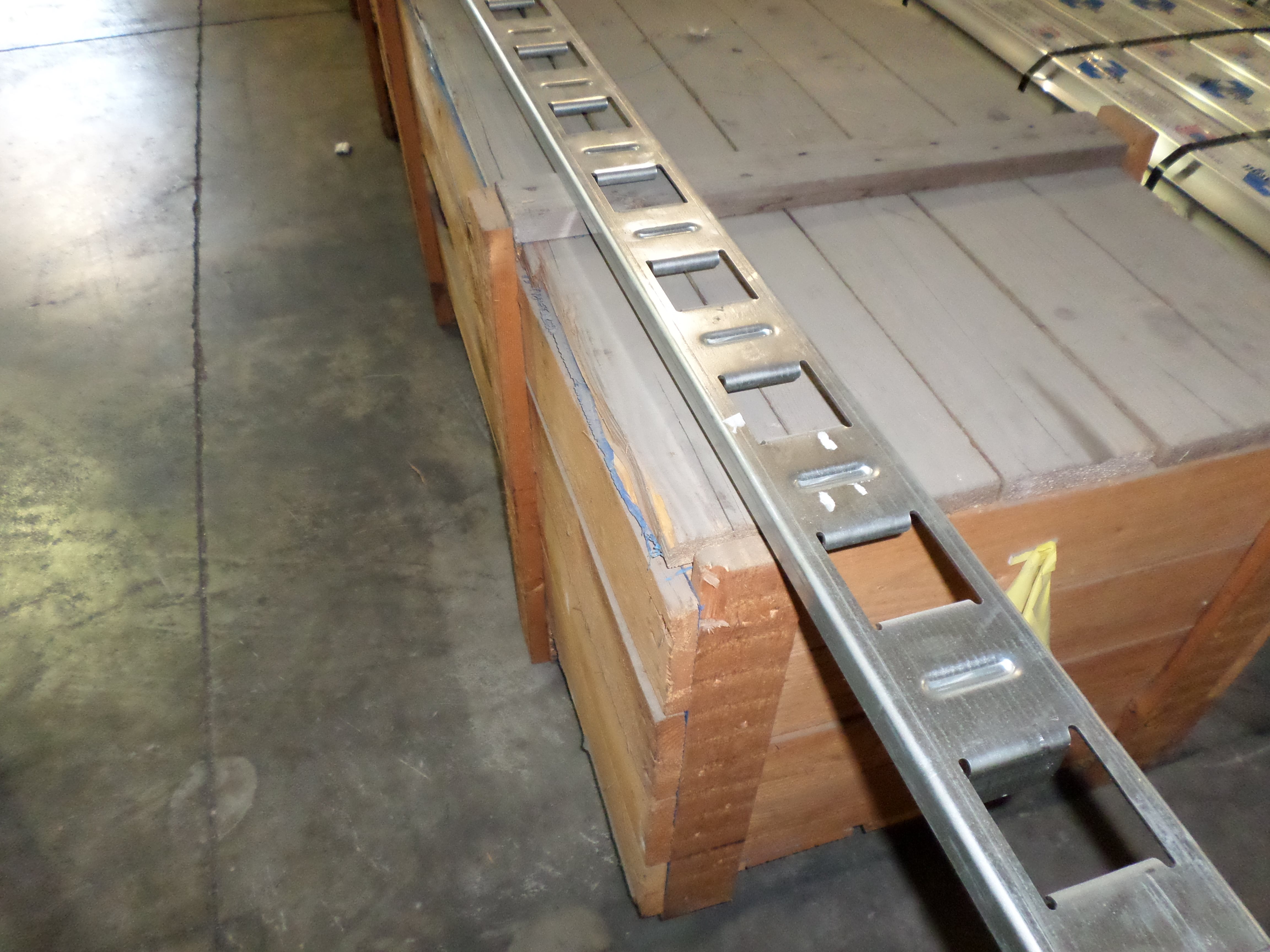

Ancra Cover Plate
|
Ancra Cover Plate;
6" P-13 Rlr; Screw End - (Inlet) 78" Long |
ANC-6201711 |
|
128 |
|

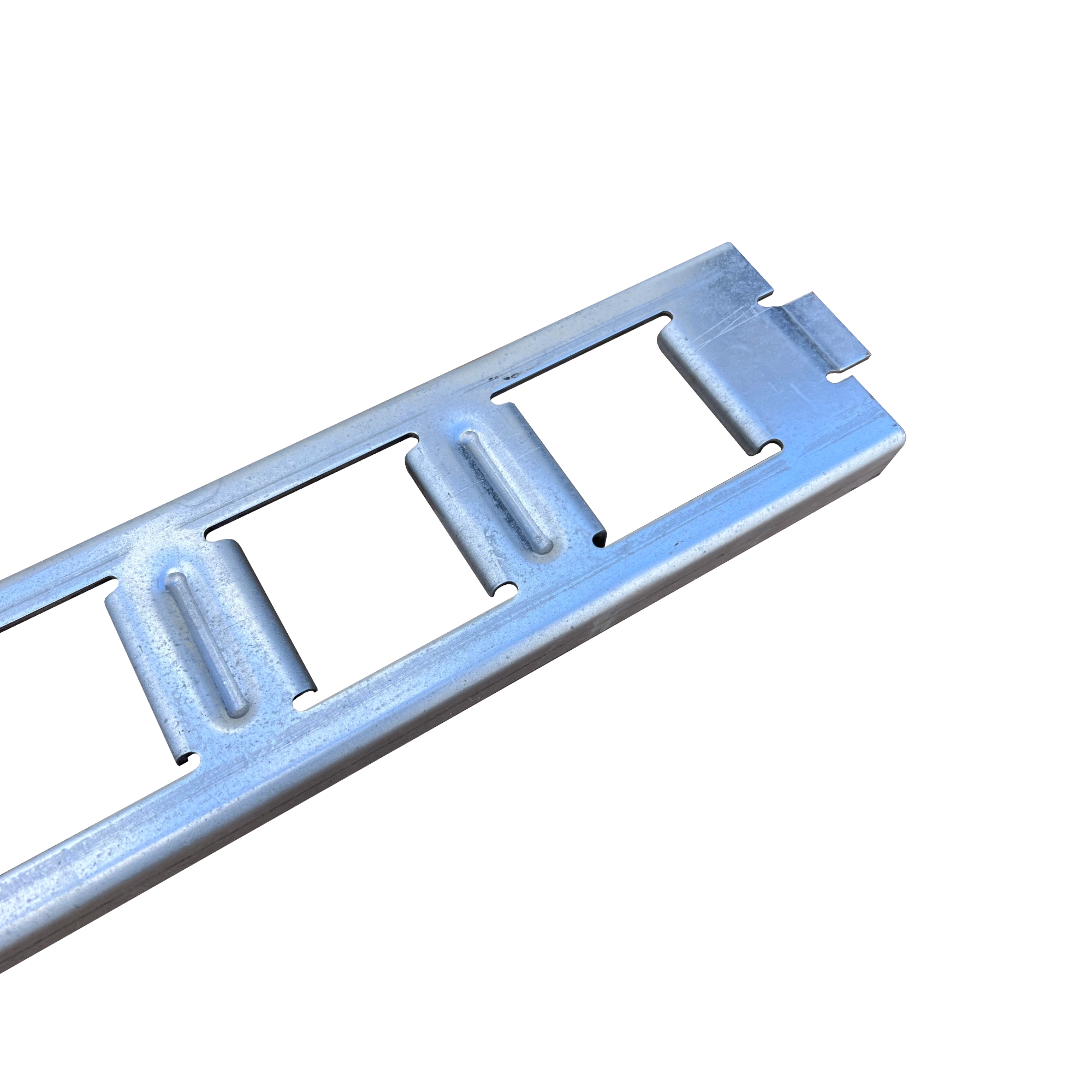

Ancra Cover Plate
|
Ancra Cover Plate;
4" P-19 Rlr; Tab End - (Clamp) 78" Long |
ANC-6201712 |
|
129 |
|

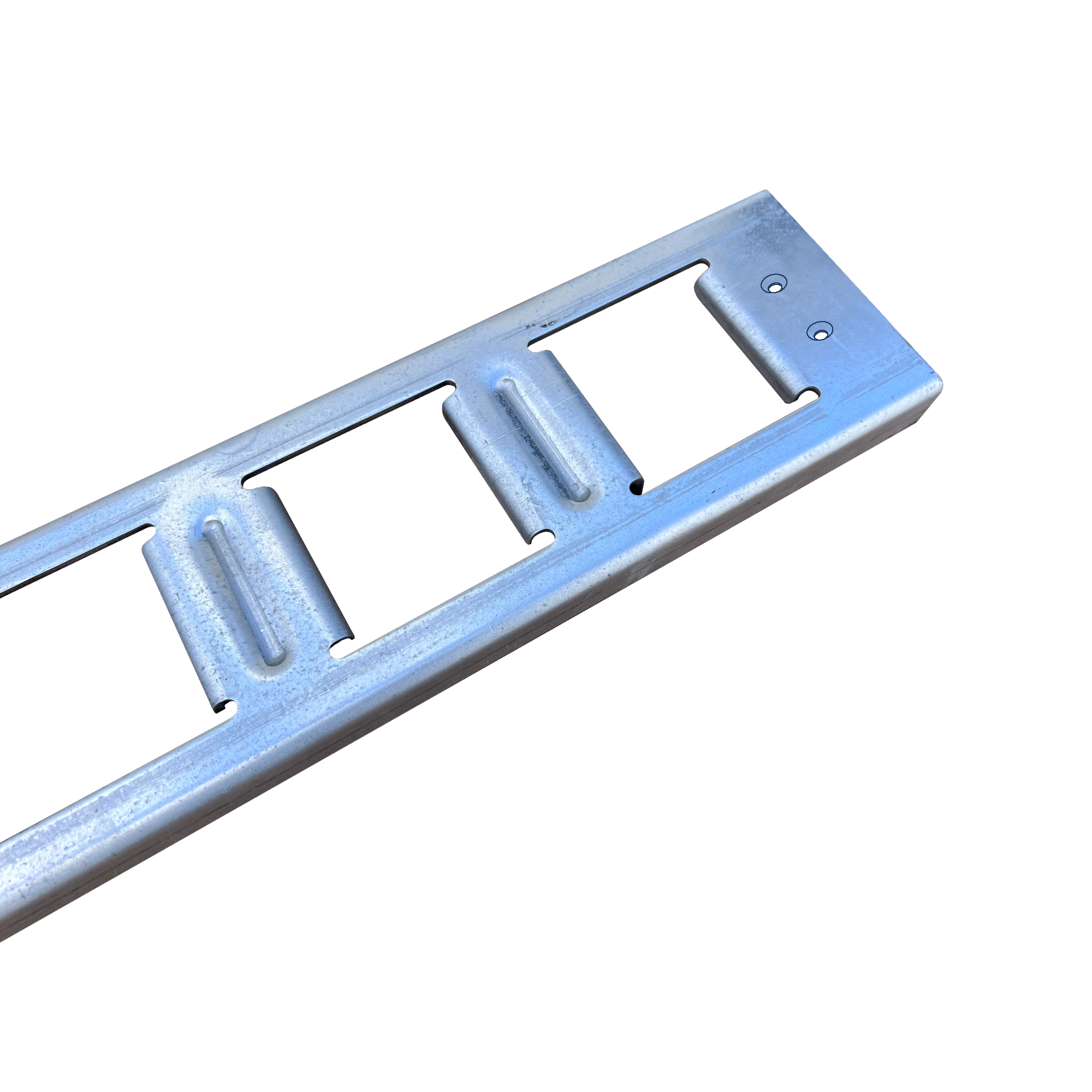

Ancra Cover Plate
|
Ancra Cover Plate;
4" P-19 Rlr; Screw End - (Inlet) 78" Long |
ANC-6201718 |
|
130 |
|

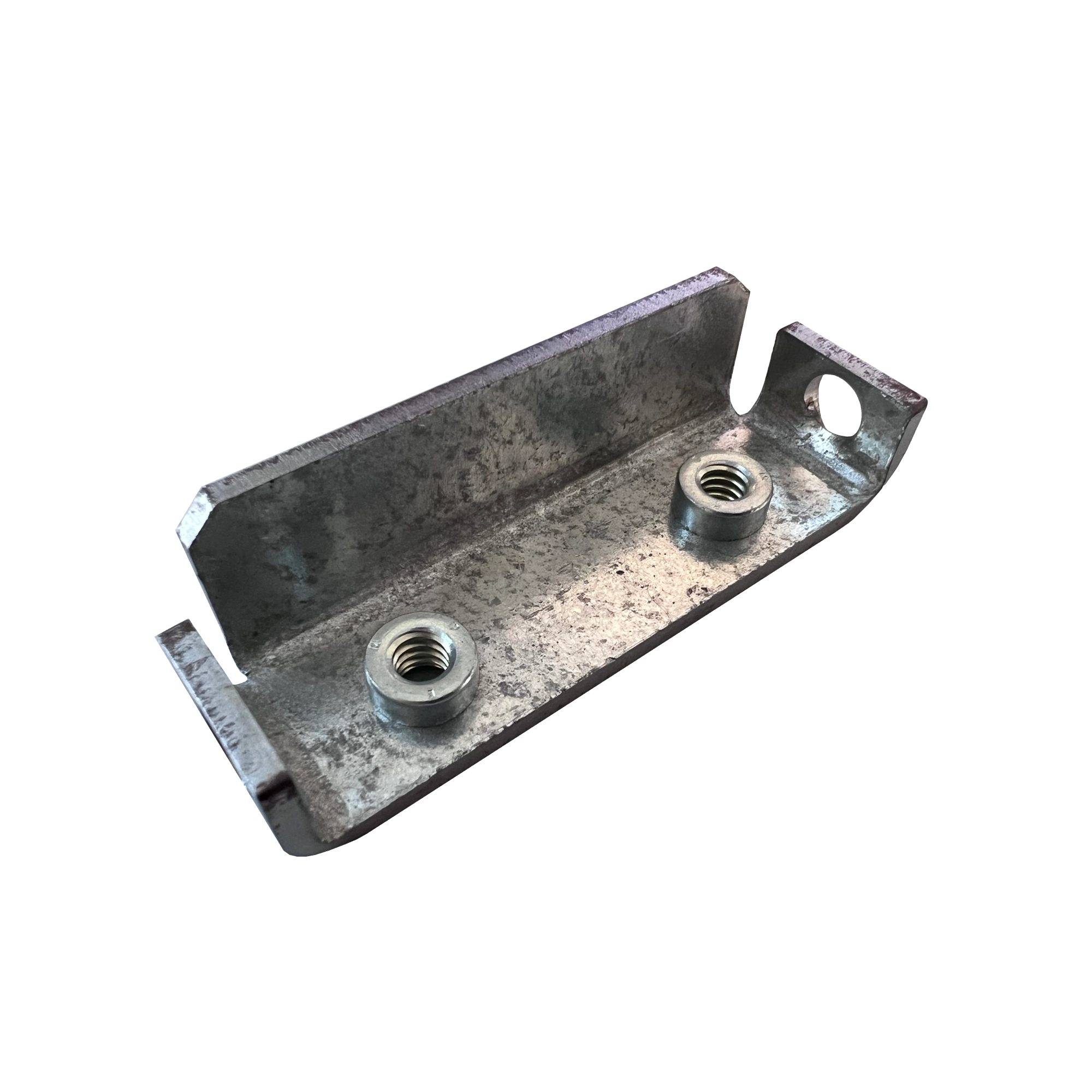

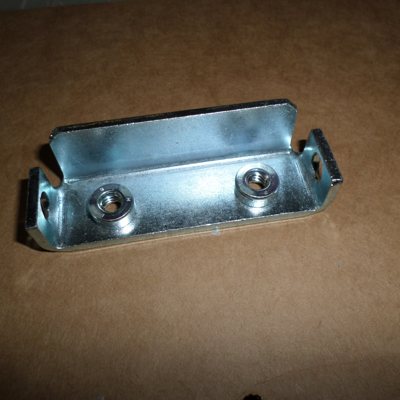

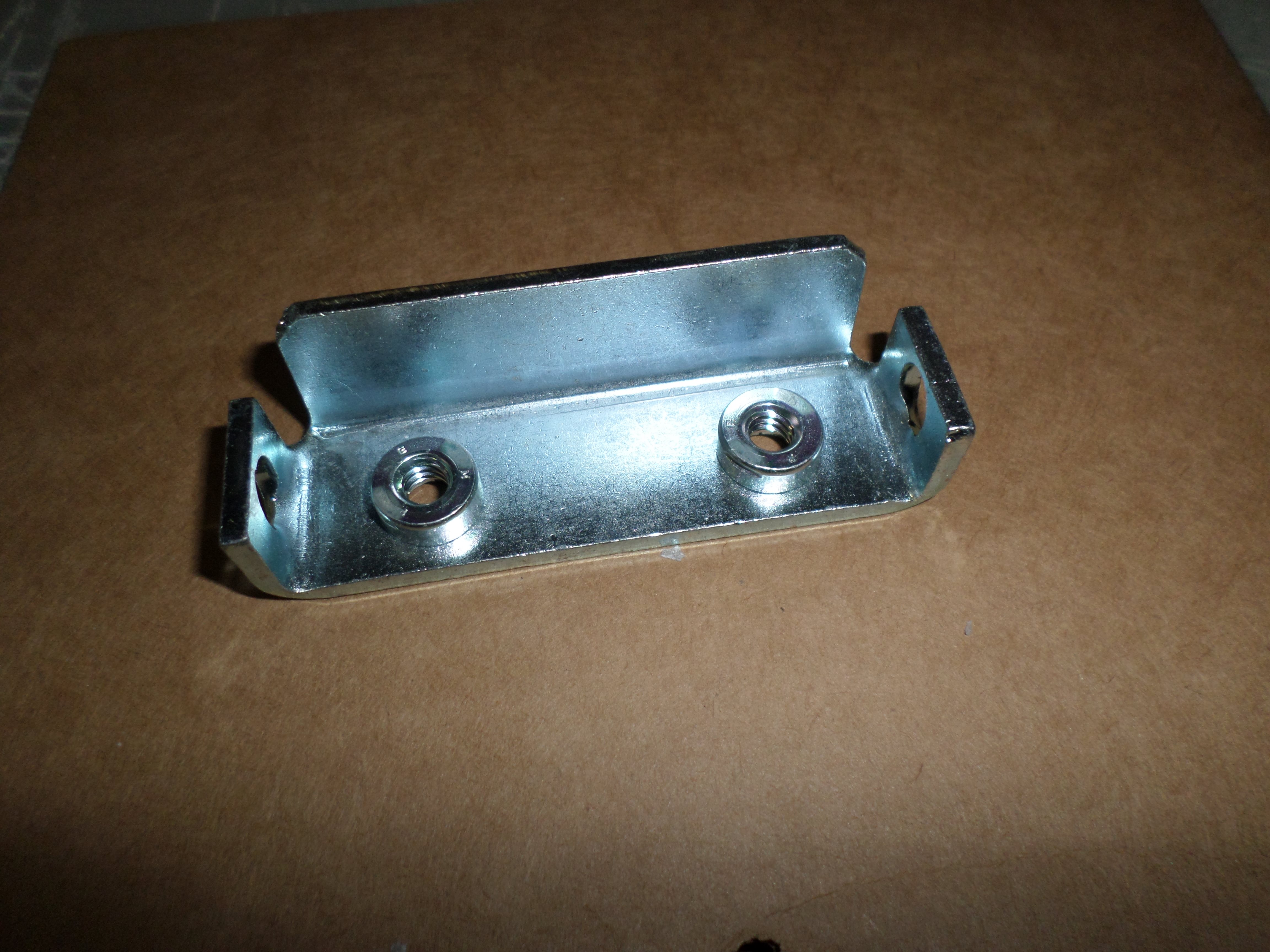

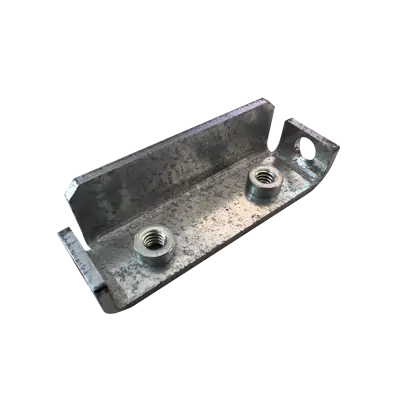

Ancra End Block
|
End Block for Channel |
ANC-6201914 |
|
131 |
|

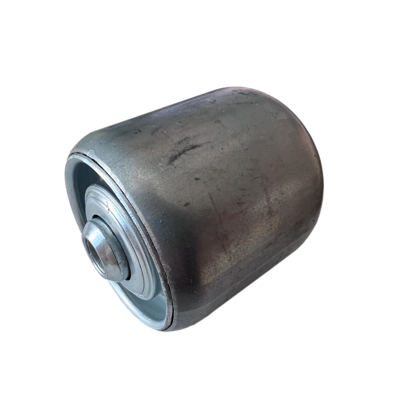

Ancra Roller Assembly
|
Ancra Roller Assembly; For Ancra Cradles;
(Roller 743006 LAI) |
ANC-4701312 |
|
132 |
|

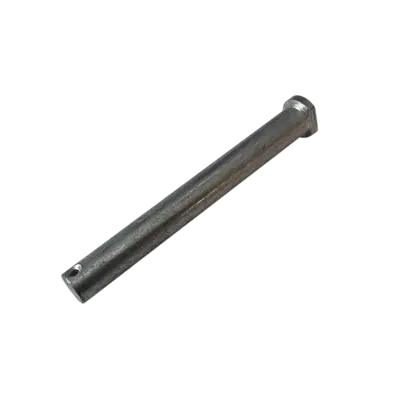

Ancra Roller Axel Pin
|
Ancra Roller Axel Pin; For Ancra Cradles |
ANC-4701413 |
|
133 |
|

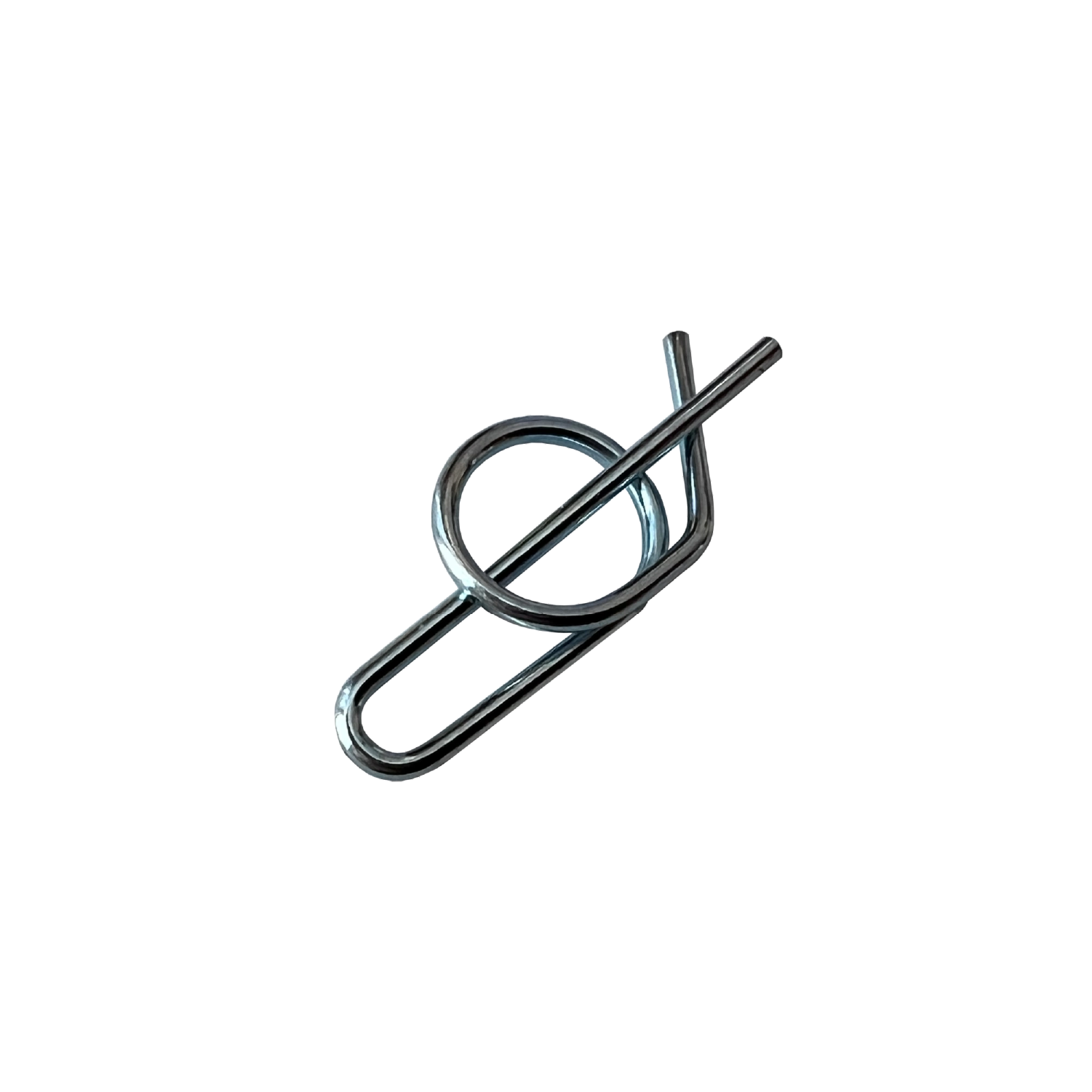

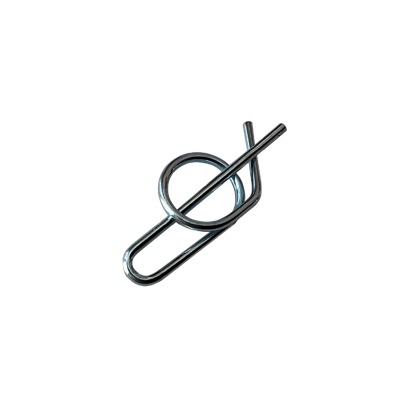

Ancra Rue Ring
|
Ancra Retainer Clip; For Ancra cradles |
ANC-RUE10MB |
|
134 |
|

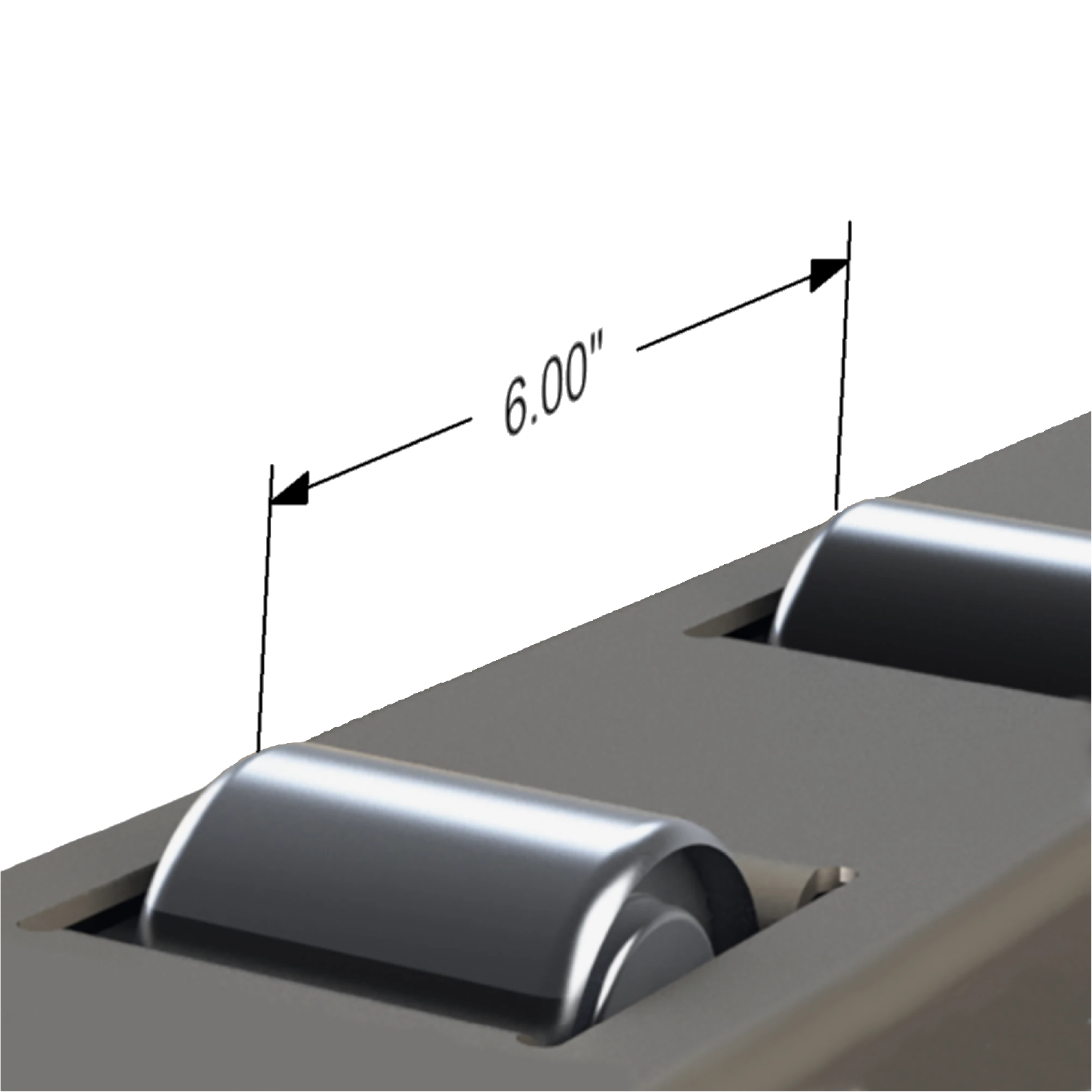

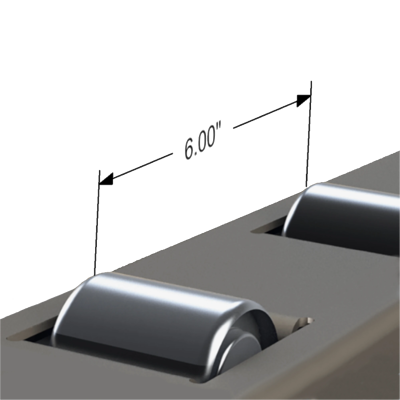

Ancra RCA
|
Ancra RCA;
6" P-13 Rlr; 74" Long |
ANC-6010837 |
|
135 |
|

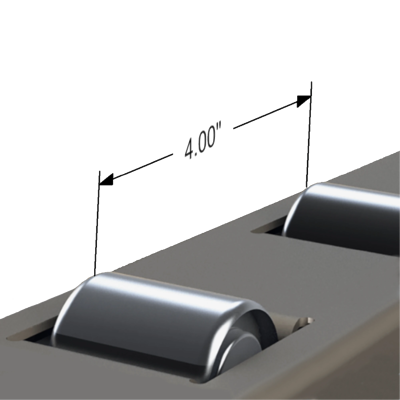

Ancra RCA
|
Ancra RCA;
4" P-19 Rlr; 74" Long |
ANC-6010835 |
