| Ref no. |
|
Name |
Description |
Code |
Quantity |
|
|
1 |
|

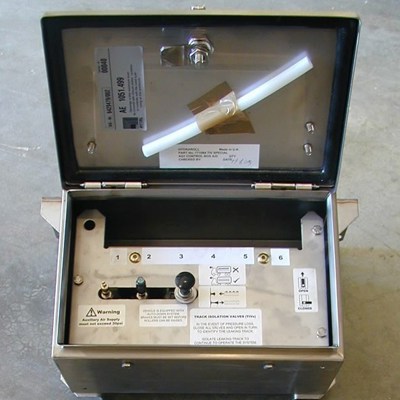

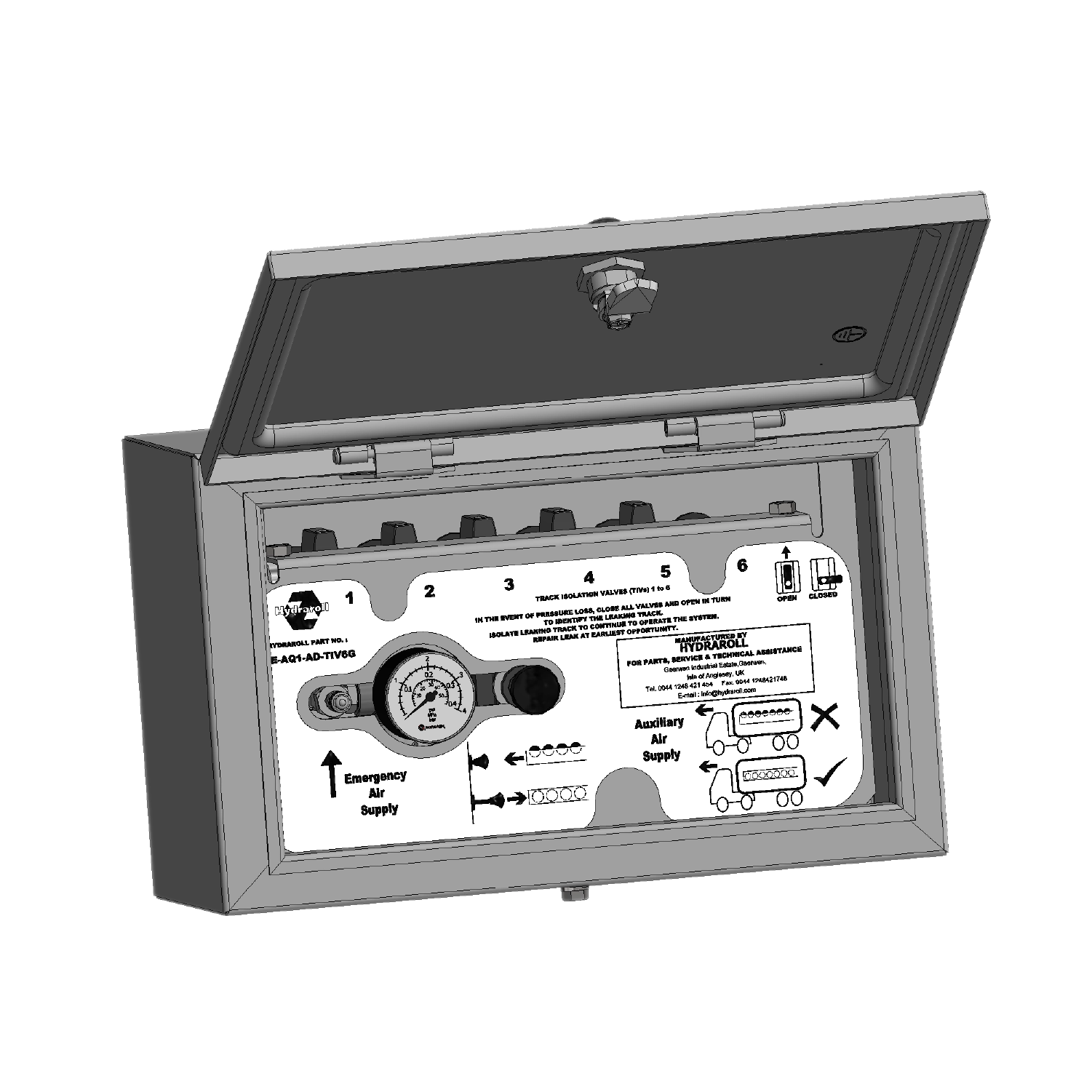

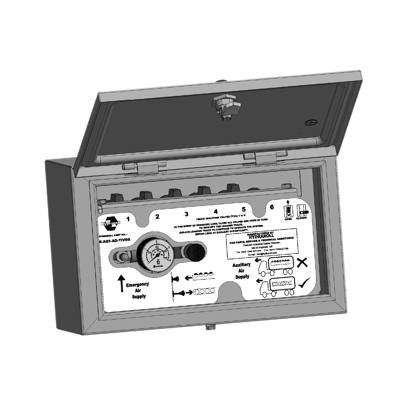

Control Box Complete (With TIV and AIV)
|
AQ1; Stainless Steel Control Box Complete;
Autodown; with TIV and AIV;
5 Ports |
771116 |
|
|
|
2 |
|

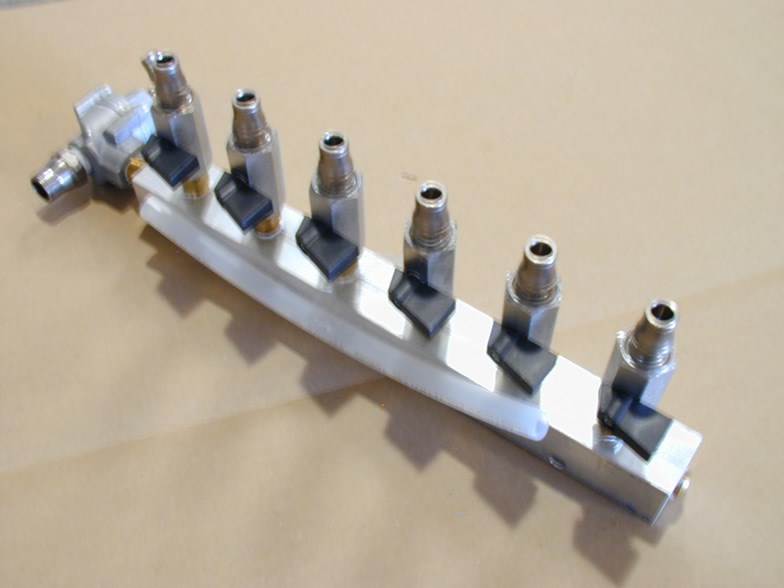

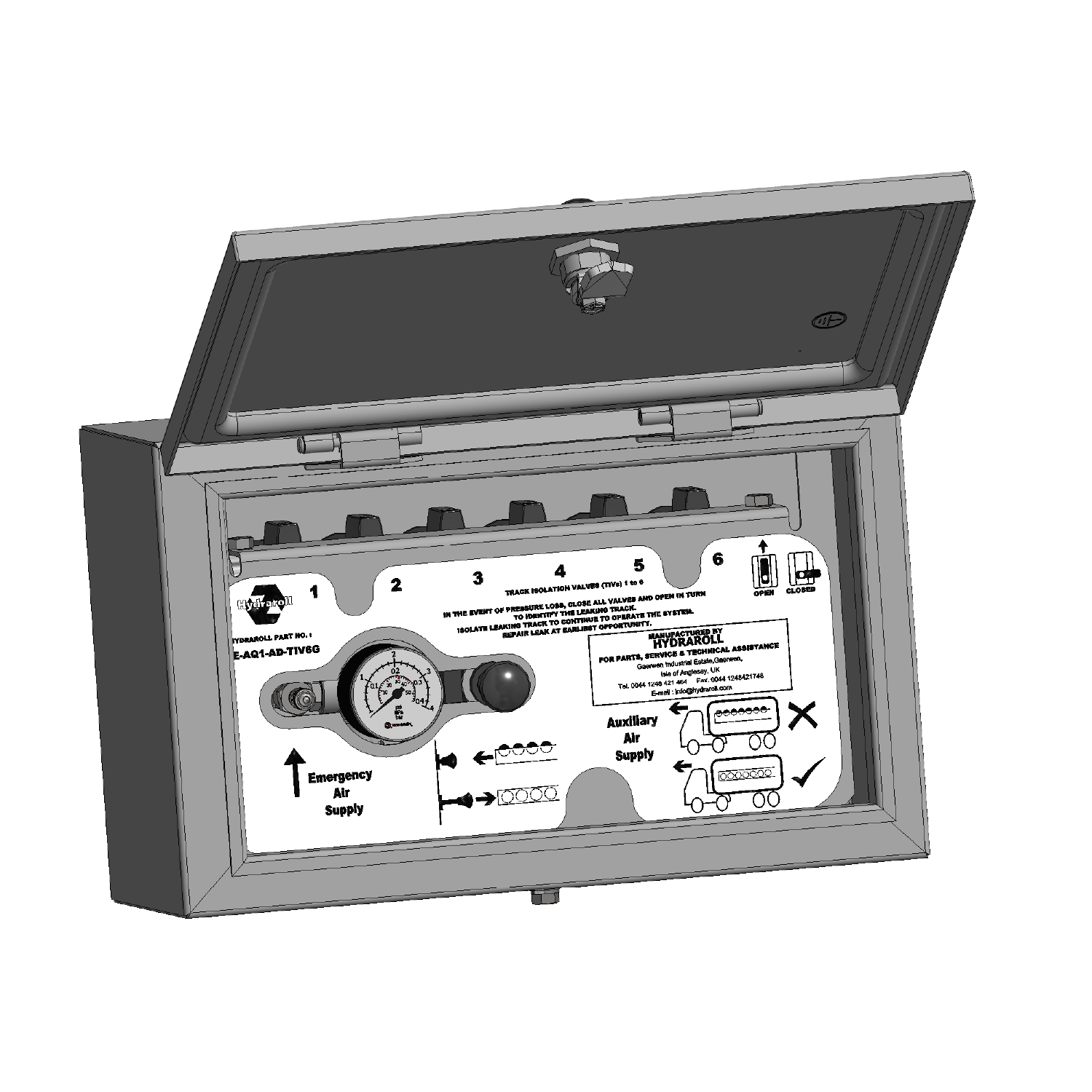

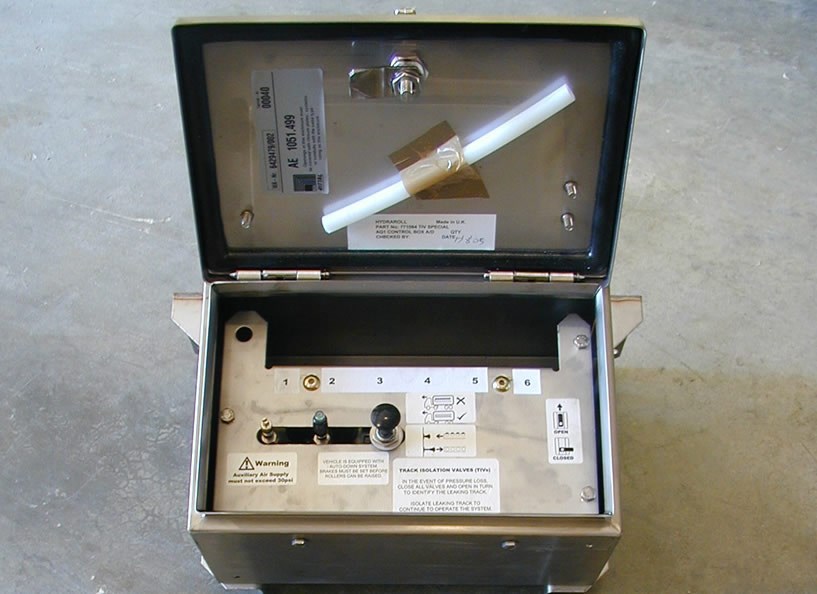

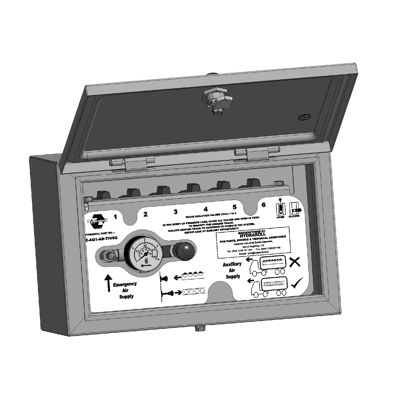

Control Box Complete (With TIV and AIV)
|
AQ1; Stainless Steel Control Box Complete;
Autodown; with TIV and AIV;
6 Ports |
771064 |
|
|
|
3 |
|

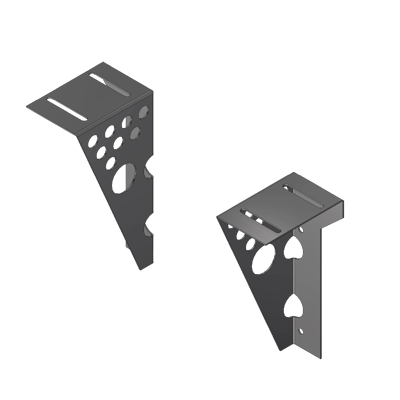

Mounting Brackets
|

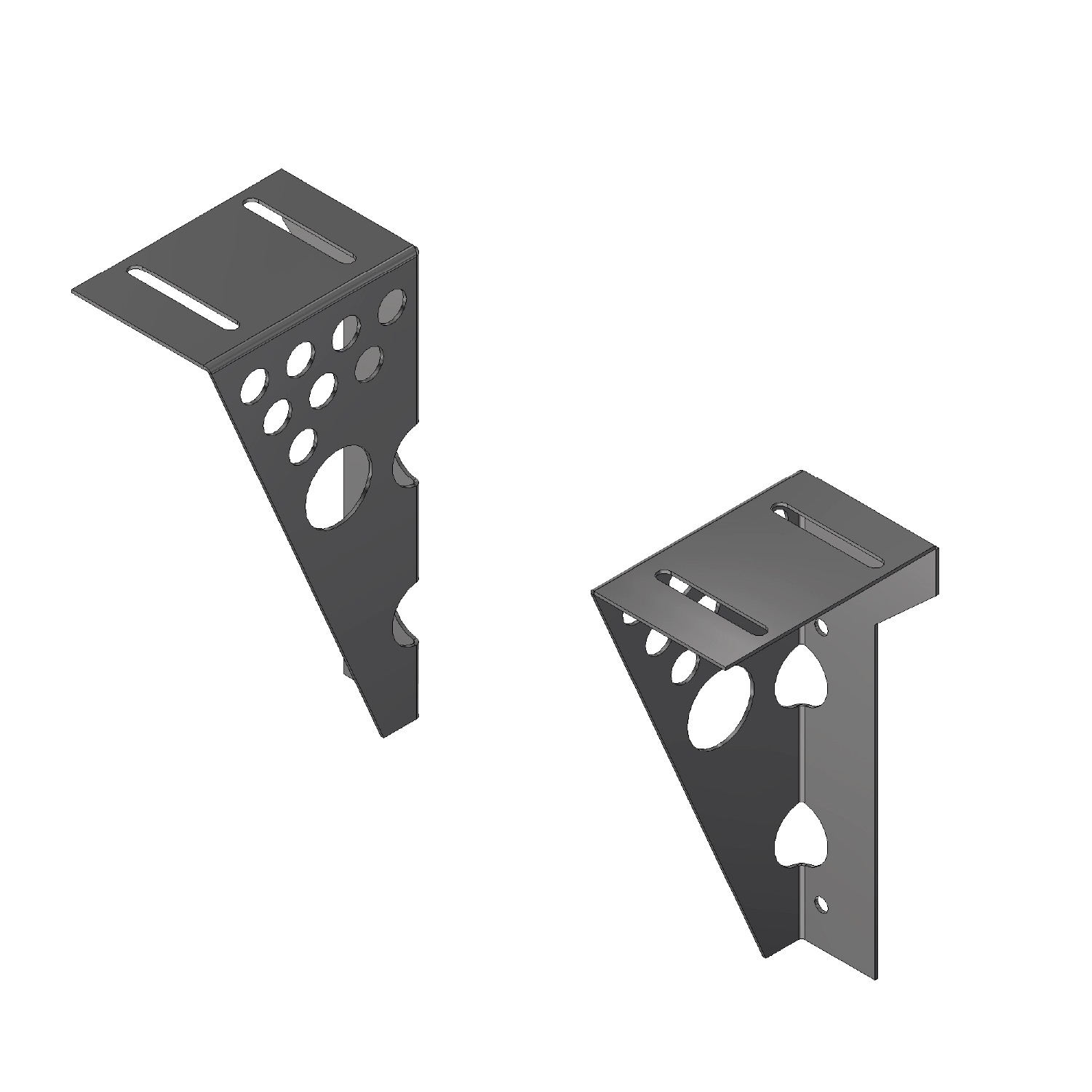

Control Box Mounting Brackets;
(Stainless Steel 2 Piece);
For AQ1 / AQ2 Box with TIV / AIV |
711009 |
|
|
|
4 |
|

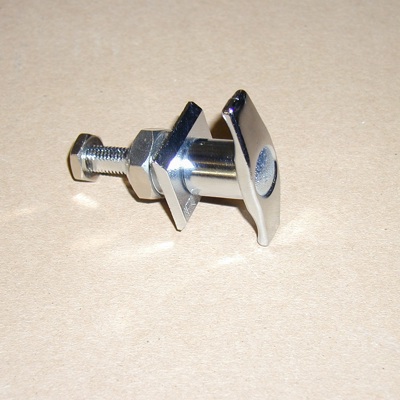

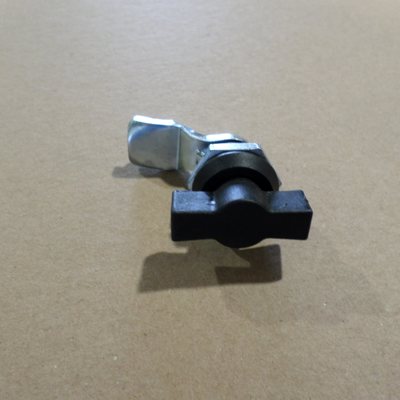

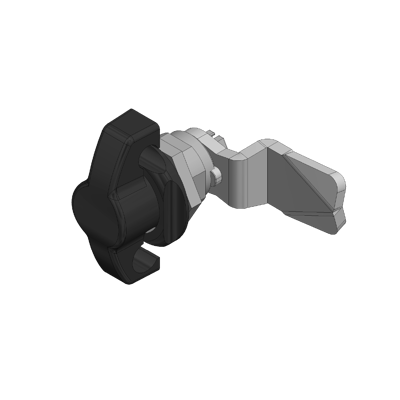

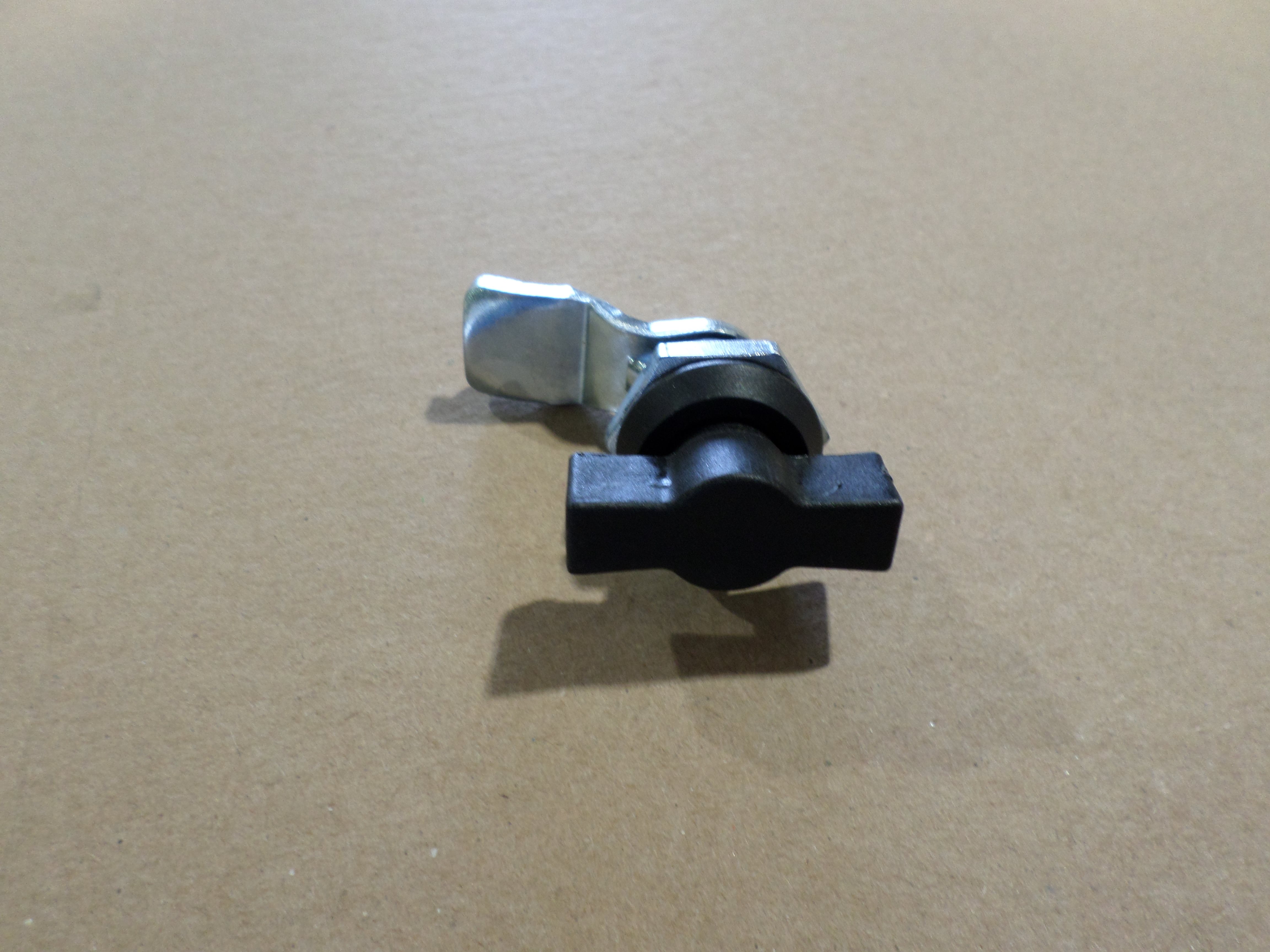

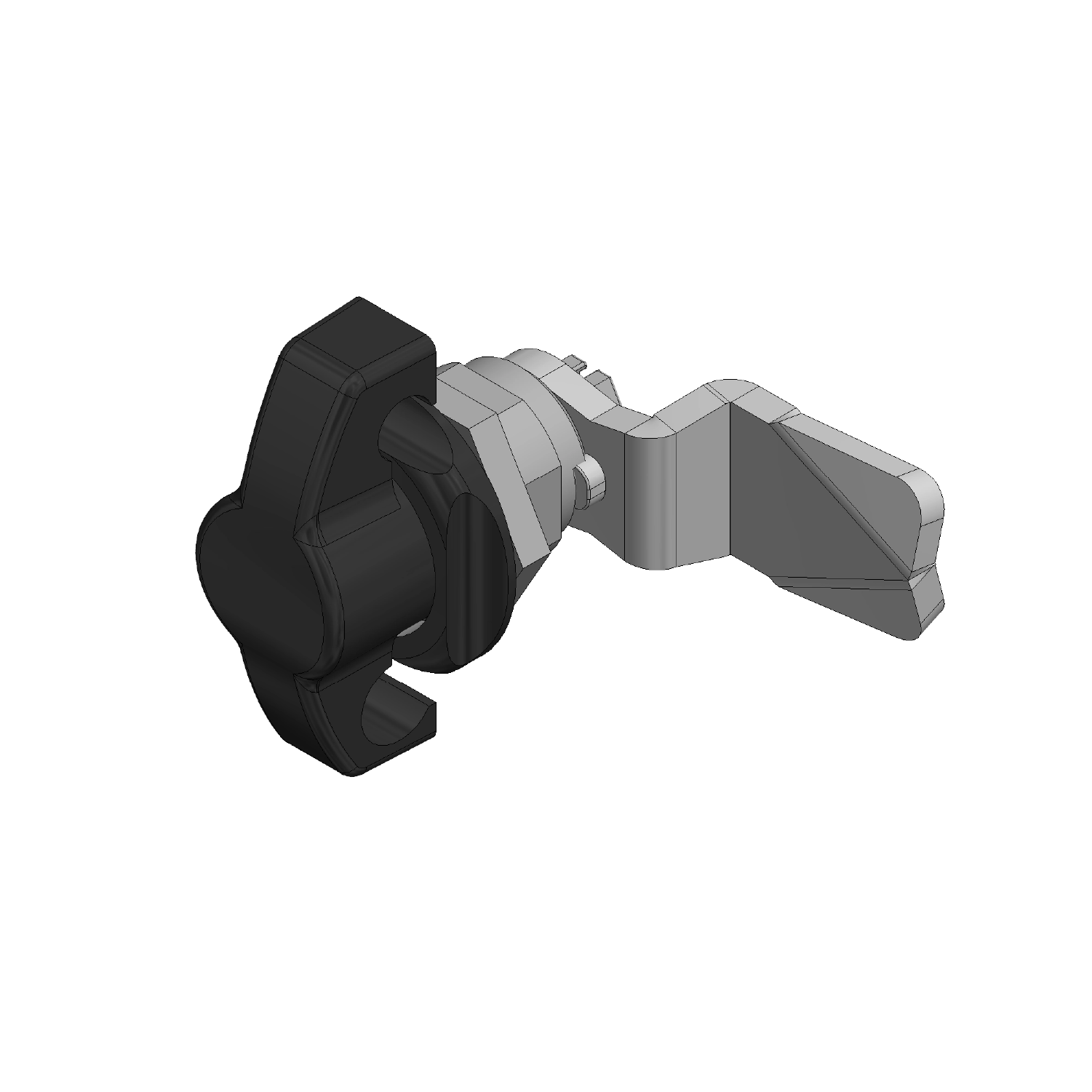

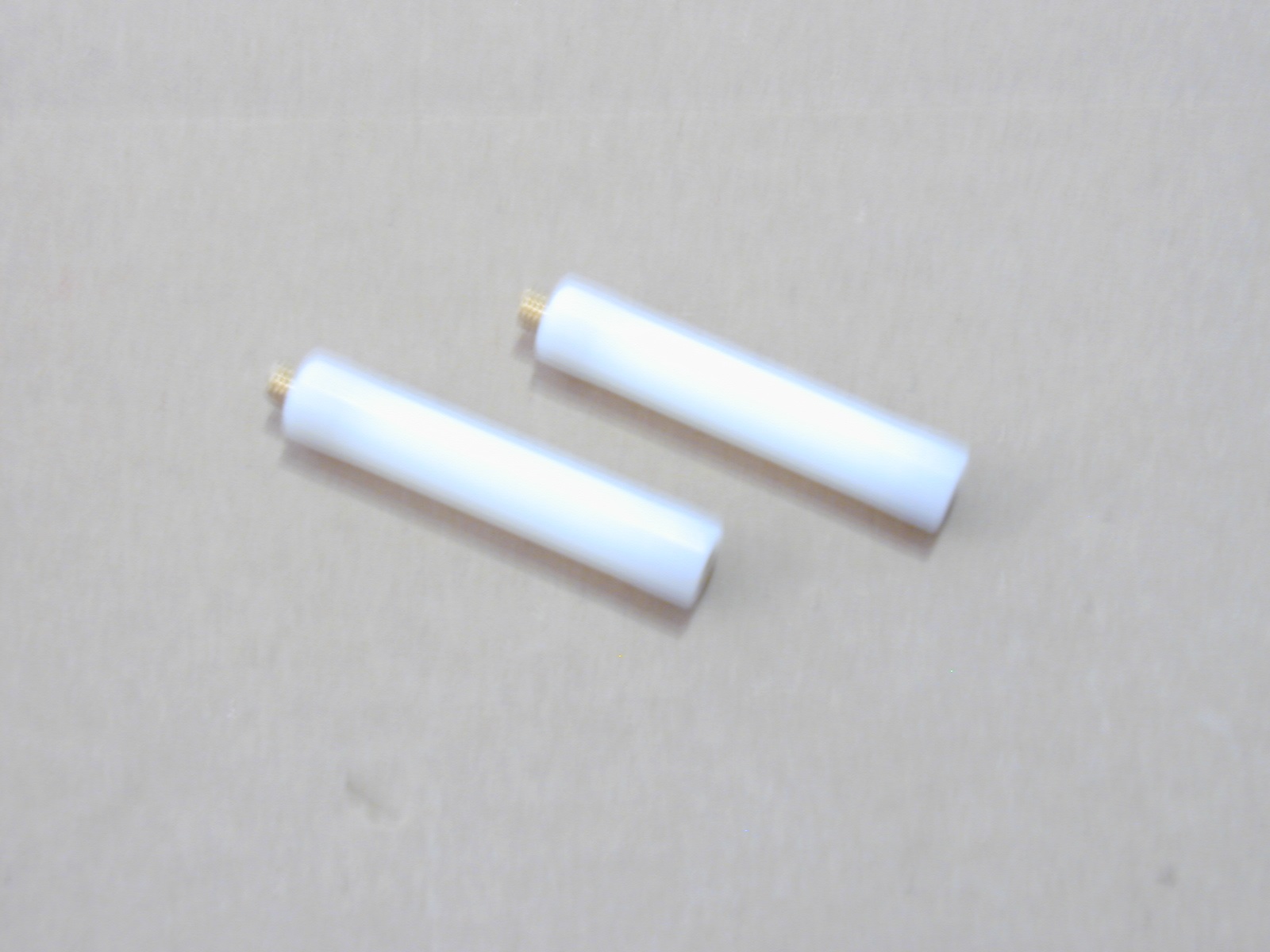

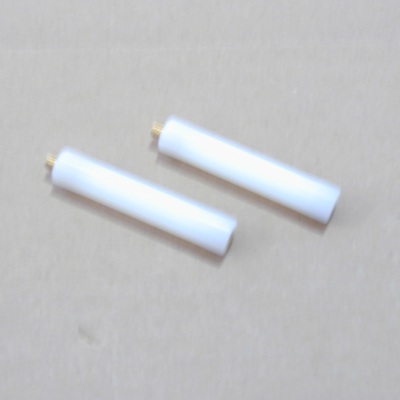

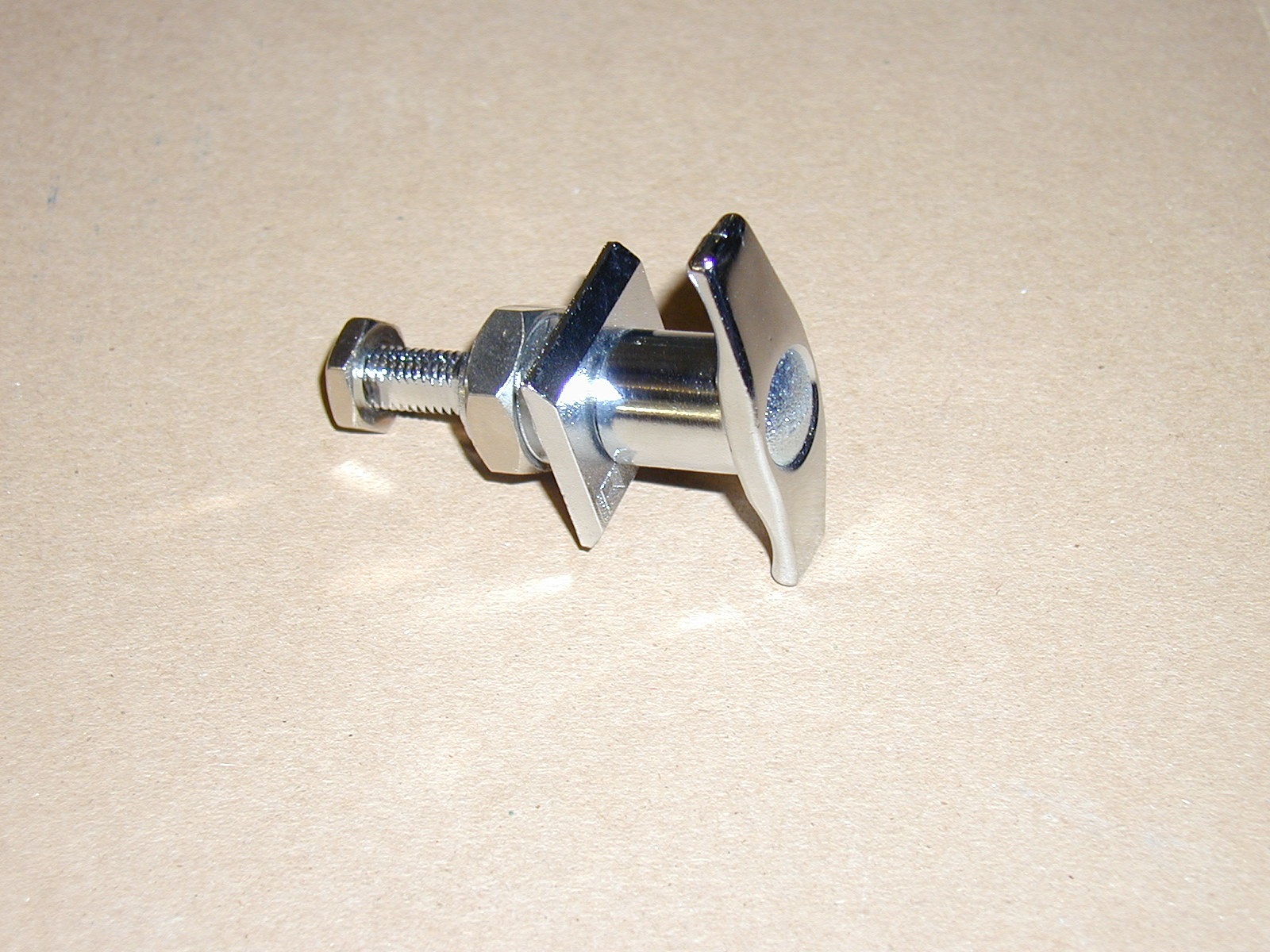

Tee Handle Assy - Plastic
|
Tee Handle Assy; Plastic / Stainless Steel; For Control Box |
771045P |
|
|
|
5 |
|

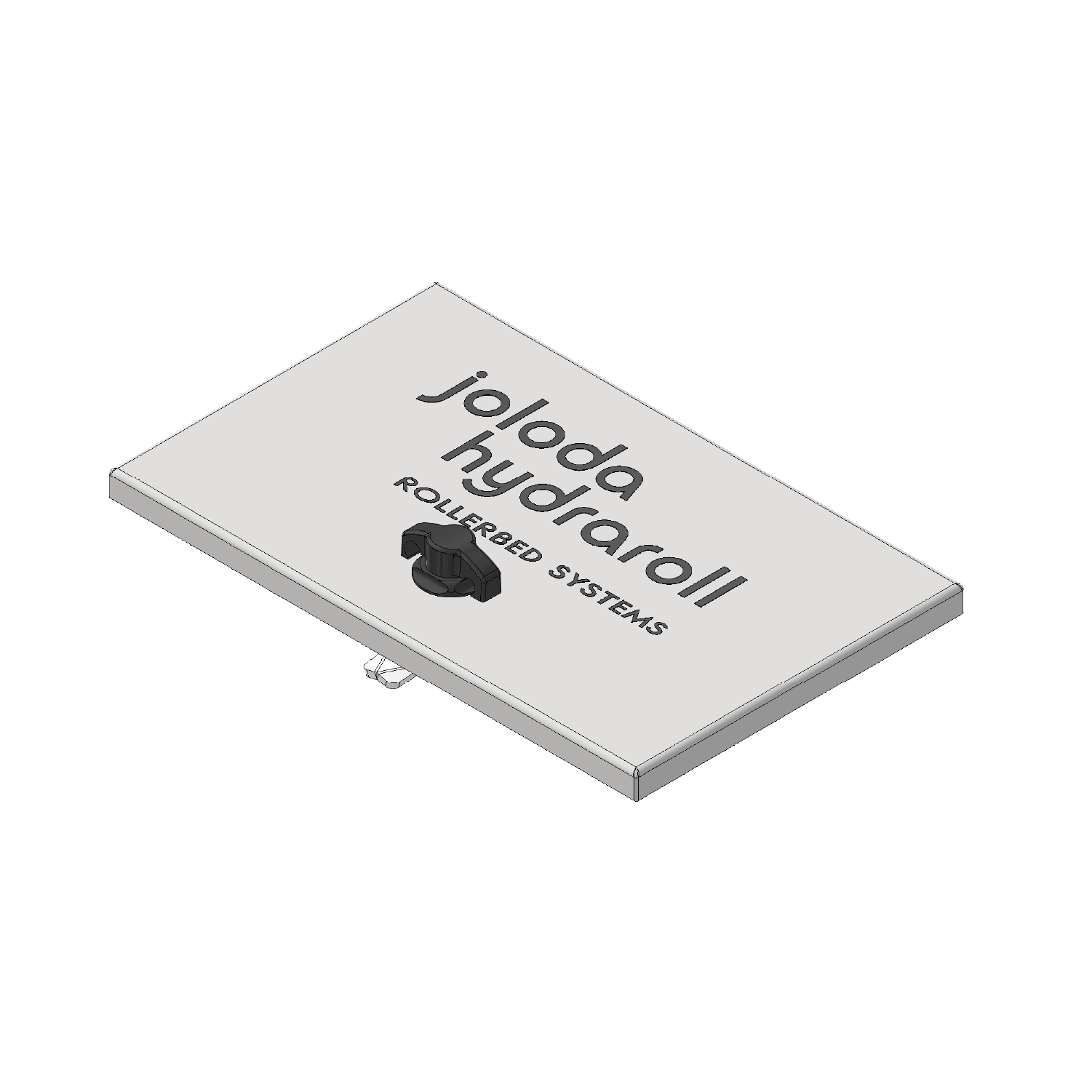

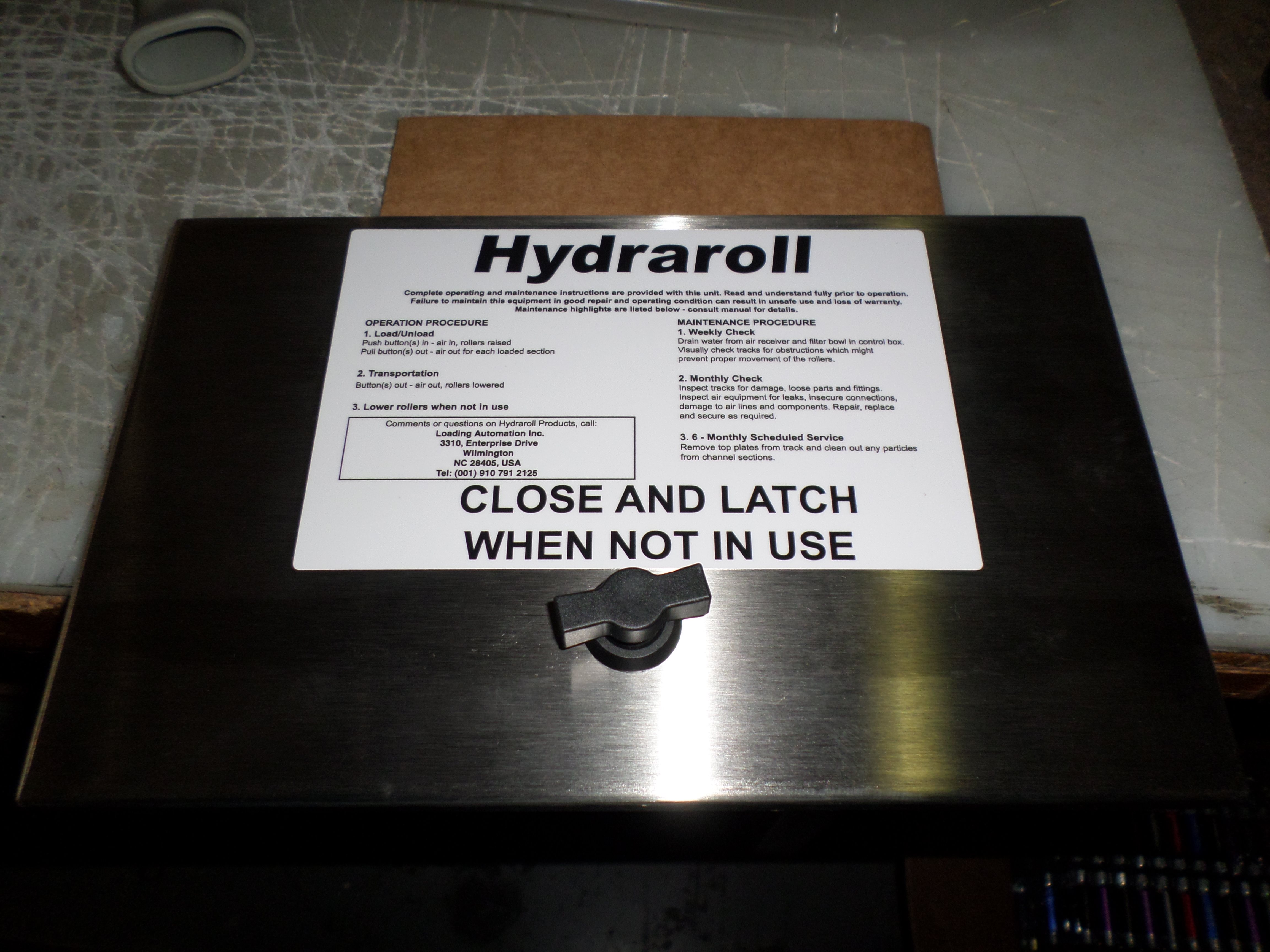

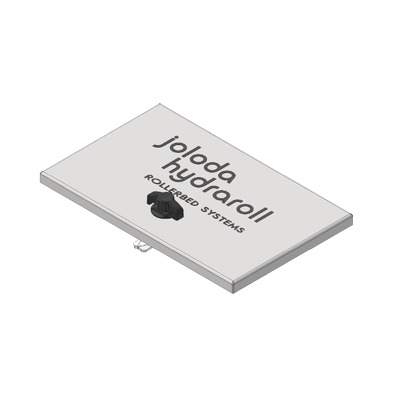

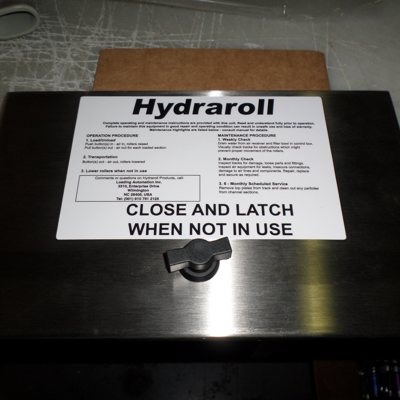

Lid for Control Box
|
Lid; Control Box; w/ Hinge w/ Latch; S/S |
771068 |
|
|
|
6 |
|

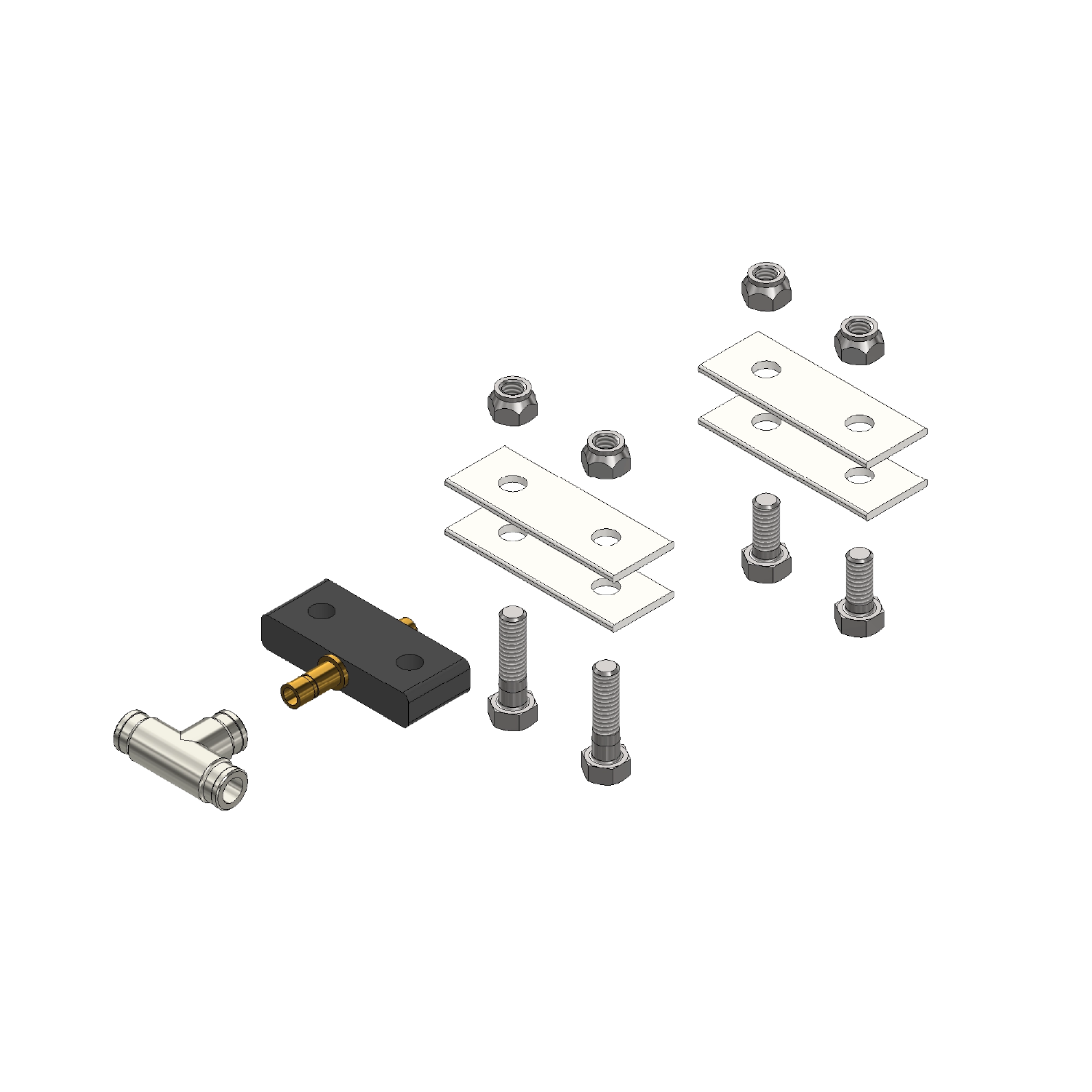

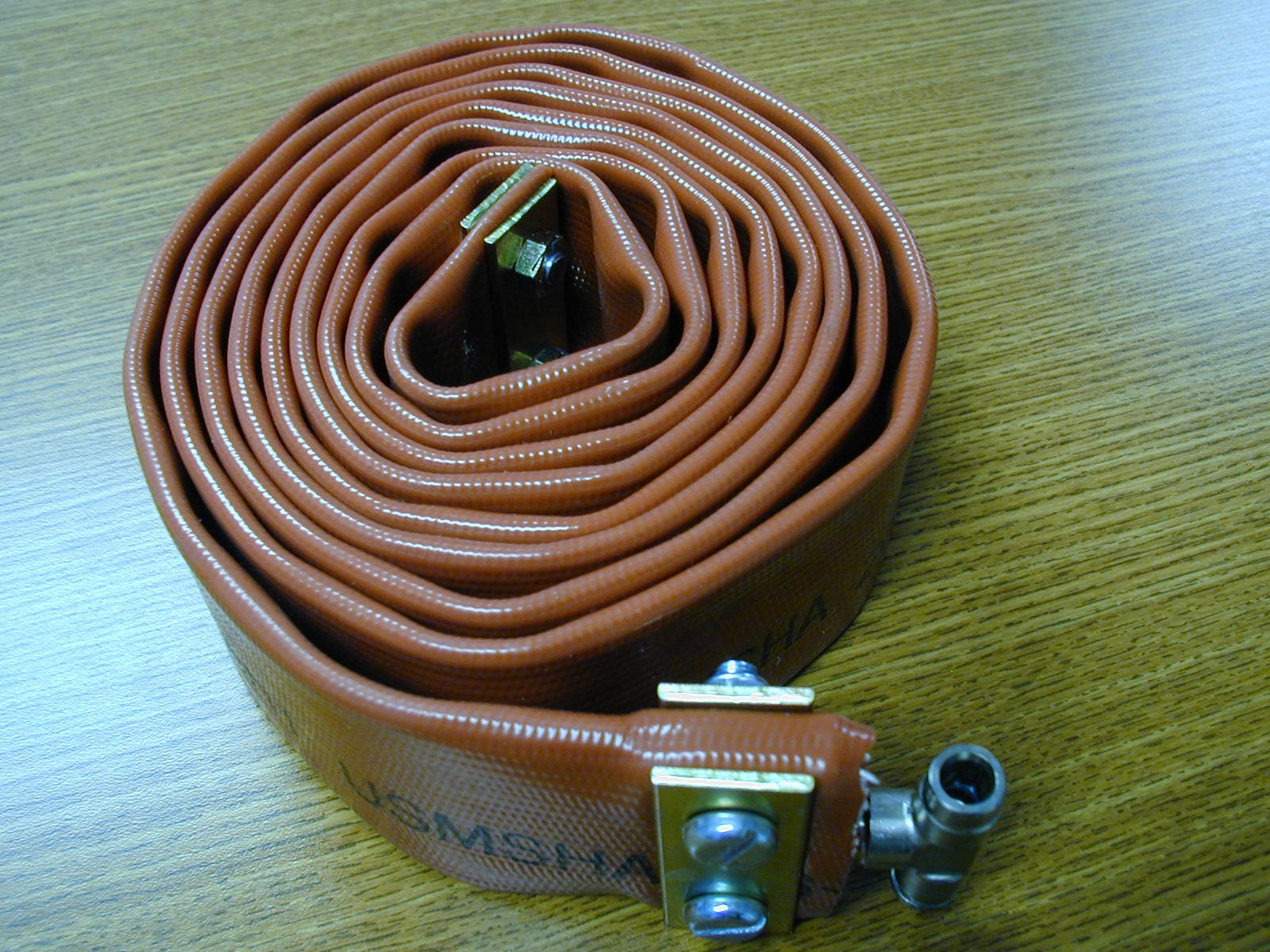

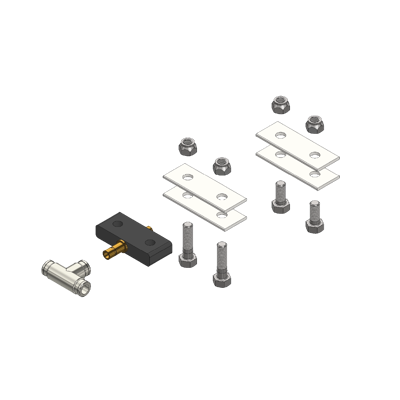

Air Bag Clamp Kit
|
2.5” Hydraroll Air Bag Clamp Kit with 5/16" Tee |
762001 |
|
|
|
7 |
|

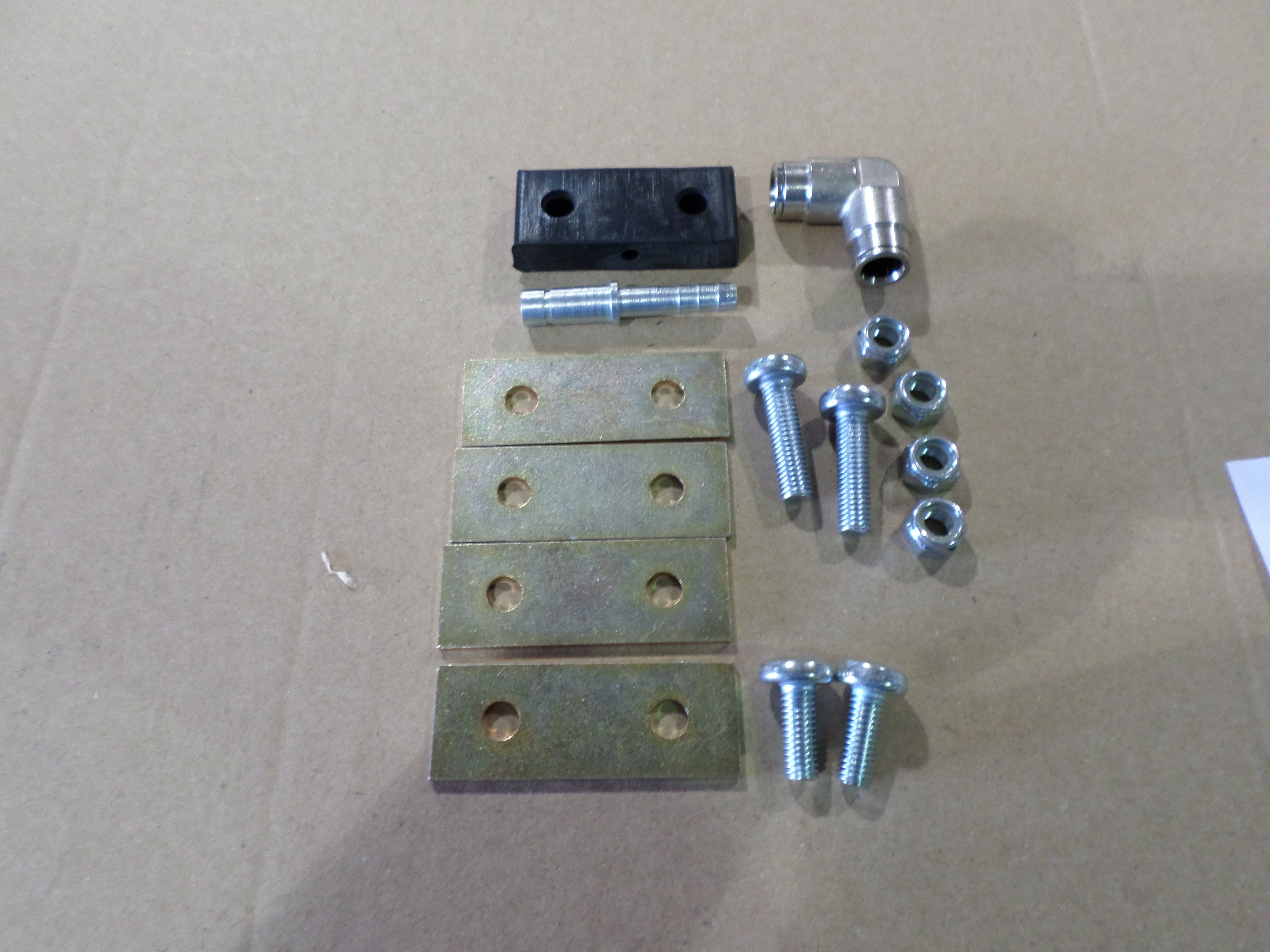

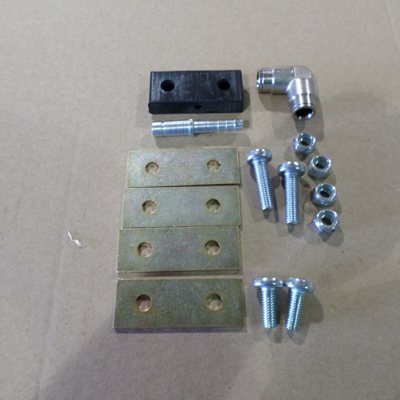

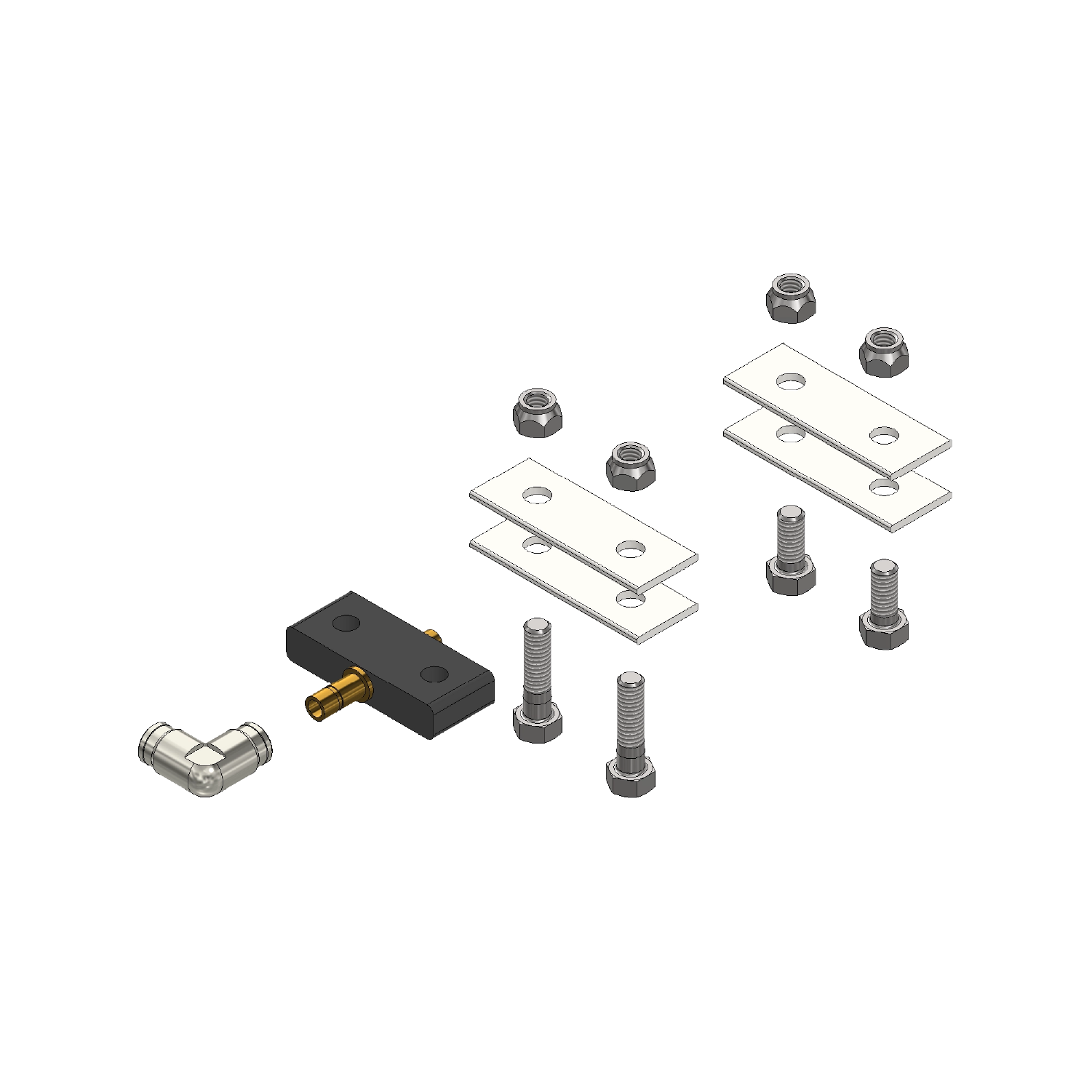

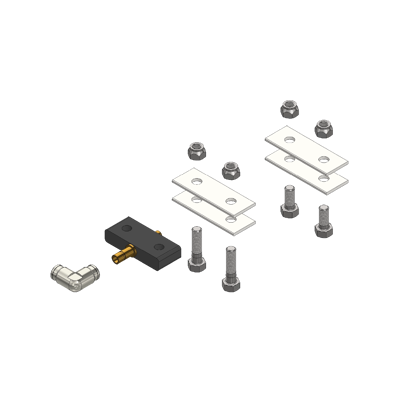

Air Bag Clamp Kit
|
2.5” Hydraroll Air Bag Clamp Kit with 5/16" Elbow |
762004 |
|
|
|
8 |
|

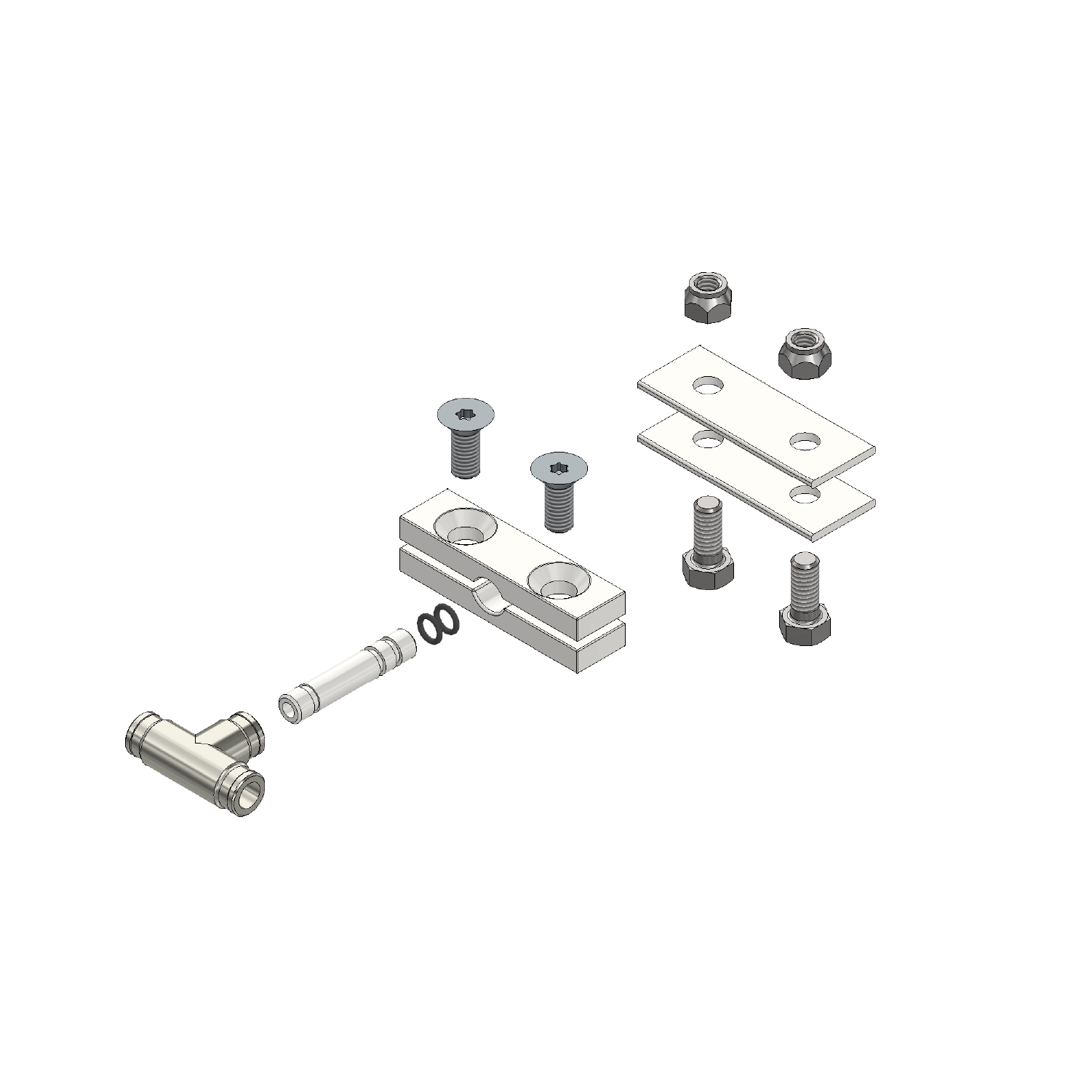

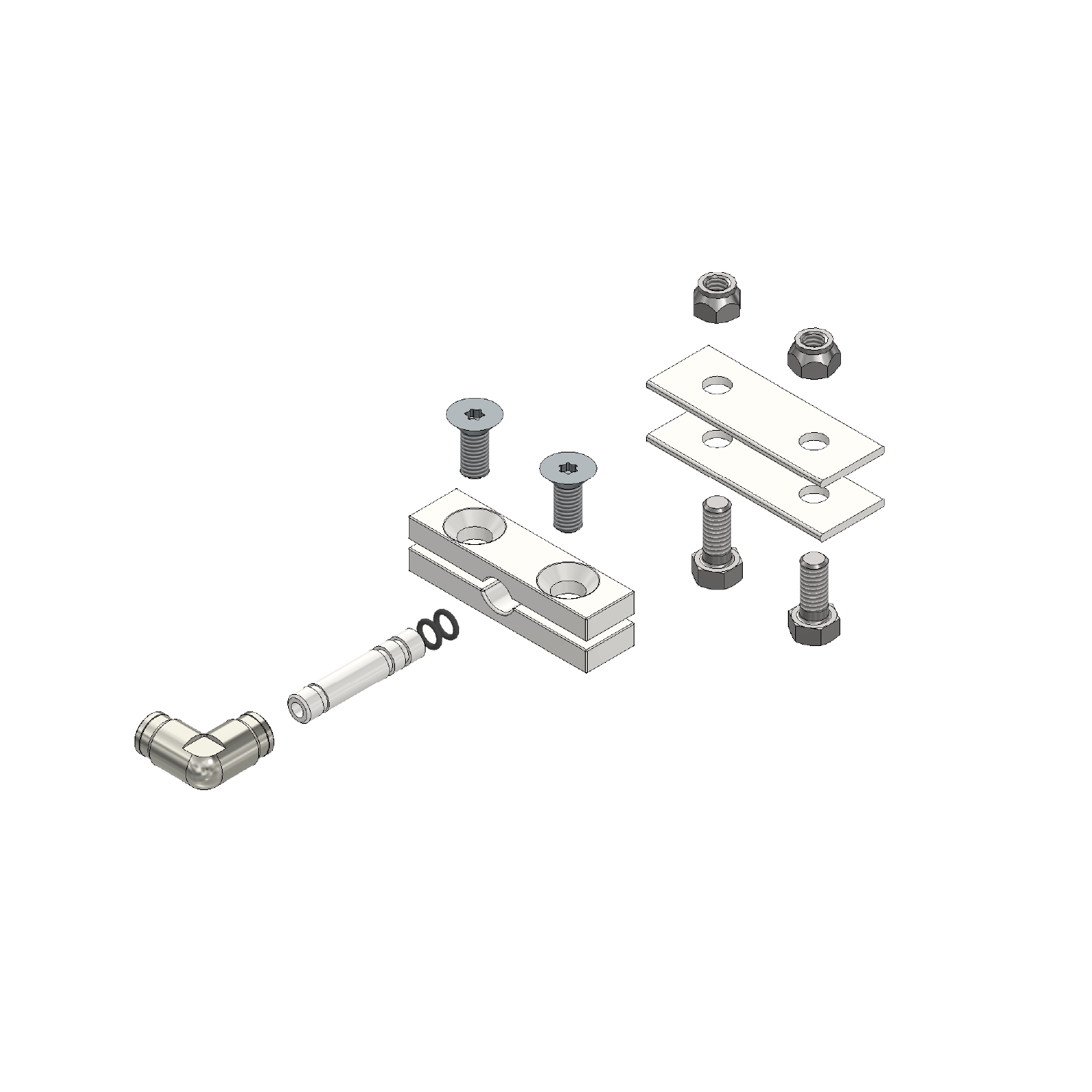

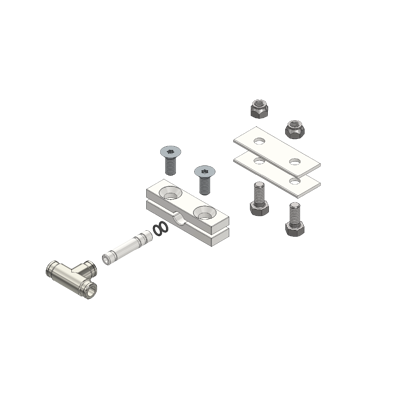

Air Bag Clamp Kit
|
2.5” AHS Air Bag Clamp Kit with 5/16” Tee |
762013 |
|
|
|
9 |
|

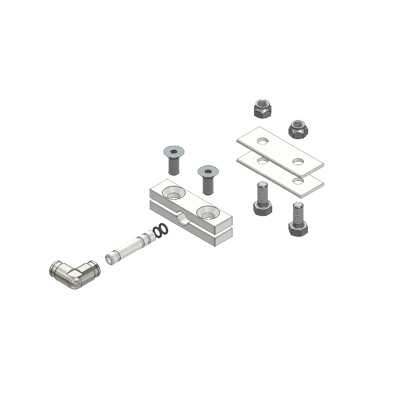

Air Bag Clamp Kit
|
2.5” AHS Air Bag Clamp Kit with 5/16” Elbow |
762014 |
|
|
|
10 |
|

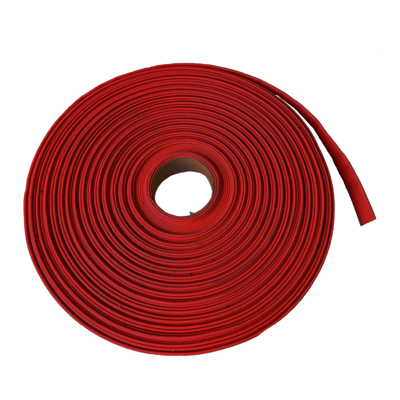

Air Bag
|
Air Bag; 2.5" Flat; Red;
Roll Form; (300 Ft Roll);
For In-house Air Bag Assembly |
760006 |
|
|
|
11 |
|
Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 13’ 0" Module with 5/16” Push-In Elbow;
Red |
760057 |
|
|
|
12 |
|

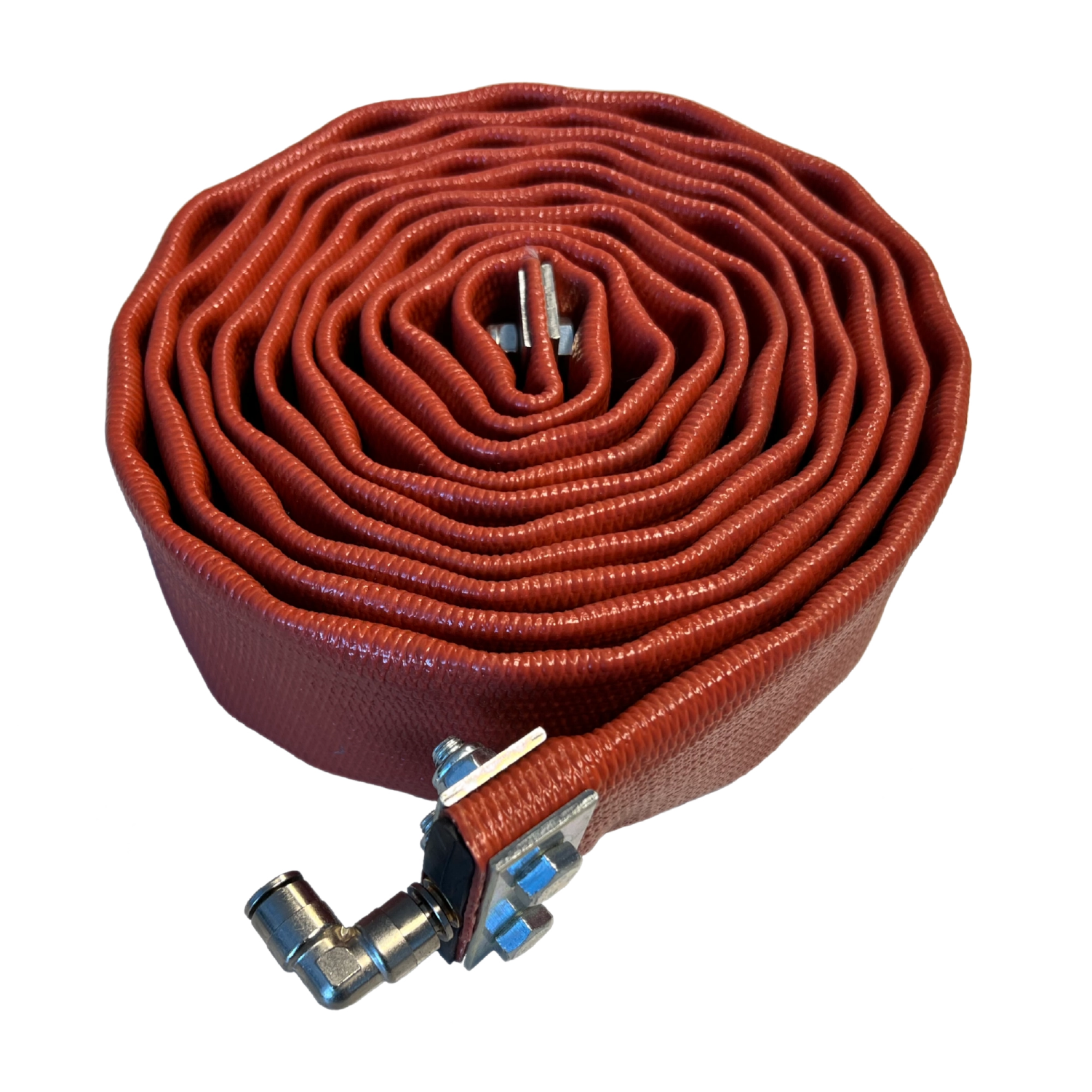

Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 11’ 6" Module with 5/16” Push-In Elbow;
Red |
760025 |
|
|
|
13 |
|
Air Bag Assembly Complete
|
Hydraroll – Air Bag Assembly Complete;
For 10’ 6" Module with 5/16” Push-In Elbow;
Red |
760060 |
|
|
|
14 |
|
Air Bag Assembly Complete
|

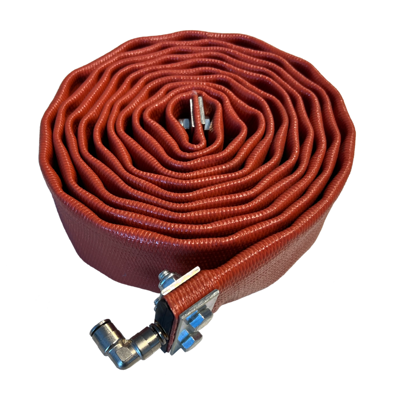

Hydraroll – Air Bag Assembly Complete;
For 2’ 3.5” Module with 5/16” Push-In Elbow;
Red |
760063 |
|
|
|
15 |
|

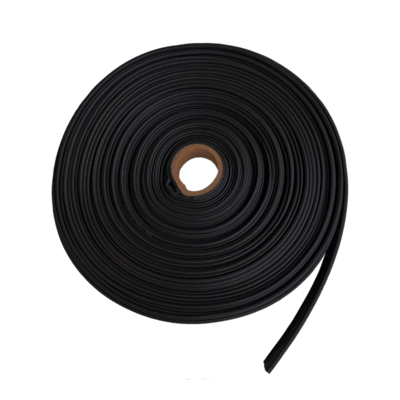

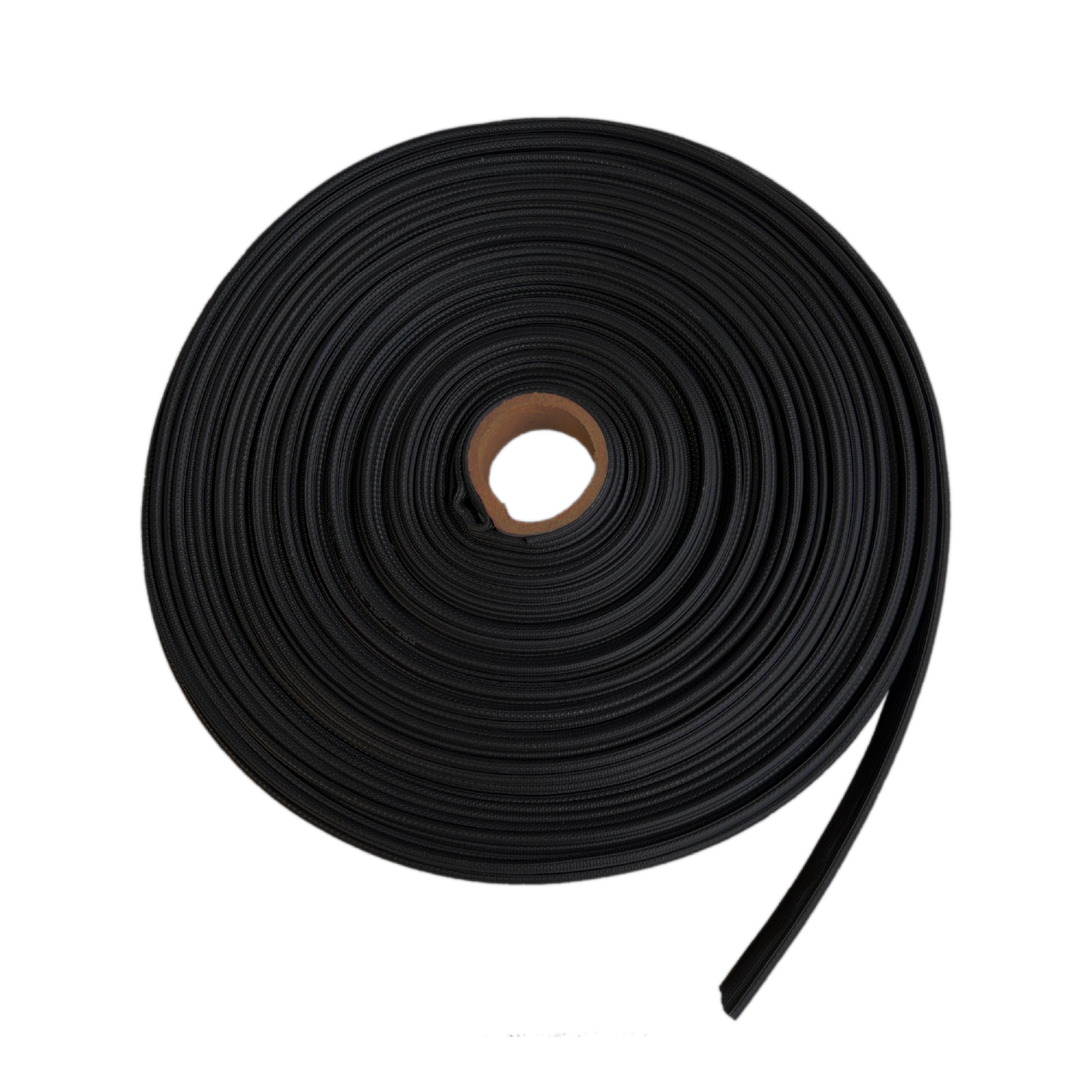

Air Bag; Heavy Duty
|
Air Bag; 2.5" Flat; Black, Heavy Duty;
Roll Form; (200 Ft Roll);
For In-house Air Bag Assembly |
760030 |
|
|
|
16 |
|
Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 13’ 0" Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760033 |
|
|
|
17 |
|
Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 11' 6' Module with 5/16” Push-In Elbow; Black; AHS Clamp Kit |
760036 |
|
|
|
18 |
|

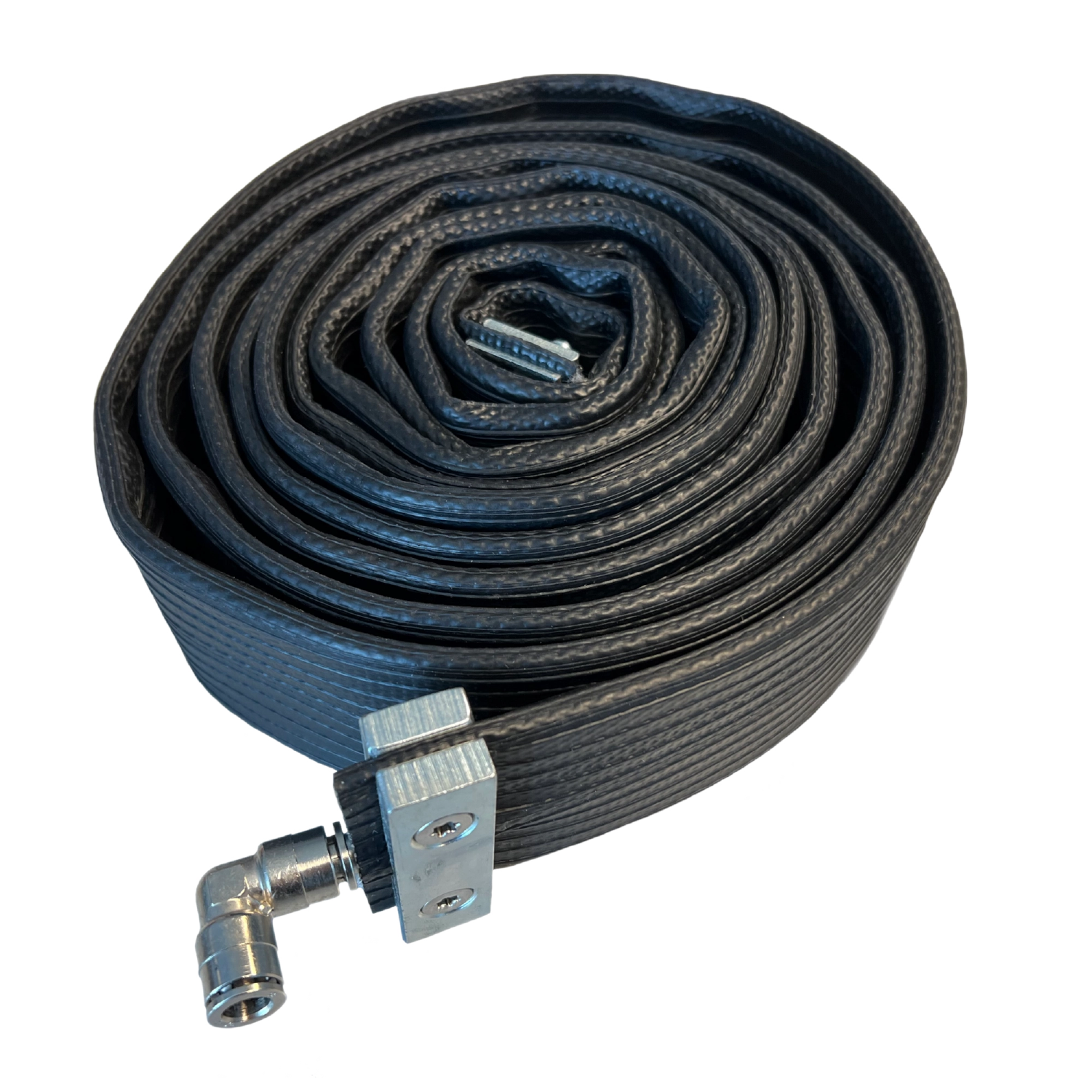

Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 10' 6' Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760035 |
|
|
|
19 |
|

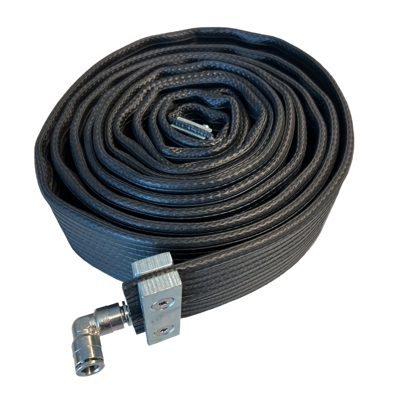

Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 4' Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760075 |
|
|
|
20 |
|
Air Bag Heavy Duty; Assembly Complete
|
Hydraroll – Heavy Duty Air Bag Assembly Complete;
For 2' 3.5" Module with 5/16” Push-In Elbow; Black;
AHS Clamp Kit |
760074 |
|
|
|
21 |
|

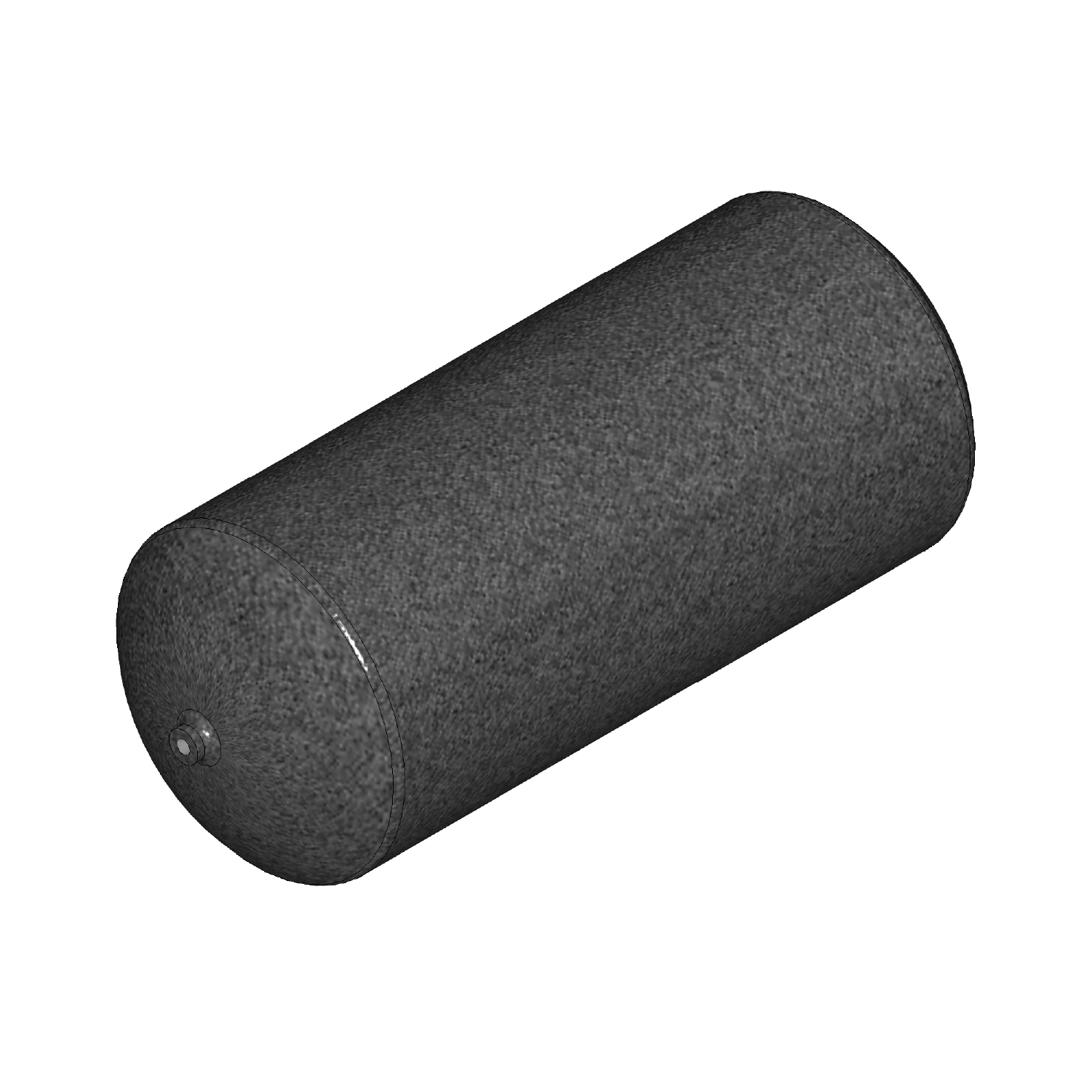

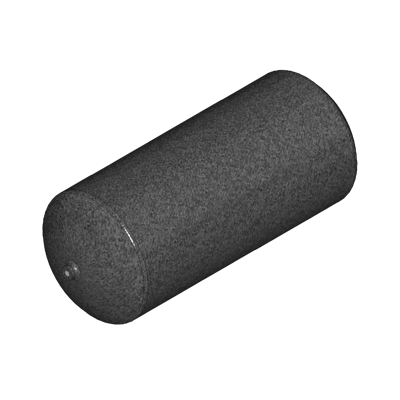

Air Tank
|
Air Tank;
With 3/8” NPT End Ports and 1/4” NPT Drain Port |
770002 |
|
|
|
22 |
|

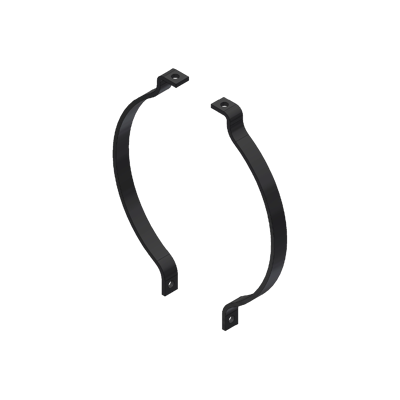

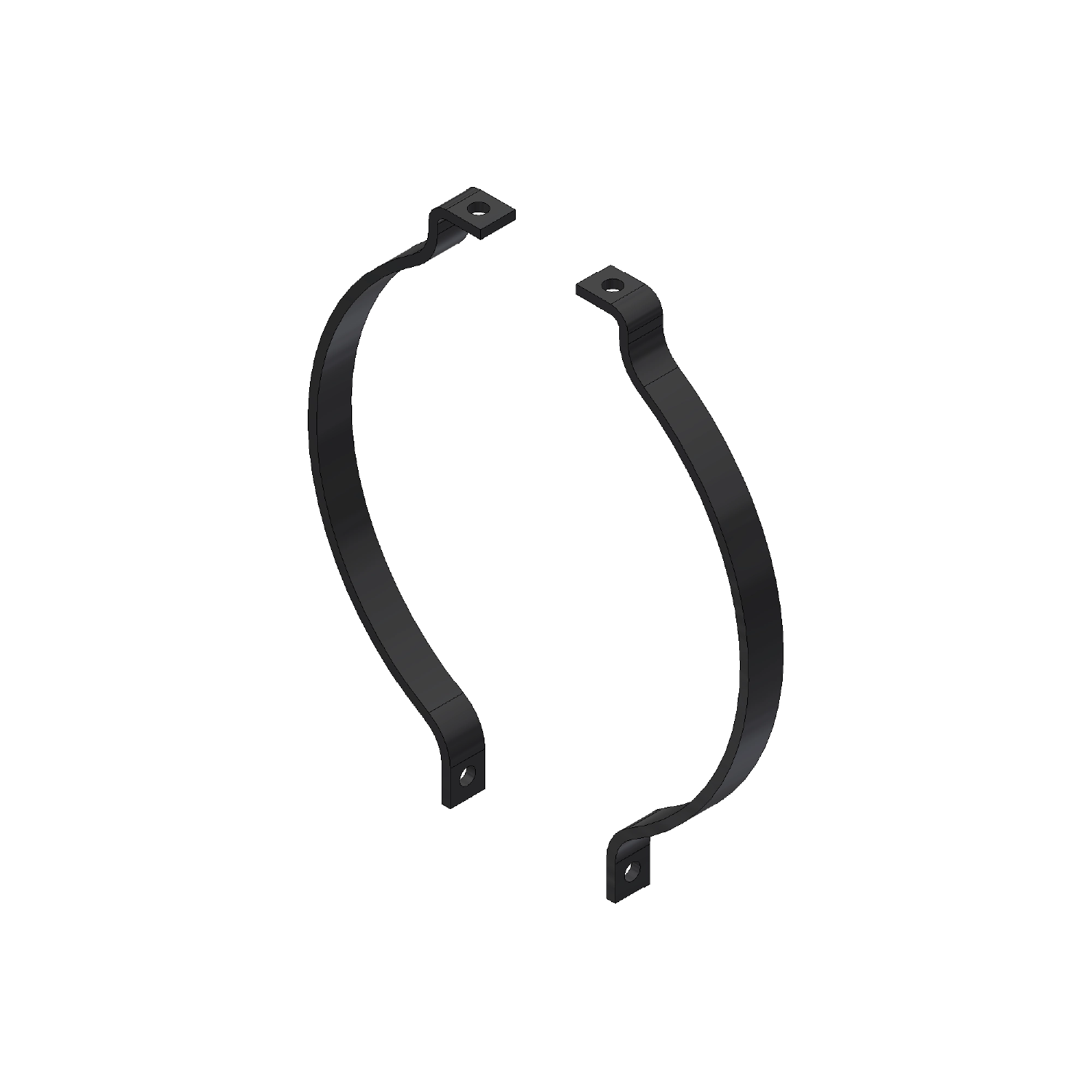

Air Tank Bracket
|
Bracket; Air Tank; Steel (1 Pc Only); 12";
(Shown 2 Pcs) |
770003 |
|
|
|
23 |
|

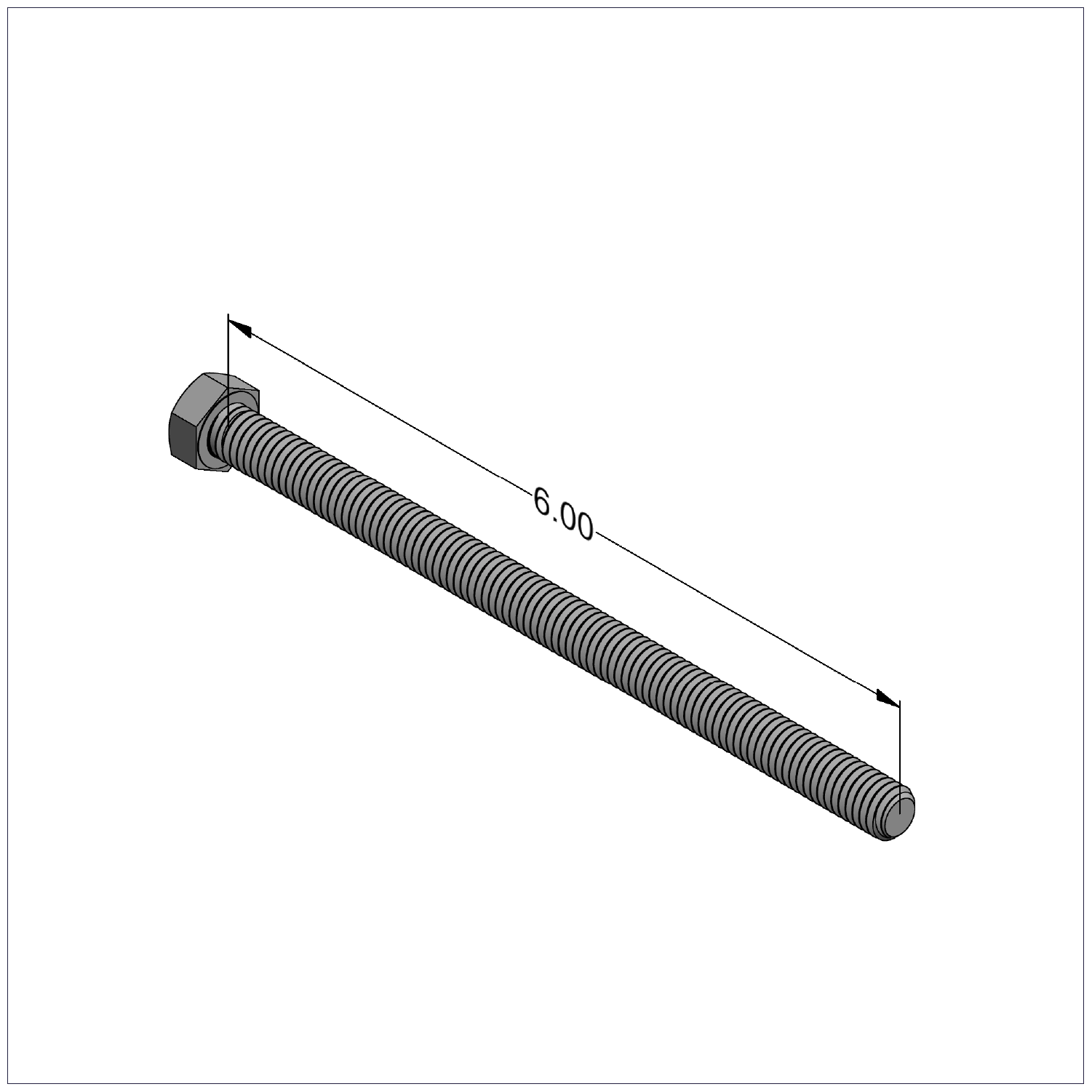

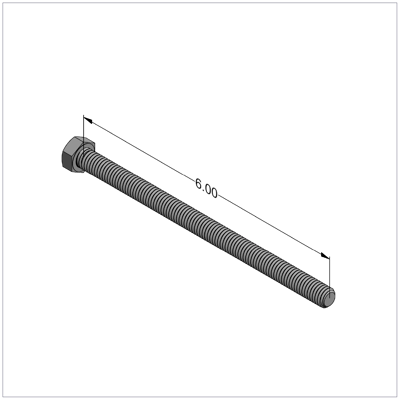

Hex Bolt
|
Bolt; Hex Hd; 3/8-16 x 6" Full Thread;
For Air Tank Brackets;
(941009 - Nut) |
770004 |
|
|
|
24 |
|

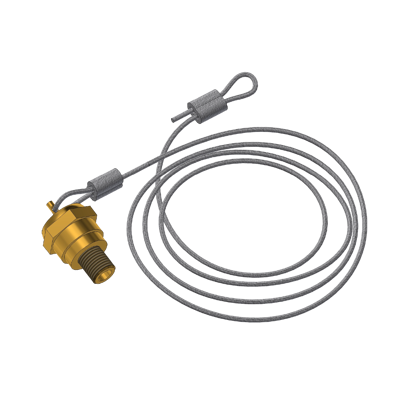

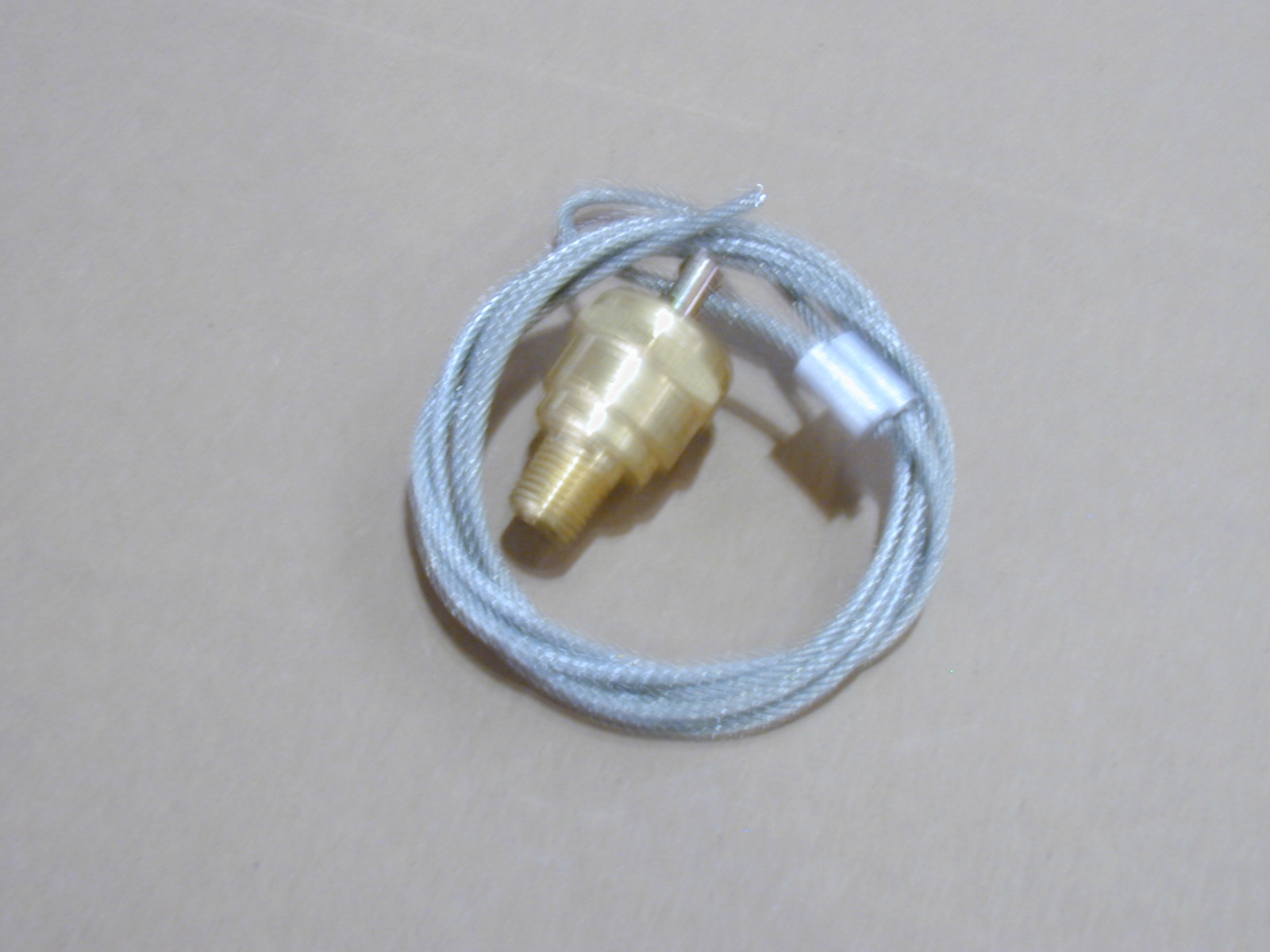

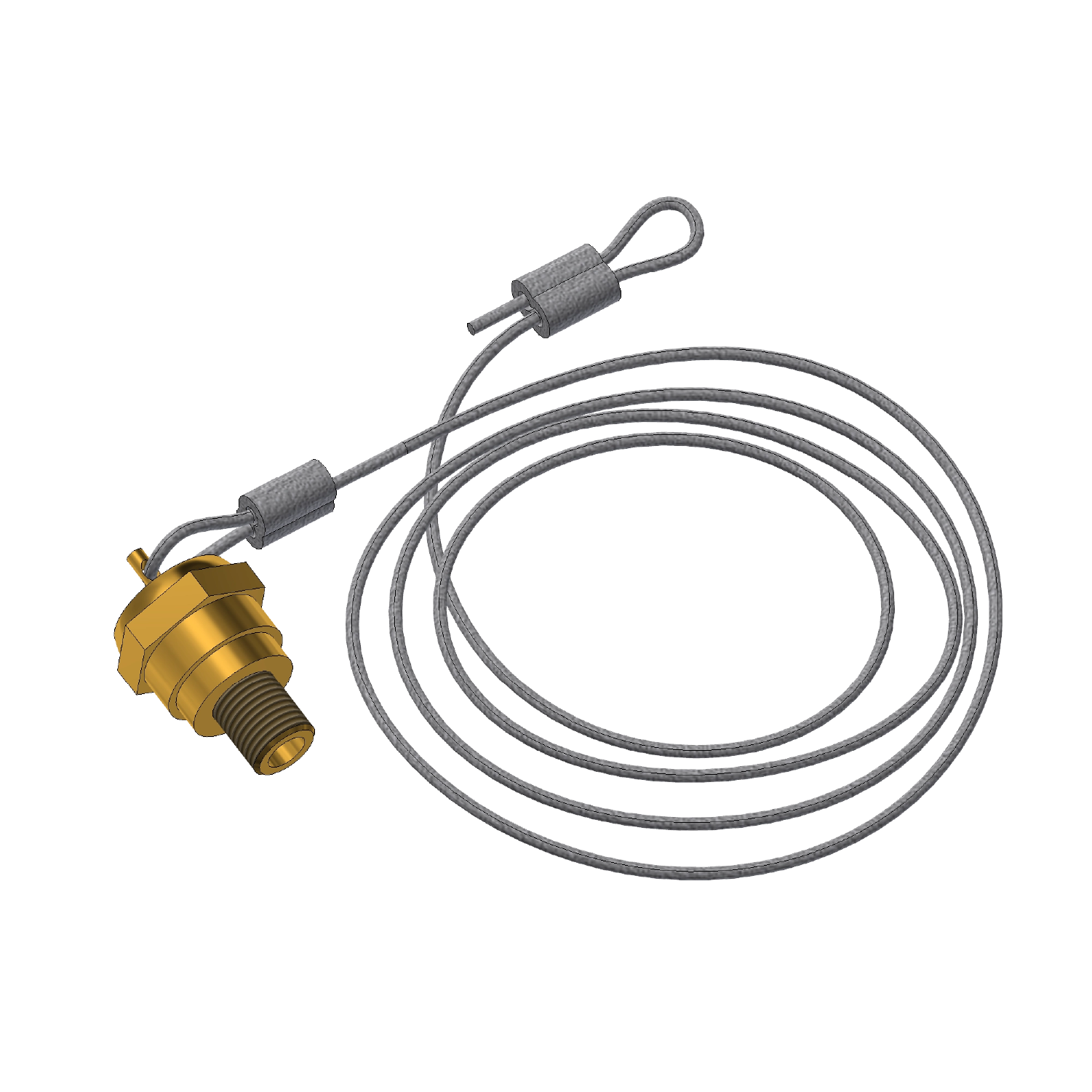

Pull Drain Valve
|
Pull Drain Valve; 1/4" NPT; 60" Long Cable |
770008 |
|
|
|
25 |
|

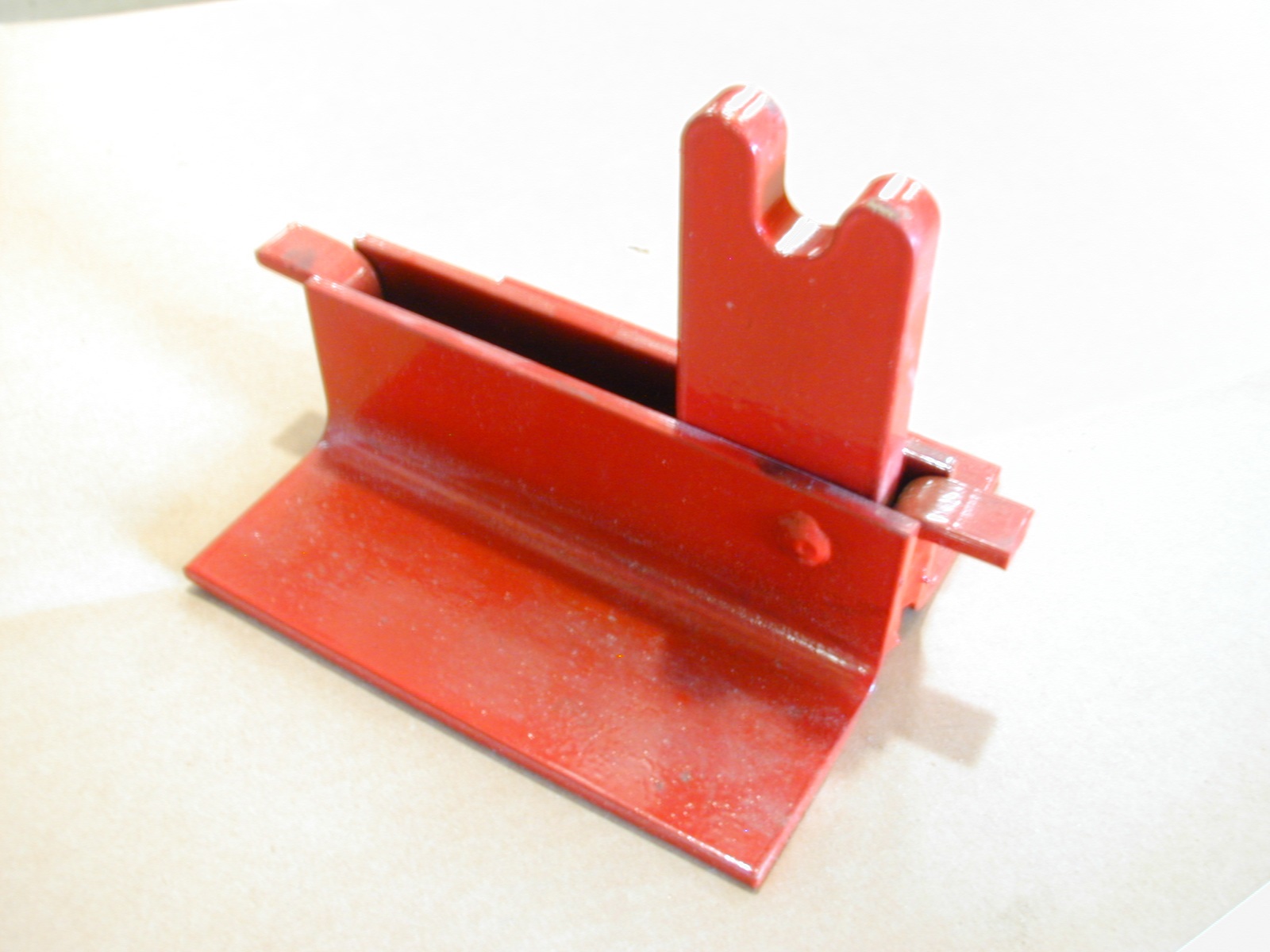

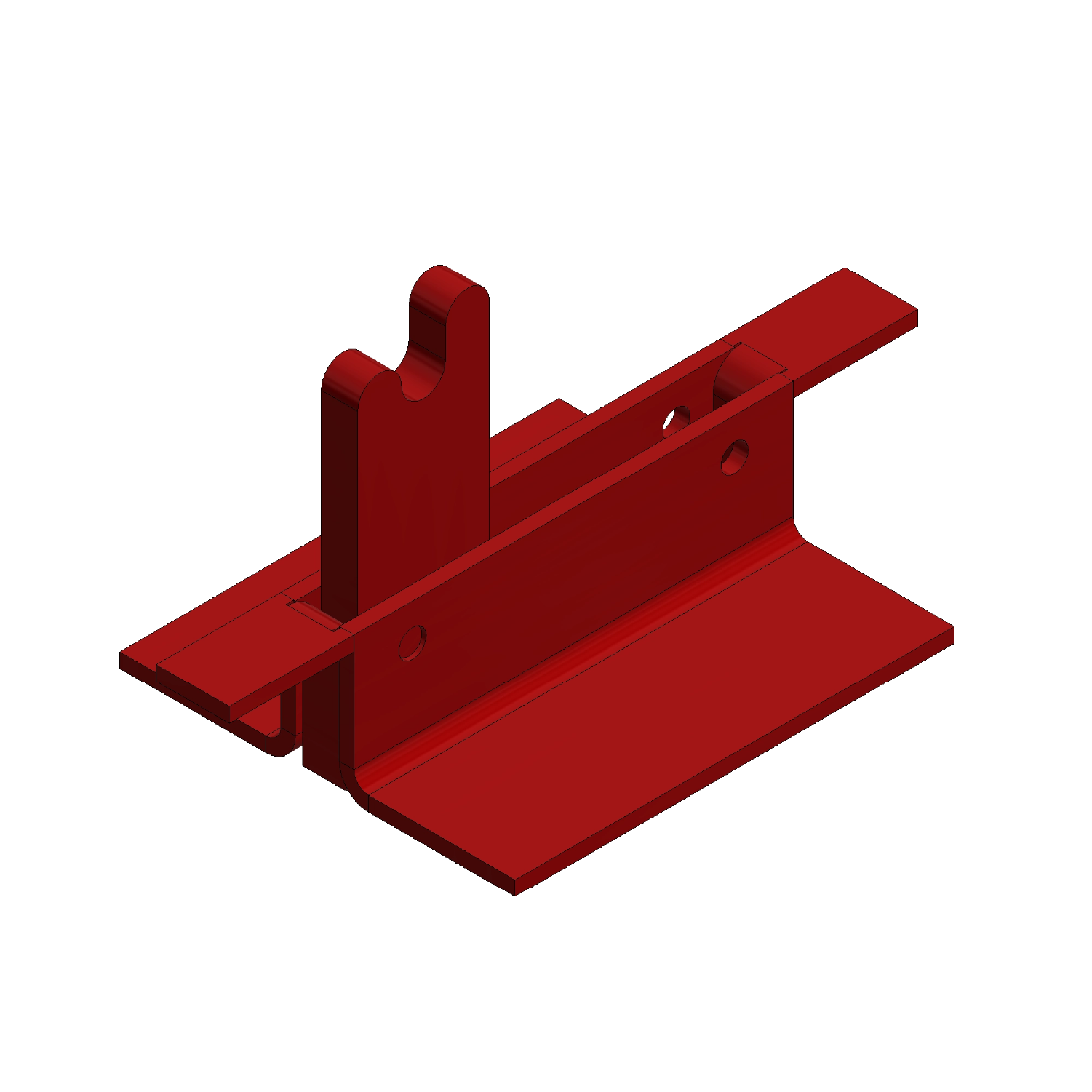

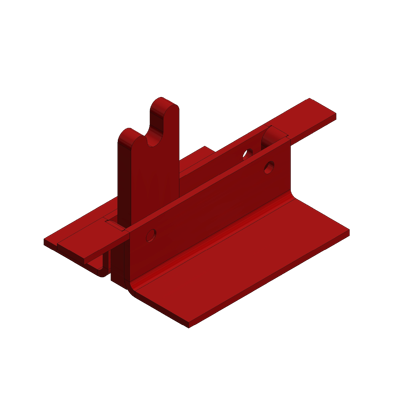

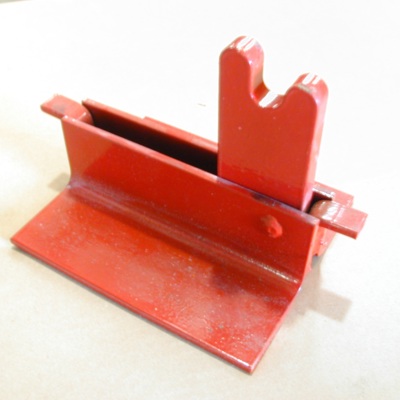

Cargo Stop Assembly with Winged Blade; Red
|
Cargo Stop Assembly;
with 5/8" Thick "Winged" Blade;
Red |
710014 |
|
|
|
26 |
|

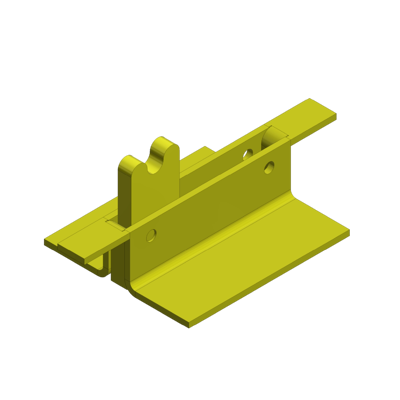

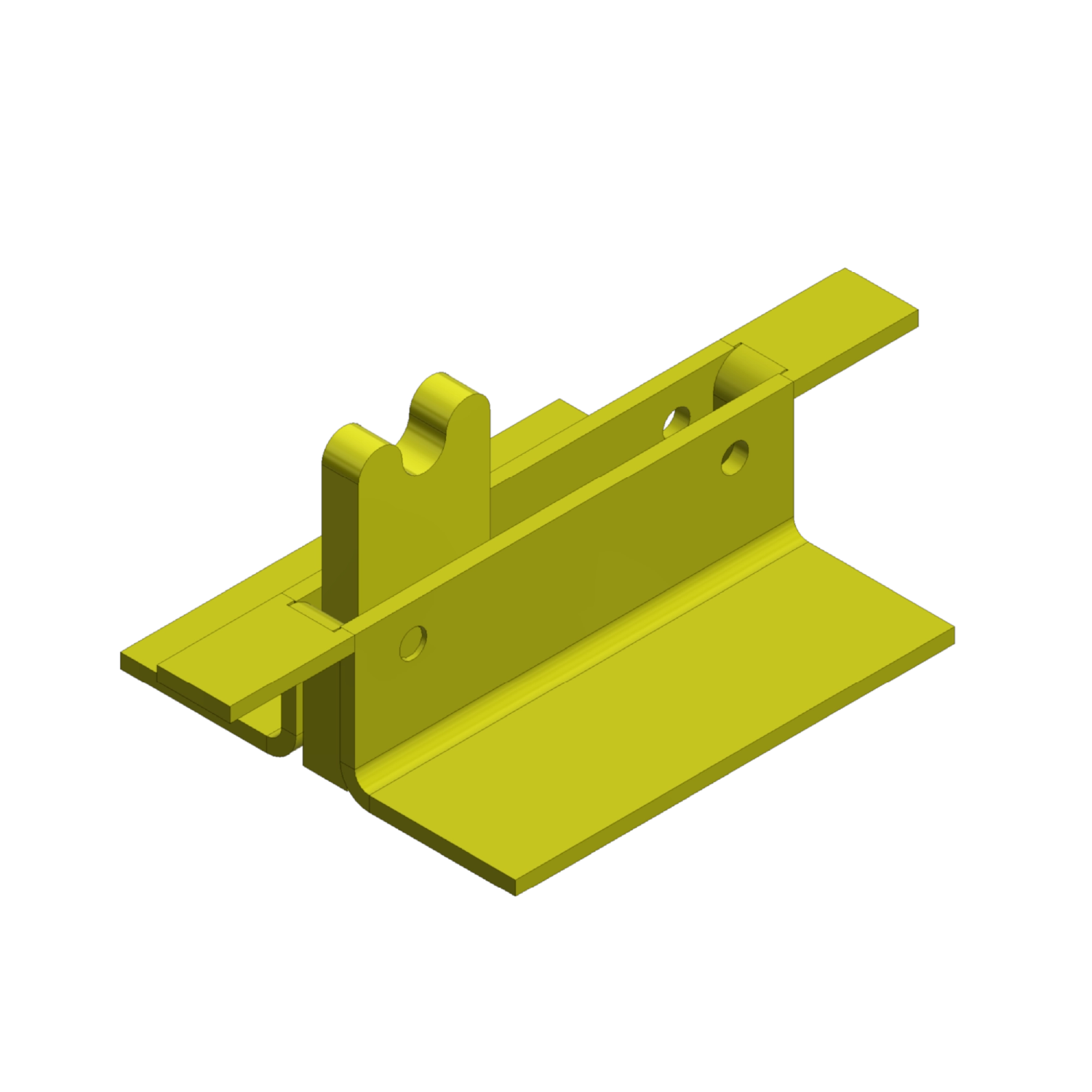

Cargo Stop Assembly with Winged Blade; Yellow
|
Cargo Stop Assembly;
with 5/8" Thick "Winged" Short Blade
Yellow |
710020 |
|
|
|
27 |
|

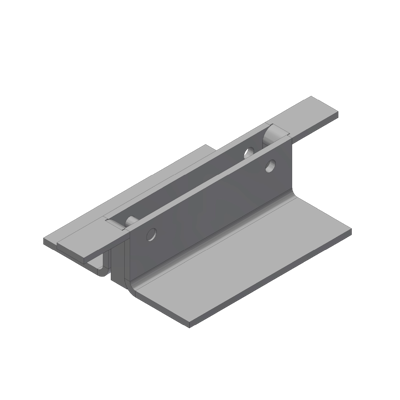

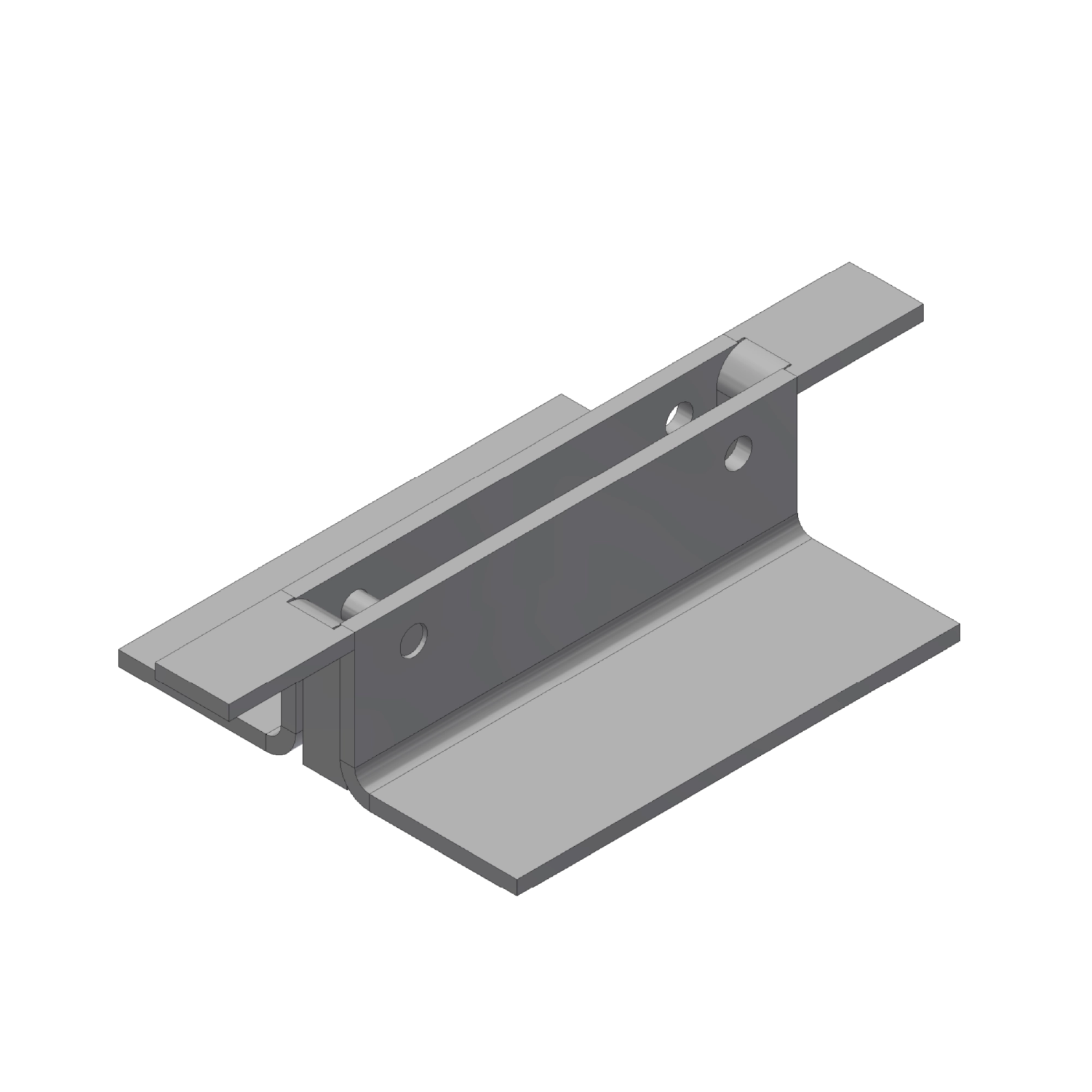

Cargo Stop Housing Only
|
Cargo Stop Housing;
No Blade Included;
Unpainted |
710014H |
|
|
|
28 |
|

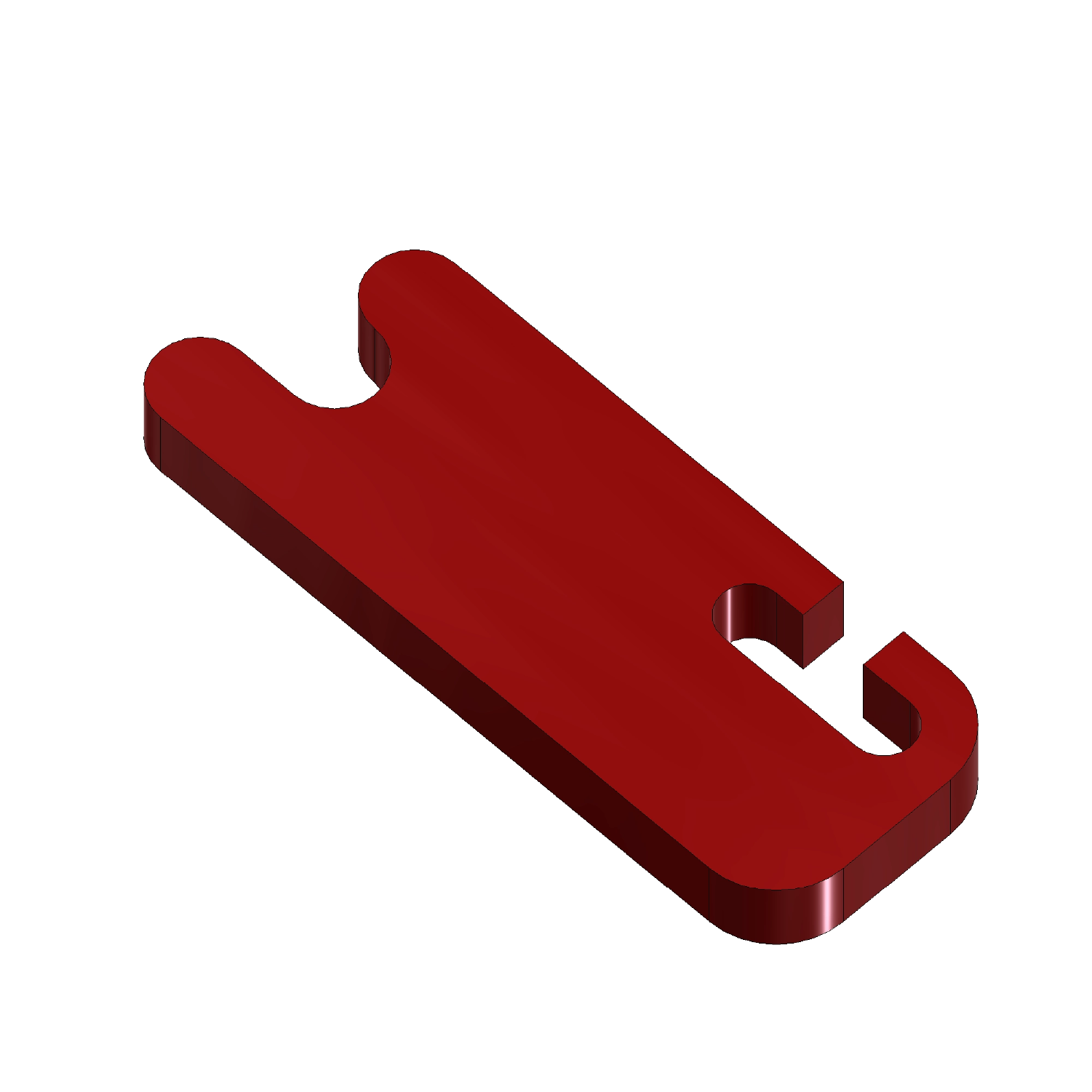

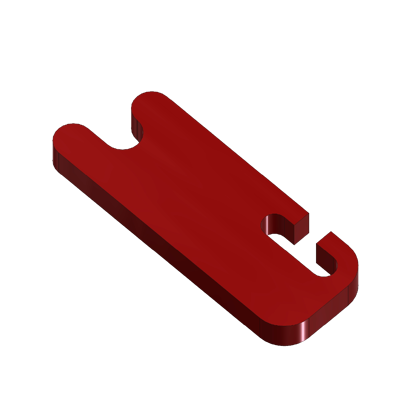

Winged Cargo Stop Replacement Blade; Red
|
5/8” Thick “Winged” Cargo Stop Replacement Red Blade |
710015 |
|
|
|
29 |
|

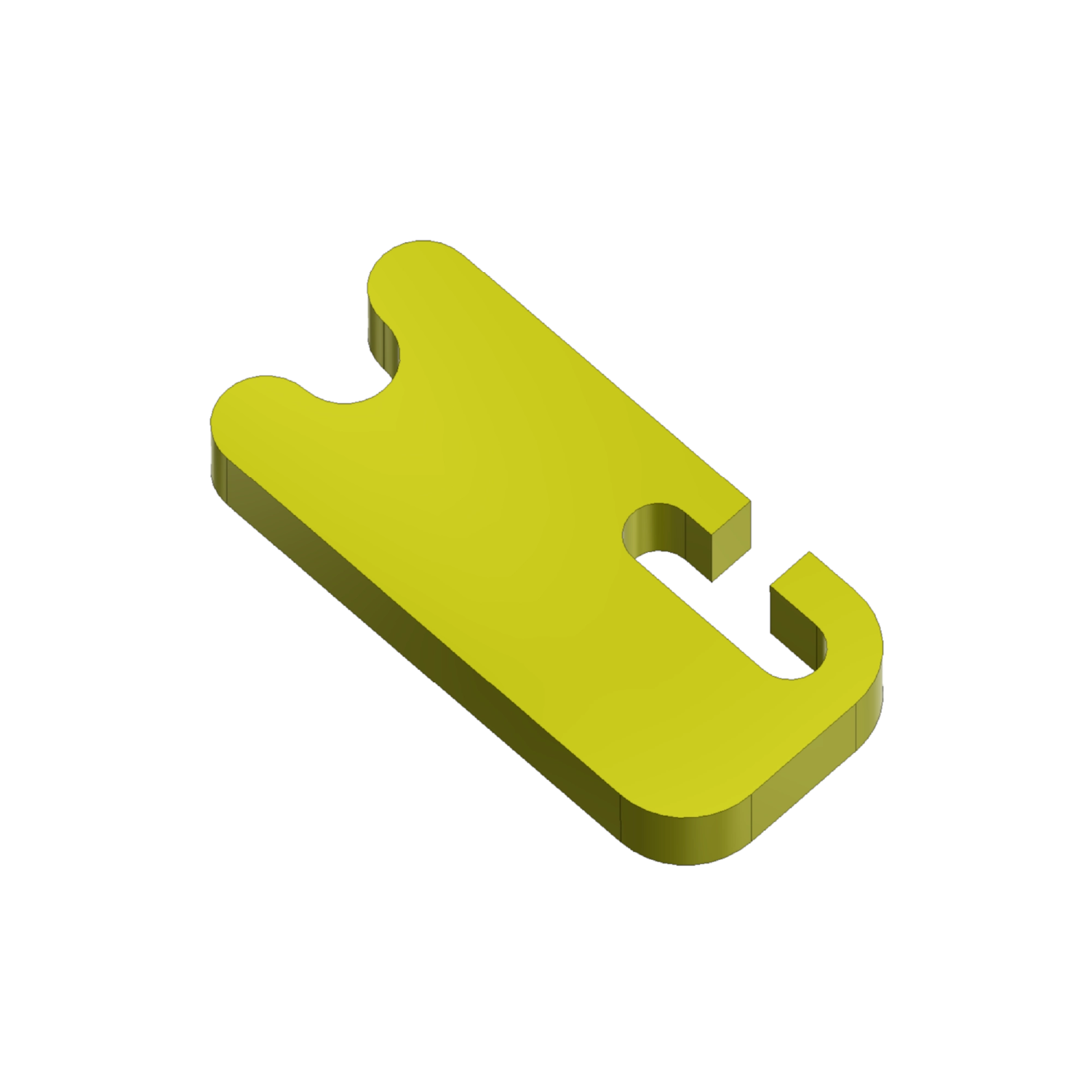

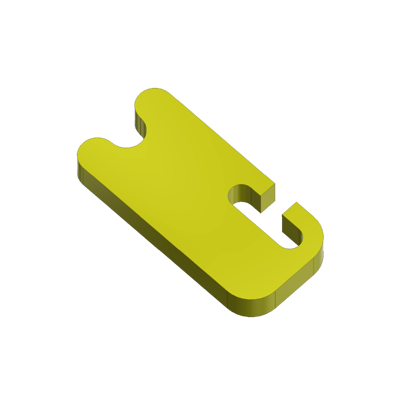

Winged Cargo Stop Replacement Blade; Yellow
|
5/8” Thick “Winged” Cargo Stop Replacement Yellow Short Blade |
710021 |
|
|
|
30 |
|

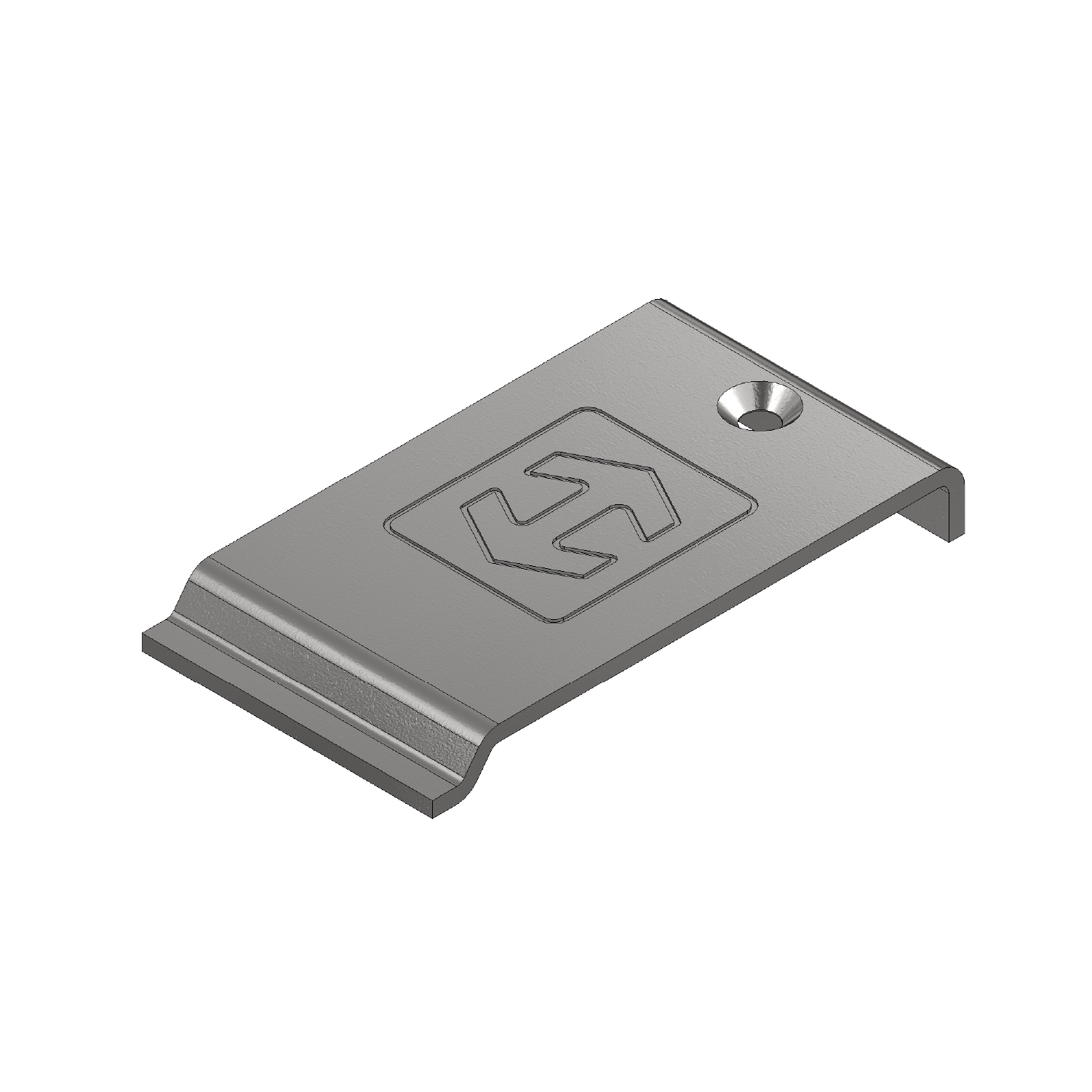

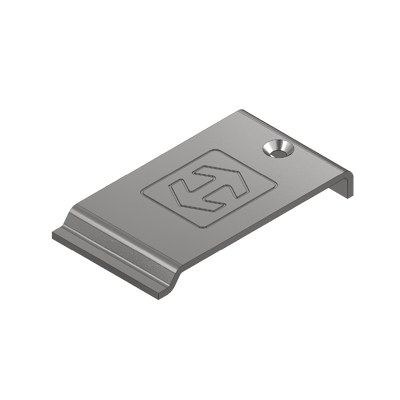

Logo Plate (Quick Release) MK4 / MK21
|
MK4 / MK21; Top Plate (Quick Release);
Logo Plate;
Normally Covers the Inlet End of the Module |
741043 |
|
|
|
31 |
|

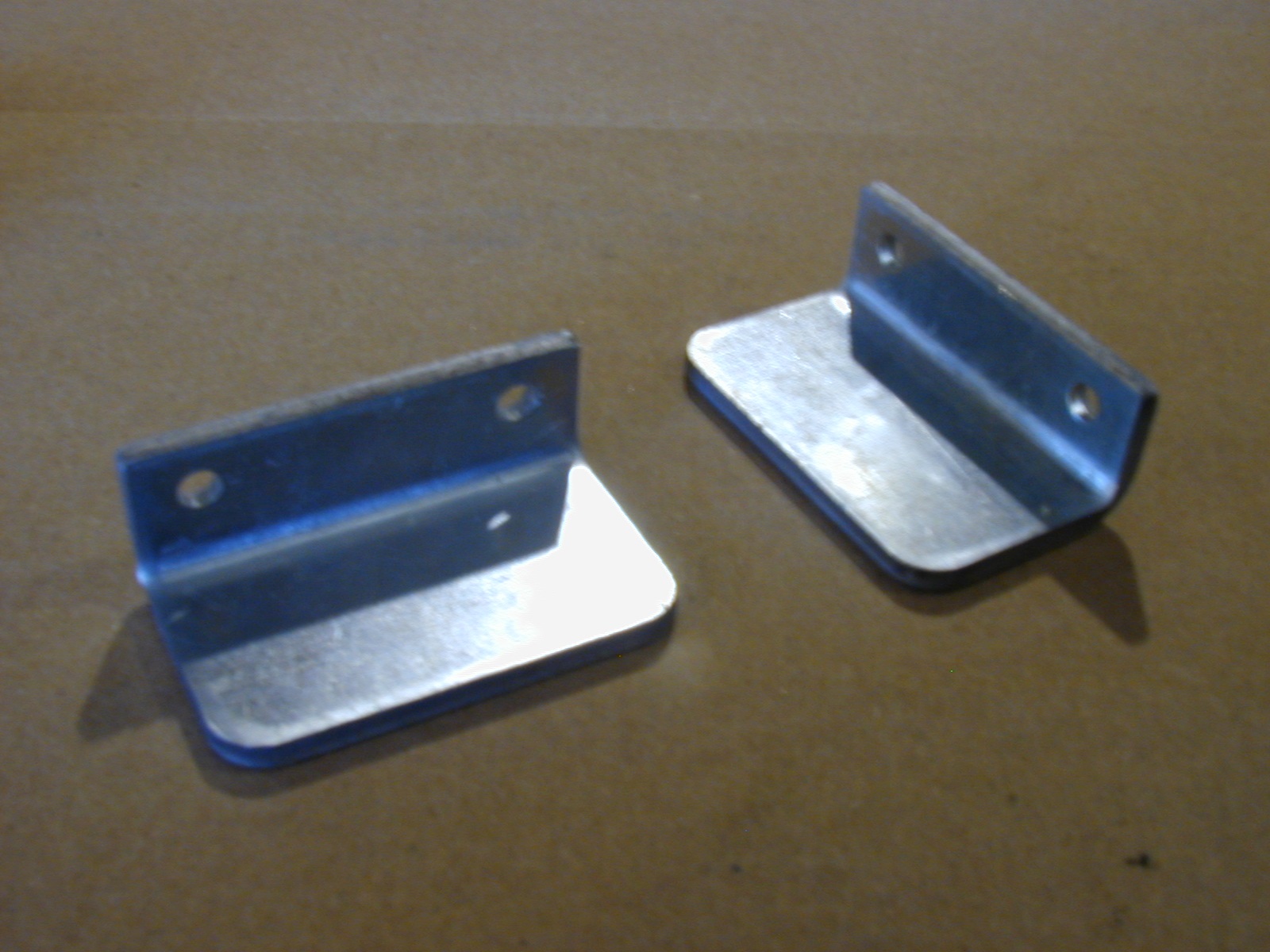

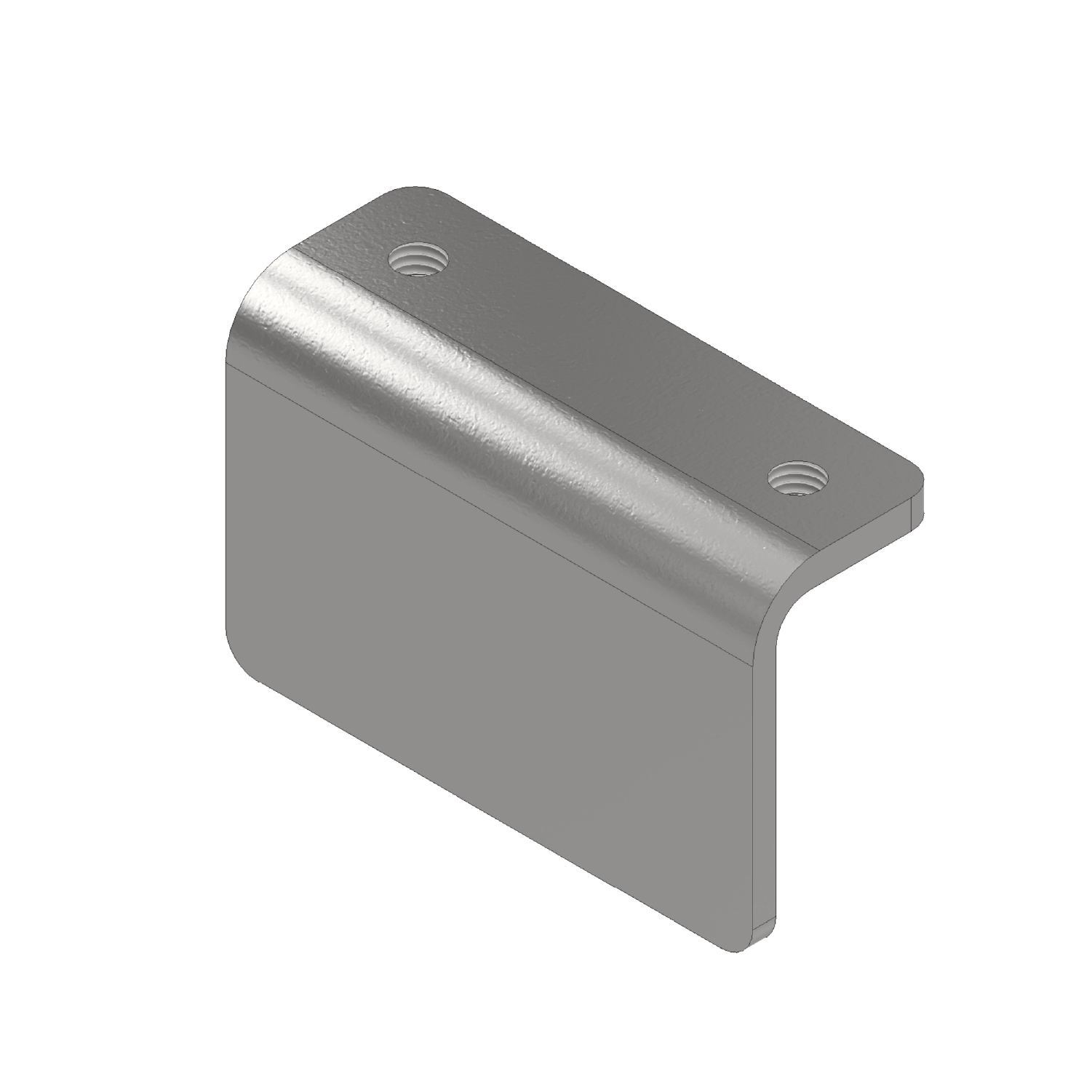

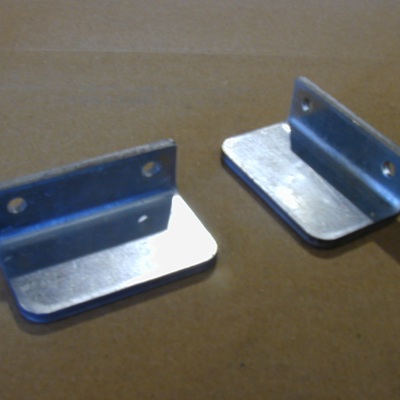

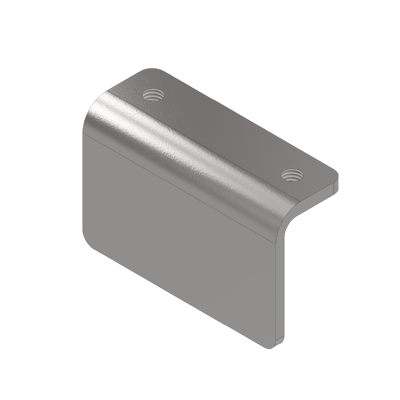

Guide Angle
|
Guide Angle; Top Plate;
(940027 - M5 Screws for Mounting) |
741038 |
|
|
|
32 |
|

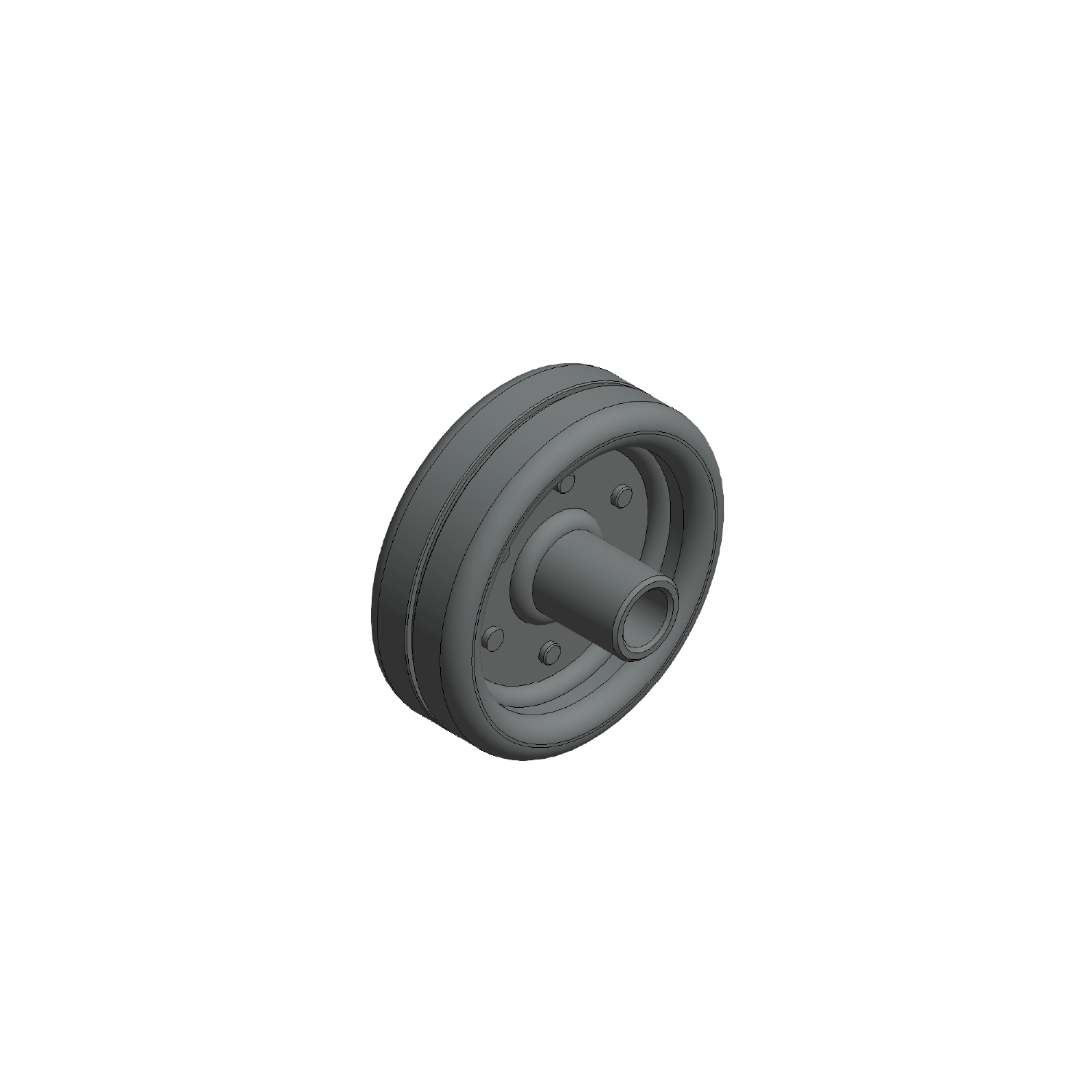

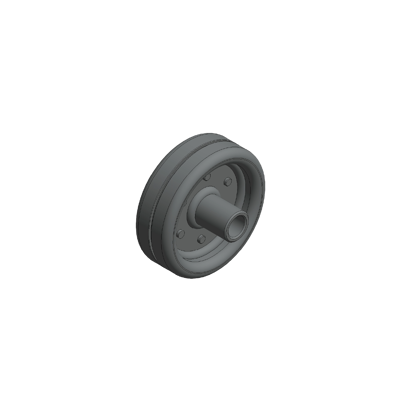

Roller; Heavy Duty MK20 / MK21
|
Roller; Heavy Duty;
MK20 / MK21; 2" Dia X 5/8" Wide;
(Twin Roller) |
803003 |
|
|
|
33 |
|

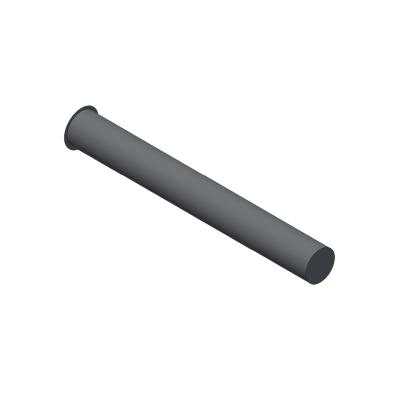

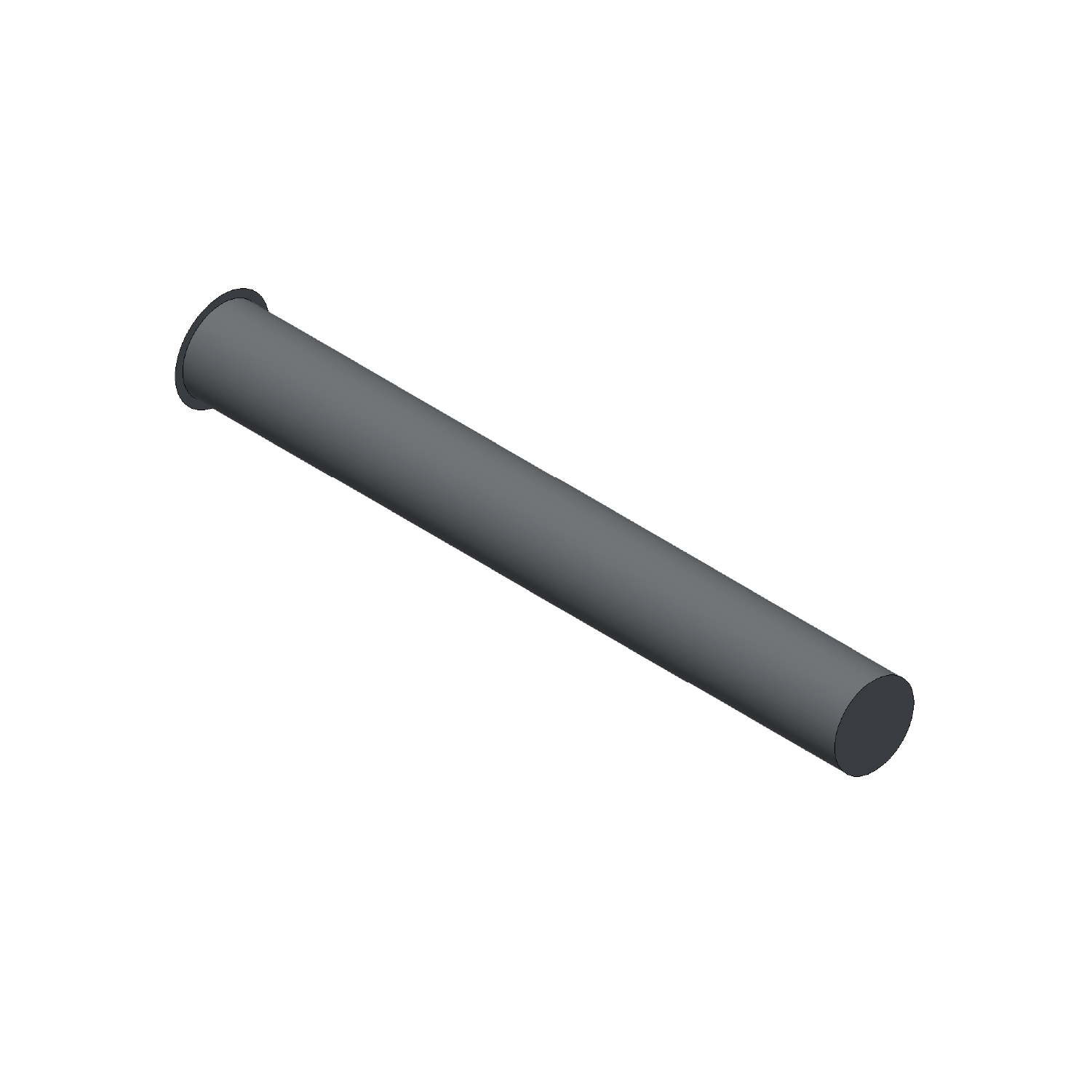

MK4 / MK21 Roller Pin (Axle)
|
MK4 / MK21 Roller Pin (Axle);
Used For Roller Part #743002 and Roller Part #803003 |
743001 |
|
|
|
34 |
|

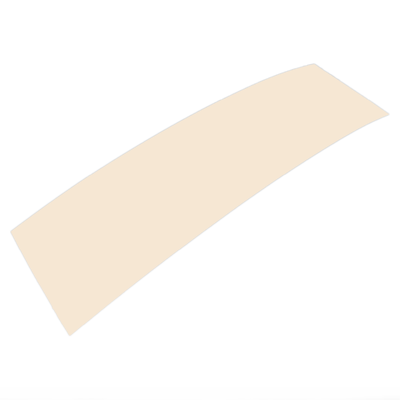

Acetal Strip
|

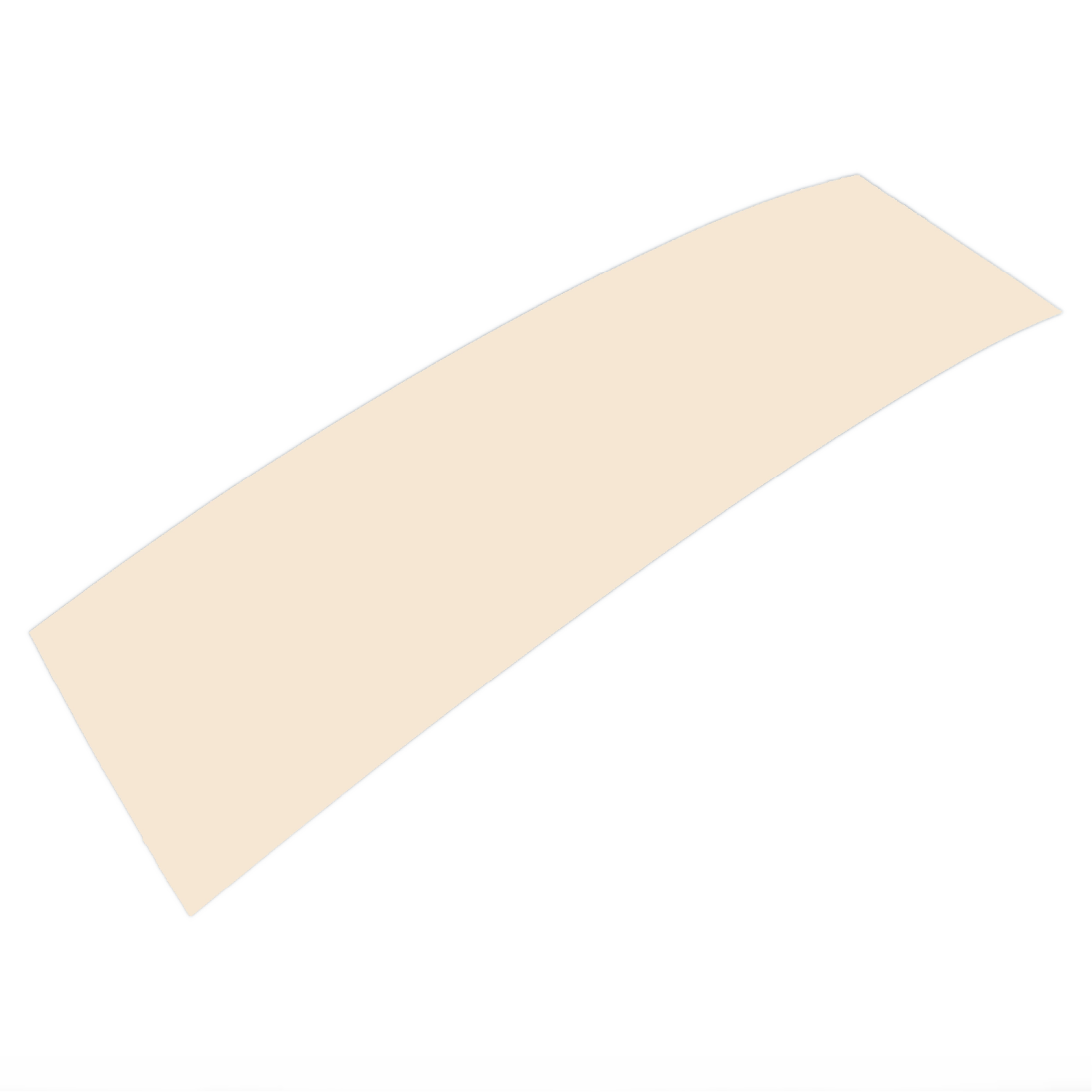

Acetal Strip, MK4 / MK21;
0.02” X 2.8125” Wide |
714007 |
|
|
|
35 |
|

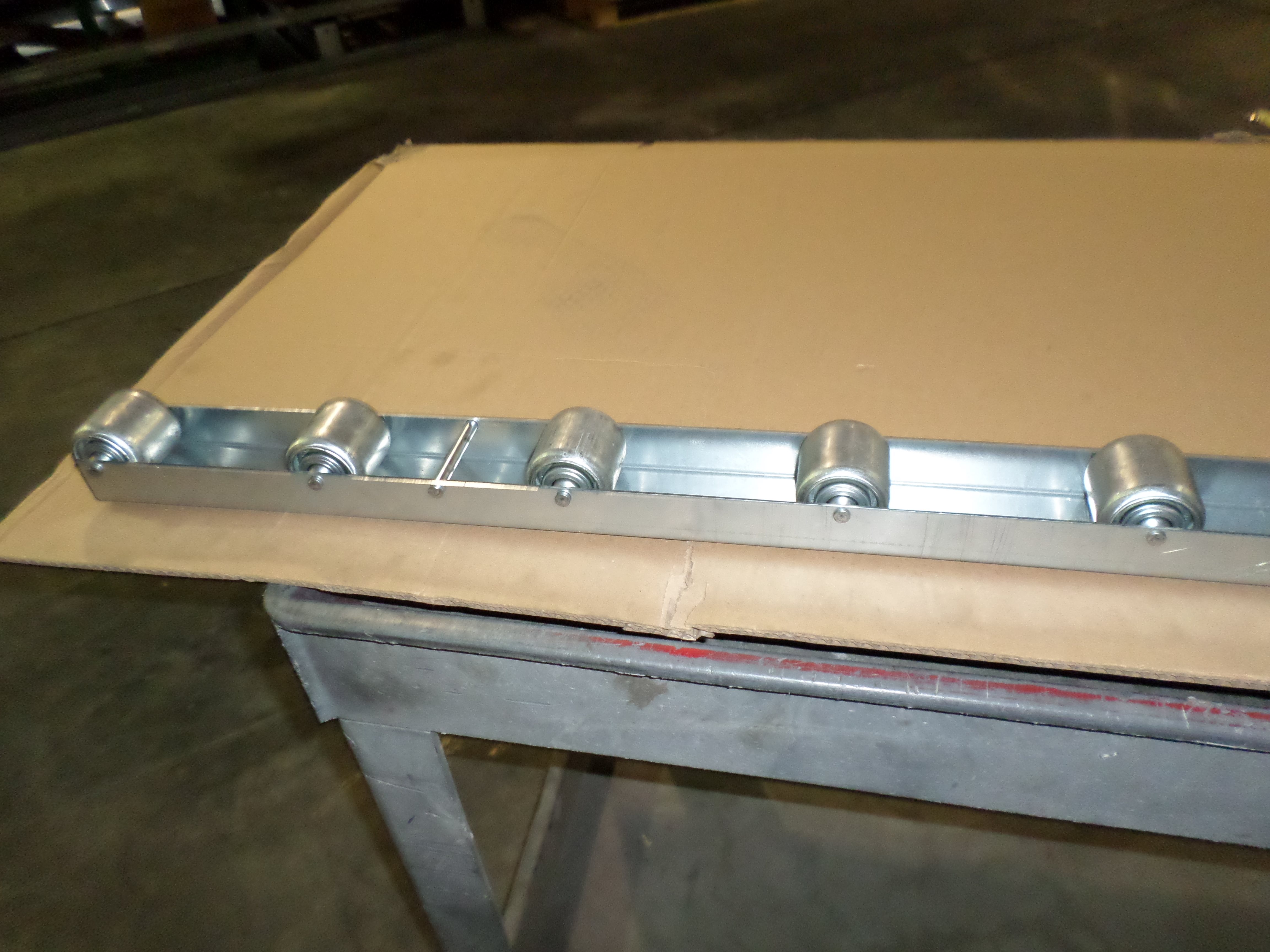

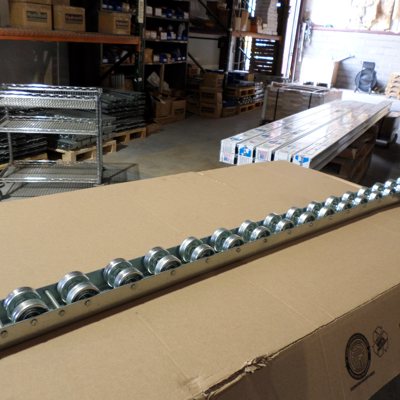

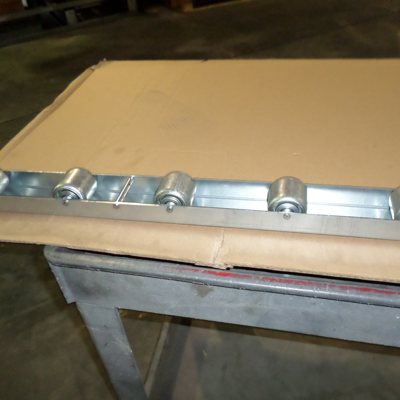

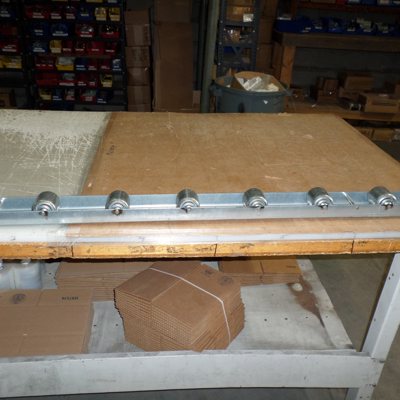

Twin Roller Cradle Assembly MK20 / MK21; Series 6
|

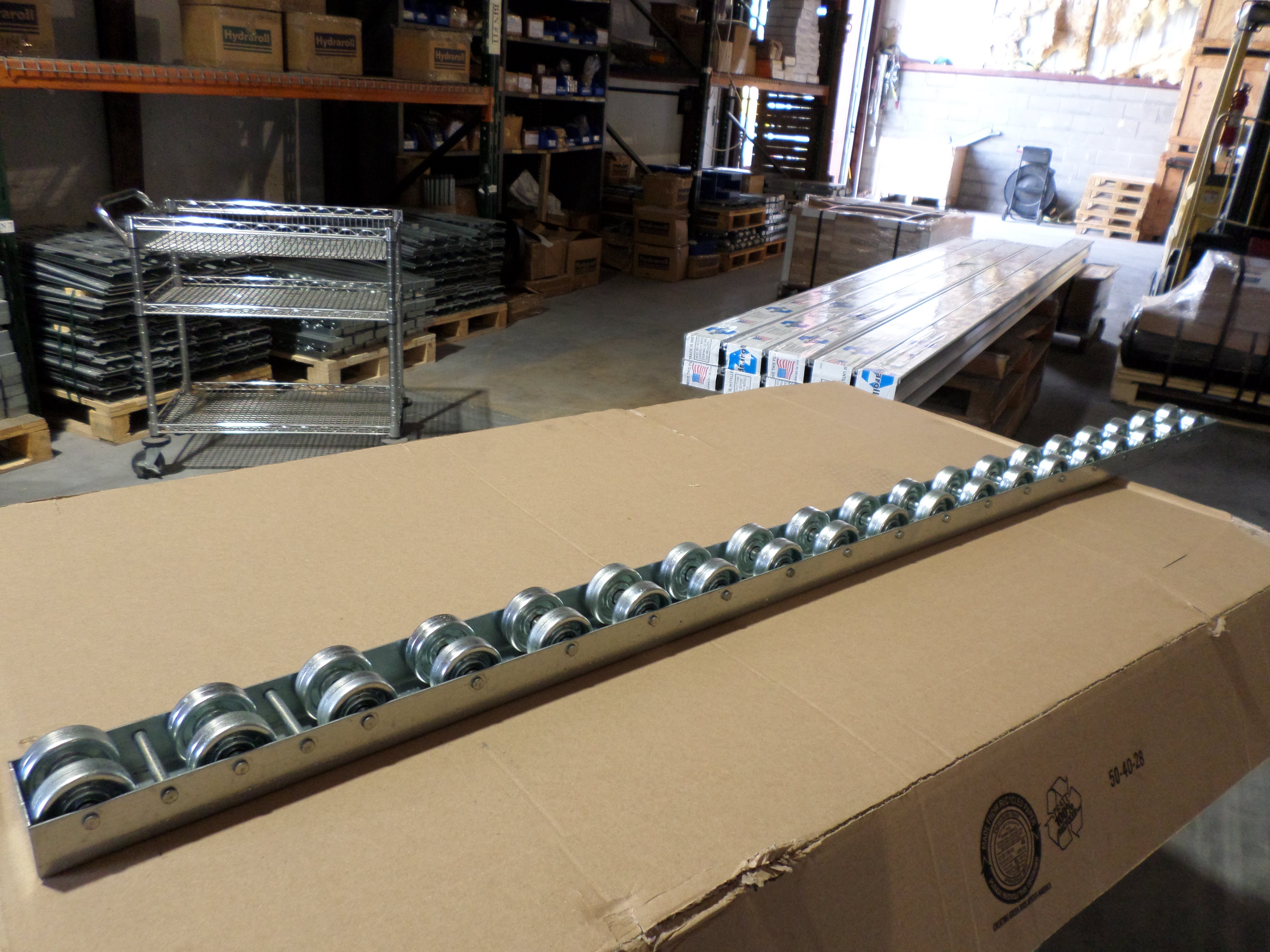

Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
3.16" Pitch; 19 Roller;
60.375" Long;
Is a mate to Top Plate Part #801016 |
802016 |
|
|
|
36 |
|

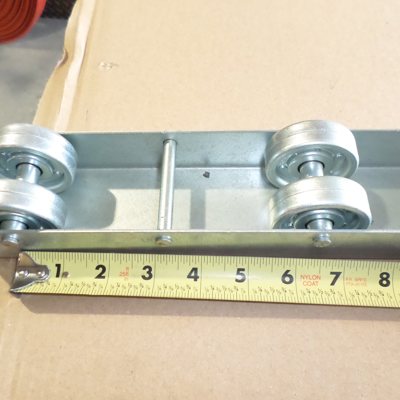

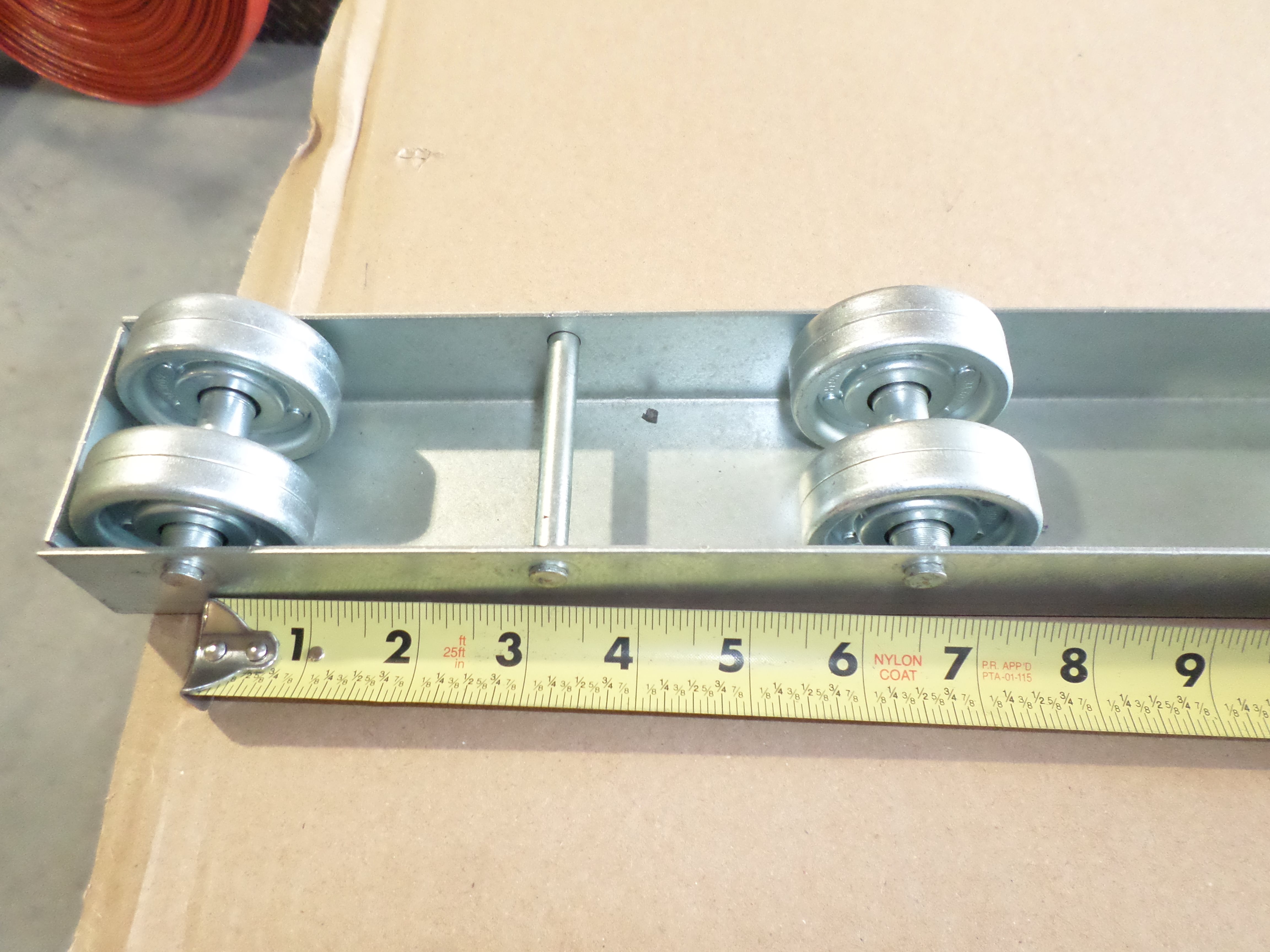

Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
6.375" Pitch; 10 Roller;
60.625" Long;
Is a mate to Top Plate Part #801020 |
802020 |
|
|
|
37 |
|

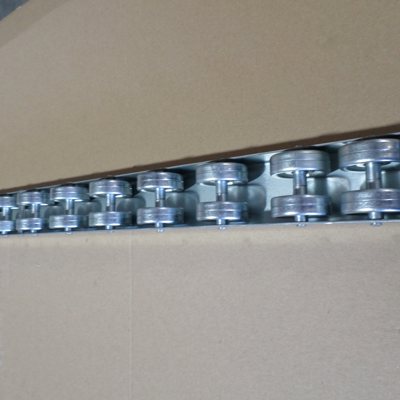

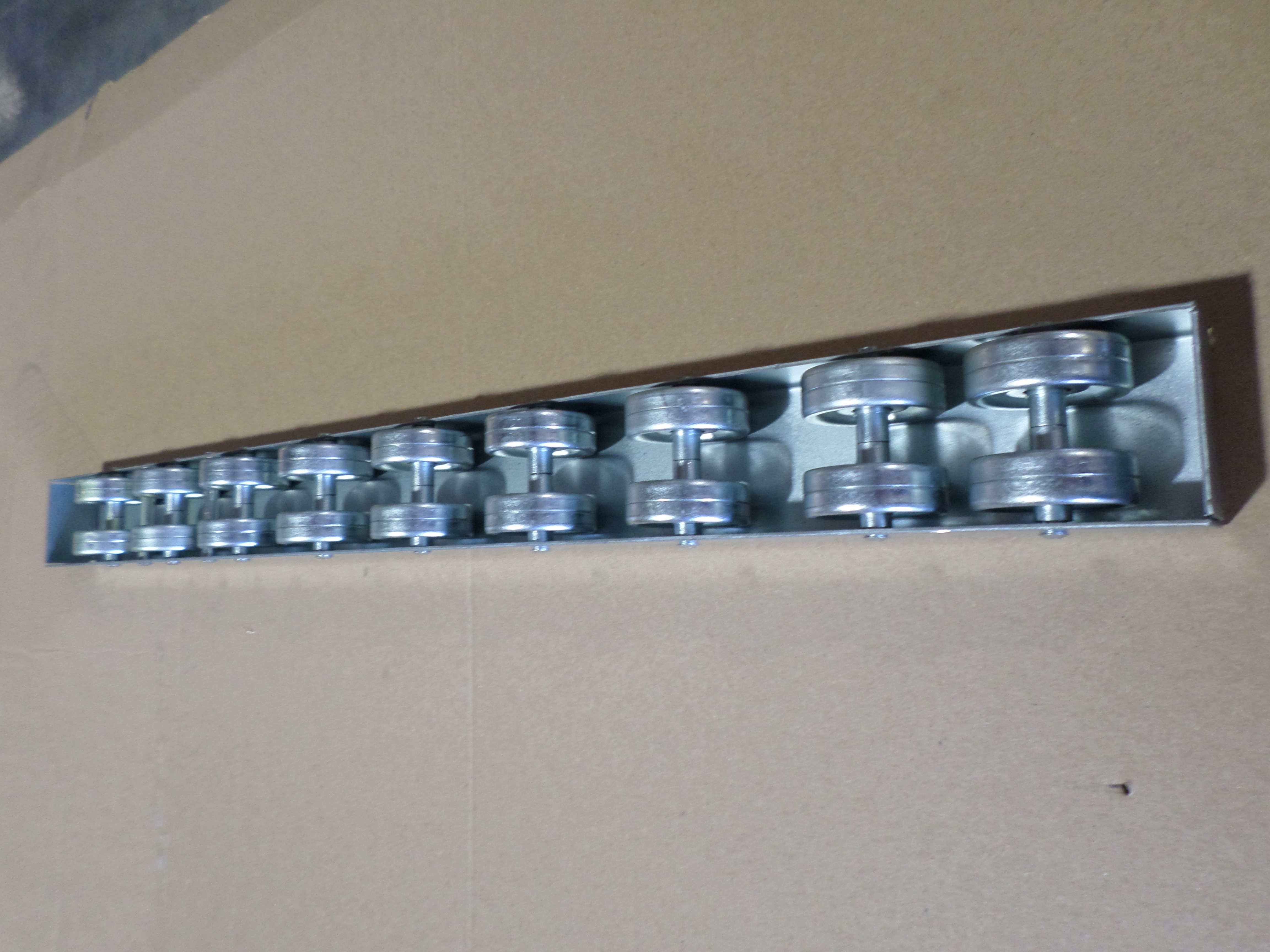

Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
3.16" Pitch; 9 Roller;
29.75" Long;
Is a mate to Top Plate Part #801021 |
802021 |
|
|
|
38 |
|
Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
3.16" Pitch; 7 Roller;
22.5" Long;
Is a mate to Top Plate Part #801027 |
802027 |
|
|
|
39 |
|

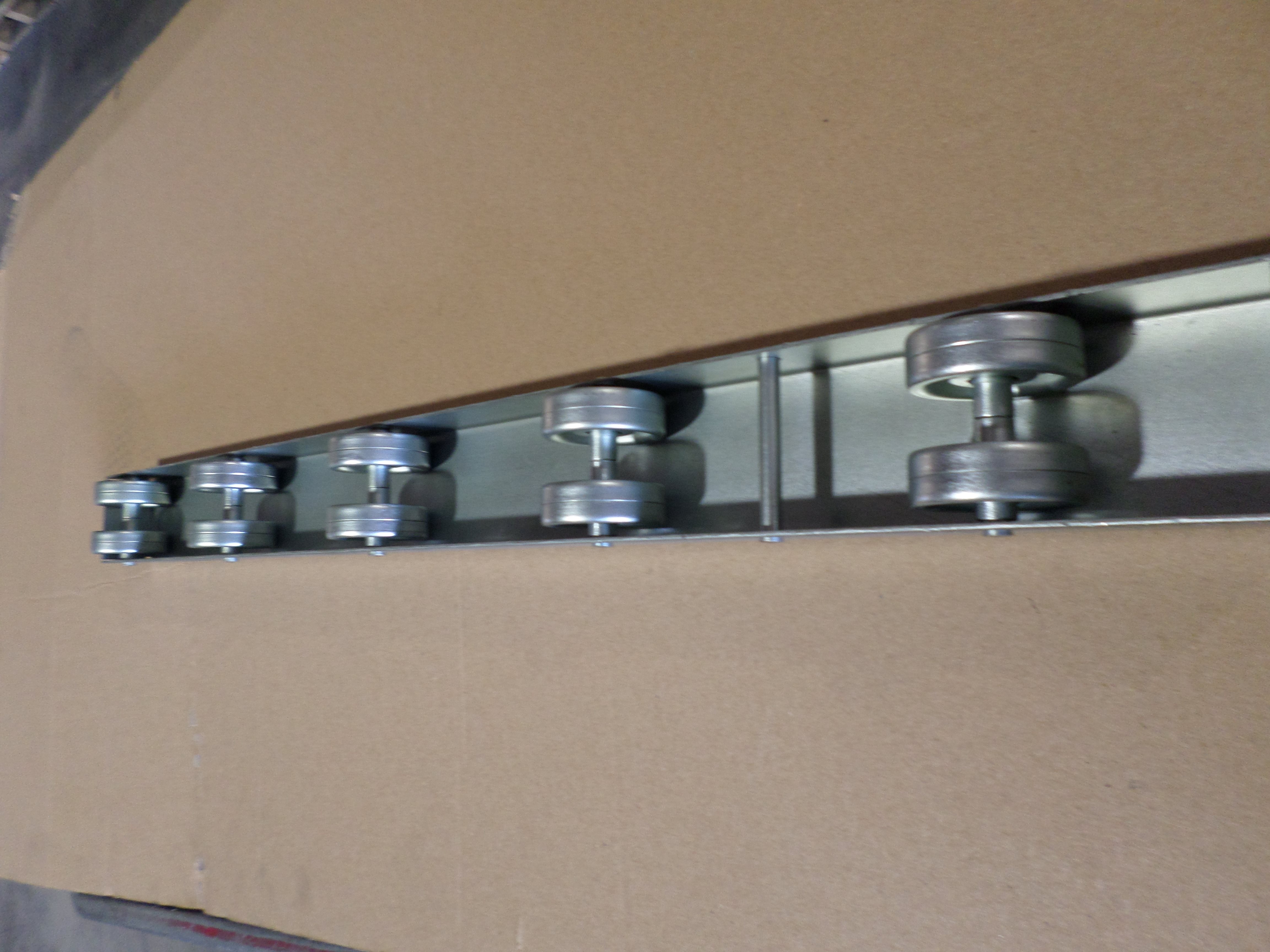

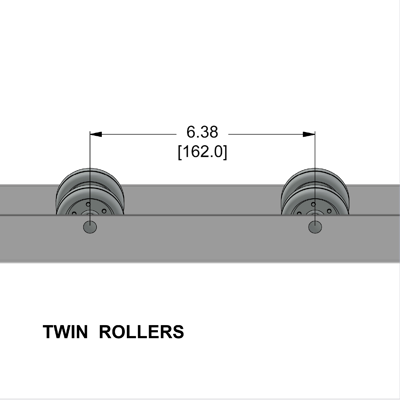

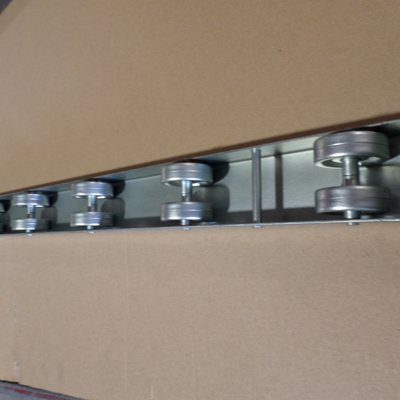

Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
6.375" Pitch; 5 Roller;
29.75" Long;
Is a mate to Top Plate Part #801022 |
802022 |
|
|
|
40 |
|
Twin Roller Cradle Assembly MK20 / MK21; Series 6
|
Twin Roller Cradle Assembly; Mk20 / Mk21; S6;
3.16" Pitch; 3 Roller;
11.75" Long;
Is a mate to Top Plate Part #801036 |
802032 |
|
|
|
41 |
|

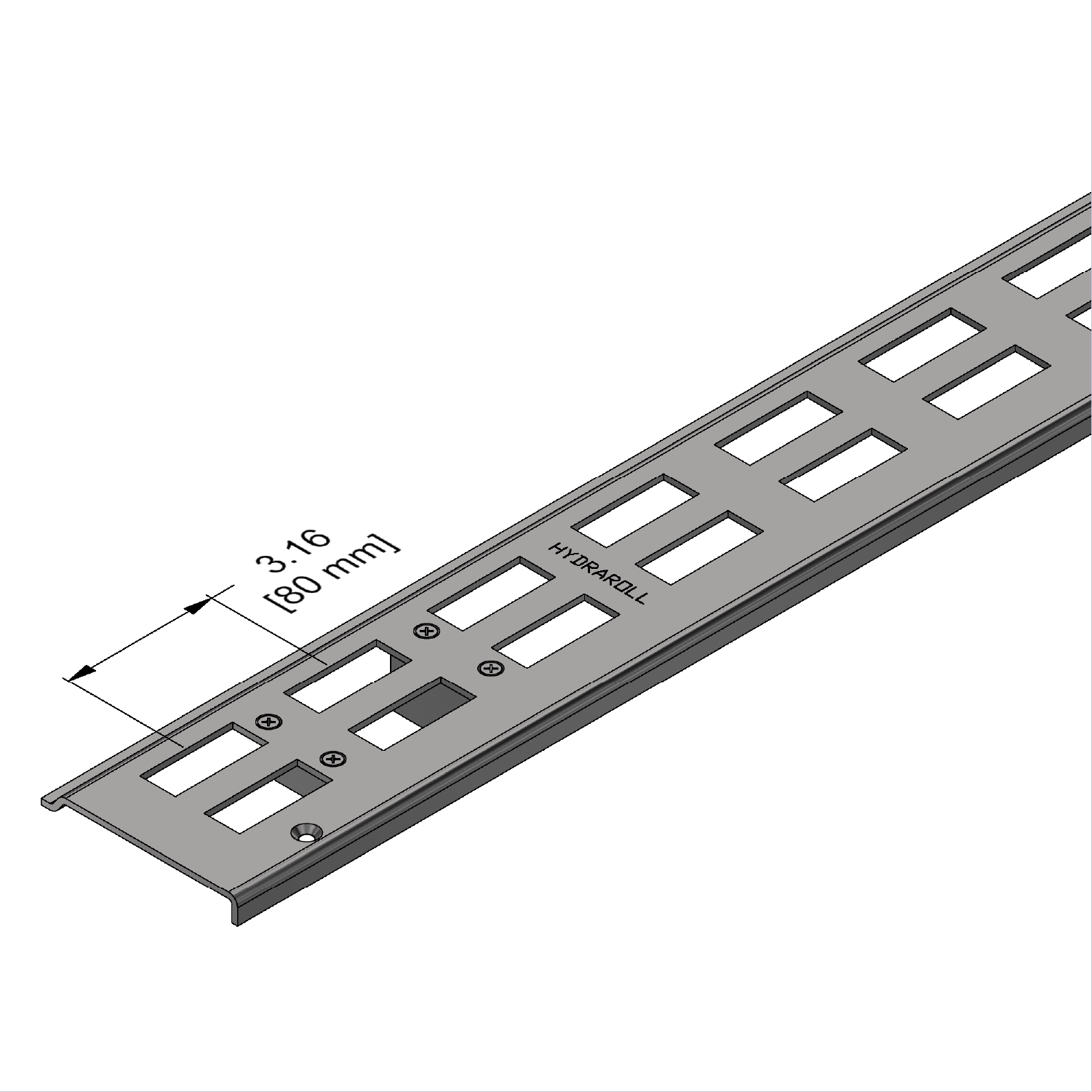

Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
3.16” Pitch; 19 Twin Roller Openings;
61.81” Long;
Is a mate to Roller Cradle Part #802016 |
801016 |
|
|
|
42 |
|
Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
6.375” Pitch; 10 Twin Roller Openings;
61.81” Long;
Is a mate to Roller Cradle Part #802020 |
801020 |
|
|
|
43 |
|

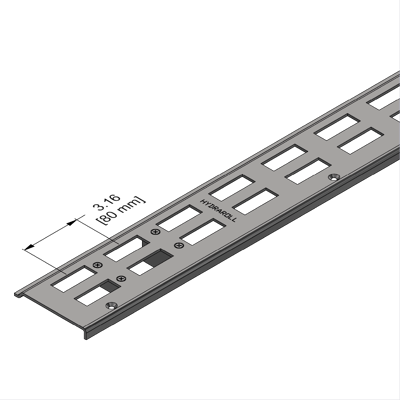

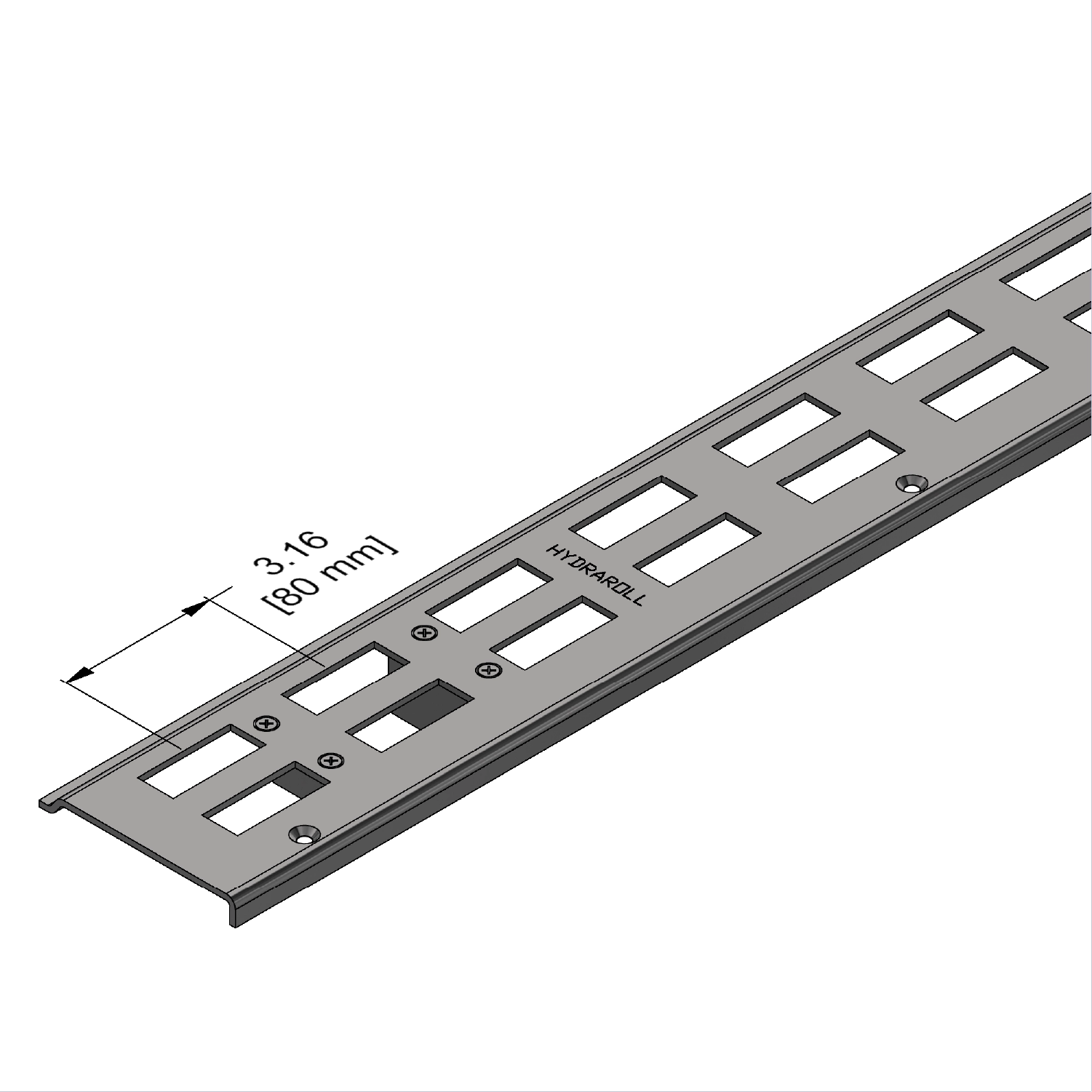

Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
3.16” Pitch; 9 Twin Roller Openings;
30.00” Long;
Is a mate to Roller Cradle Part #802021 |
801021 |
|
|
|
44 |
|
Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
3.16” Pitch; 7 Twin Roller Openings;
22.125” Long;
Is a mate to Roller Cradle Part #802027 |
801027 |
|
|
|
45 |
|

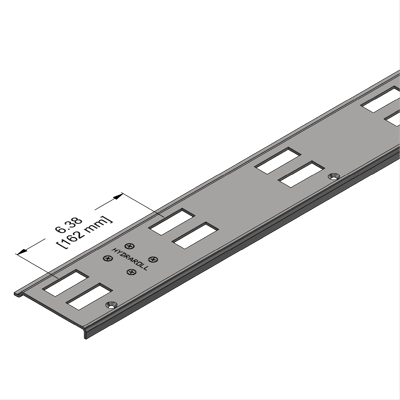

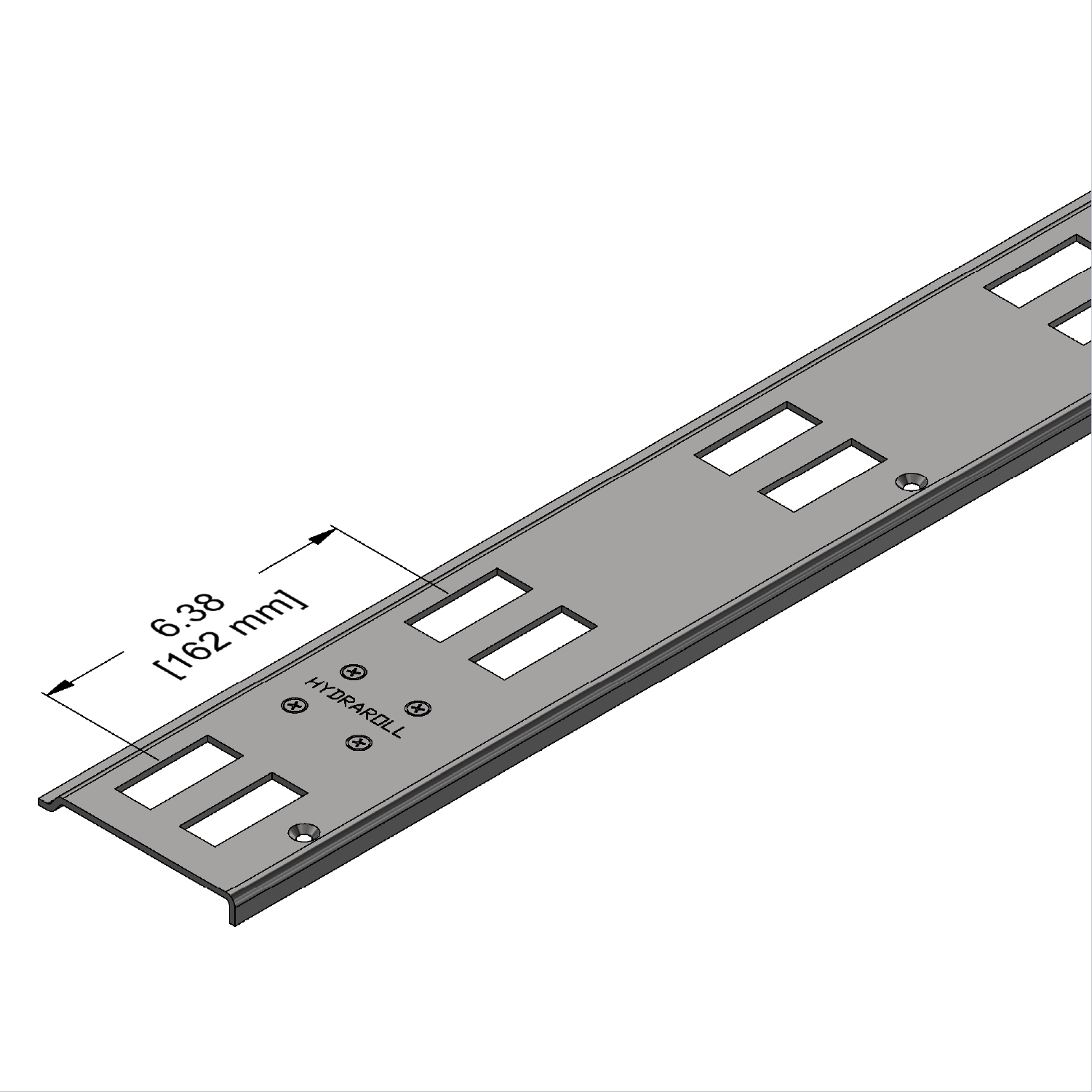

Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
6.375” Pitch; 5 Twin Roller Openings;
30.00” Long;
Is a mate to Roller Cradle Part #802022 |
801022 |
|
|
|
46 |
|
Top Plate (Quick Release) MK20 / MK21; Series 6
|
MK21; Series 6; Top Plate (Quick Release);
3.16” Pitch; 3 Twin Roller Openings;
12” Long;
Is a mate to Roller Cradle Part #802032 |
801036 |
|
|
|
47 |
|

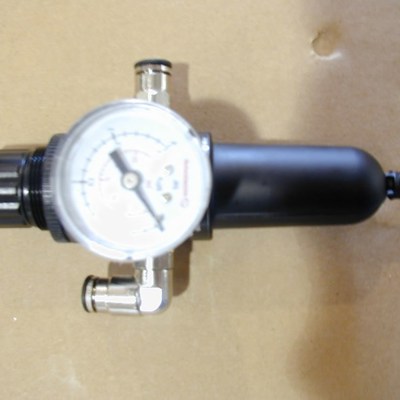

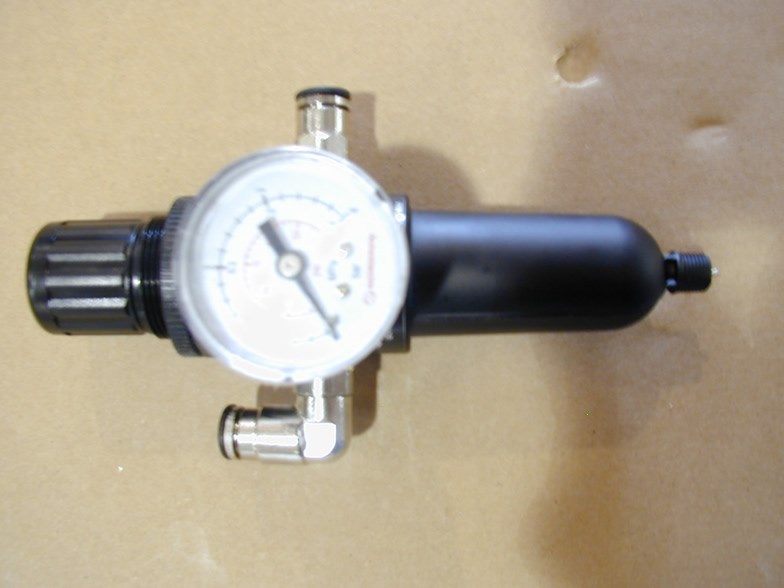

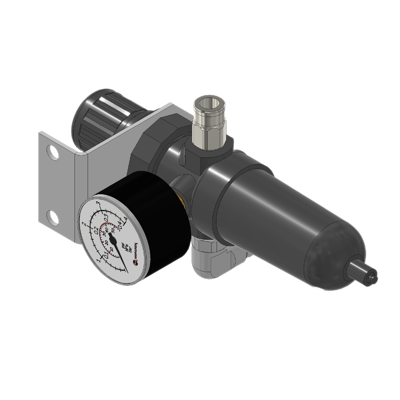

Pneumatic Filter / Regulator Replacement
|
Pneumatic Filter / Regulator Replacement;
For Control Box;
Comes with Fittings and Mounting Bracket |
772017 |
|
|
|
48 |
|

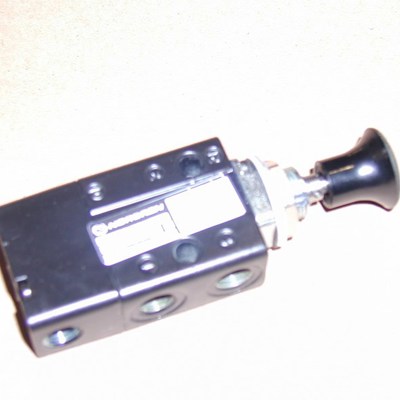

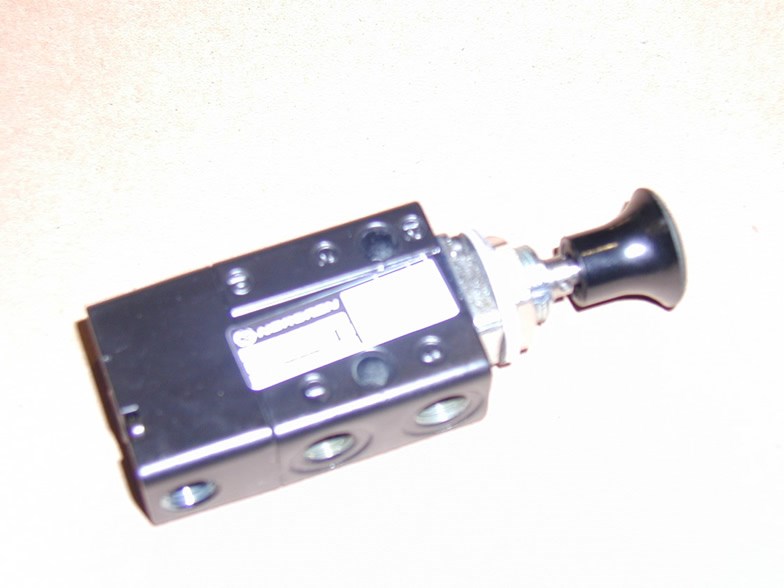

Autodown Control Valve
|
Autodown Control Valve Replacement For Control Box; Knob is Included;
G 1/8" |
772024 |
|
|
|
49 |
|

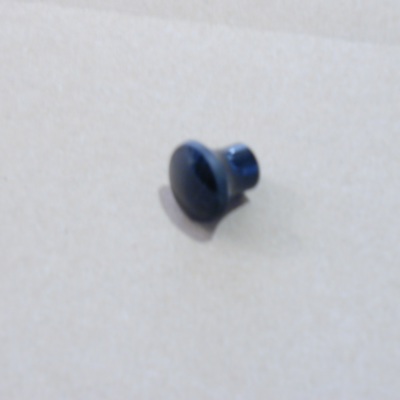

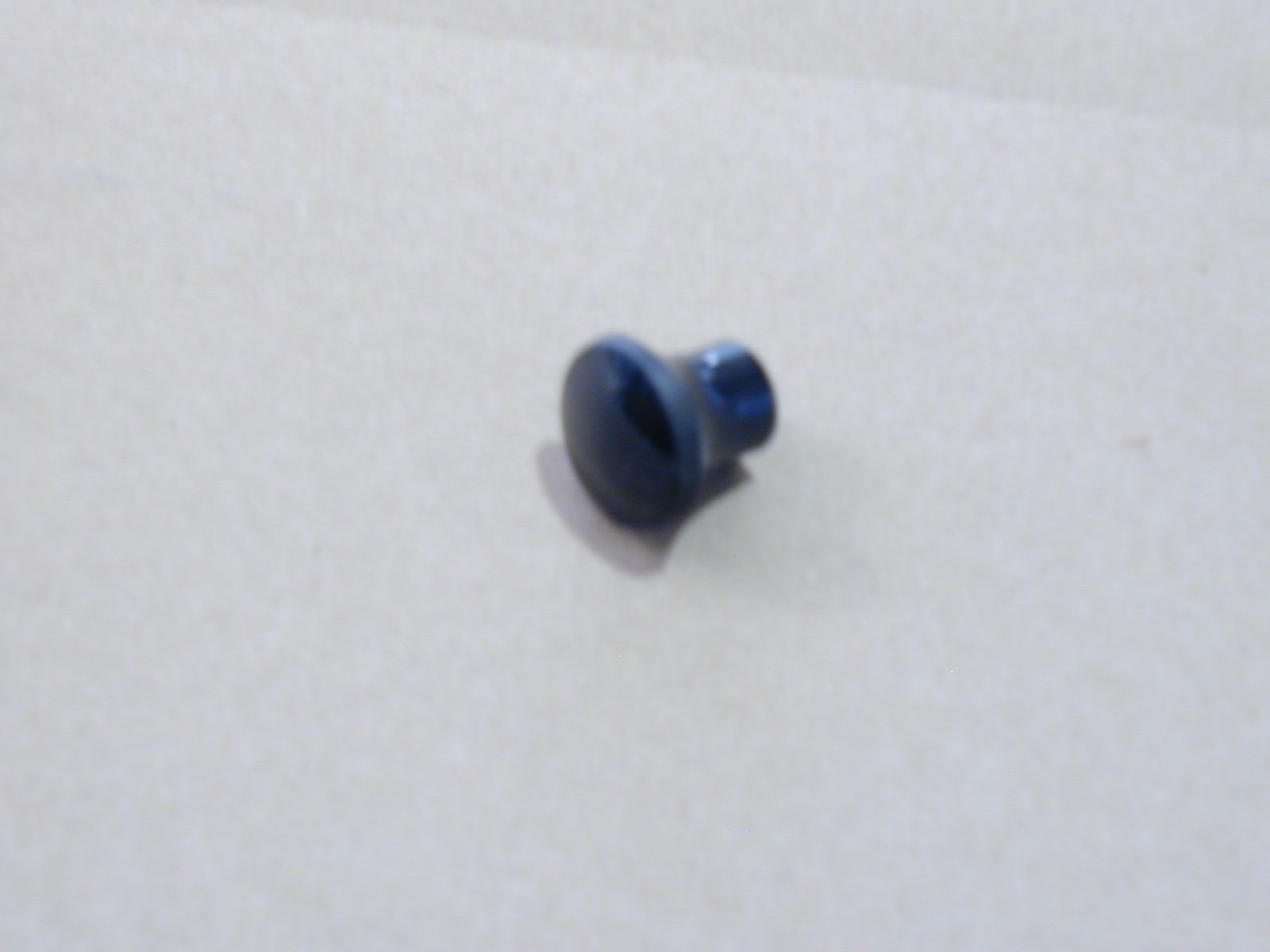

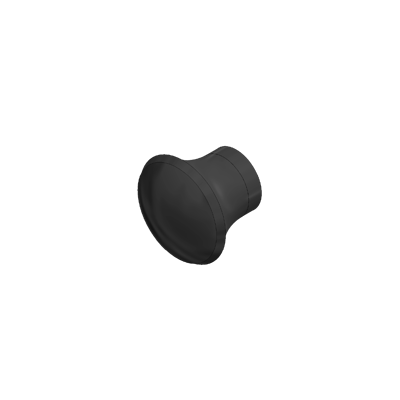

Knob
|
Knob; Auto-Down Valve |
772023 |
|
|
|
50 |
|

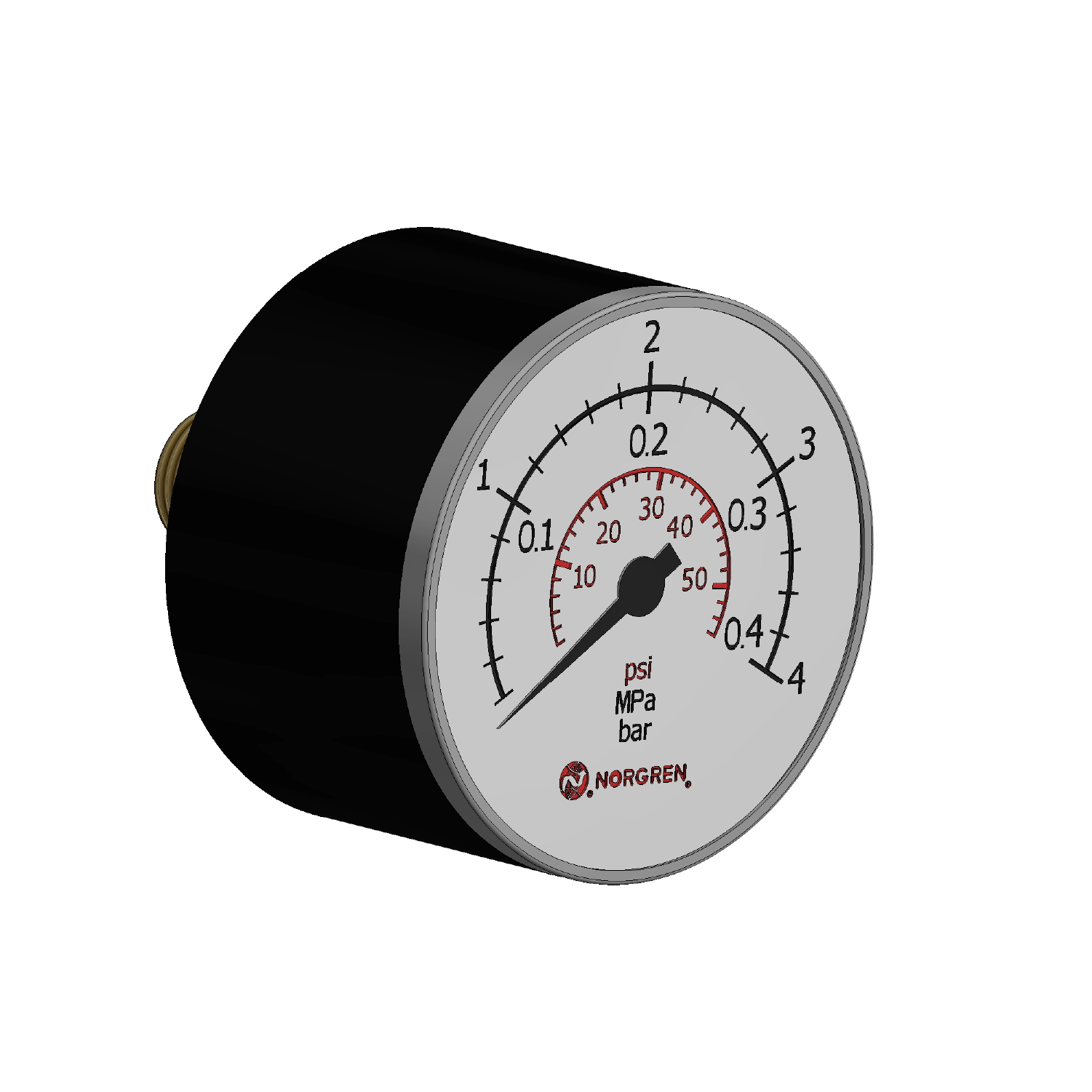

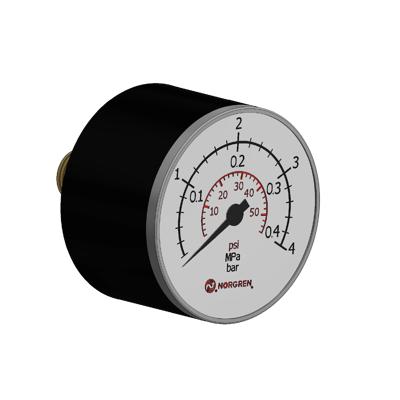

Filter Regulator Gauge
|
Filter Regulator Gauge Replacement;
(0-60 Psi, 0-4 Bar);
For Standard Control Box;
1/8" R |
772044 |
|
|
|
51 |
|

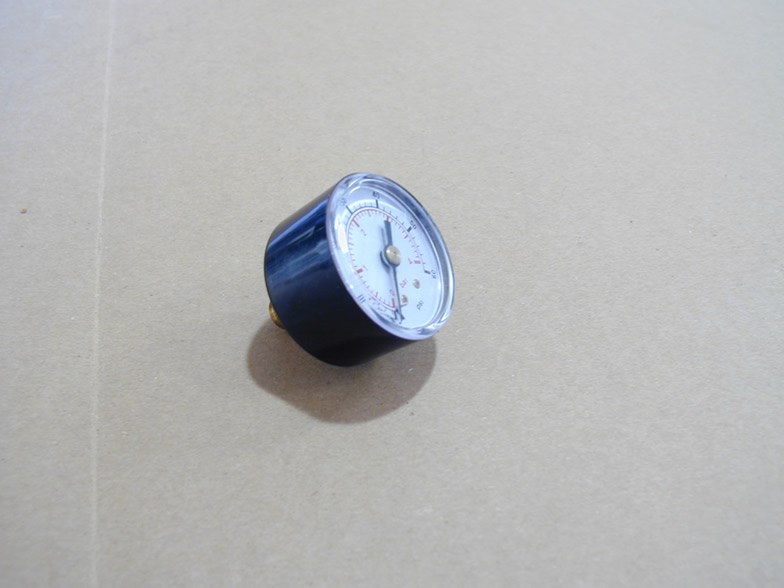

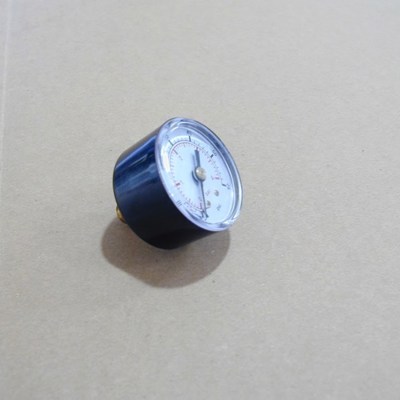

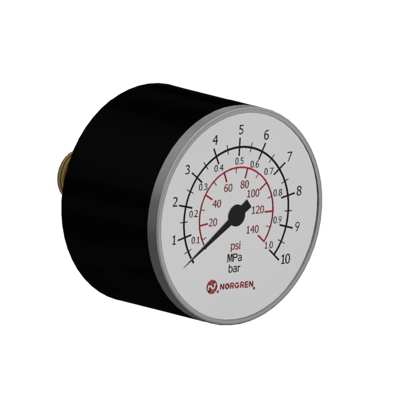

Filter Regulator Gauge
|
Filter Regulator Gauge Replacement;
(0-140 Psi, 0-10 Bar);
For Filter Regulator Control Box (Slipchain);
1/8" R |
772008 |
|
|
|
52 |
|

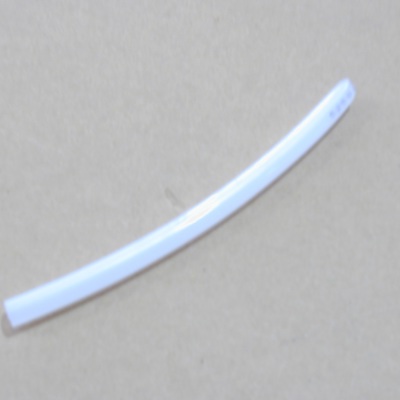

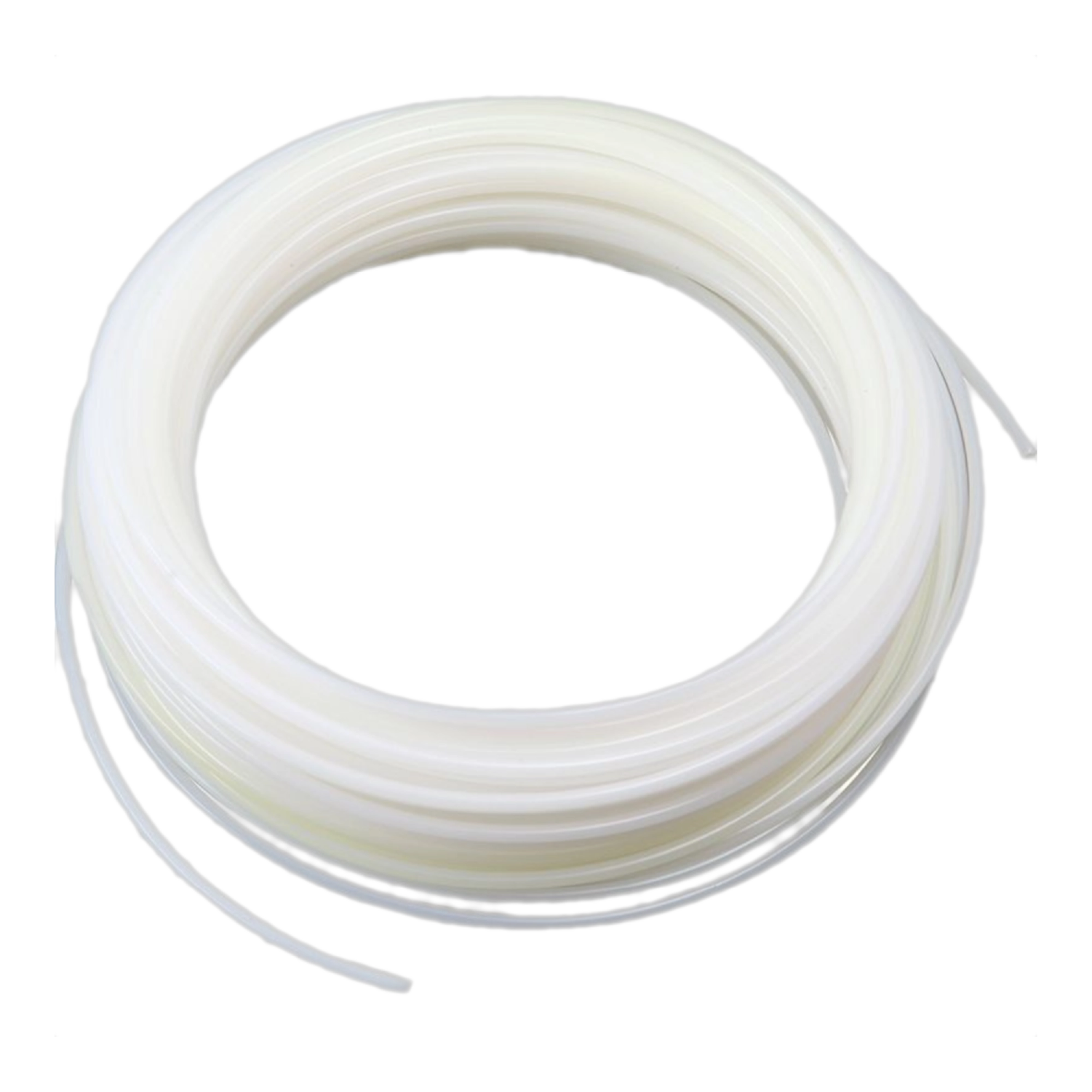

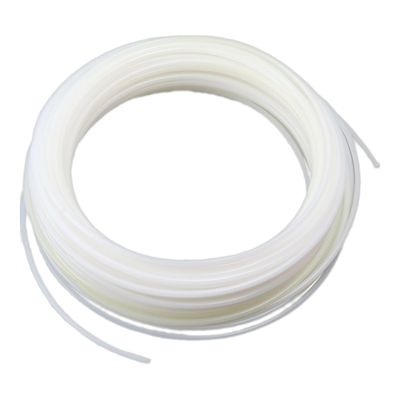

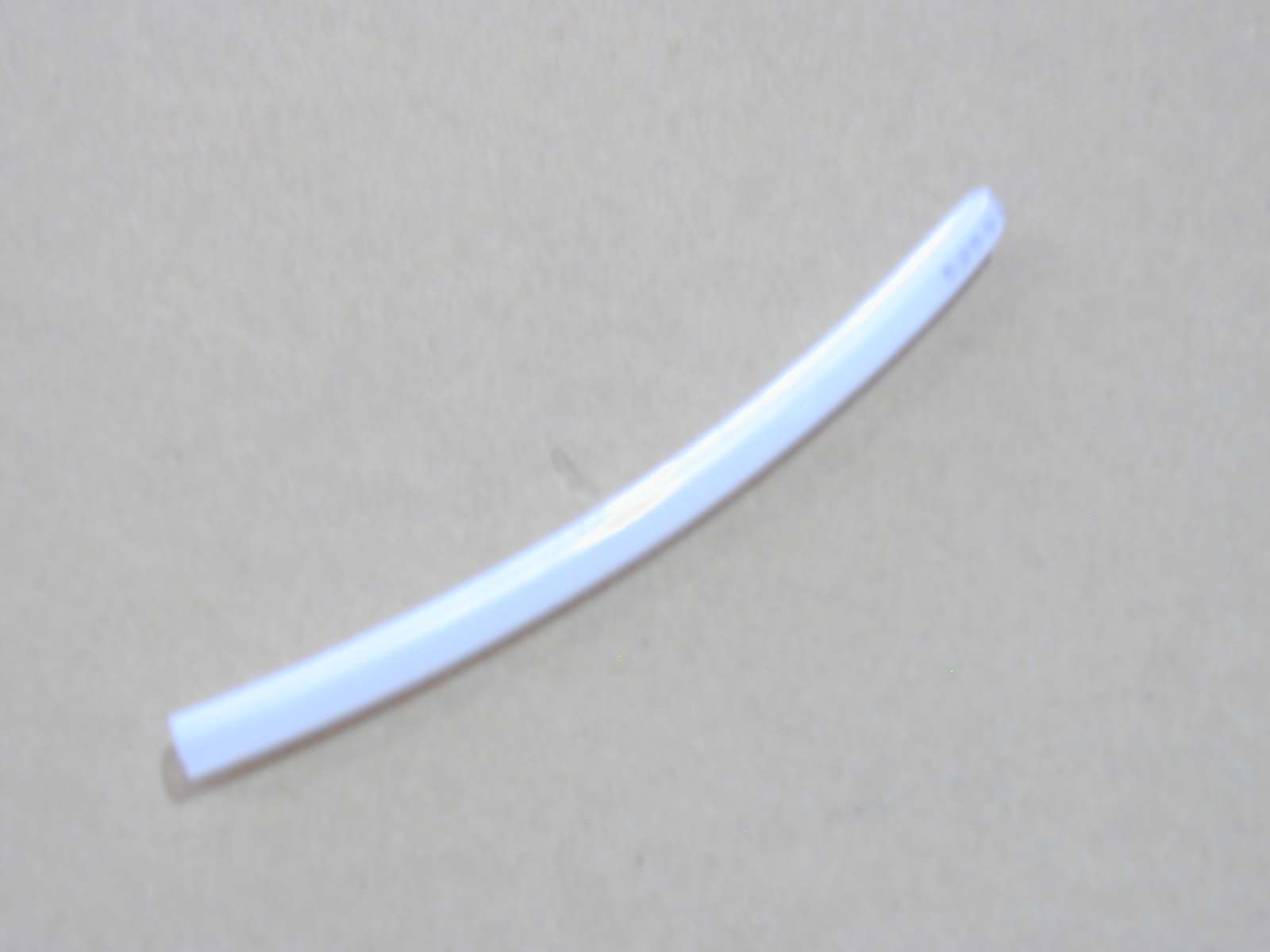

Nylon Tubing White
|
Nylon Tubing; 5/16" OD; White;
(Roll of 100m / 328ft) |
773005 |
|
|
|
53 |
|

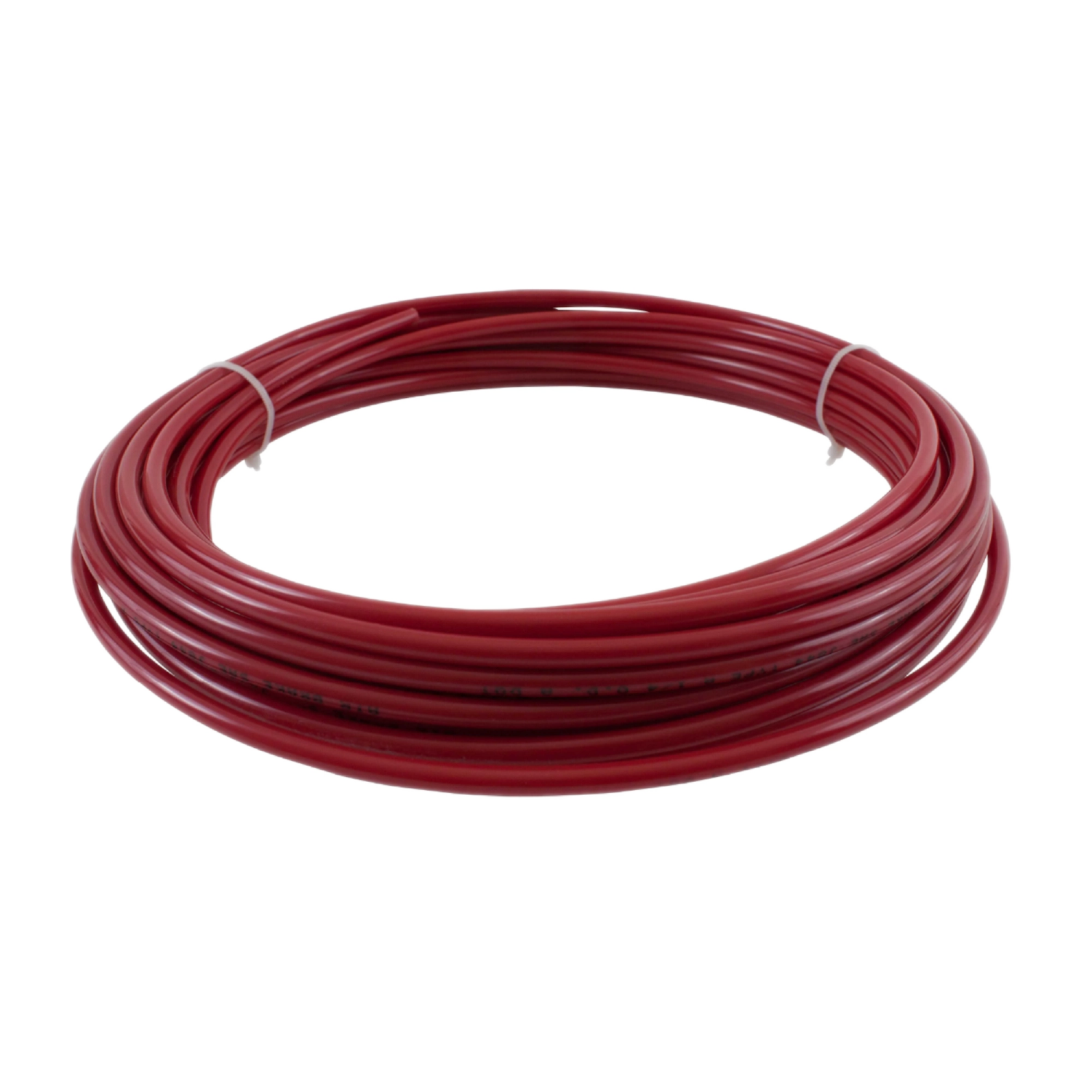

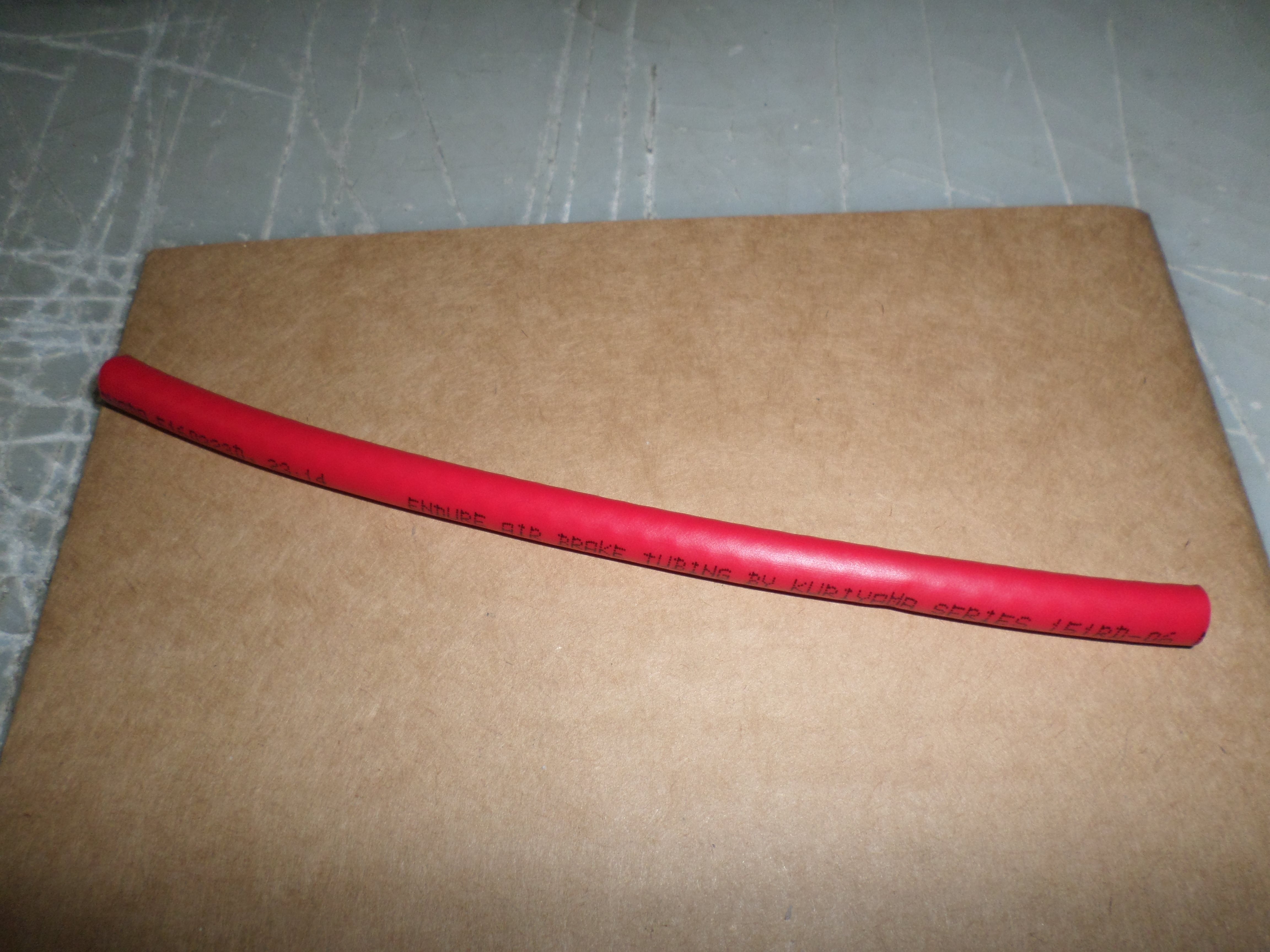

Nylon Tubing Red
|

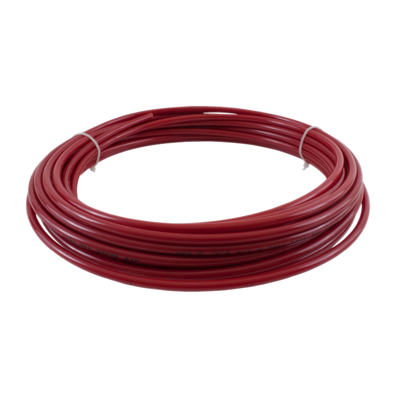

Nylon Tubing; DOT; 3/8" OD; Red;
(Roll of 500ft) |
775001 |
|
|
|
54 |
|

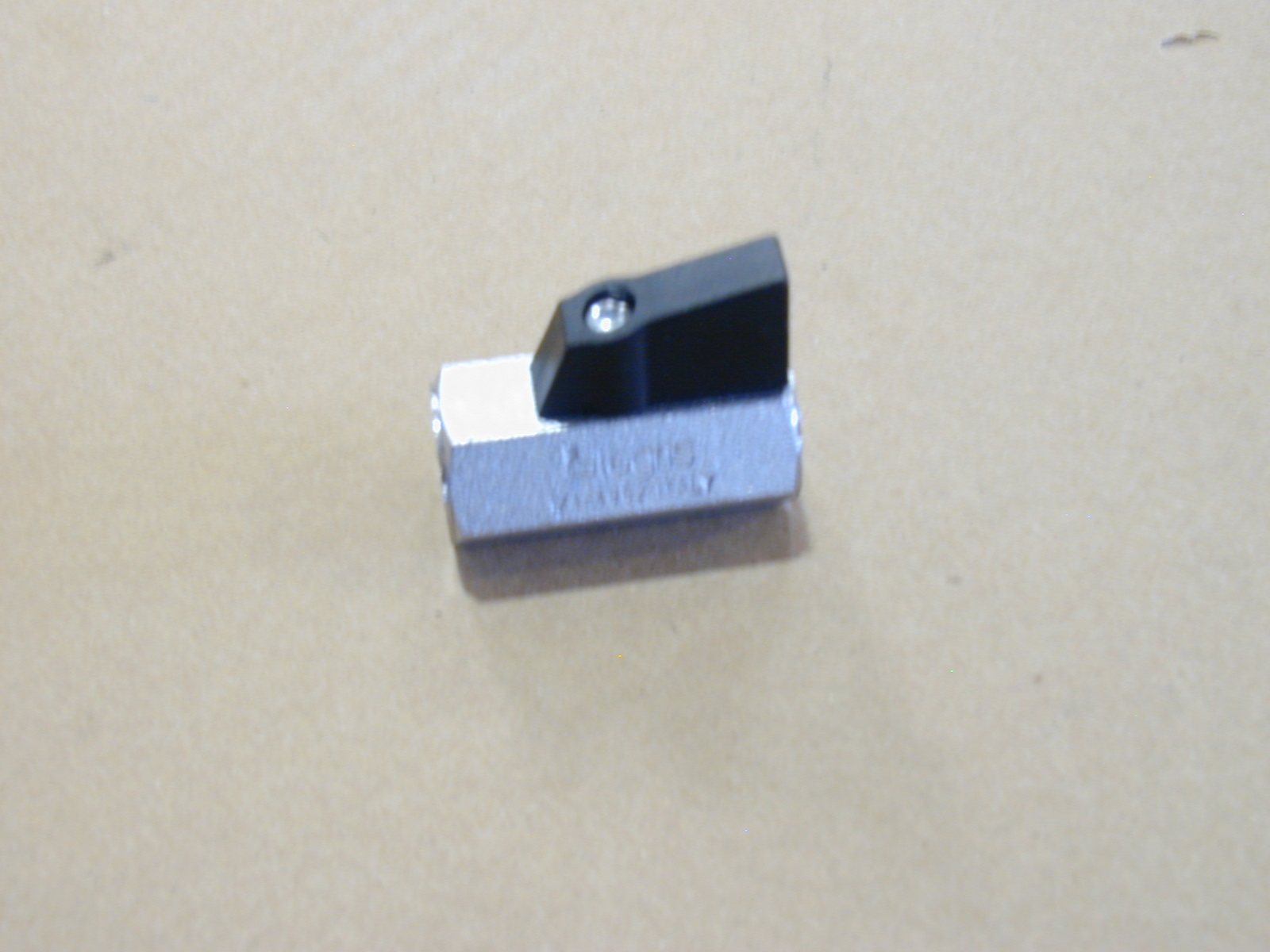

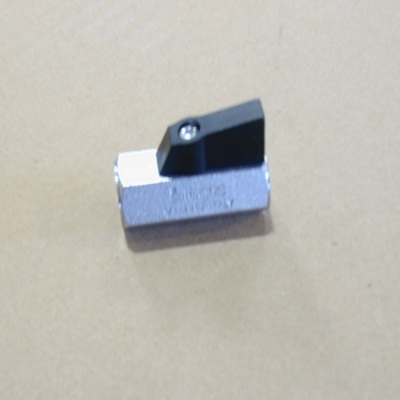

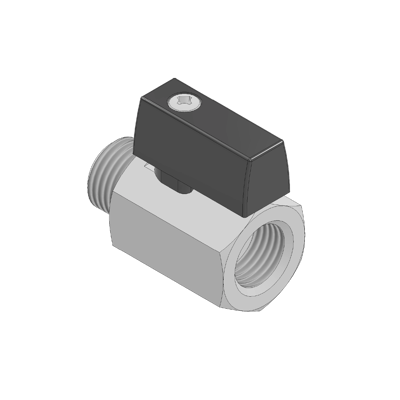

Control Box Shut-off Valve for internal TIV (BSPT)
|
Control Box Shut-off Valve for internal TIV (BSPT);
1/4" BSPT;
(Uses 773030 Stud Coupling);
(Metric) |
772058 |
|
|
|
55 |
|

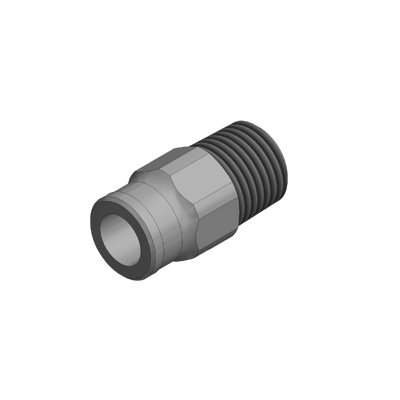

Stud Coupling
|
Stud Coupling; 5/16"T x 1/4" BSPT;
(For Shut-off Valve 772058);
(Metric) |
773030 |
|
|
|
56 |
|

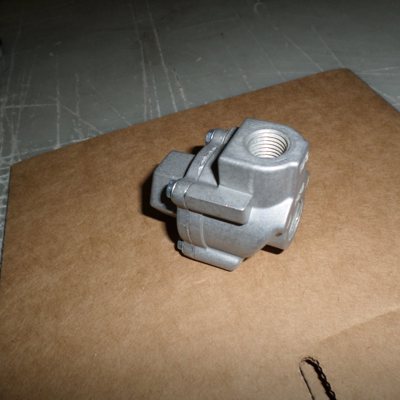

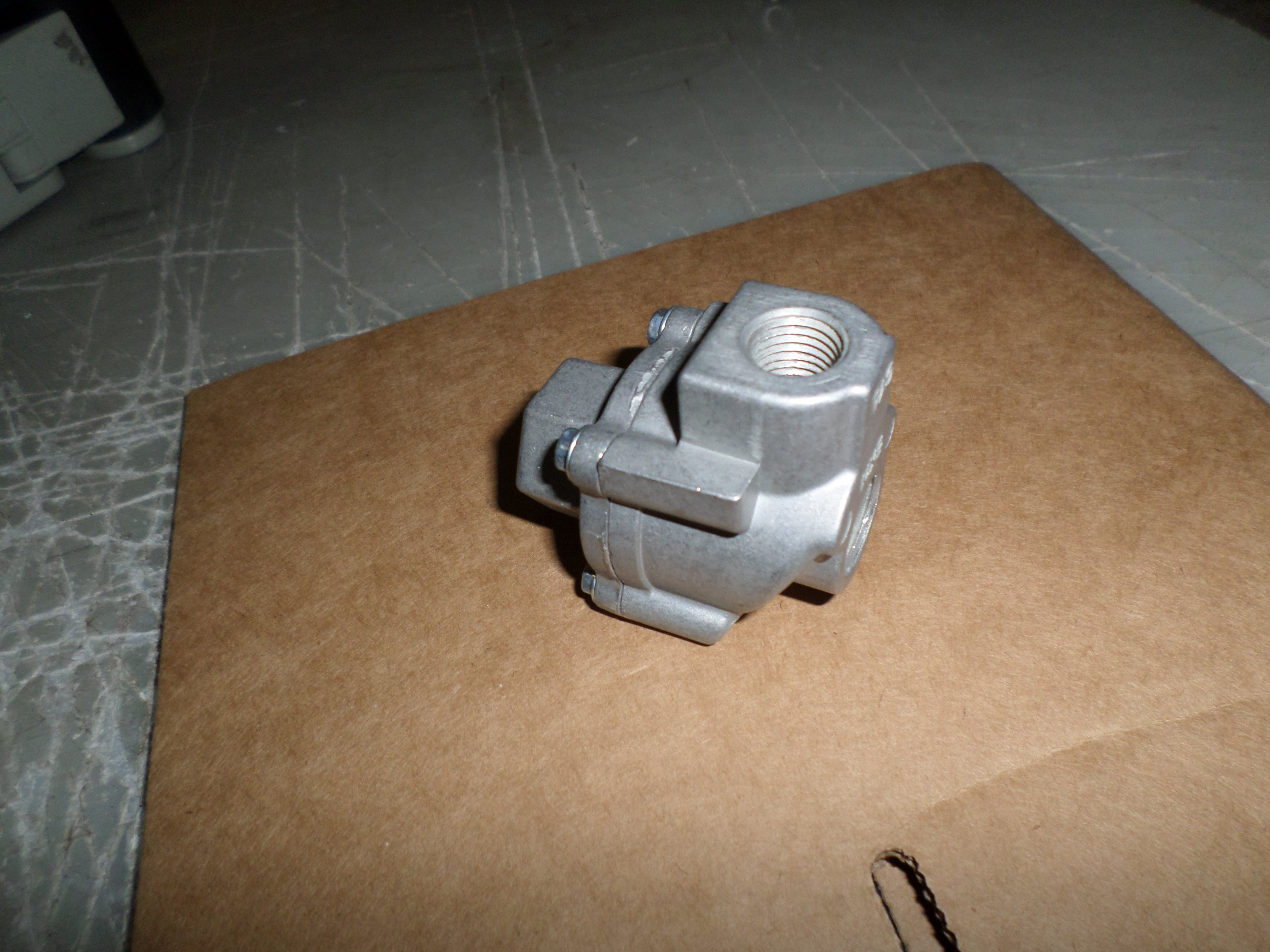

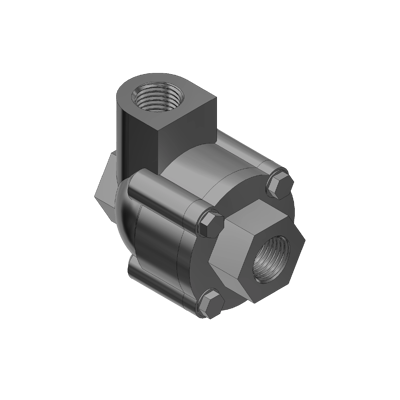

QEV - Body Only
|
QEV - Body Only |
772006 |
|
|
|
57 |
|

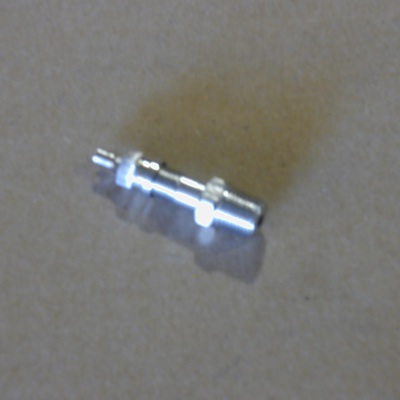

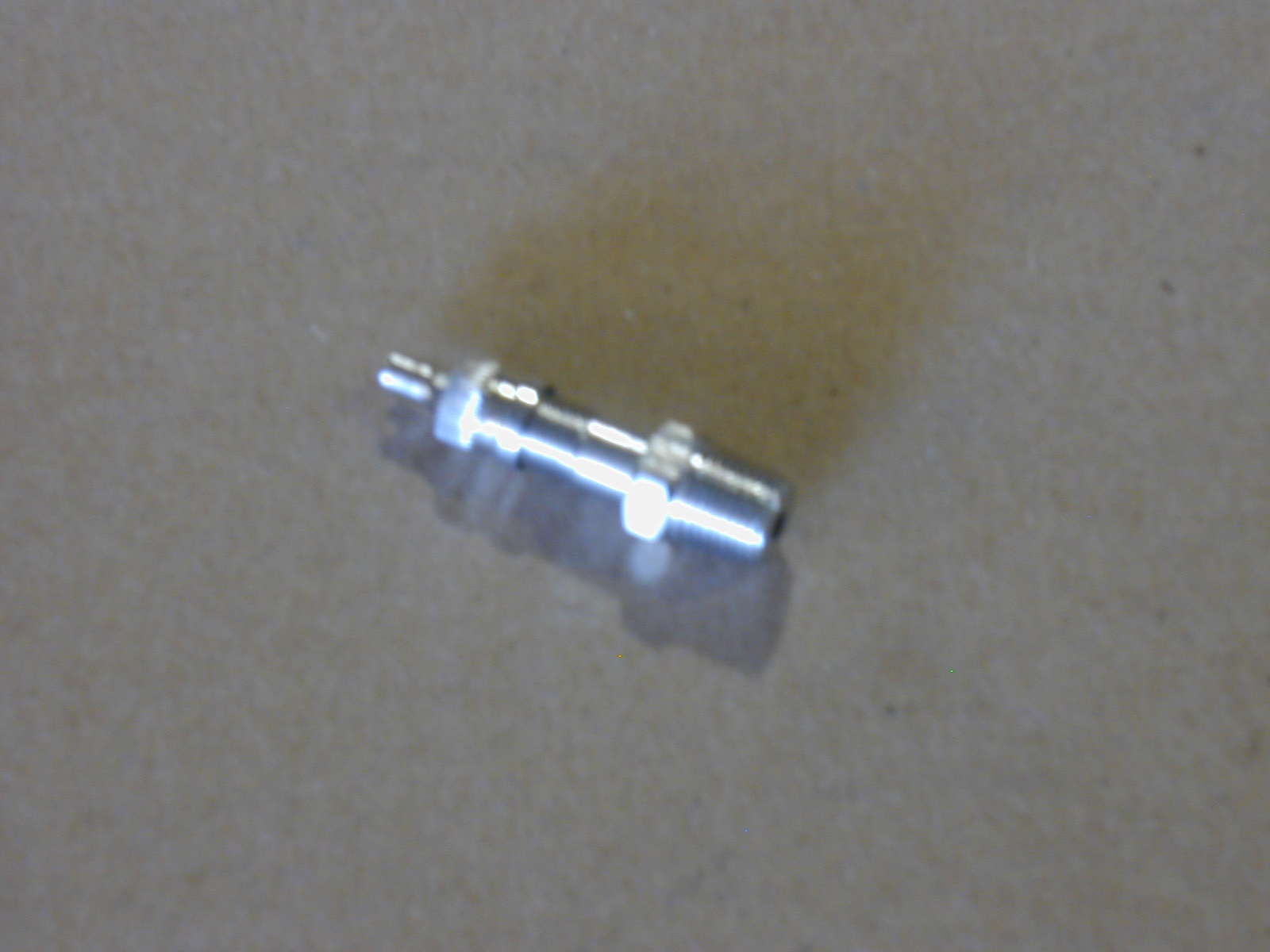

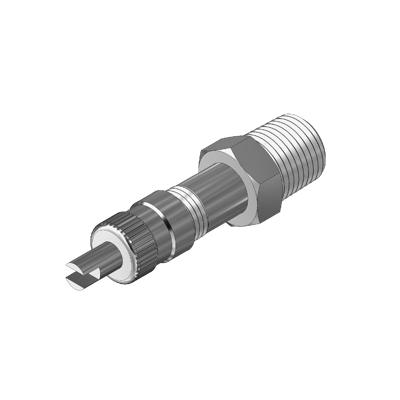

Aux. Inflation Valve
|
Aux. Inflation Valve (AIV); Schrader Type; 1/8" NPT;
(Imperial) |
772028 |
|
|
|
58 |
|

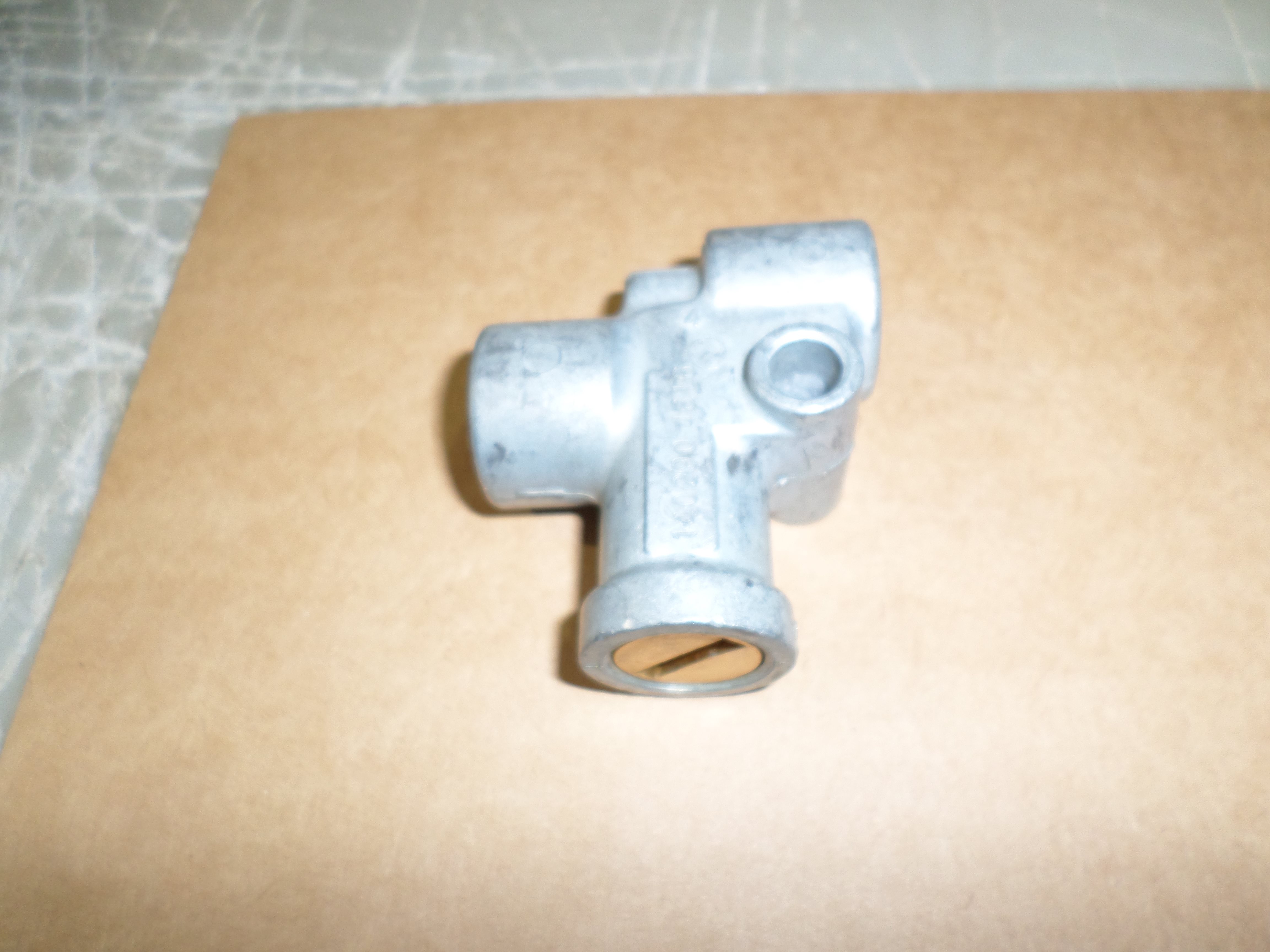

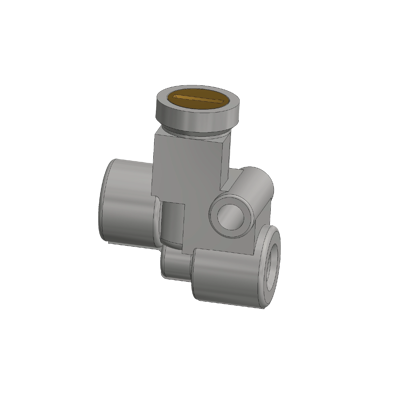

Pressure Protection Valve (PPV)
|
Pressure Protection Valve;
Body only; 80psi;

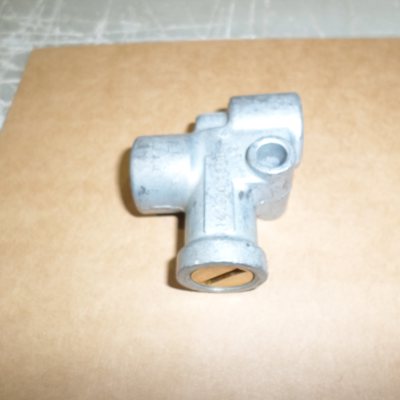

Inlet, Outlet 3/8" NPT |
772004 |
|
|
|
59 |
|

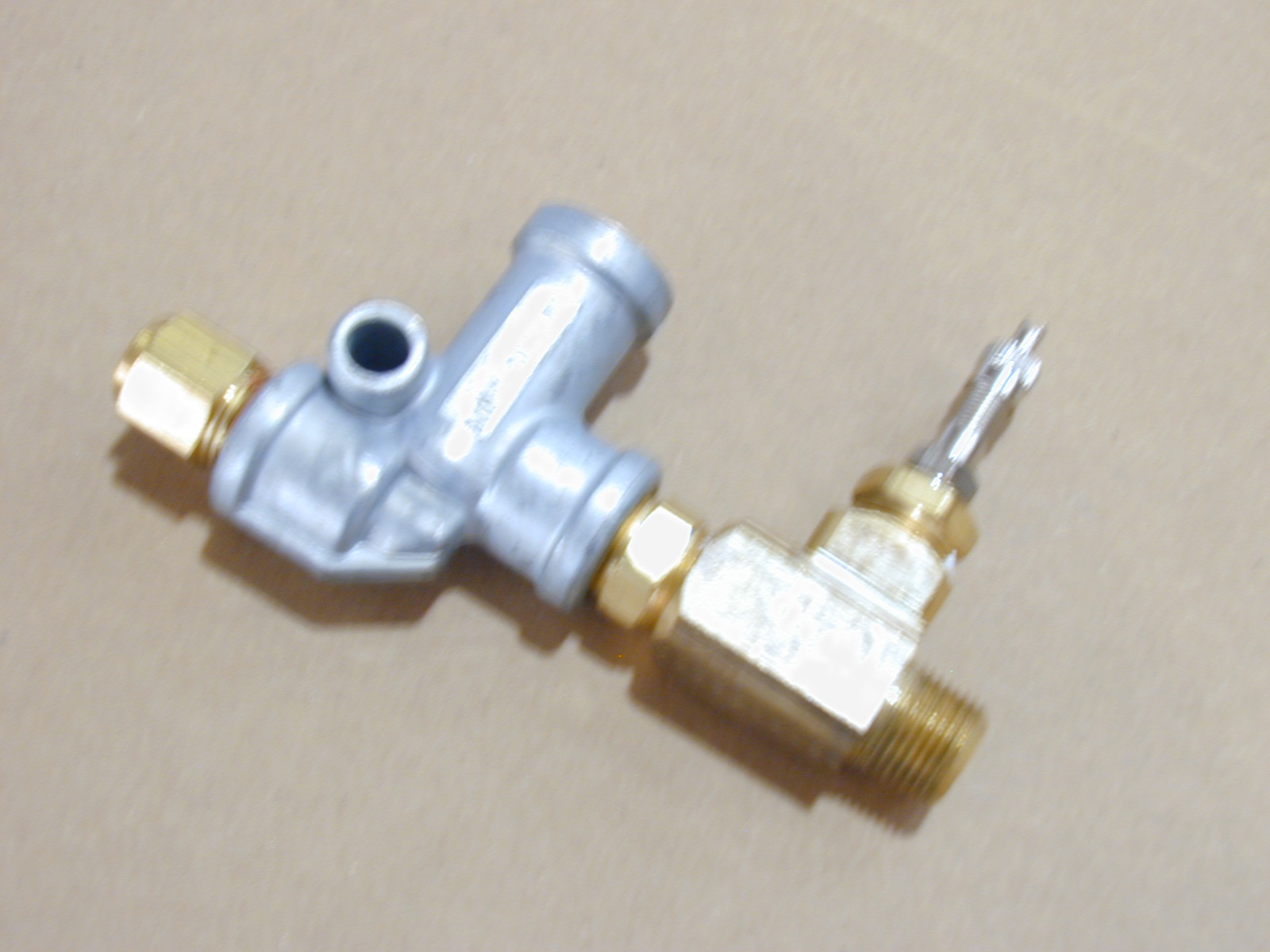

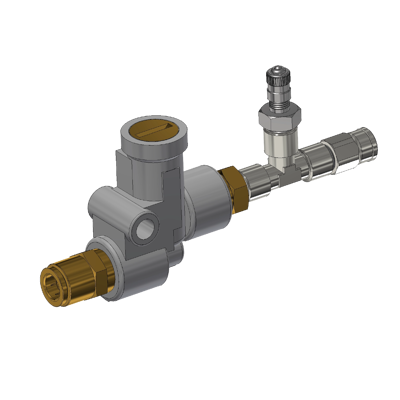

Pressure Protection Valve (PPV) With AIV
|

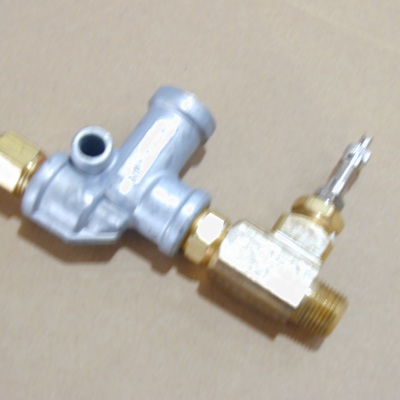

Pressure Protection Valve;
w/ AIV;
Tank; 80PSI; 3/8"NPT;
(Preceding version 772016) |
772053 |
|
|
|
60 |
|

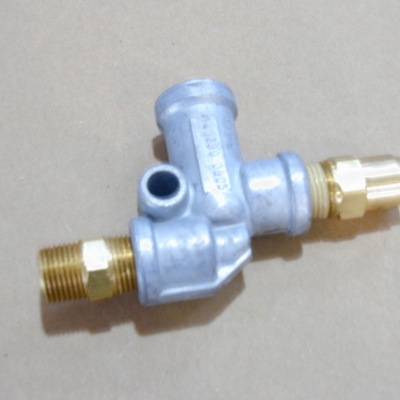

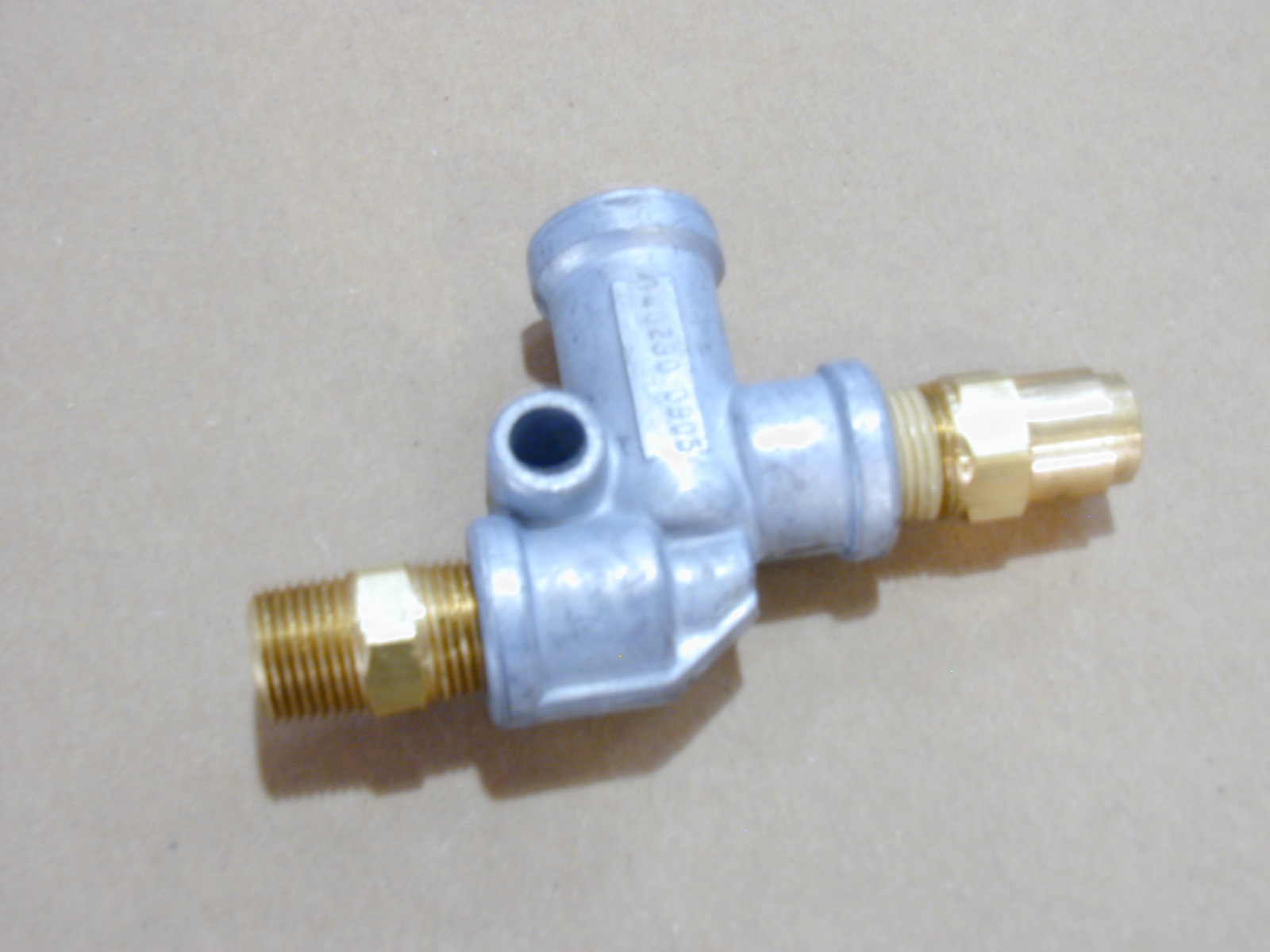

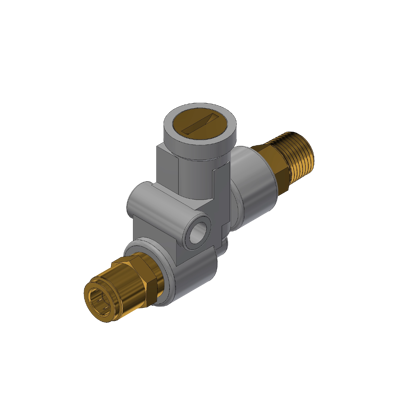

Pressure Protection Valve (PPV) Without AIV
|
Pressure Protection Valve;
w/o AIV;
Tank; 80PSI; 3/8""NPT |
772054 |
|
|
|
61 |
|

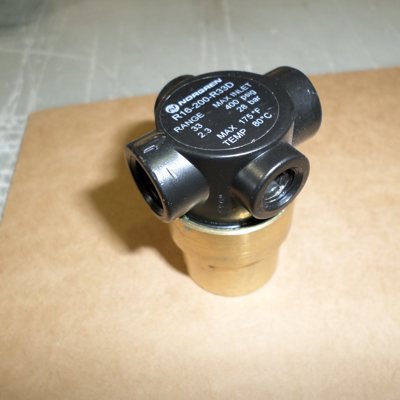

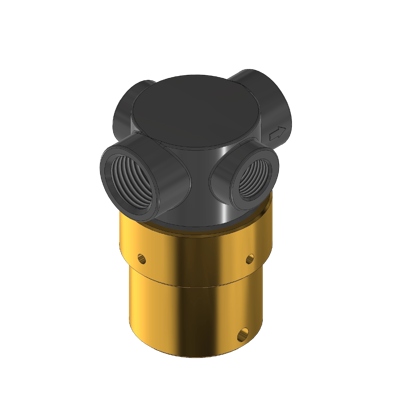

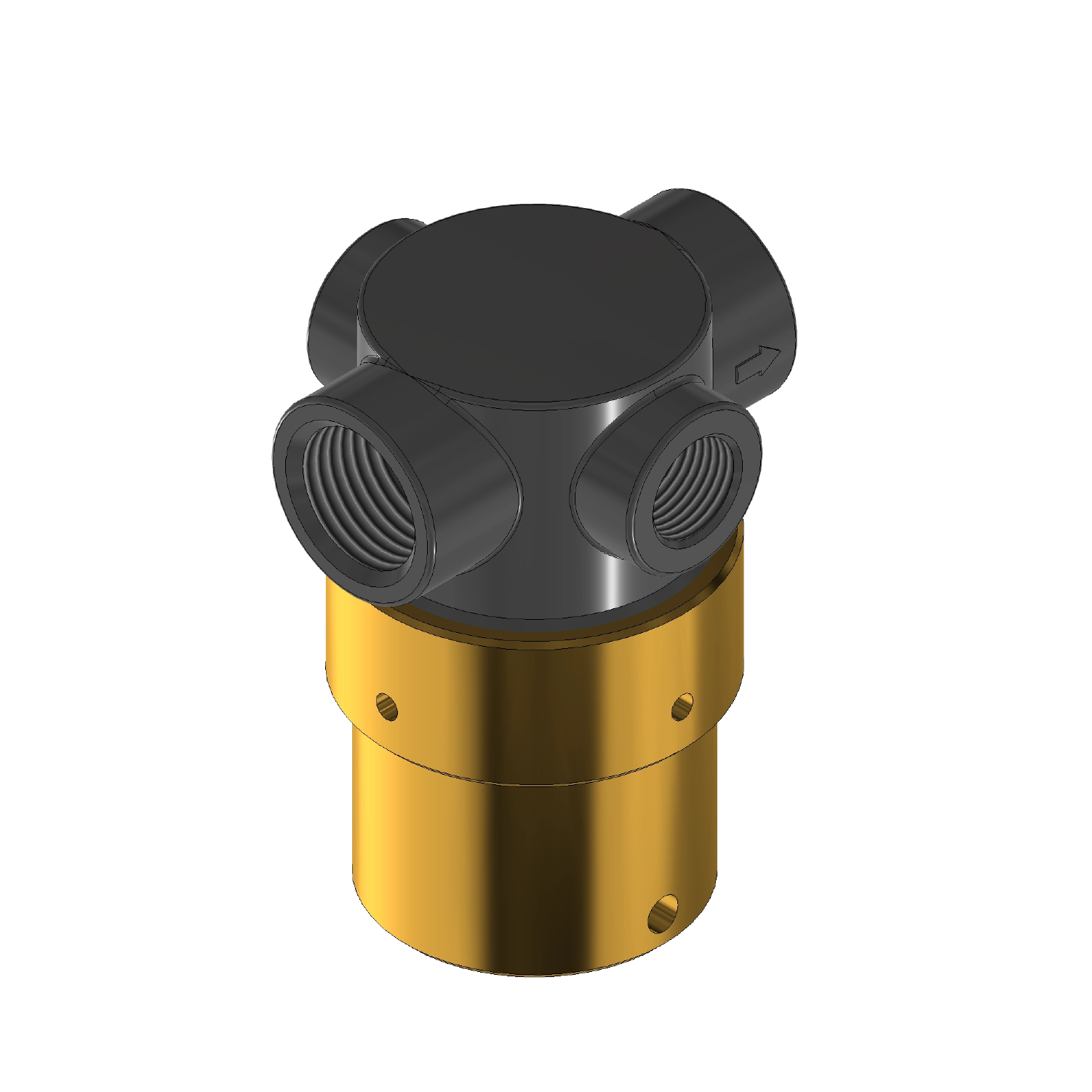

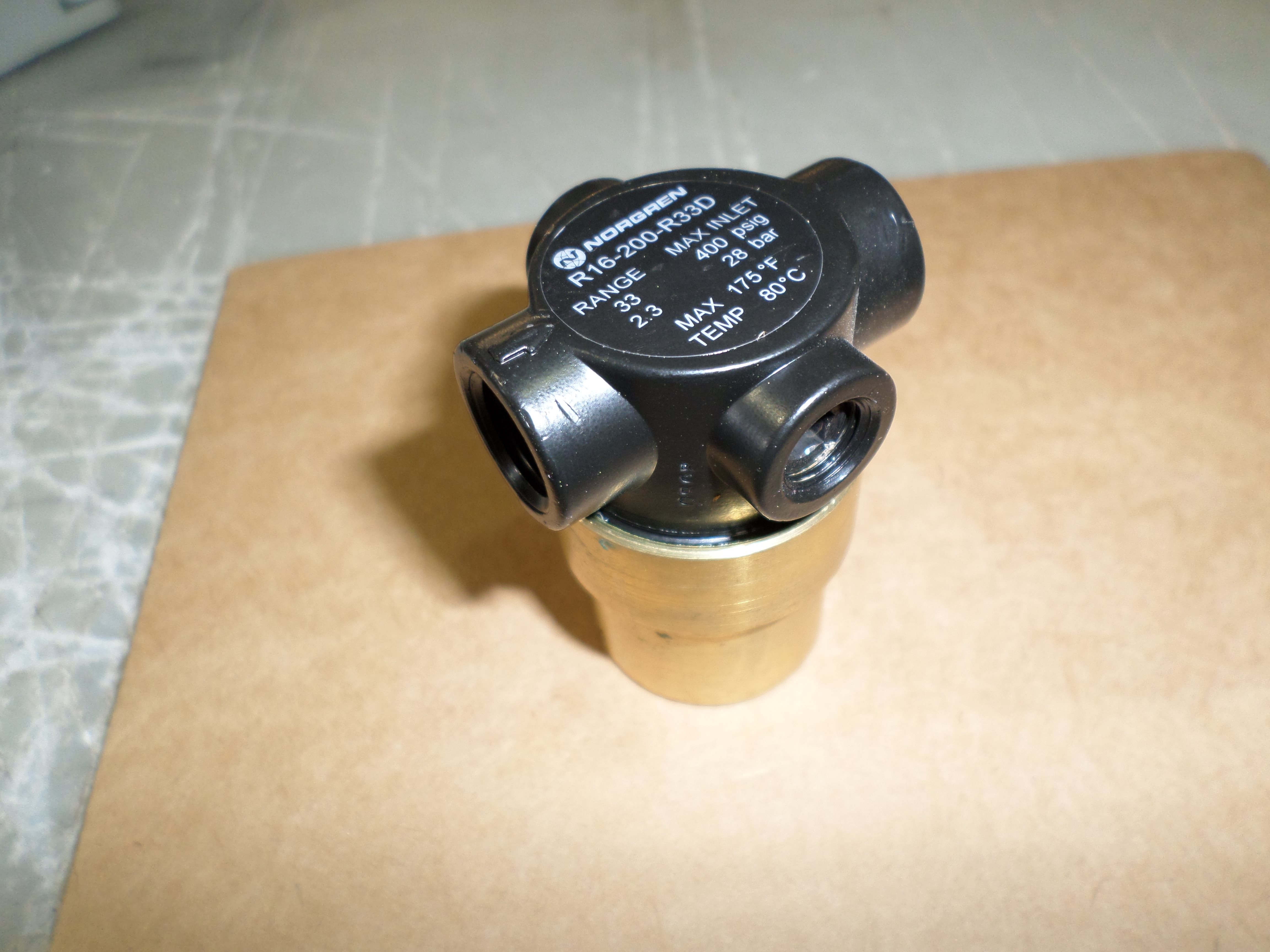

Regulator Assembly For AQ1
|
Regulator Assembly For AQ1; S/S w/ AIV;
Port 1/4" G;
Gauge Port 1/8" BSP |
772055 |
|
|
|
62 |
|

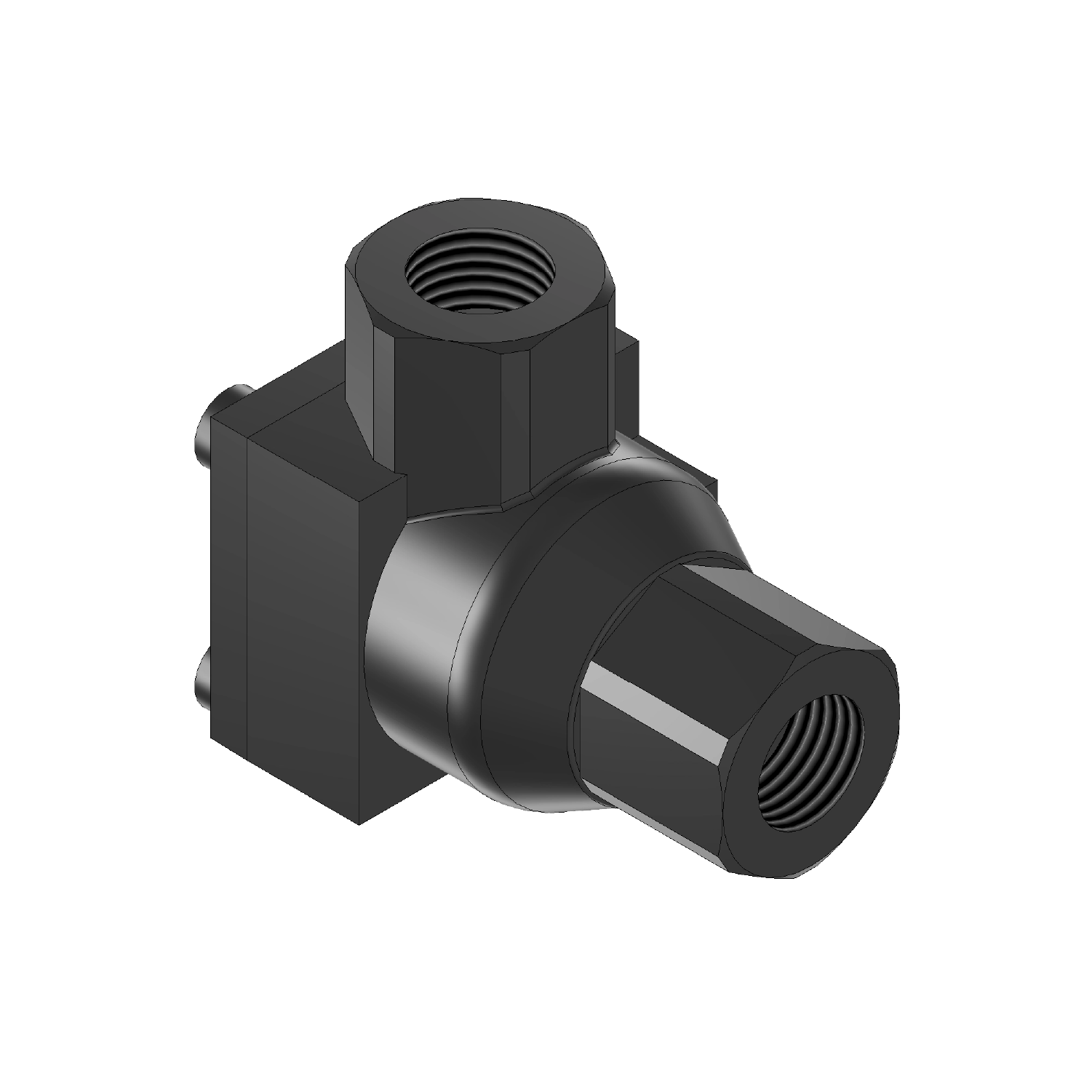

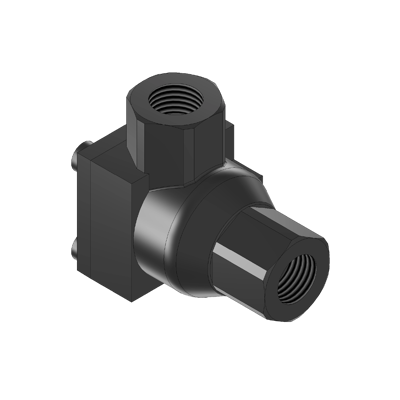

Quick Exhaust Valve For AQ1
|

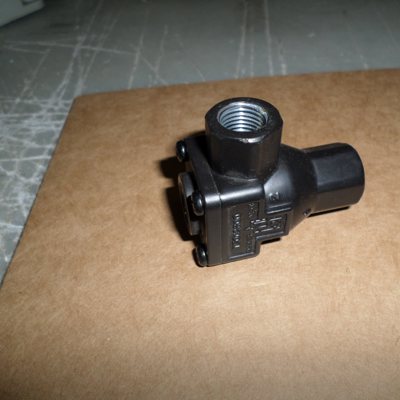

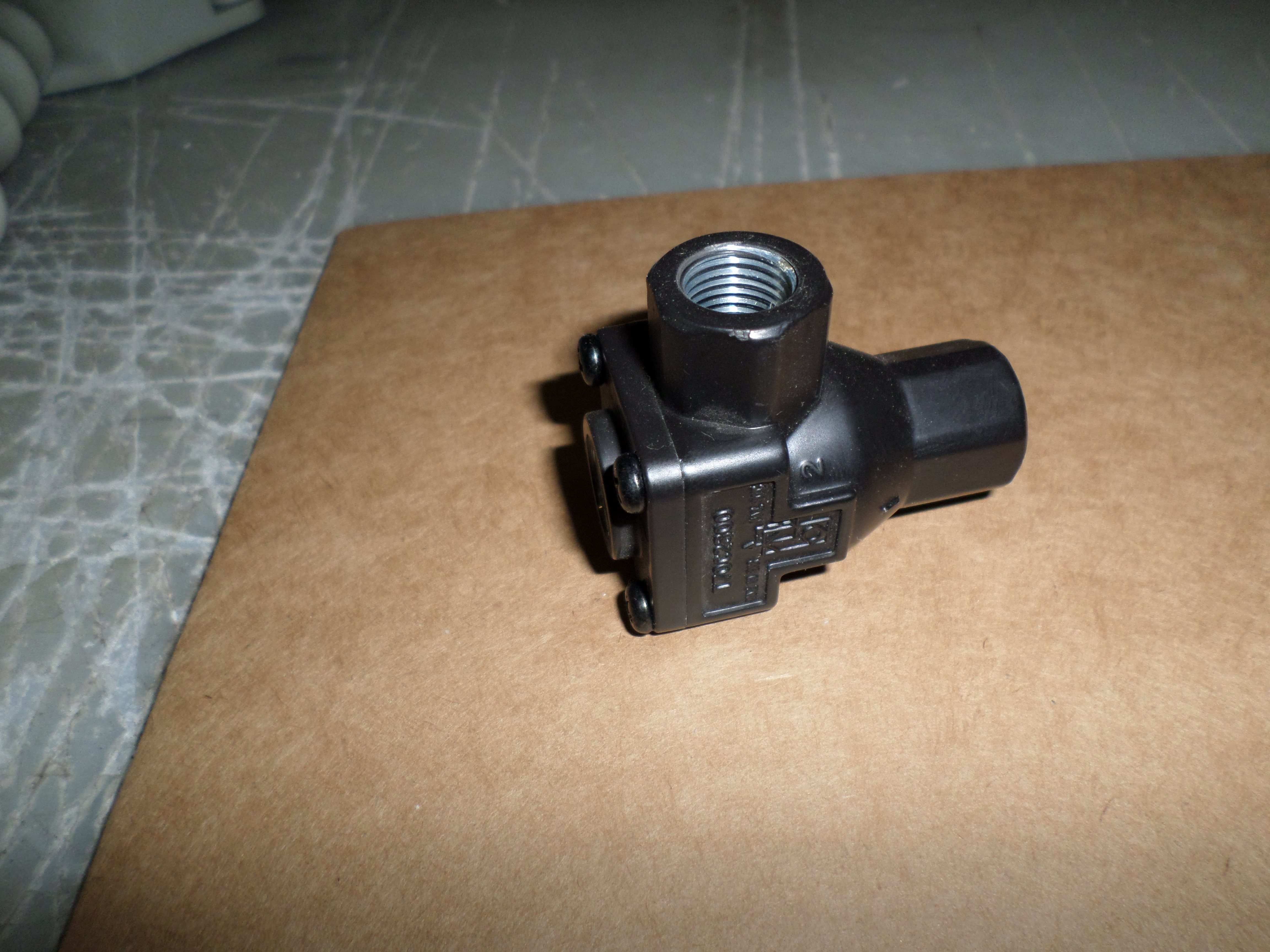

Quick Exhaust Valve For AQ1 Box TIV;
1/4" G |
772056 |
|
|
|
63 |
|

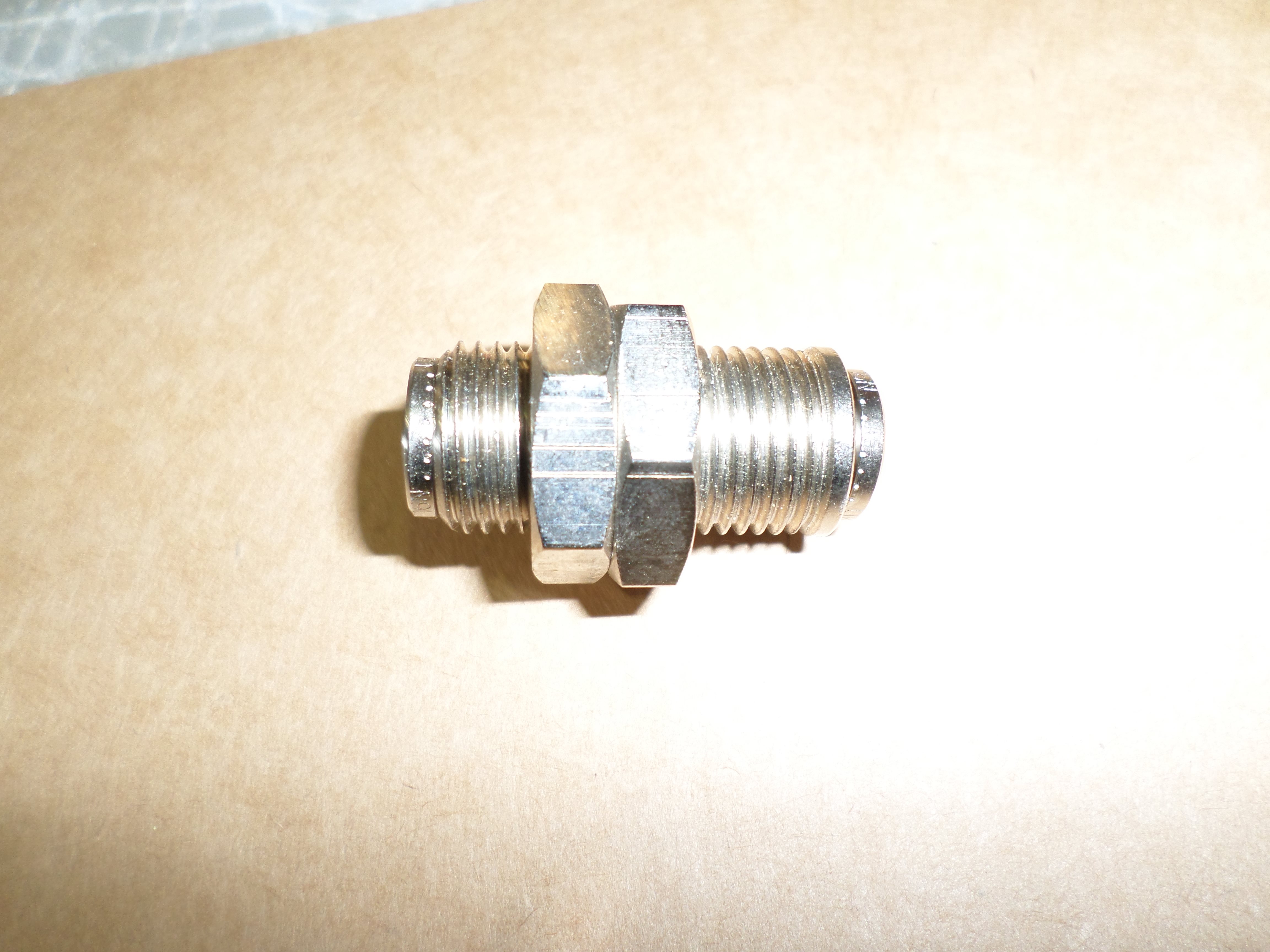

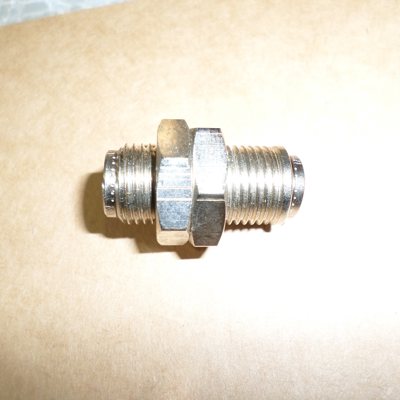

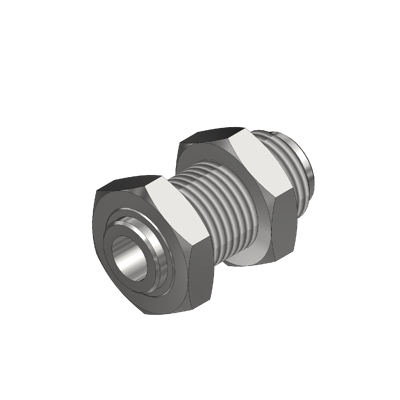

Bulk Head Coupling Fitting
|
Bulk Head Coupling; 5/16" T; Push-In;
Thread M16x1.5 |
771010 |
|
|
|
64 |
|

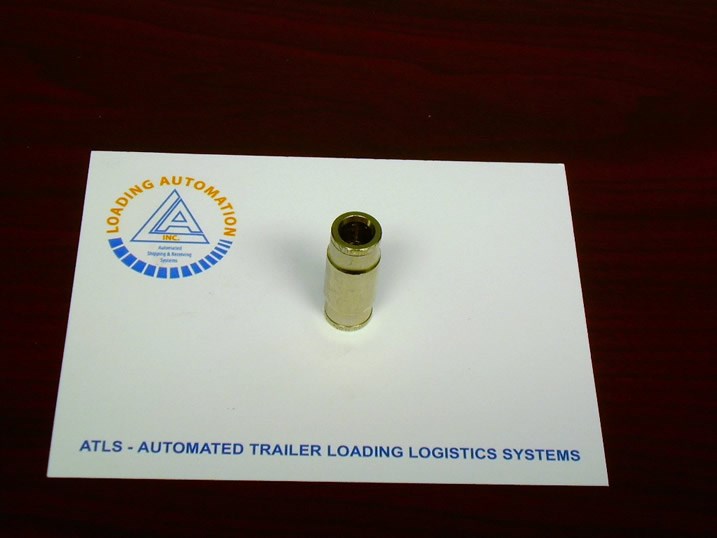

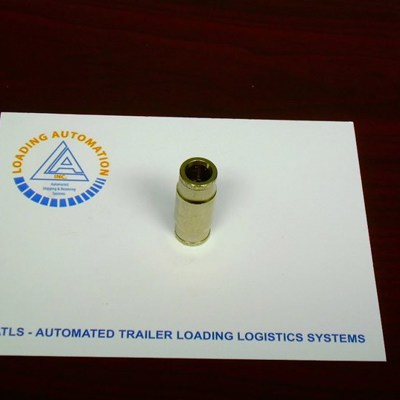

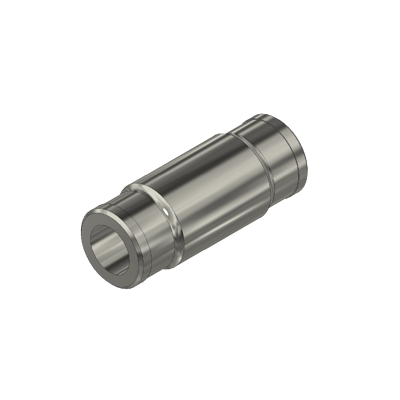

Straight Fitting
|
Straight Fitting; 5/16" T; Push-In |
773007 |
|
|
|
65 |
|

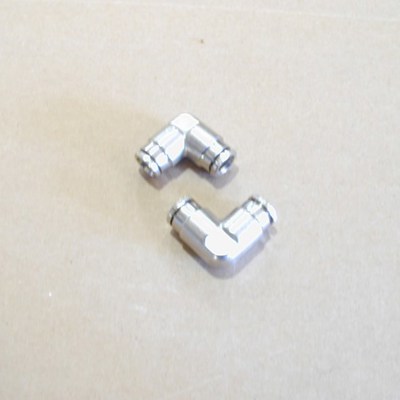

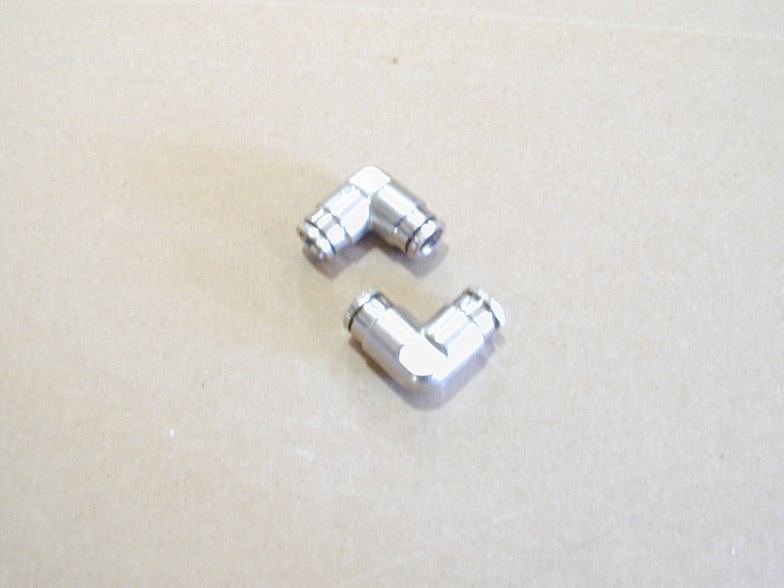

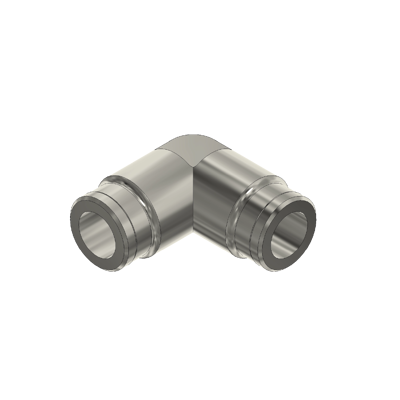

Elbow Fitting
|
Elbow Fitting; 8mm (5/16") T; Push-In |
773010 |
|
|
|
66 |
|

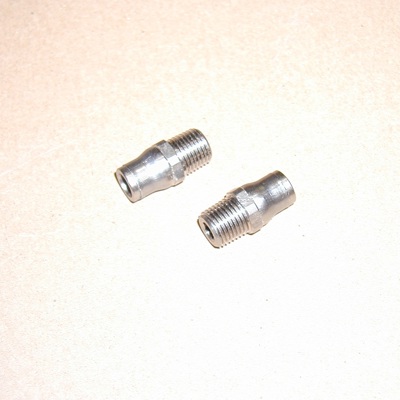

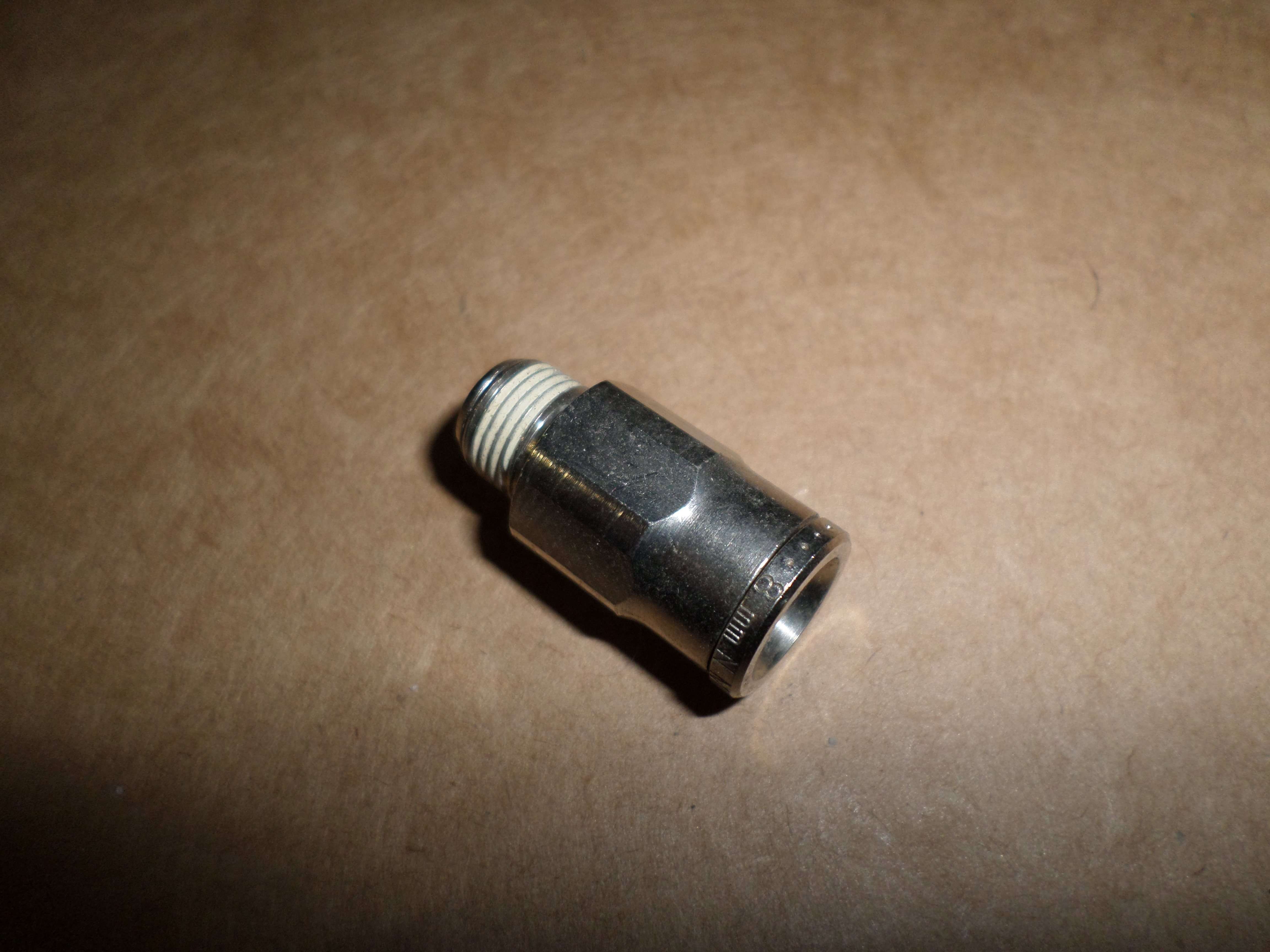

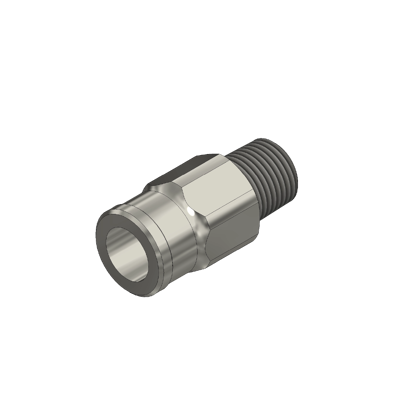

Stud Coupling Fitting
|

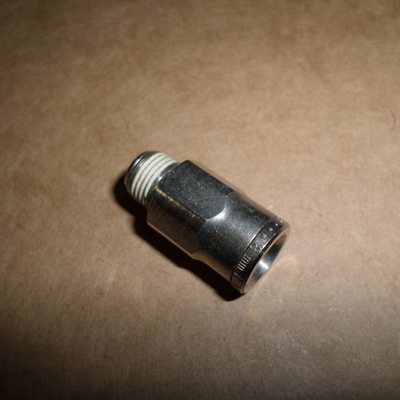

Stud Coupling; 8mm (5/16") T x 1/8" R |
773001 |
|
|
|
67 |
|

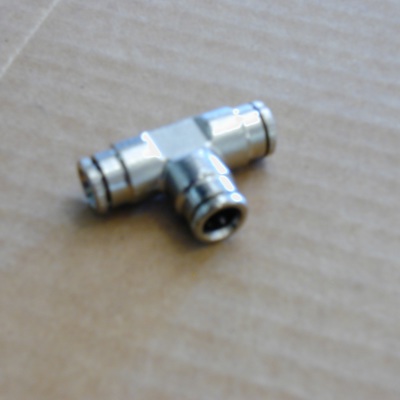

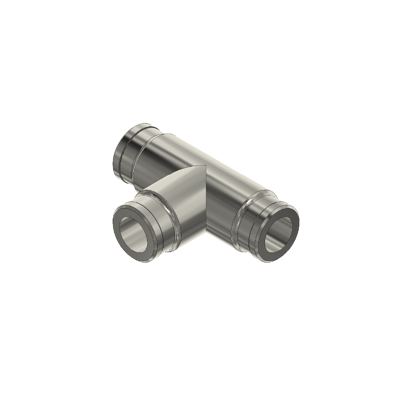

Tee Fitting
|
Tee; 8mm (5/16") T; Press Lock |
773004 |
|
|
|
68 |
|

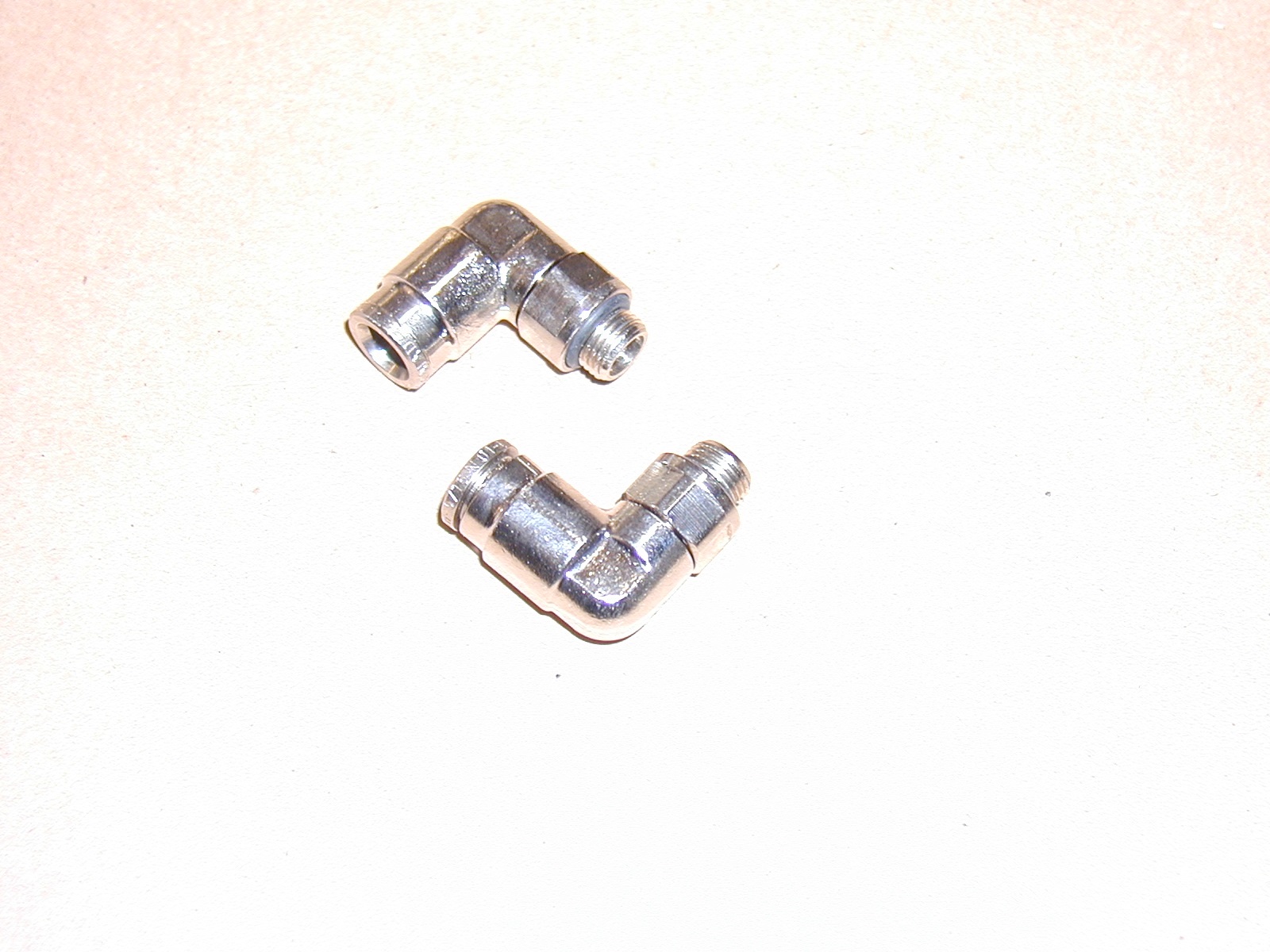

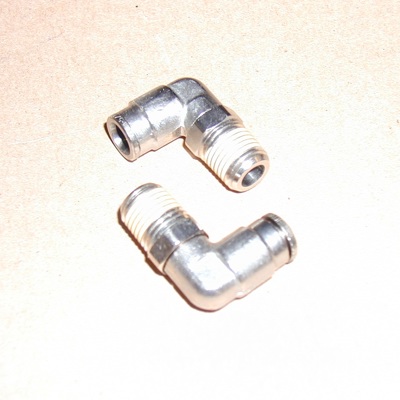

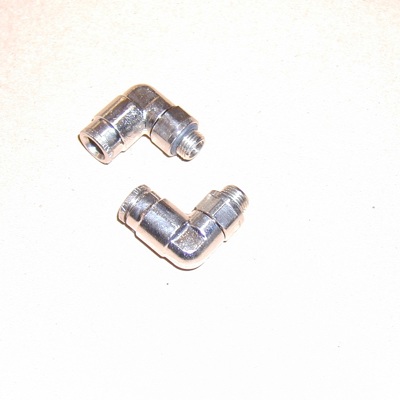

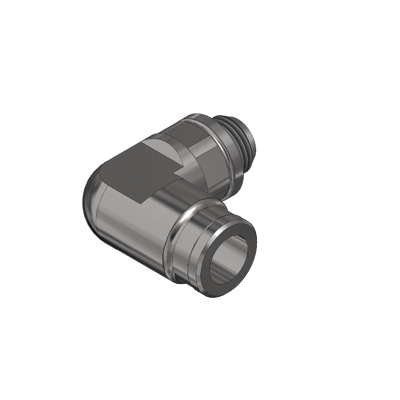

Swivel Elbow Fitting
|
Swivel Elbow Adaptor; 8mm (5/16") T x 1/8" G |
773011 |
|
|
|
69 |
|

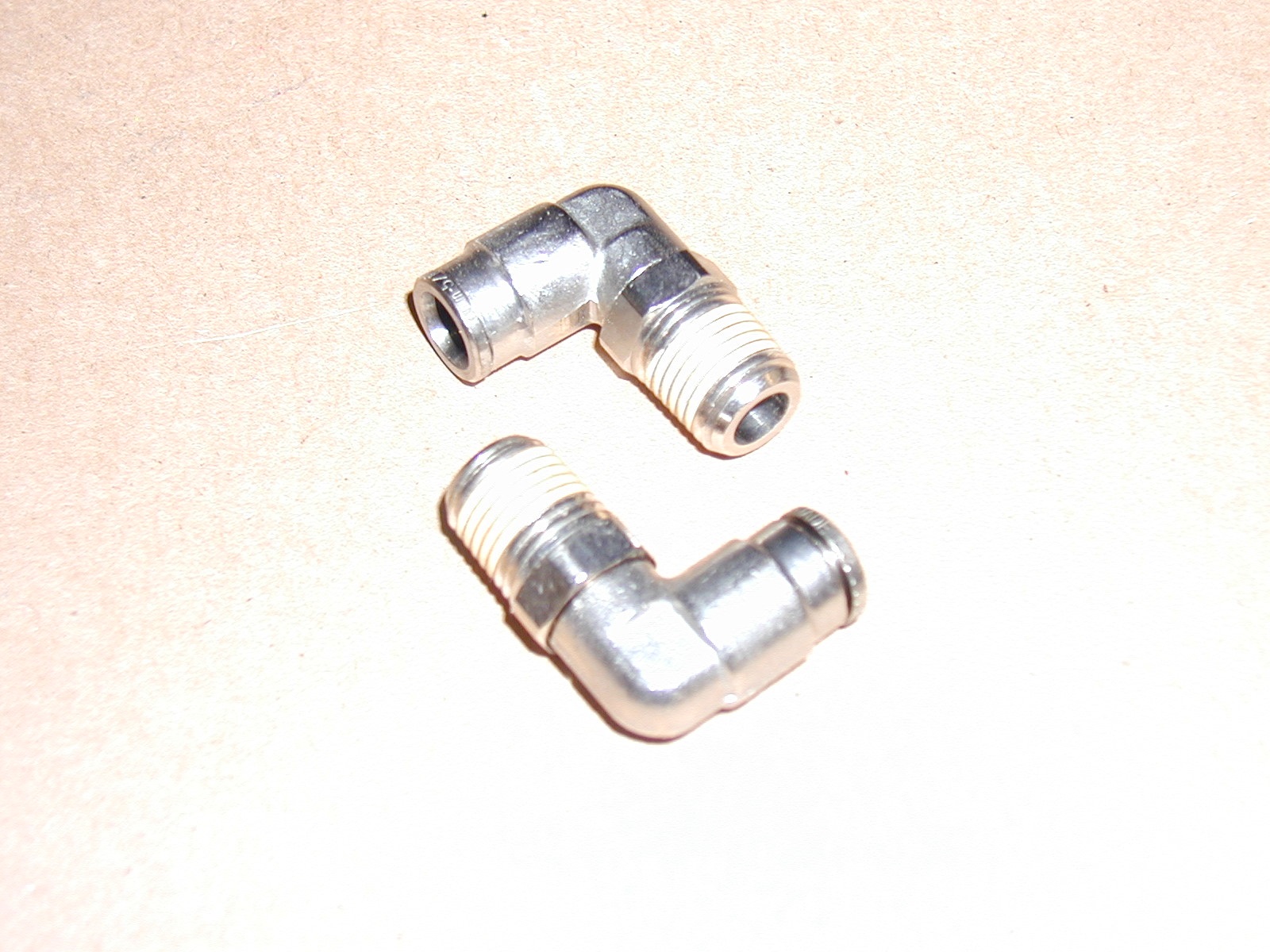

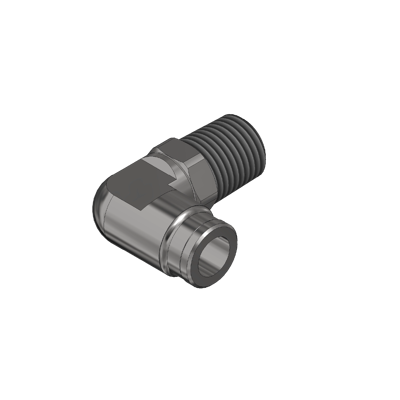

Swivel Elbow Fitting
|
Swivel Elbow; 5/16" T x 1/4" NPT |
773012 |
|
|
|
70 |
|

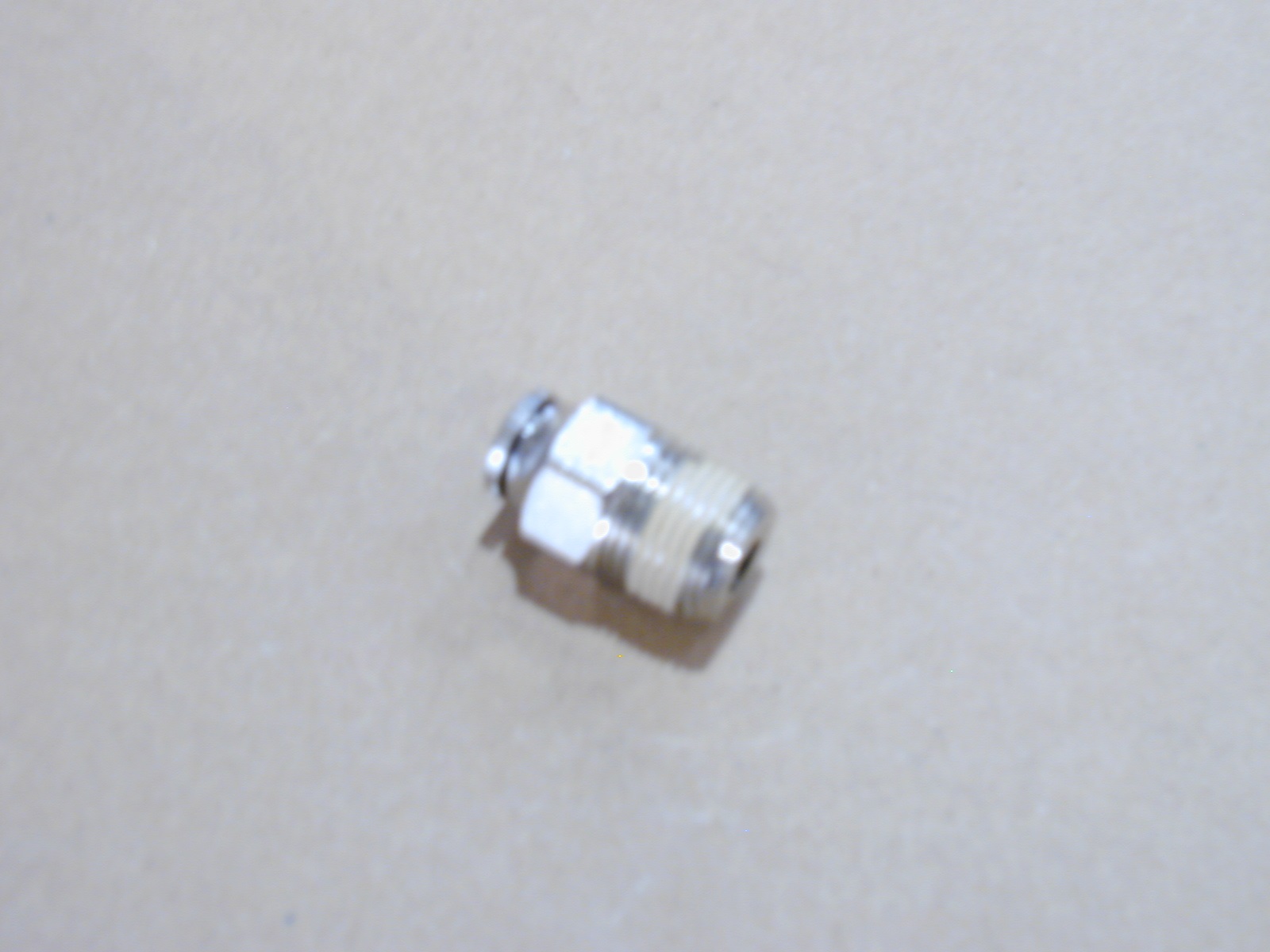

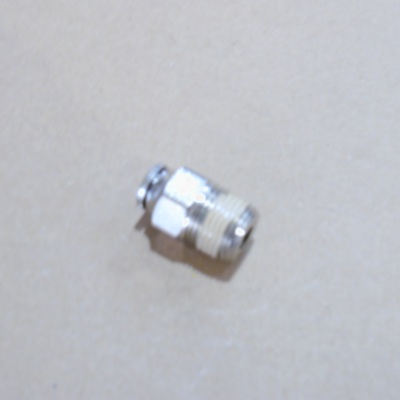

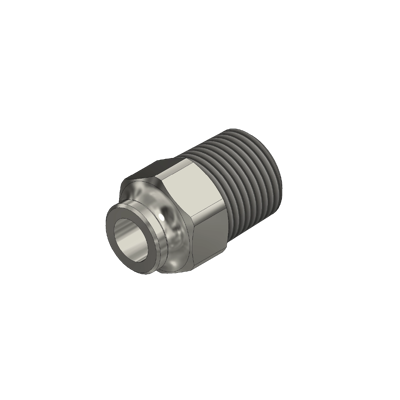

Stud Coupling
|
Stud Coupling; 5/16" T x 3/8" NPT |
773017 |
|
|
|
71 |
|

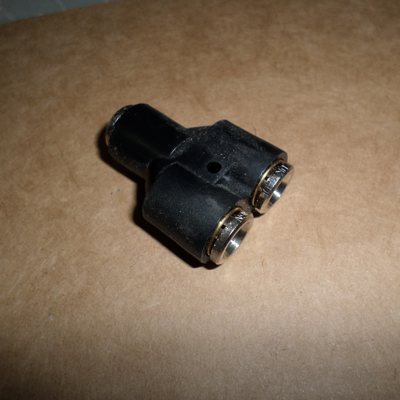

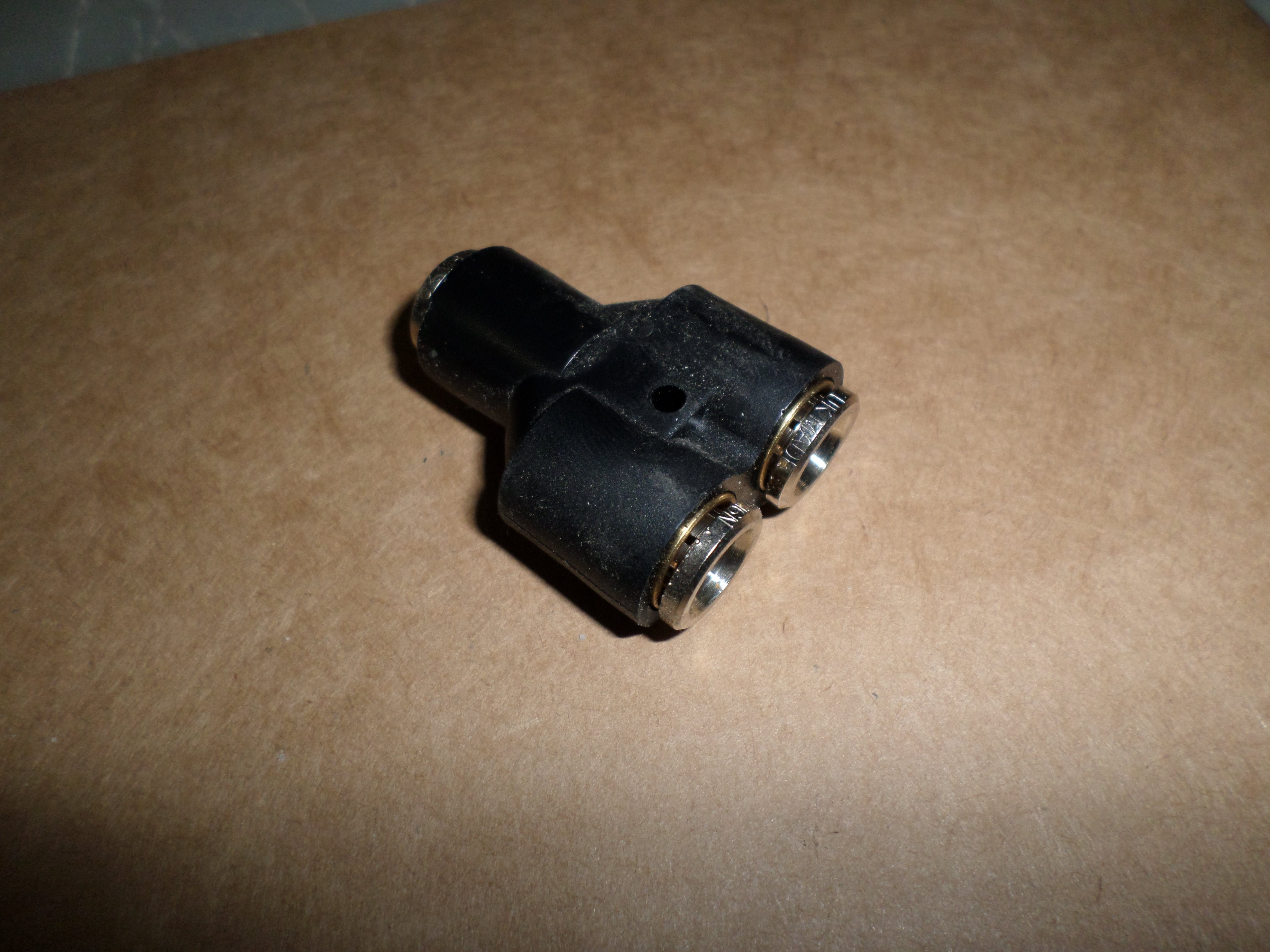

Parallel Union (Y)
|
Parallel Union (Y); 5/16" T; Push-In |
773050 |
|
|
|
72 |
|

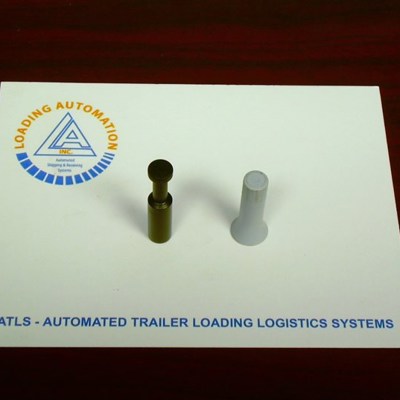

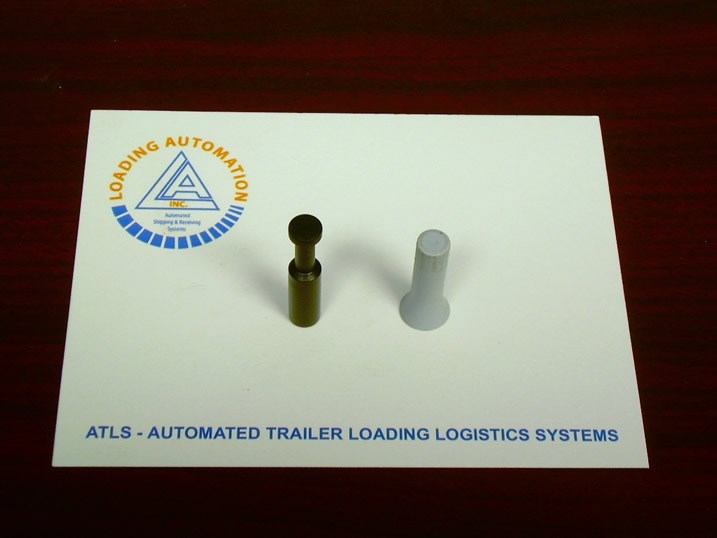

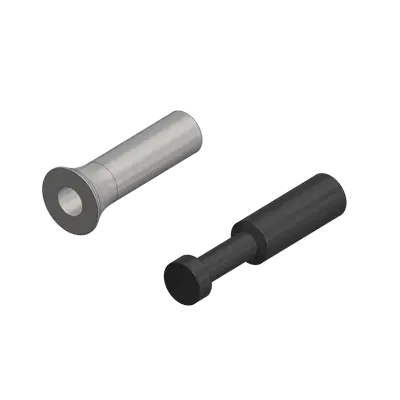

Plug for Fittings
|
Plug; 5/16" T; Push-In (Two Styles Shown) |
773009 |
|
|
|
73 |
|

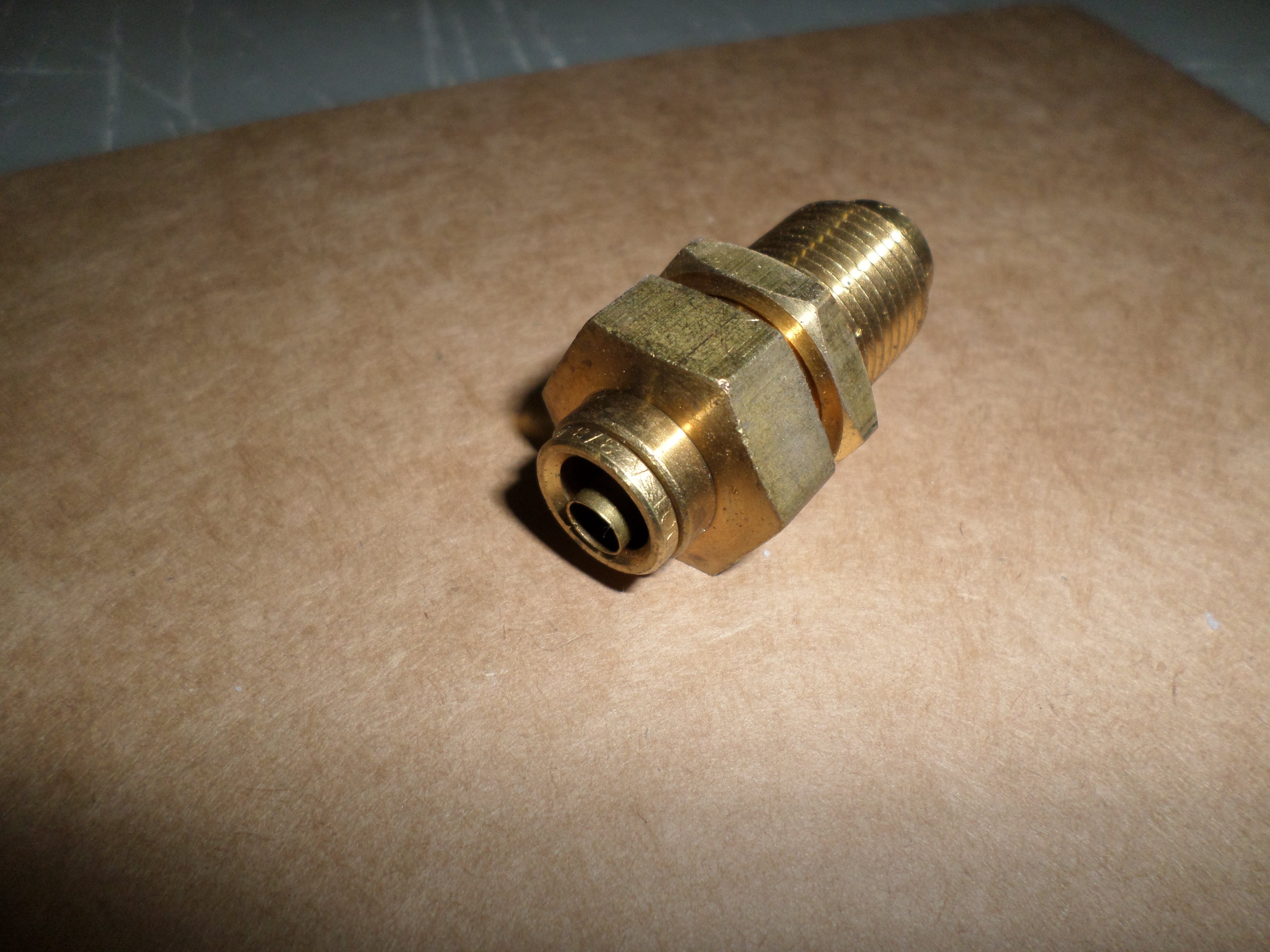

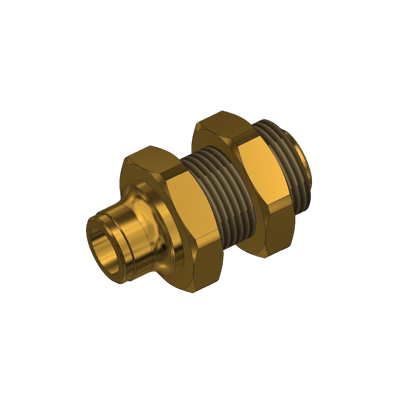

Bulk Head Coupling; DOT
|
Bulk Head Coupling; 3/8" Tube DOT |
775002 |
|
|
|
74 |
|

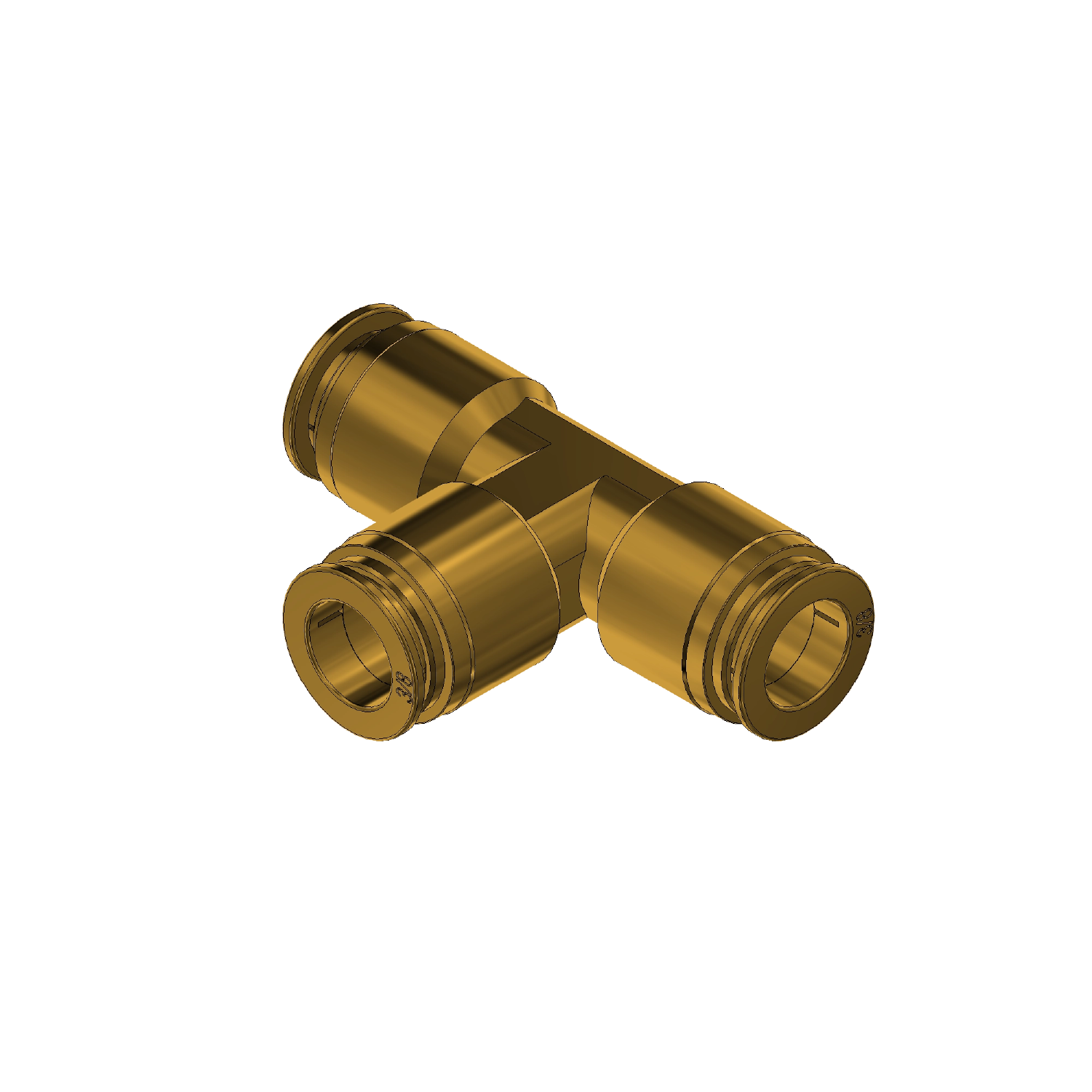

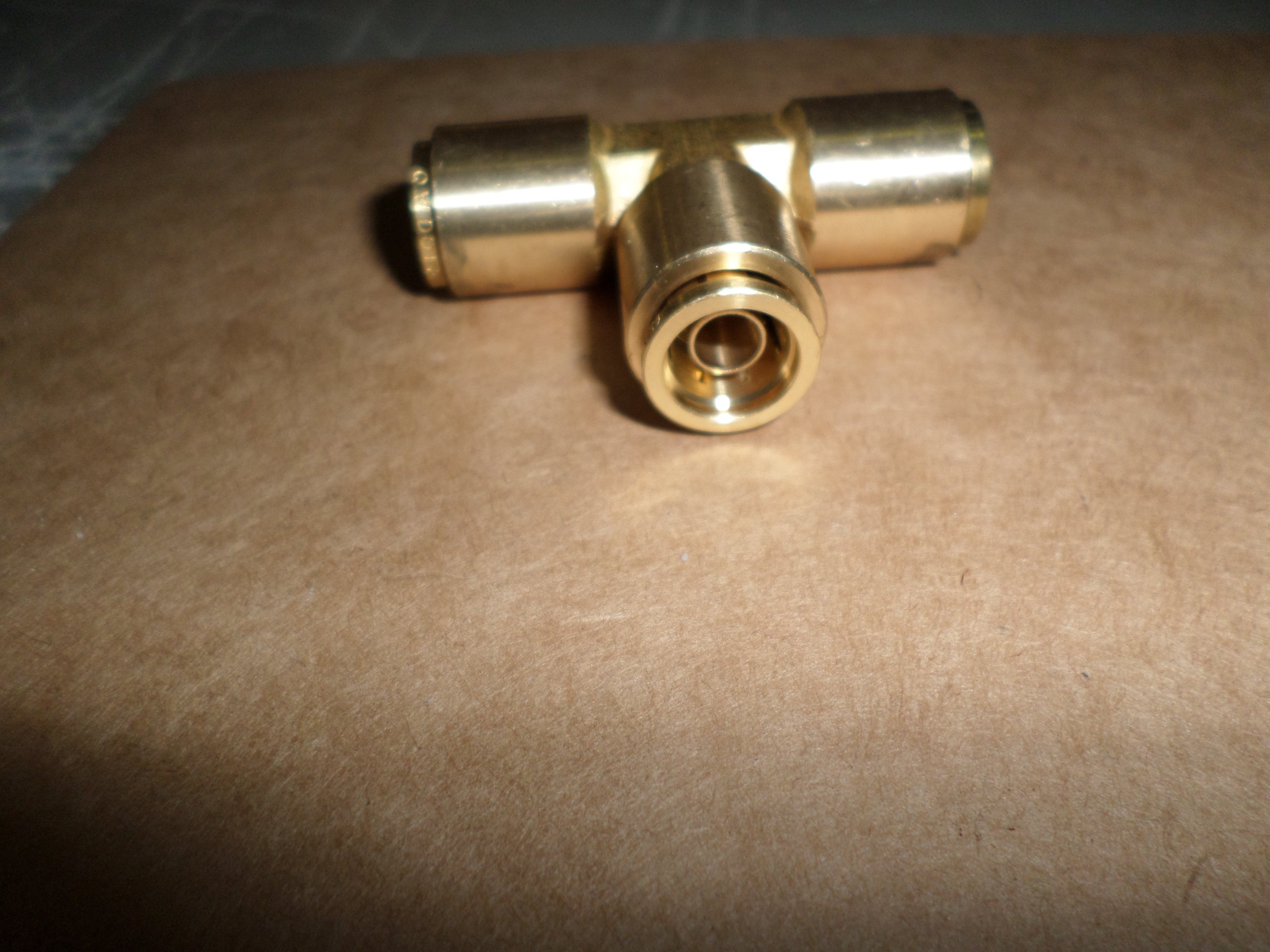

Tee Fitting; DOT
|

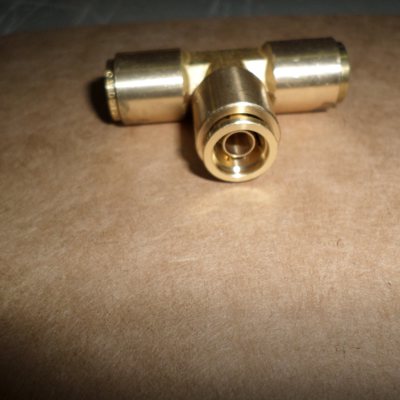

Tee Fitting; 3/8" Tube DOT; Push-In |
775003 |
|
|
|
75 |
|

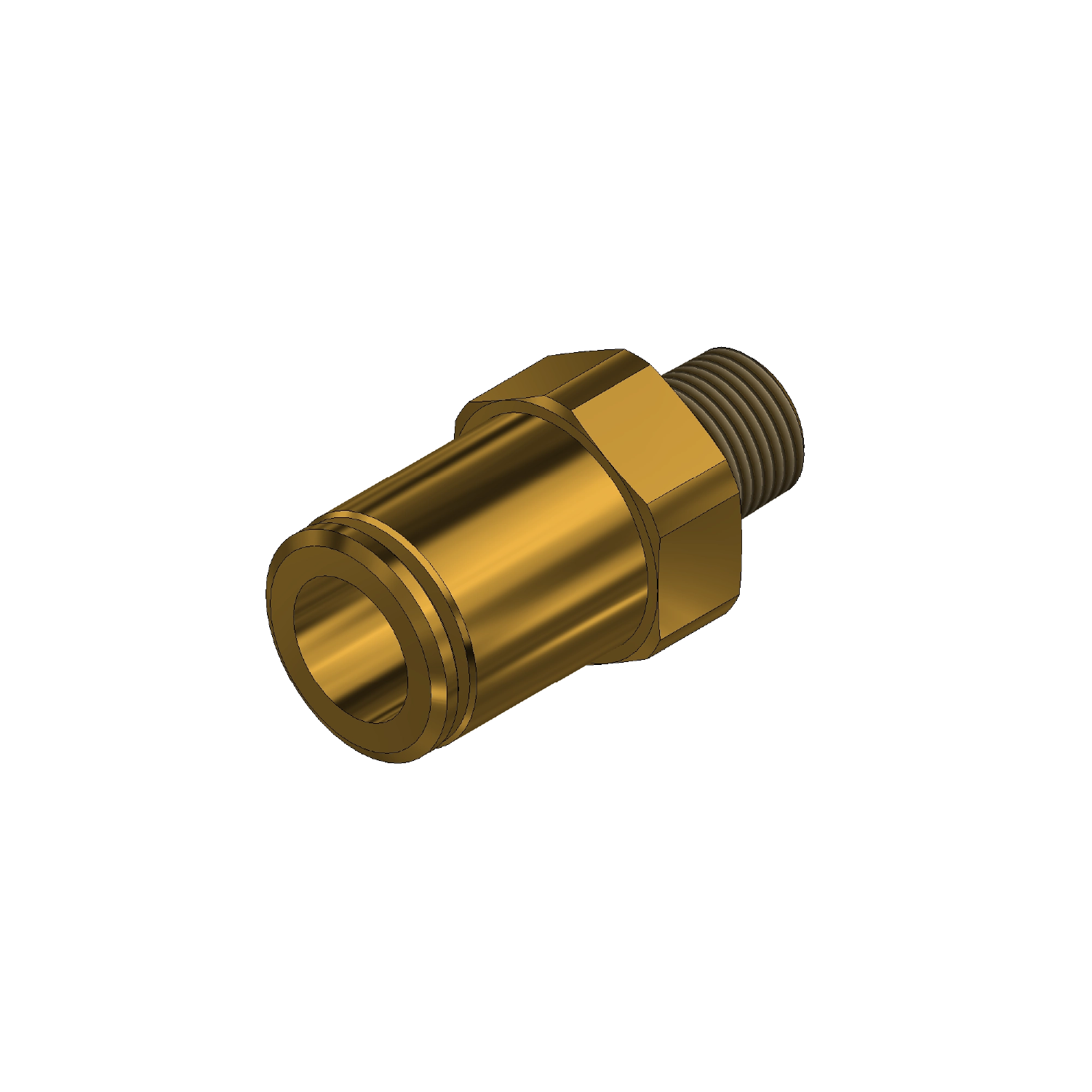

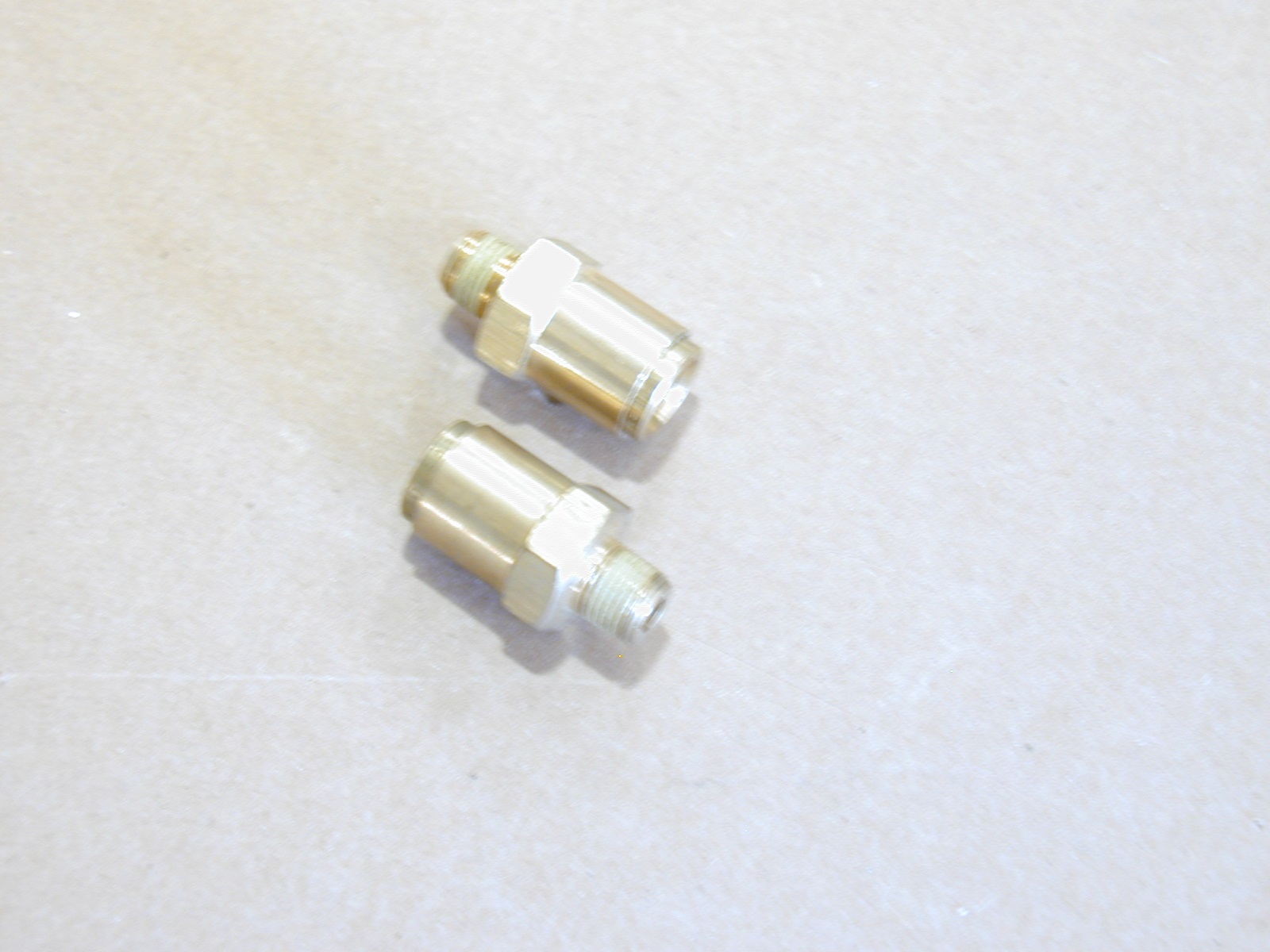

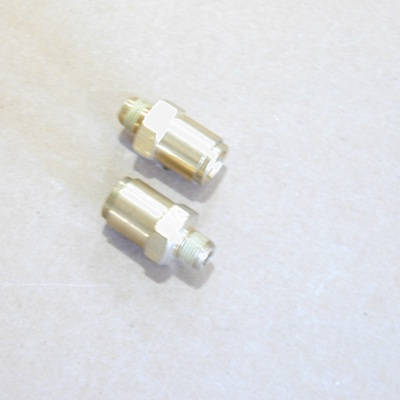

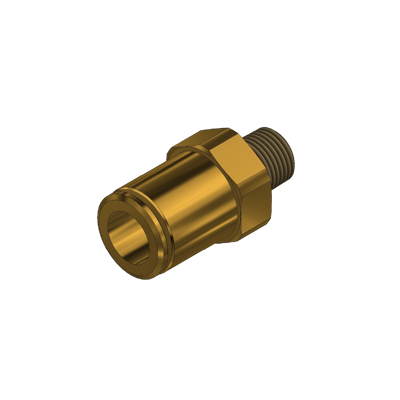

Stud Coupling; DOT
|
Stud Coupling; 3/8" Tube DOT x 1/8" BSP |
775004 |
|
|
|
76 |
|

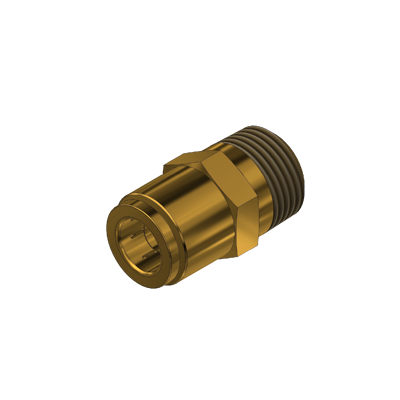

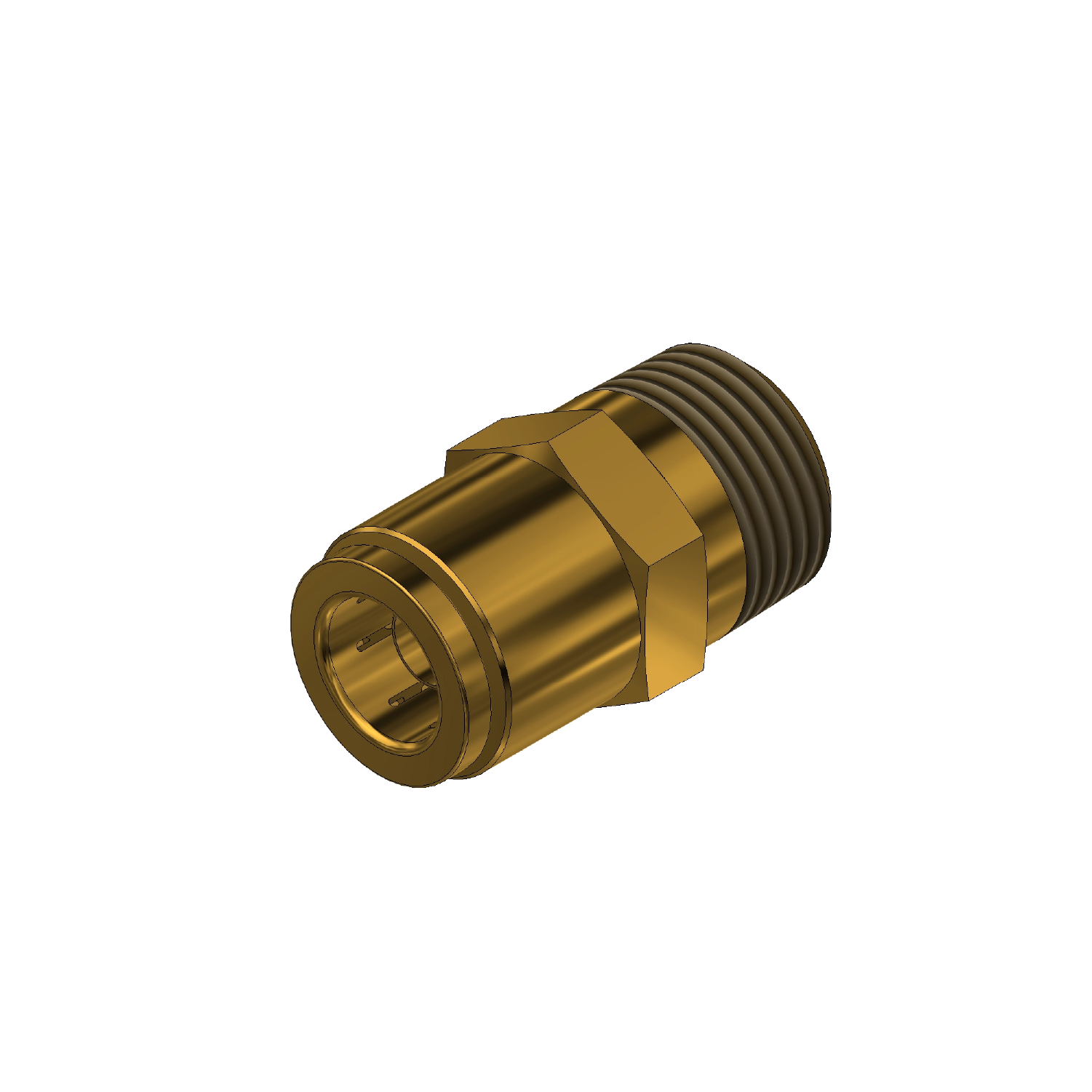

Male Pipe Connector
|
Male Pipe Connector; 3/8" T x 3/8" Pipe |
775010 |
|
|
|
77 |
|

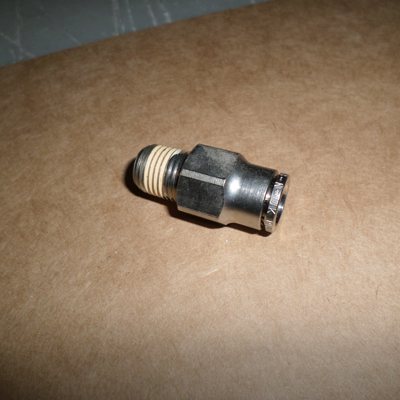

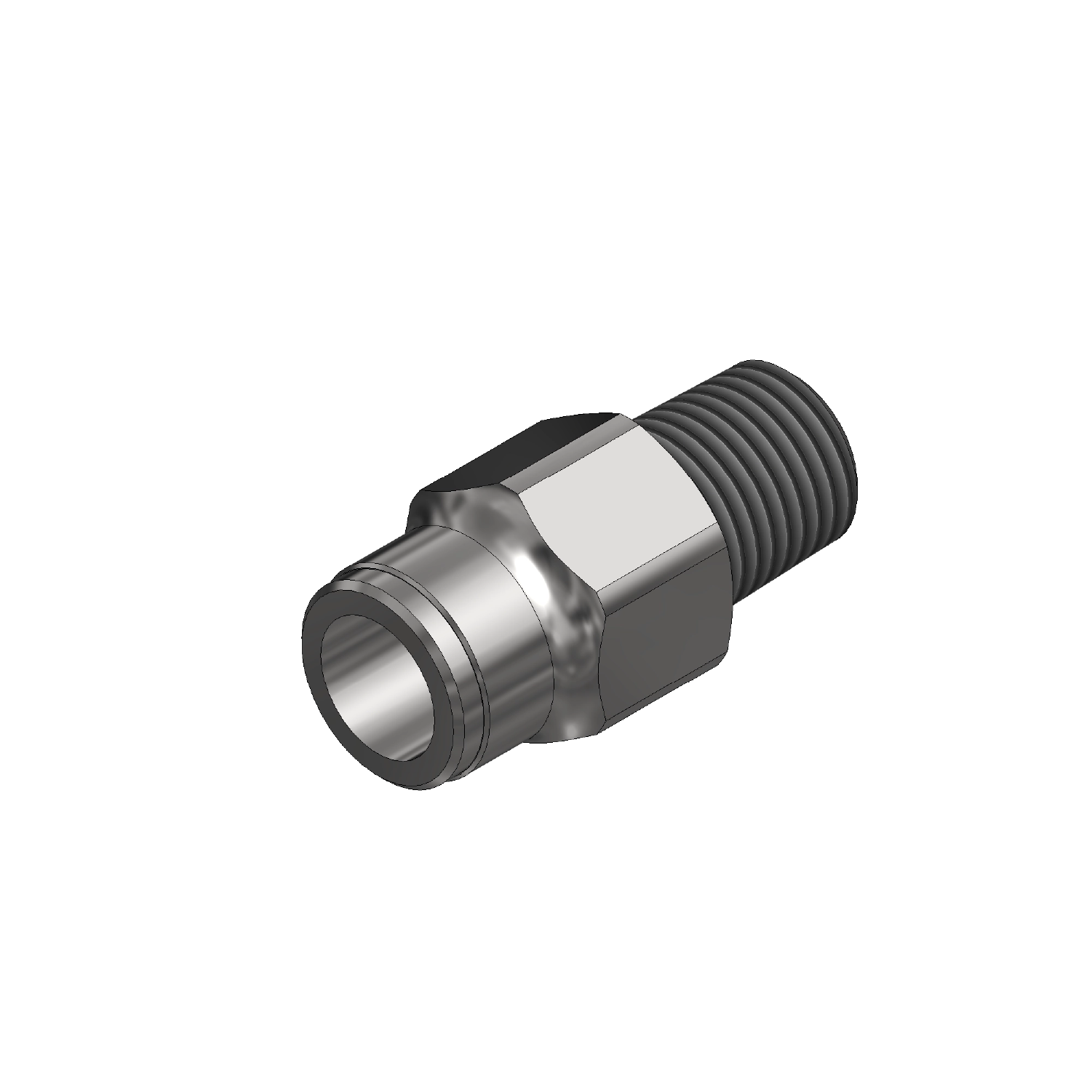

Stud Coupling
|

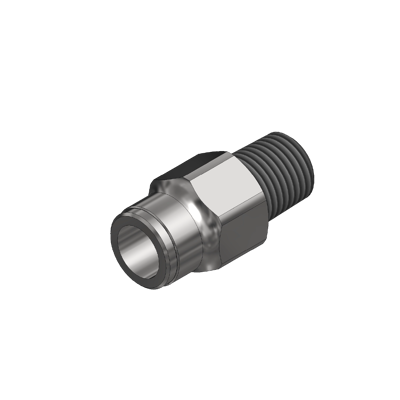

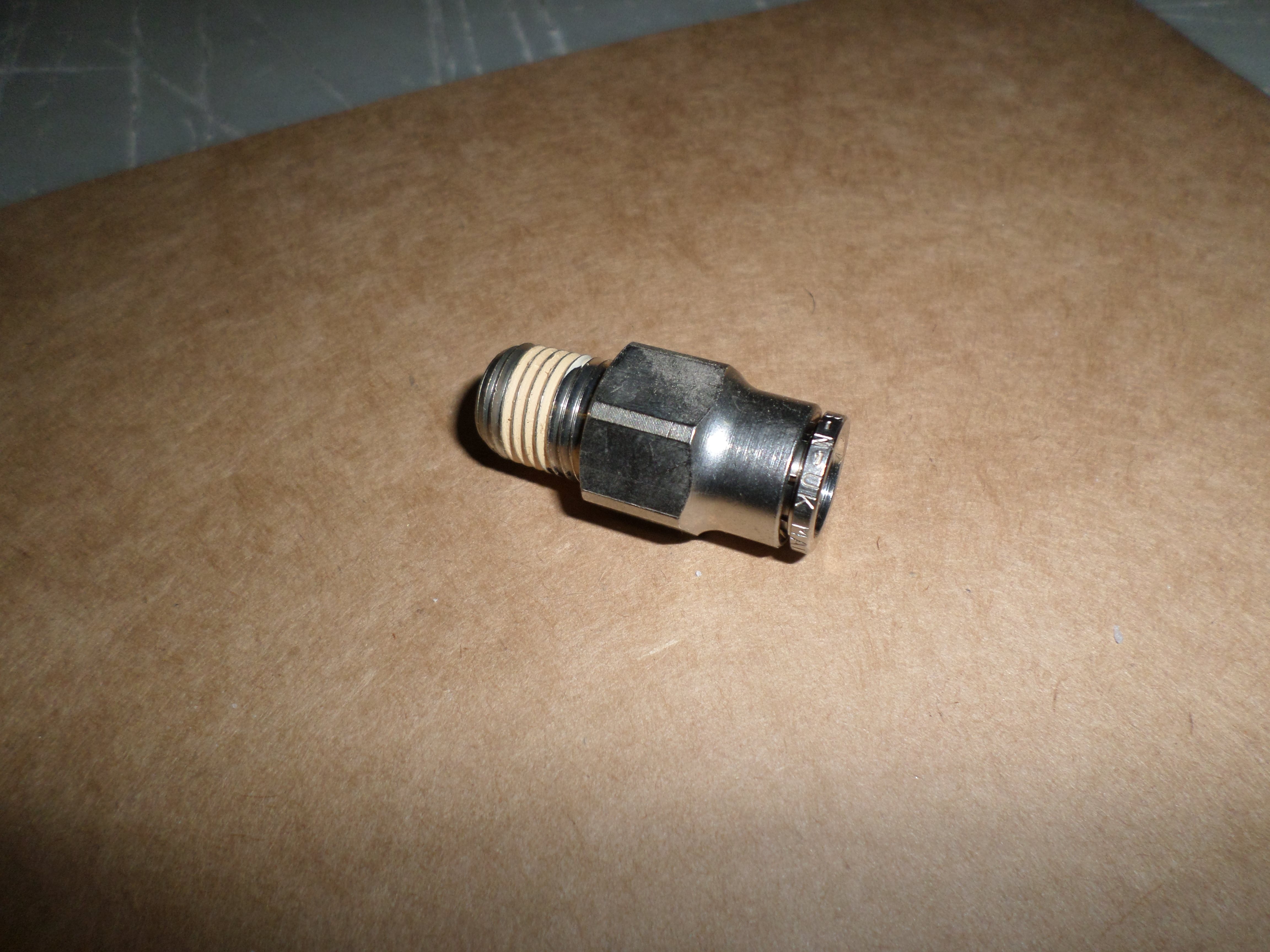

Stud Coupling; 3/8" T x 1/4" NPT |
774009 |
|
|
|
78 |
|

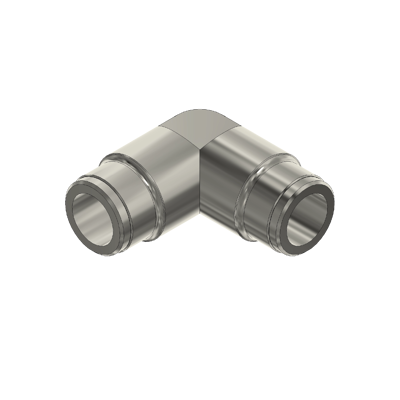

Elbow Fitting
|
Elbow; 3/8" T x 3/8" T |
774011 |
|
|
|
79 |
|

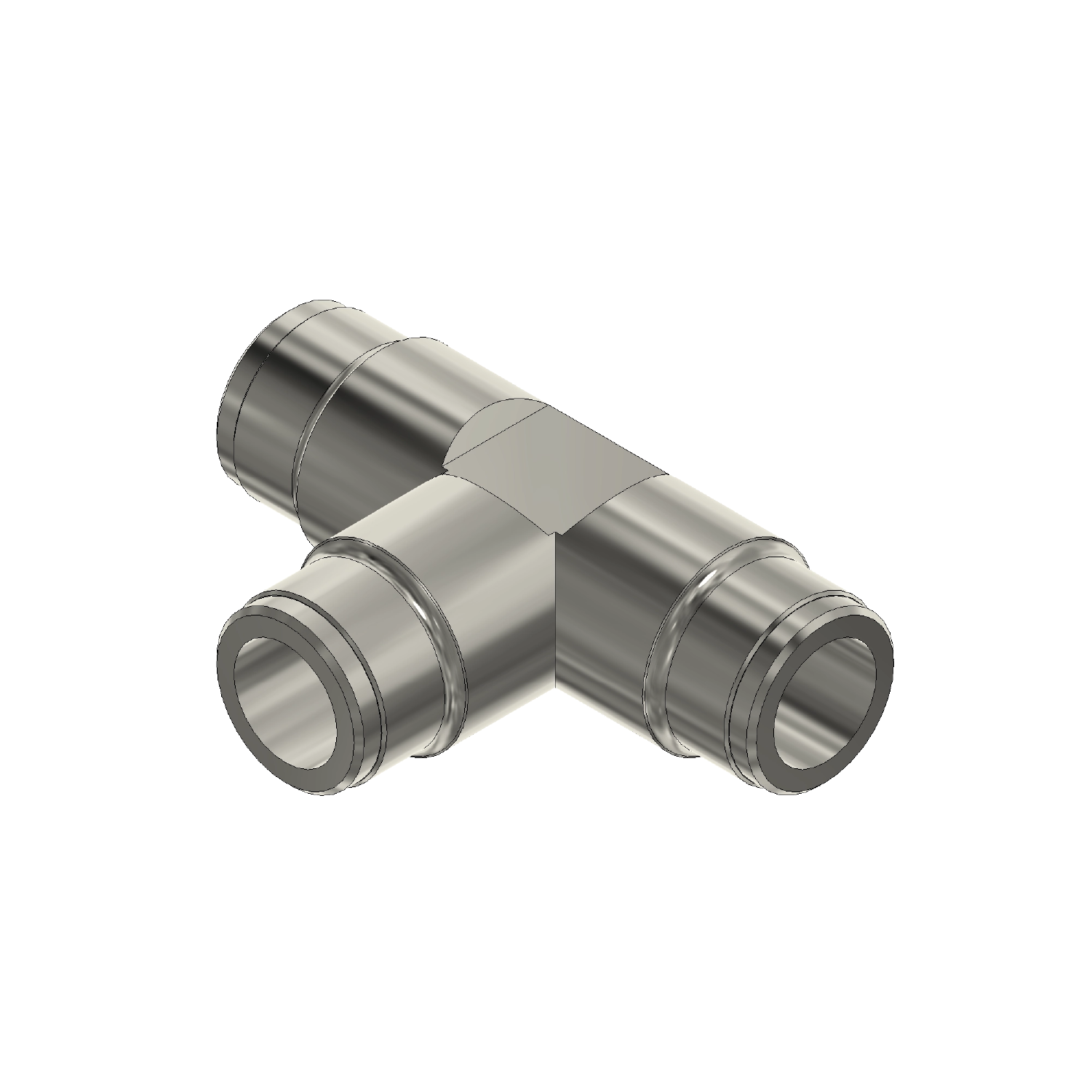

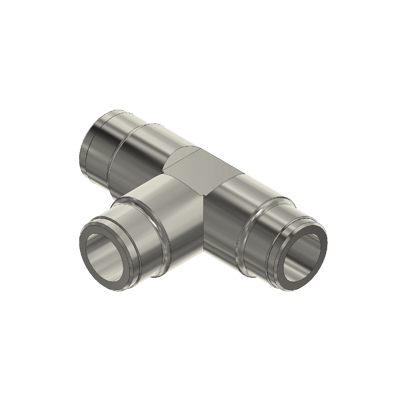

Tee Fitting
|
Tee; Brass; 3/8" T |
774006 |
|
|
|
80 |
|

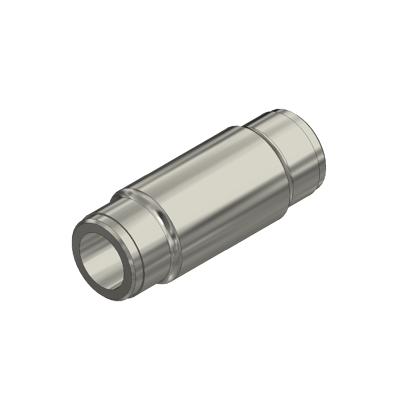

Straight Connector Fitting
|
Straight Connector; 3/8" T x 3/8" T |
774005 |
|
|
|
81 |
|
Plug for Fittings
|

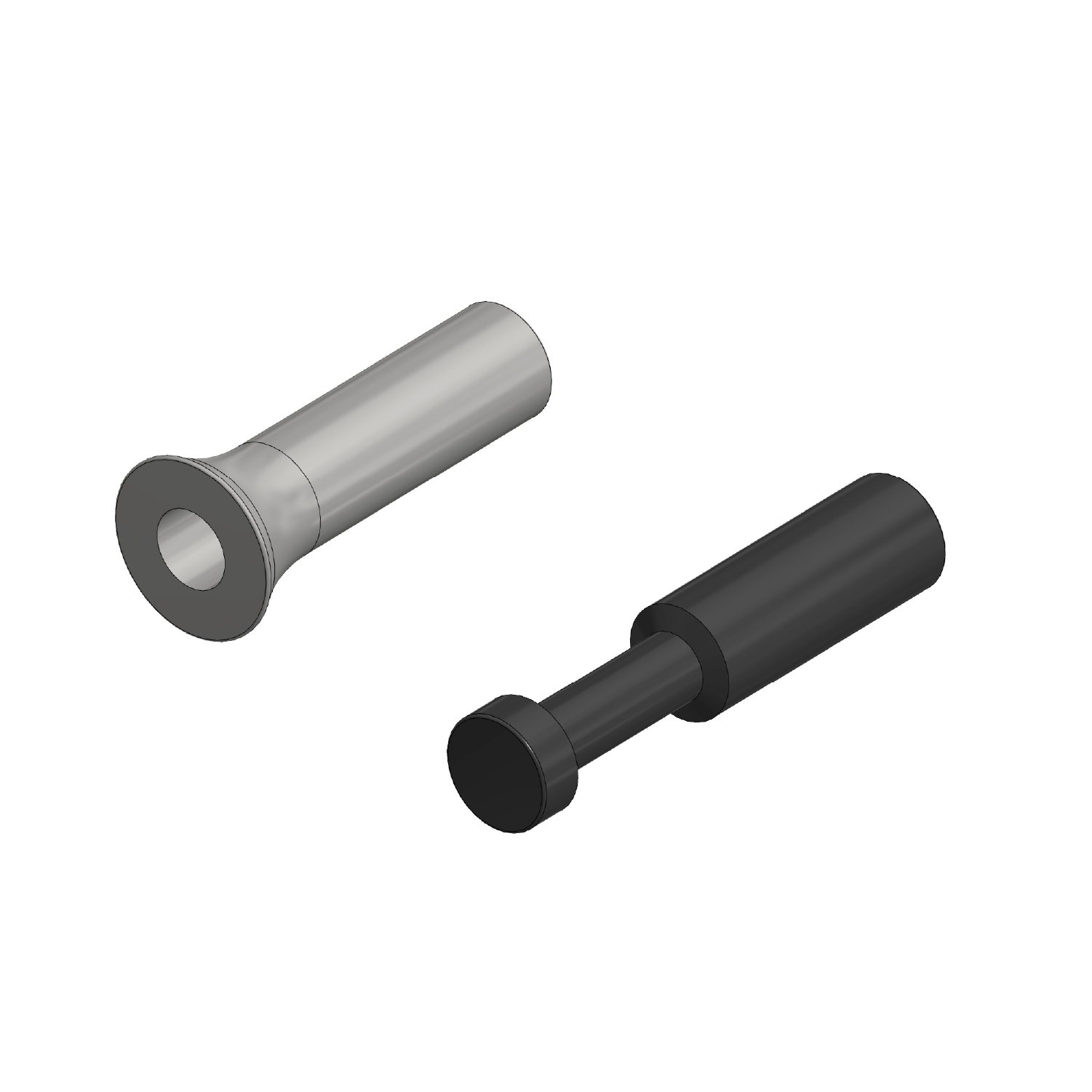

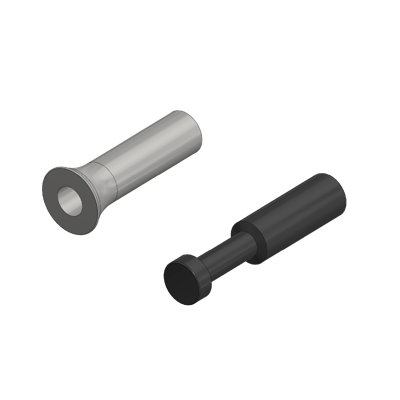

Plastic Plug, 3/8" T; Push-In;
(Two styles shown) |
774013 |
|
|
|
82 |
|

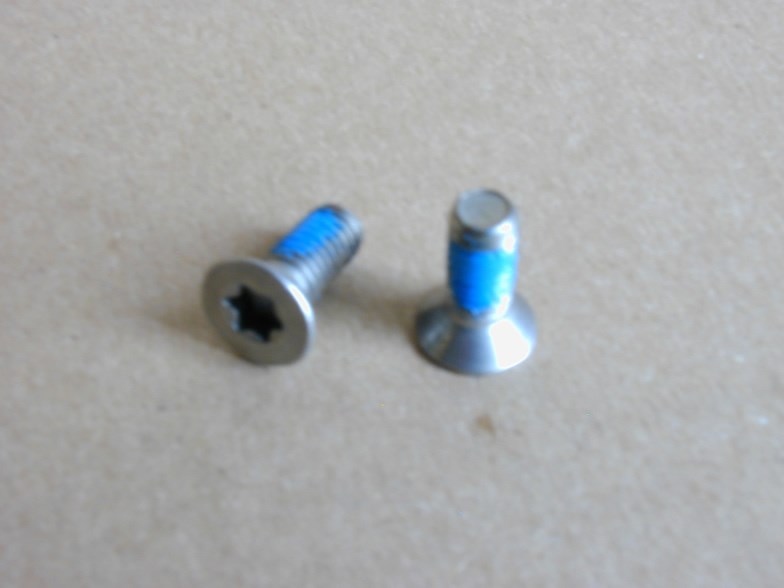

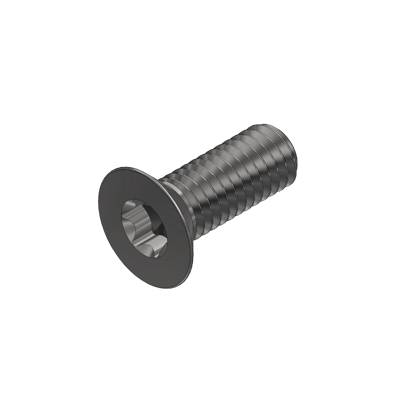

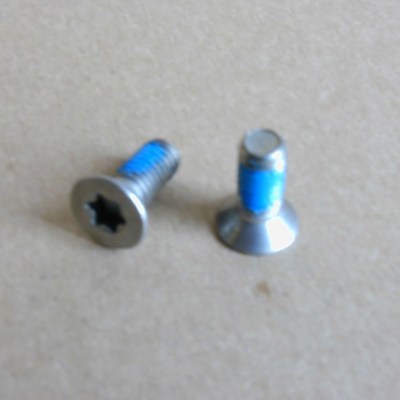

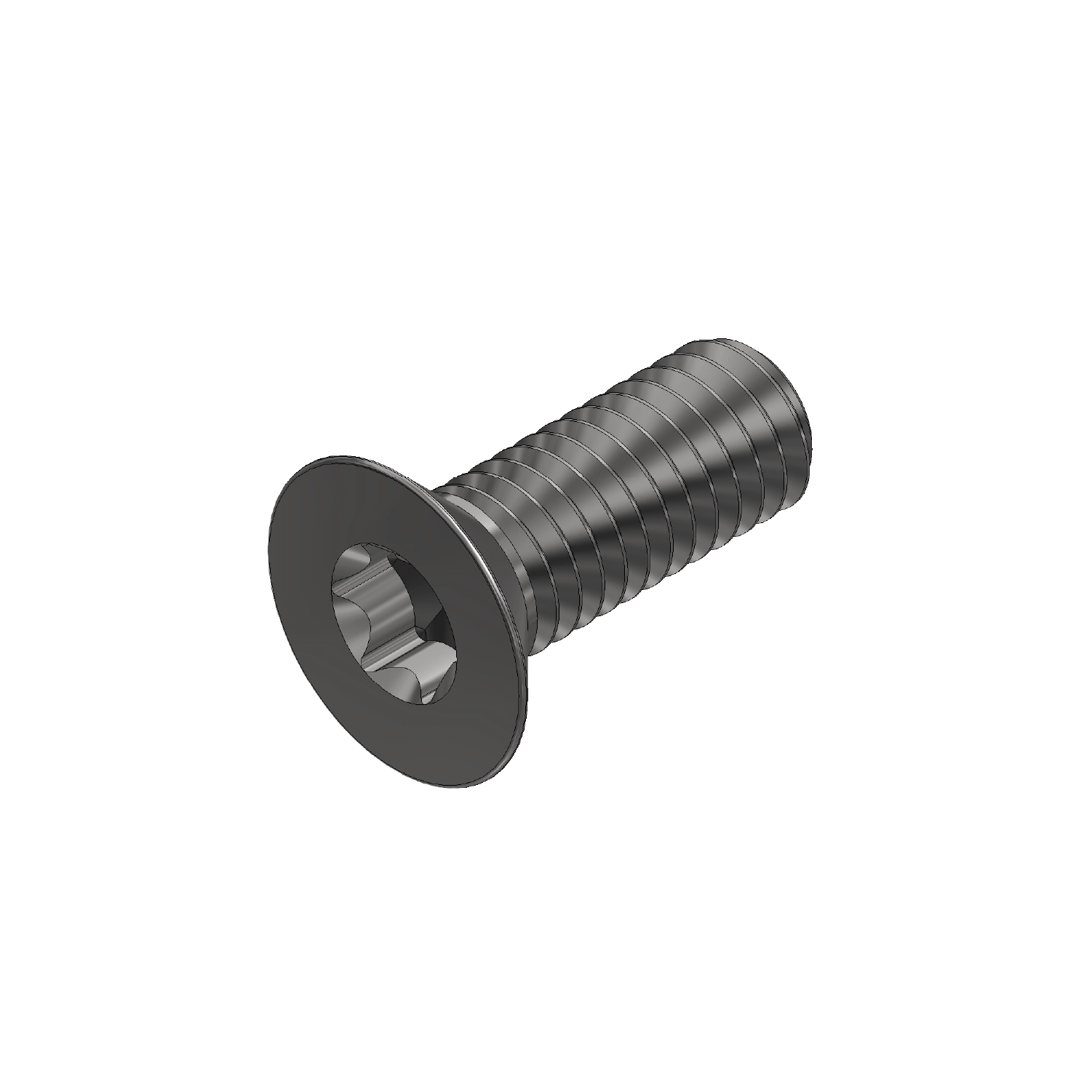

Top Plate Screw
|
Top Plate Screw; SS; M6 x 15; Torx; w/ Loctite |
943003 |
|
|
|
83 |
|

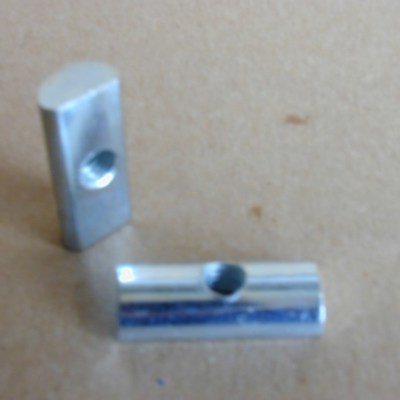

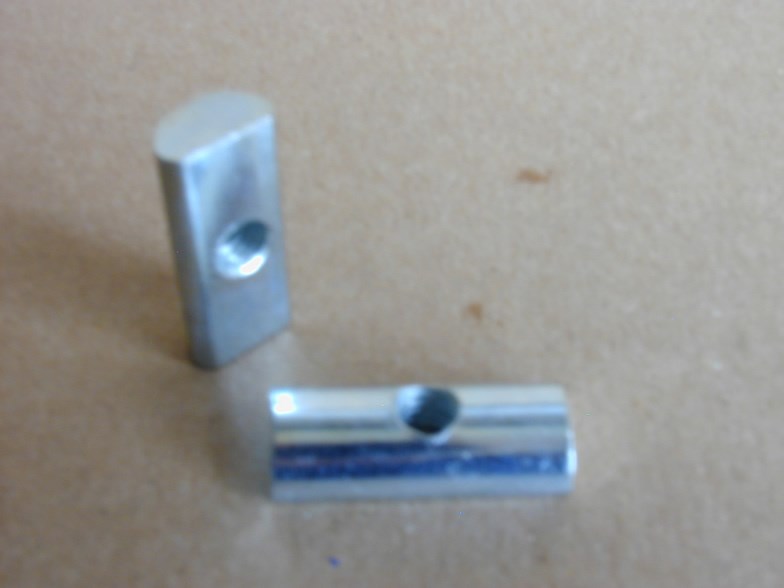

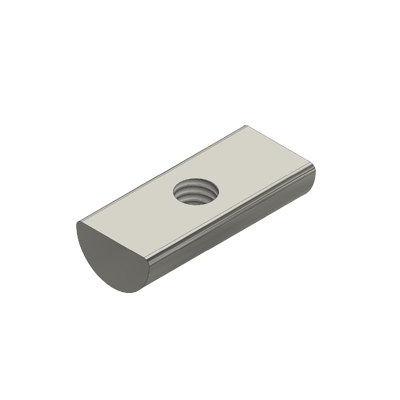

Drop-In Nut Bar
|
Drop-In Nut Bar; M6 |
944004 |
|
|
|
84 |
|

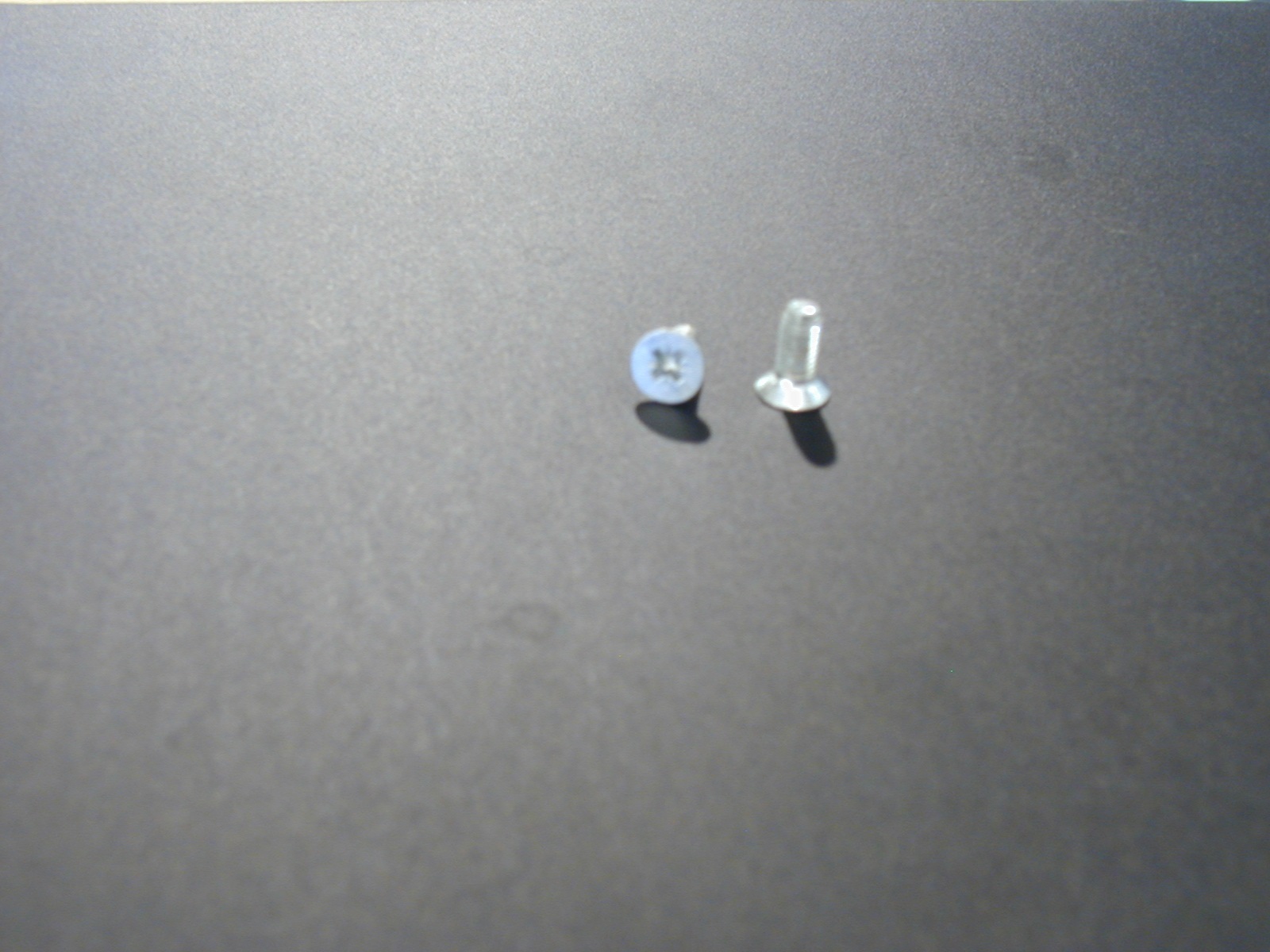

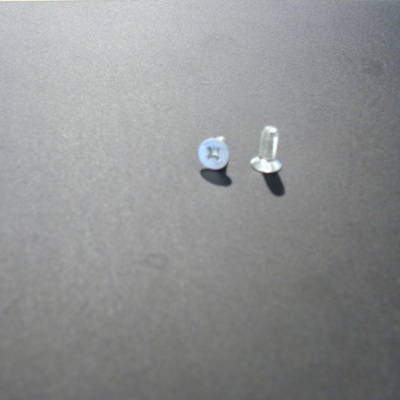

Guide Angle Screw
|
Guide Angle Screw; M5 X 16mm; Stainless Steel |
940027 |
|
|
|
85 |
|

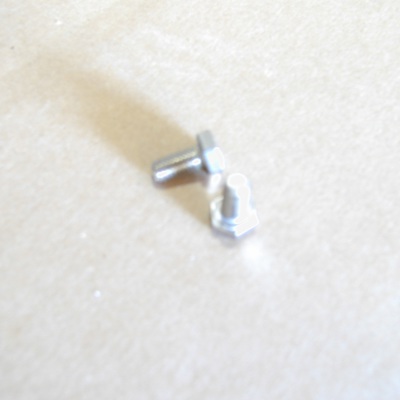

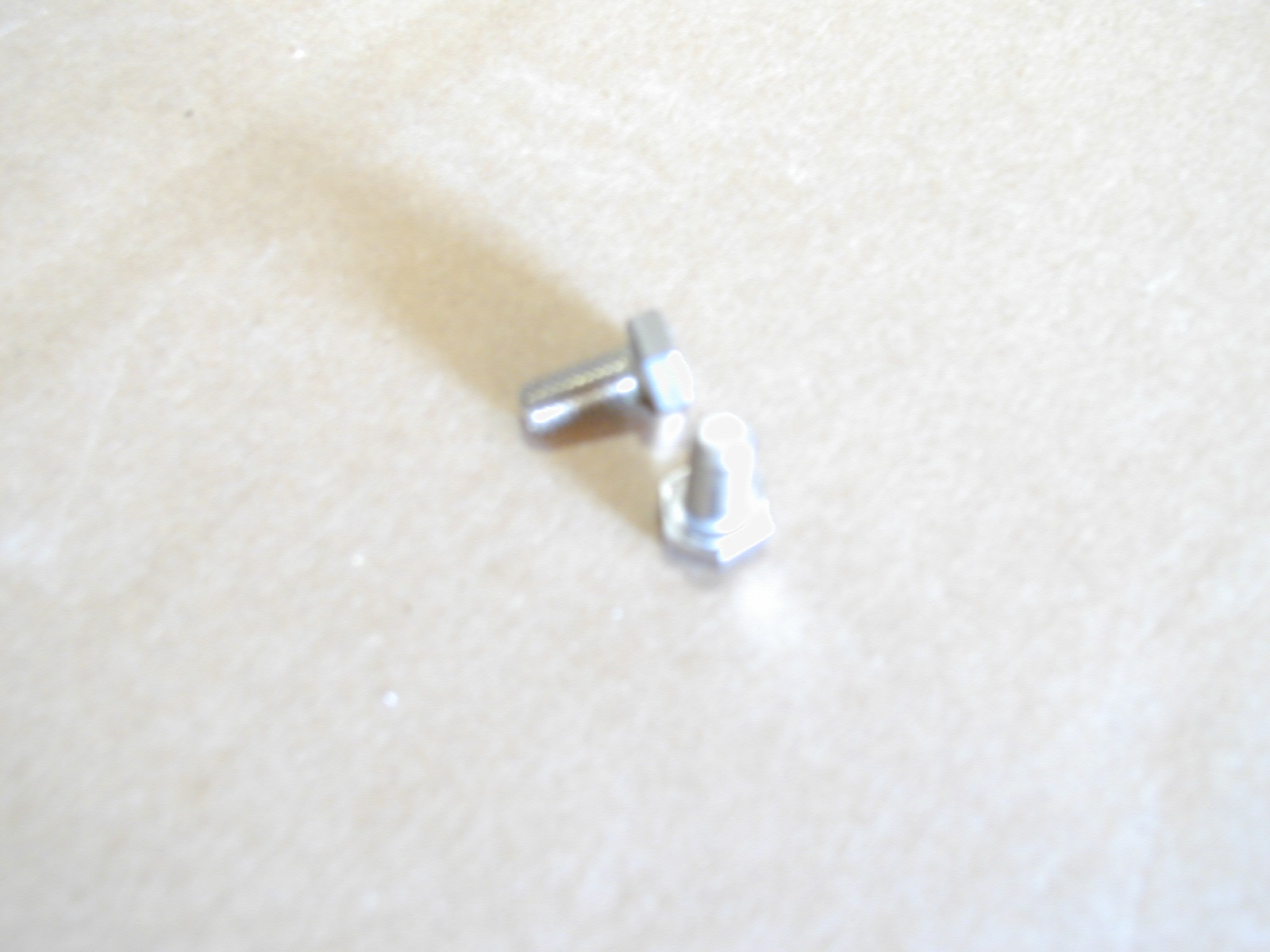

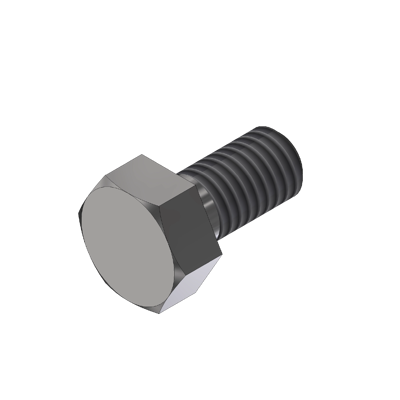

Face Plate Mounting Bolt
|
Face Plate Mounting Bolt; Stainless Steel;
Hex Head 6mm x 12mm;
(For all Face Plates) |
940031 |
|
|
|
86 |
|

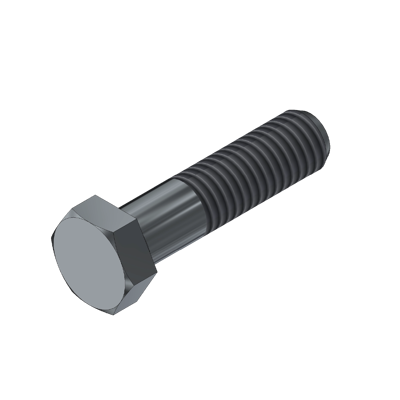

Air Tank Mounting Bolt
|
Bolt; Hex Head; Gd5; 3/8-16 x 1-1/2" |
940016 |
|
|
|
87 |
|

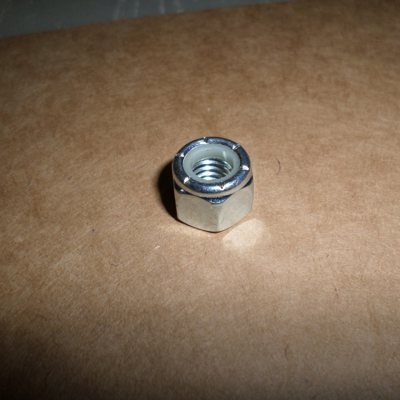

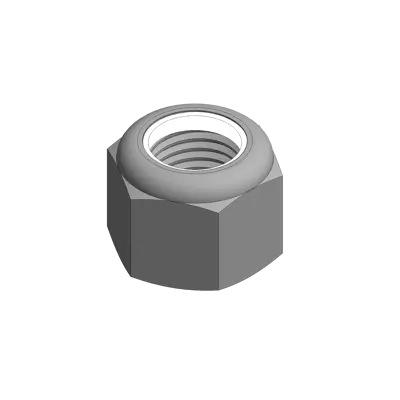

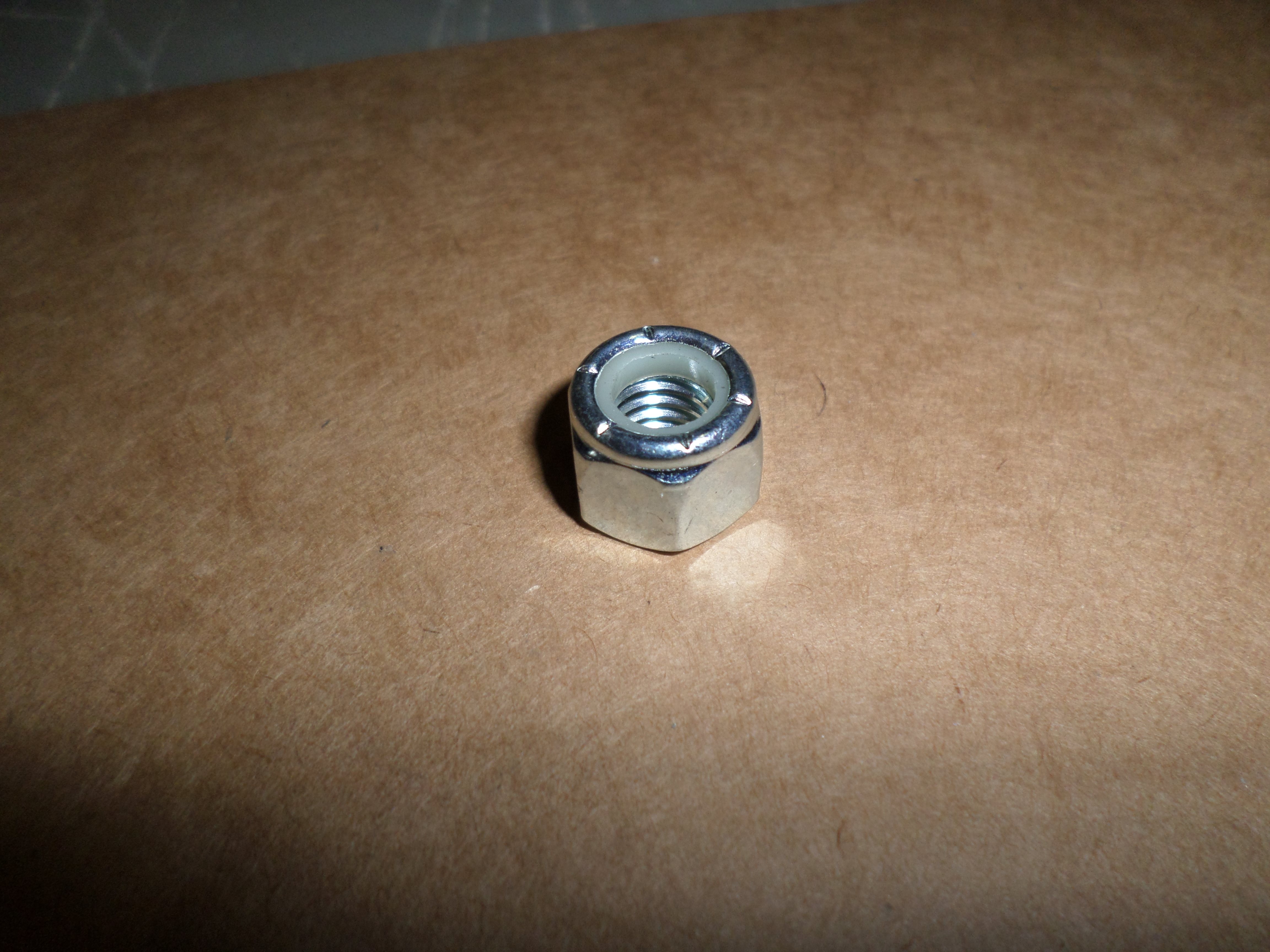

Nut Nylon Lock
|
Nut Nylon Lock; 3/8" UNC;
(For 940031, 940016, 770004 Bolts) |
941009 |
|
|
|
88 |
|

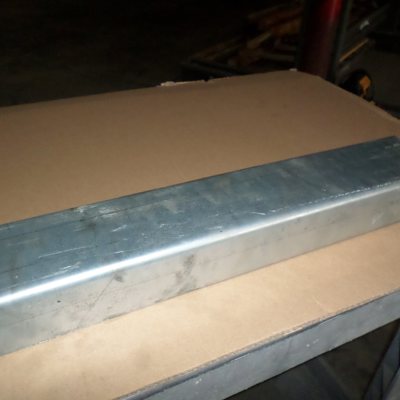

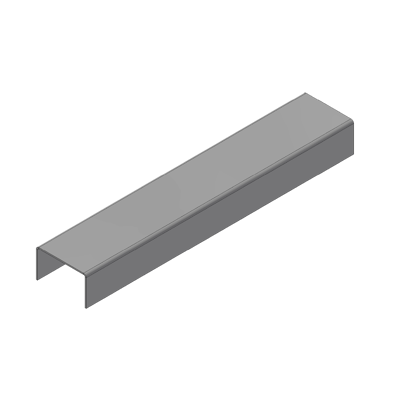

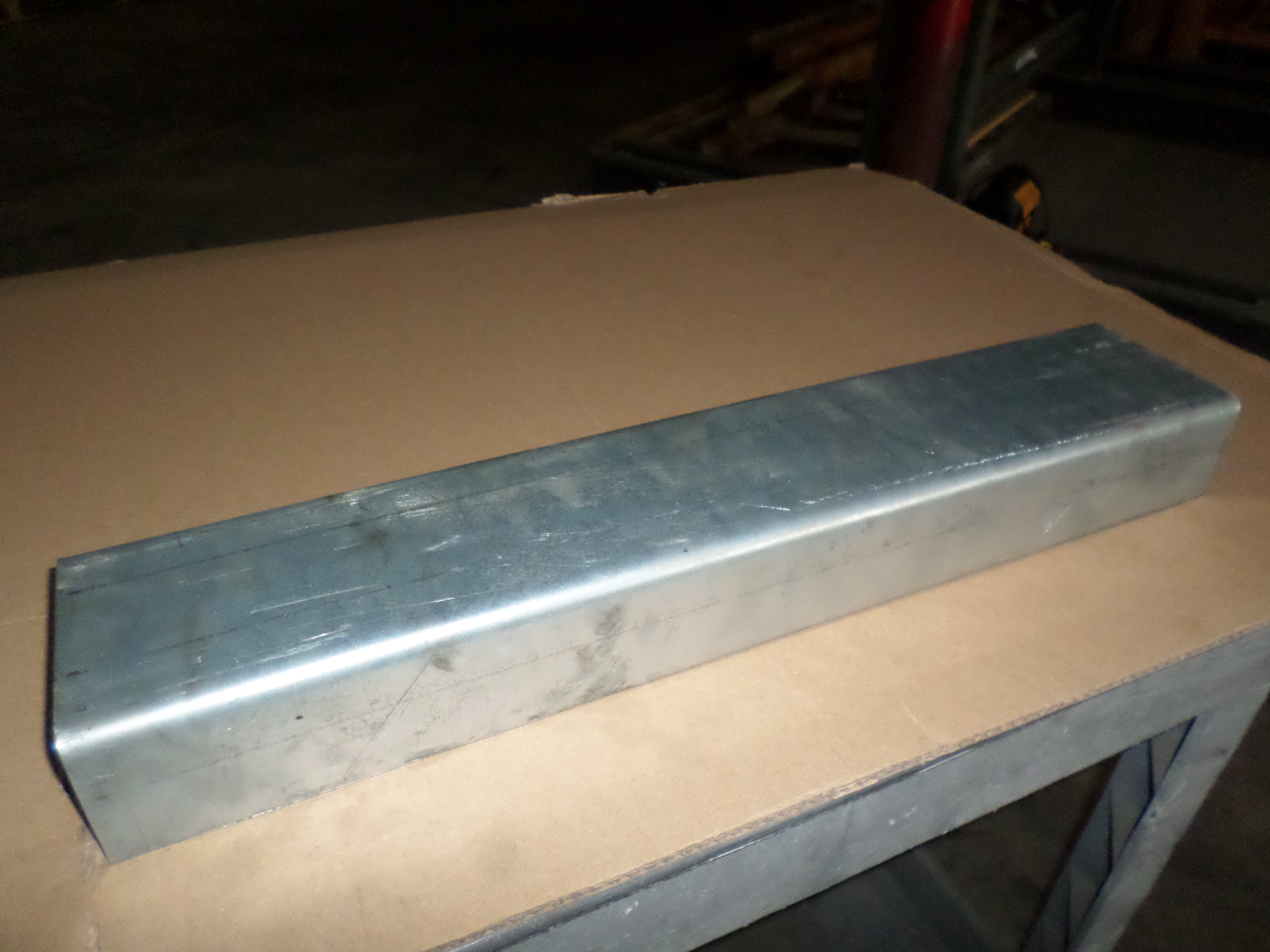

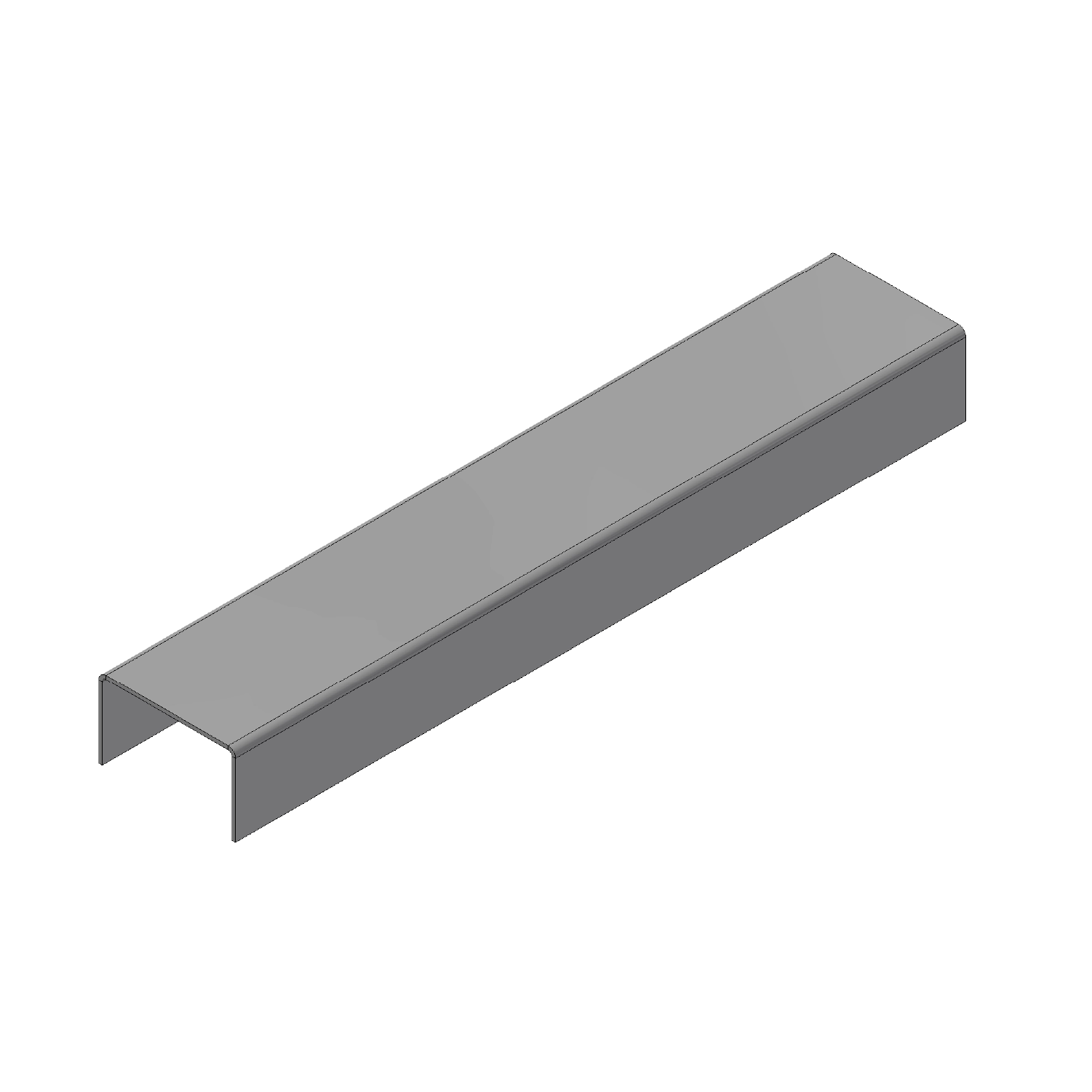

Runout Channel
|
Runout Channel; Galv; MK4 / M21; 24" Long |
713000 |
|
|
|
89 |
|

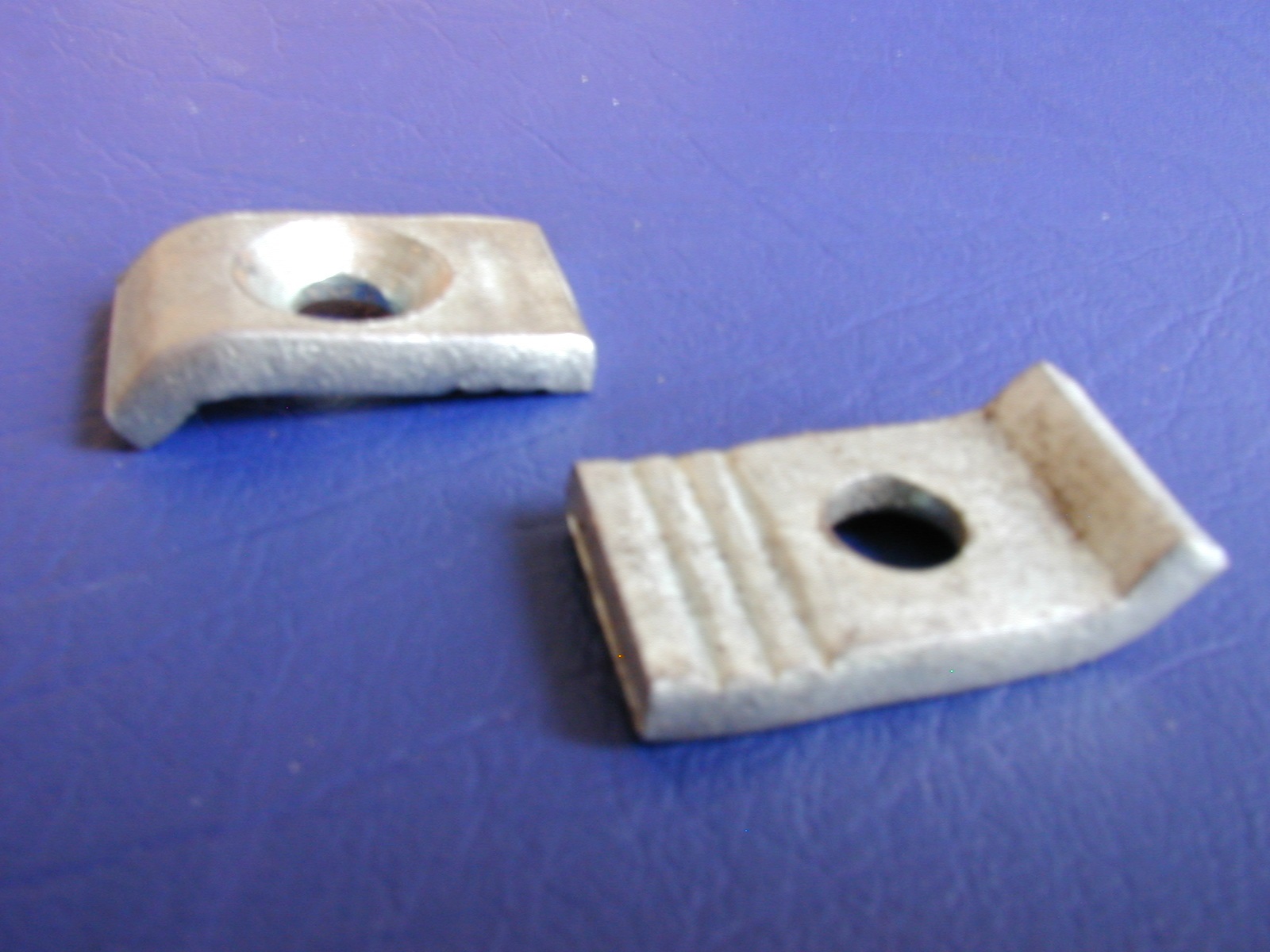

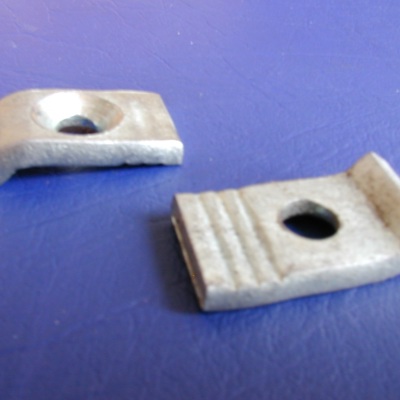

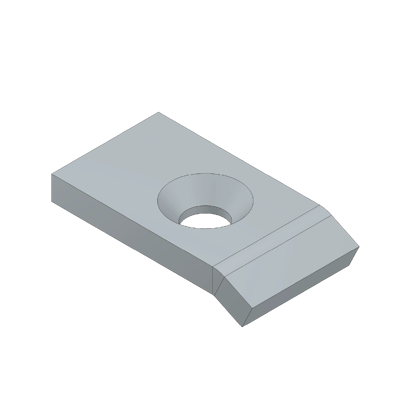

Track Mounting Flange Clip
|
Flange Clip; Track Mounting;
For 1/4-20 Wood Floor Screw |
714011 |
|
|
|
90 |
|

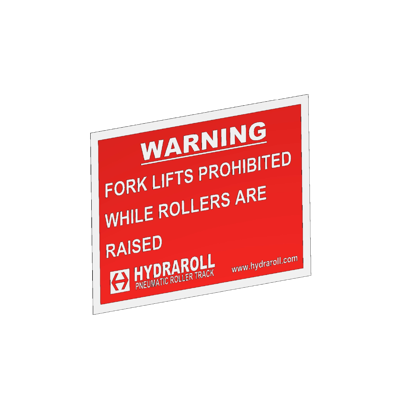

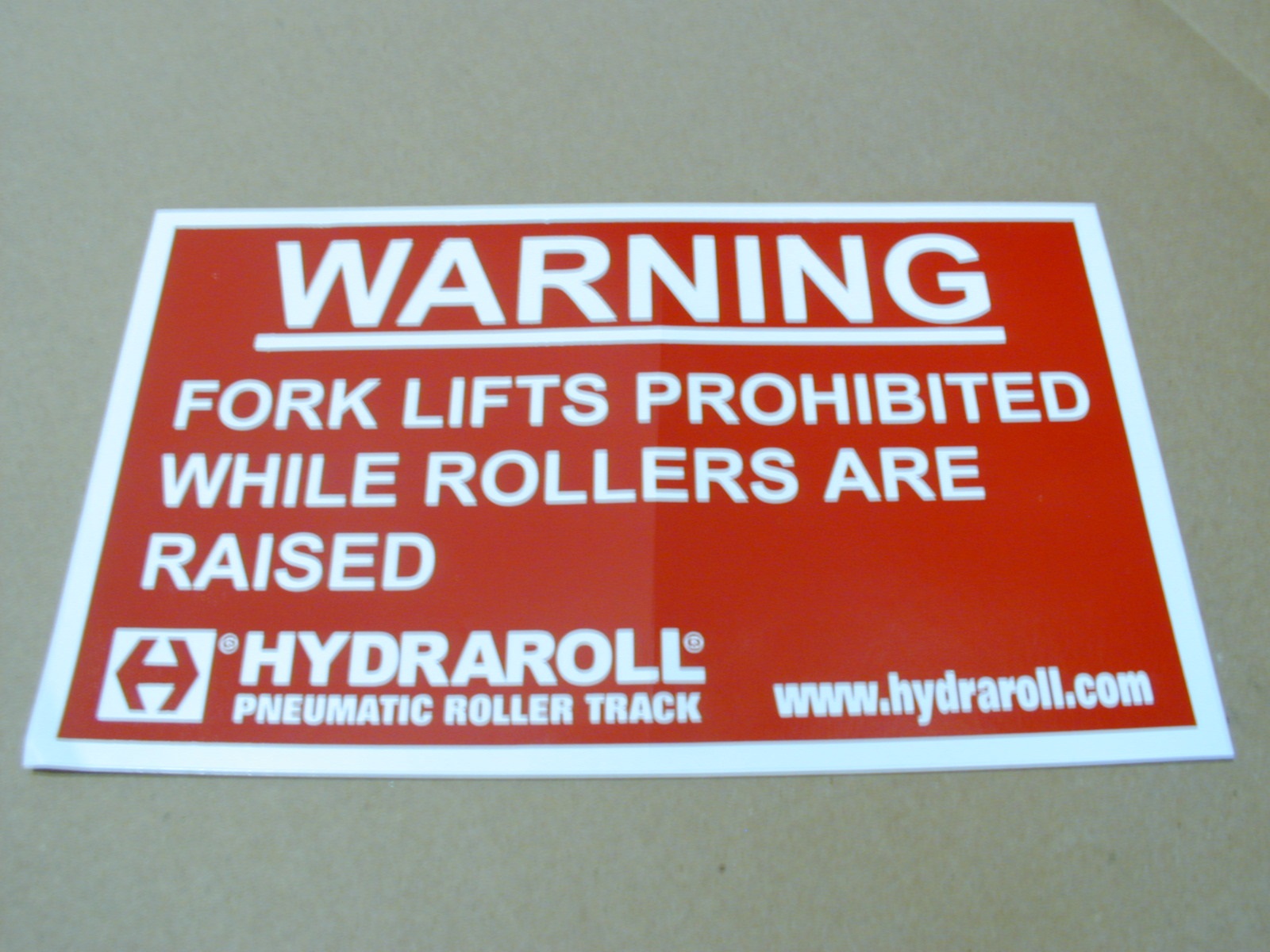

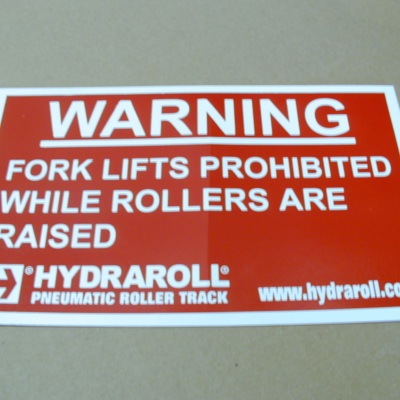

Decal
|

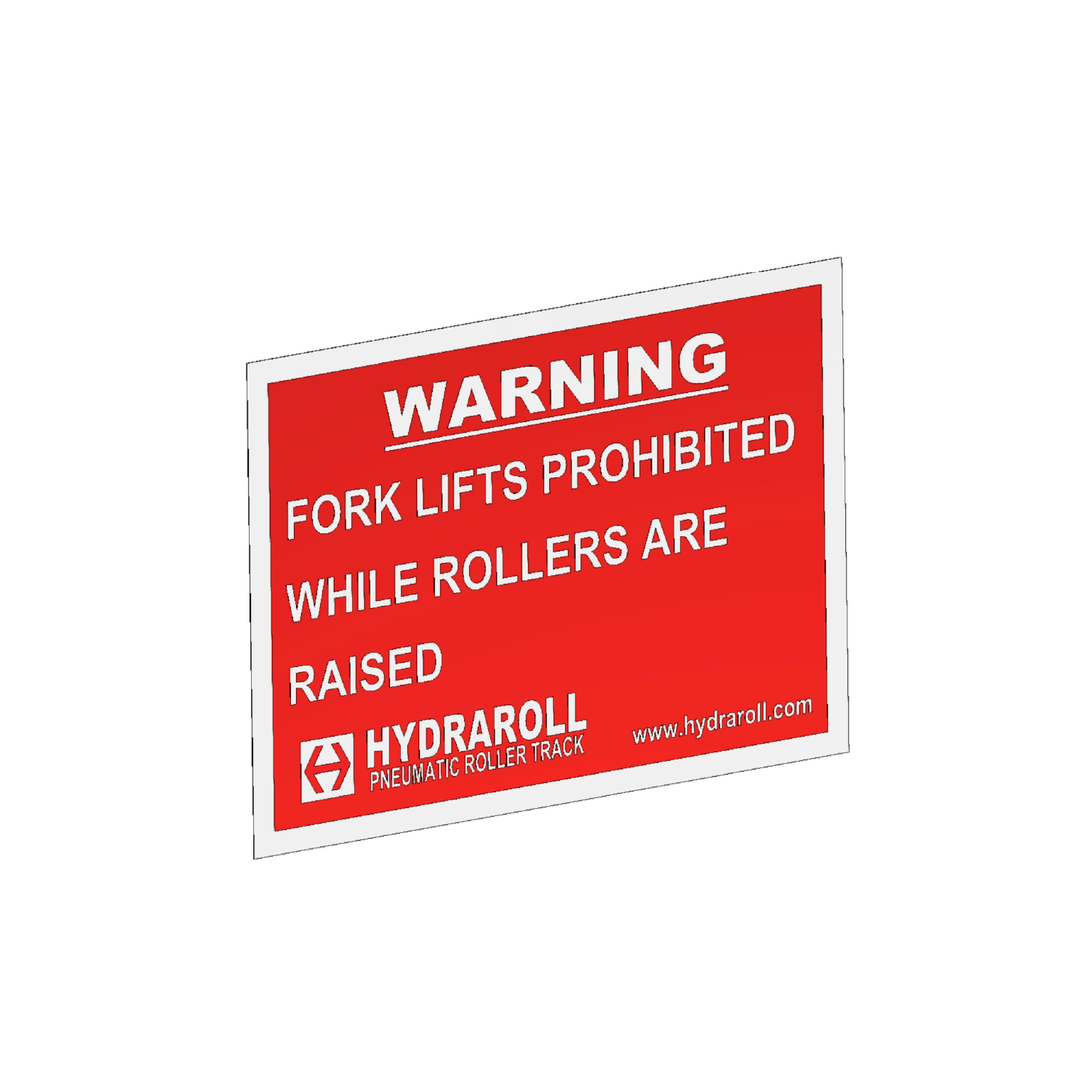

Decal; Warning Fork Lift Prohibited |
715005 |
|
|
|
91 |
|

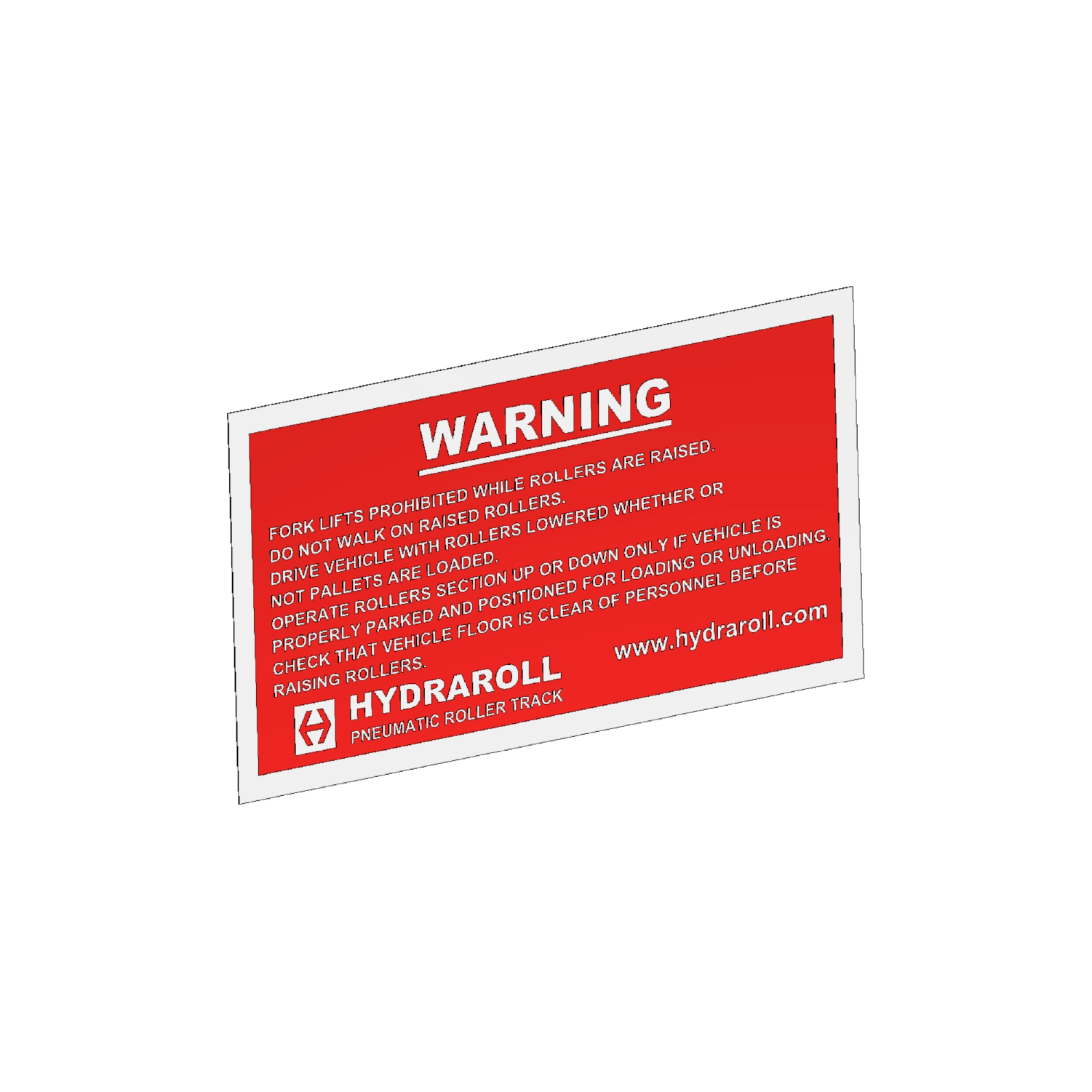

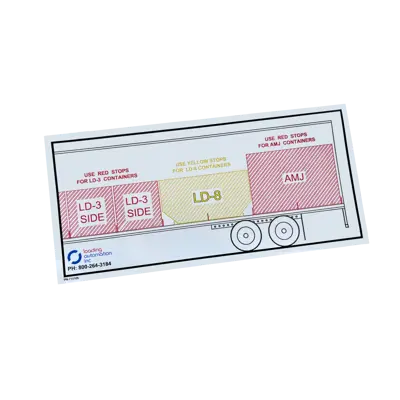

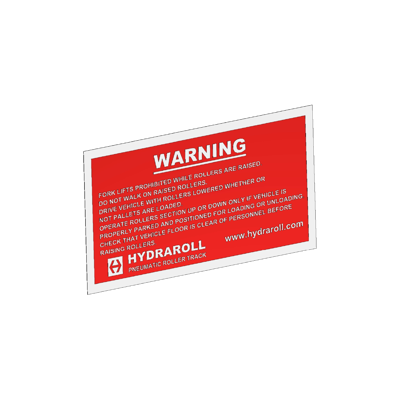

Decal
|

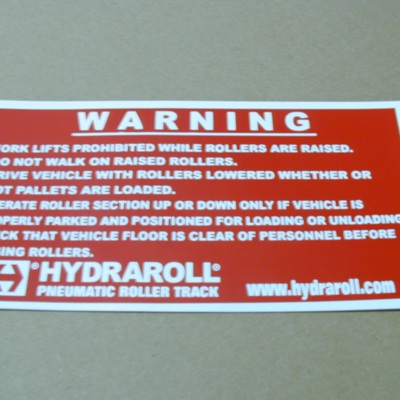

Decal; Warning Safety Operation |
715007 |
|
|
